Wireless RF Remote Control 433Mhz & 2.4GHz WiFi 2-inch Touch Screen for Door Entry Access Control Lock

Wireless RF Remote Control 433Mhz & 2.4GHz WiFi 2-inch Touch Screen for Door Entry Access Control Lock

Describe

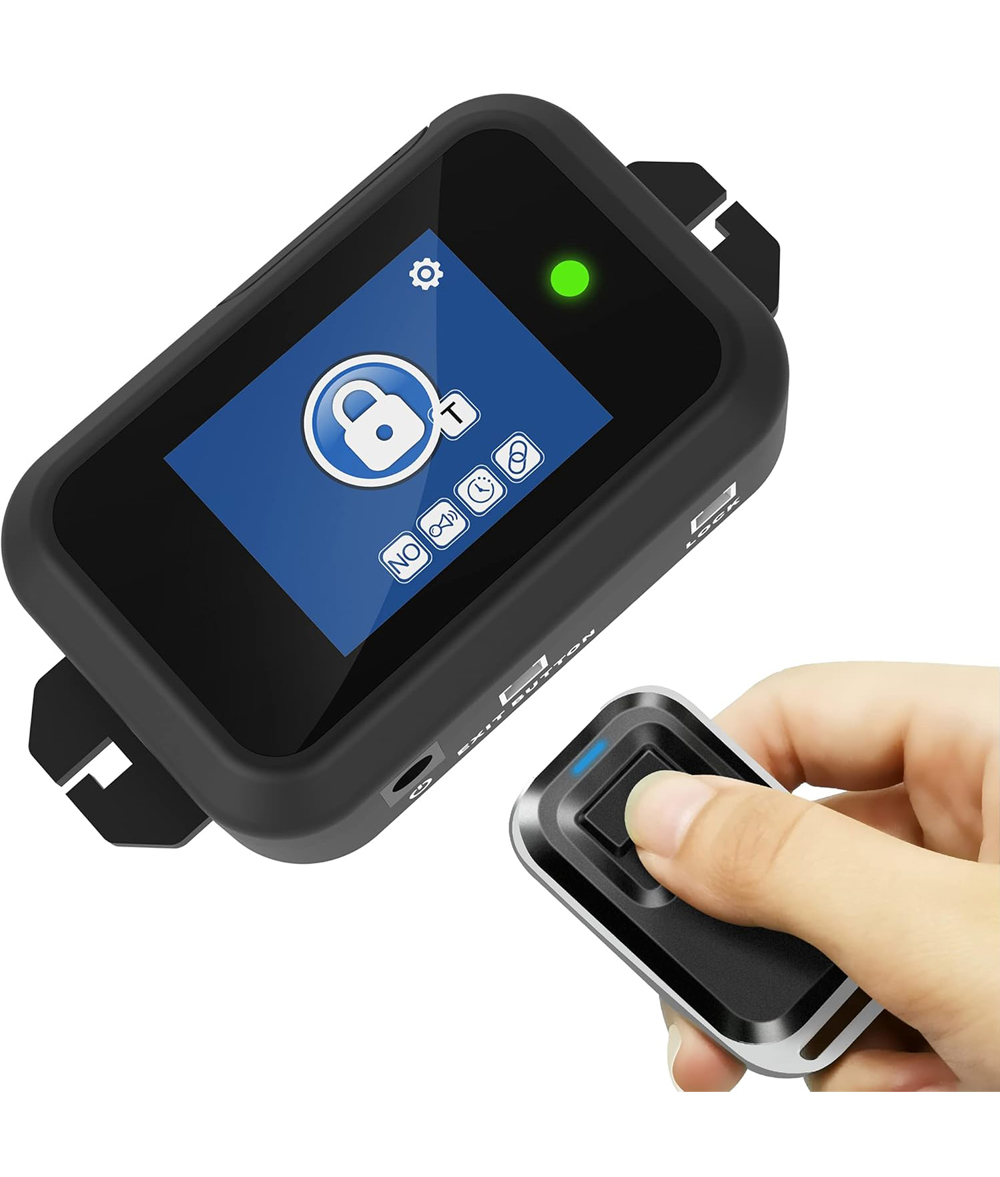

• The main feature of HBK-R04T is it allows you to open the door simply by pressing the wireless remote and smartphone instead of moving to the door physically when someone visits.
• Specialized for the access control system and unable to be applied to other fields.

Features

• Support connecting external access control keypad. (Remark: Access control keypad is excluded.)
• 2″ touch screen to complete all settings, making the operation easier.
• Built-in buzzer makes sound to remind people when the door is locked or unlocked. The buzzer status could be set according to your needs.
• Built-in WiFi module which enables you to remotely control the HBK-R04T via free Tuya Smart APP.

Specifications

Remote Receiver

• Input Voltage: 12VDC
• Output Current: 1A
• Operating Environment: Indoor
• Transmitter Support: Max. 40

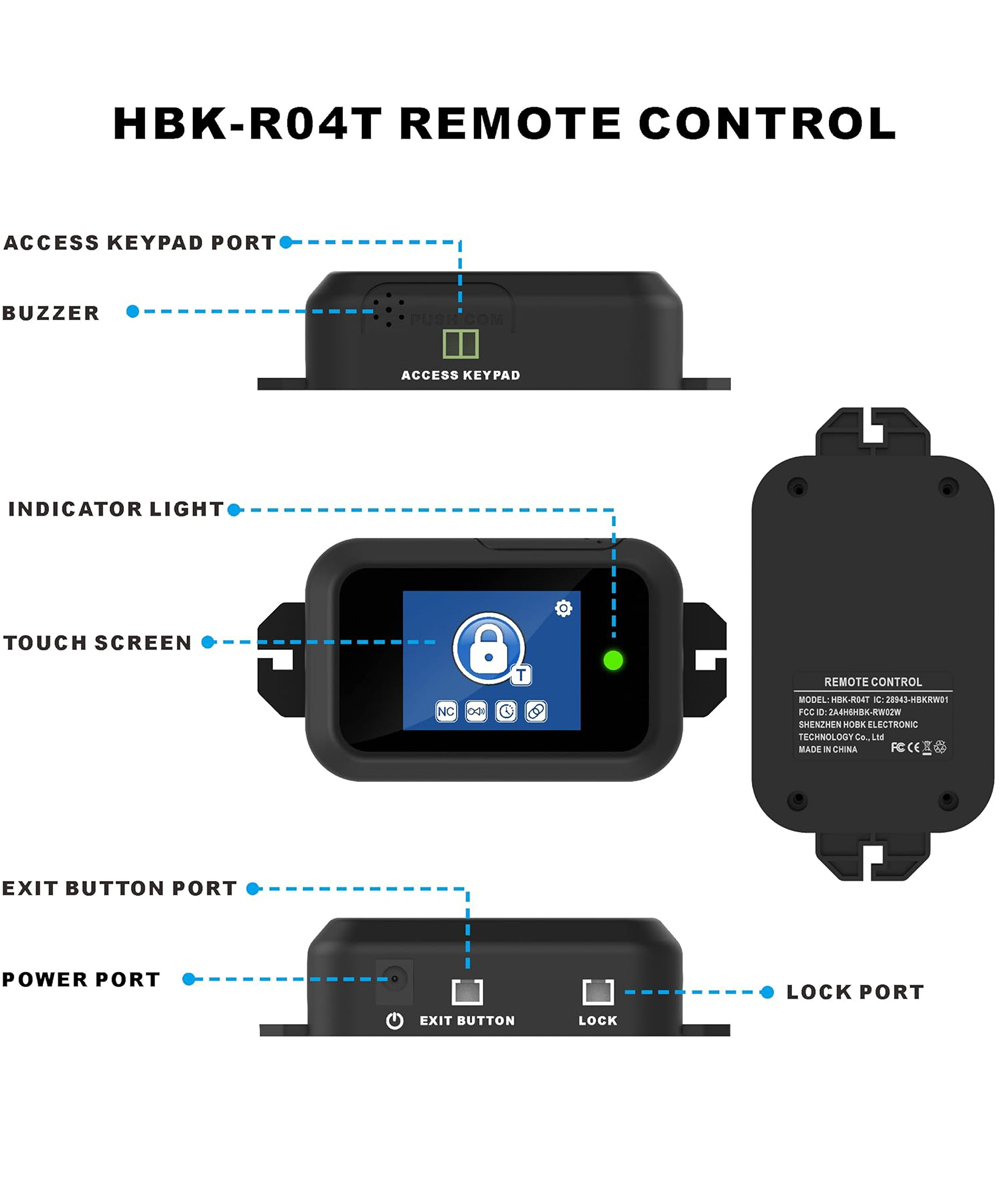

• Lock Output Port: 1
• Exit Button Output Port: 1
• Keypad Connection Port: 1
• Remote Operating Distance: 100 Feet Without Block
• Operating Method: RF Remote and WiFi
• Remote Frequency: 433.92MHz
• WiFi Standard: 2412-2462MHz
• Remote Channel: 1
• Operating Mode: Momentary / Toggle
• Ambient Temperature: 32°F-113°F
• Ambient Humidity: 20%RH-80%RH
• Dimensions: 3-37/64″x 2-21/64″x 1-9/64″ (91x59x29mm)

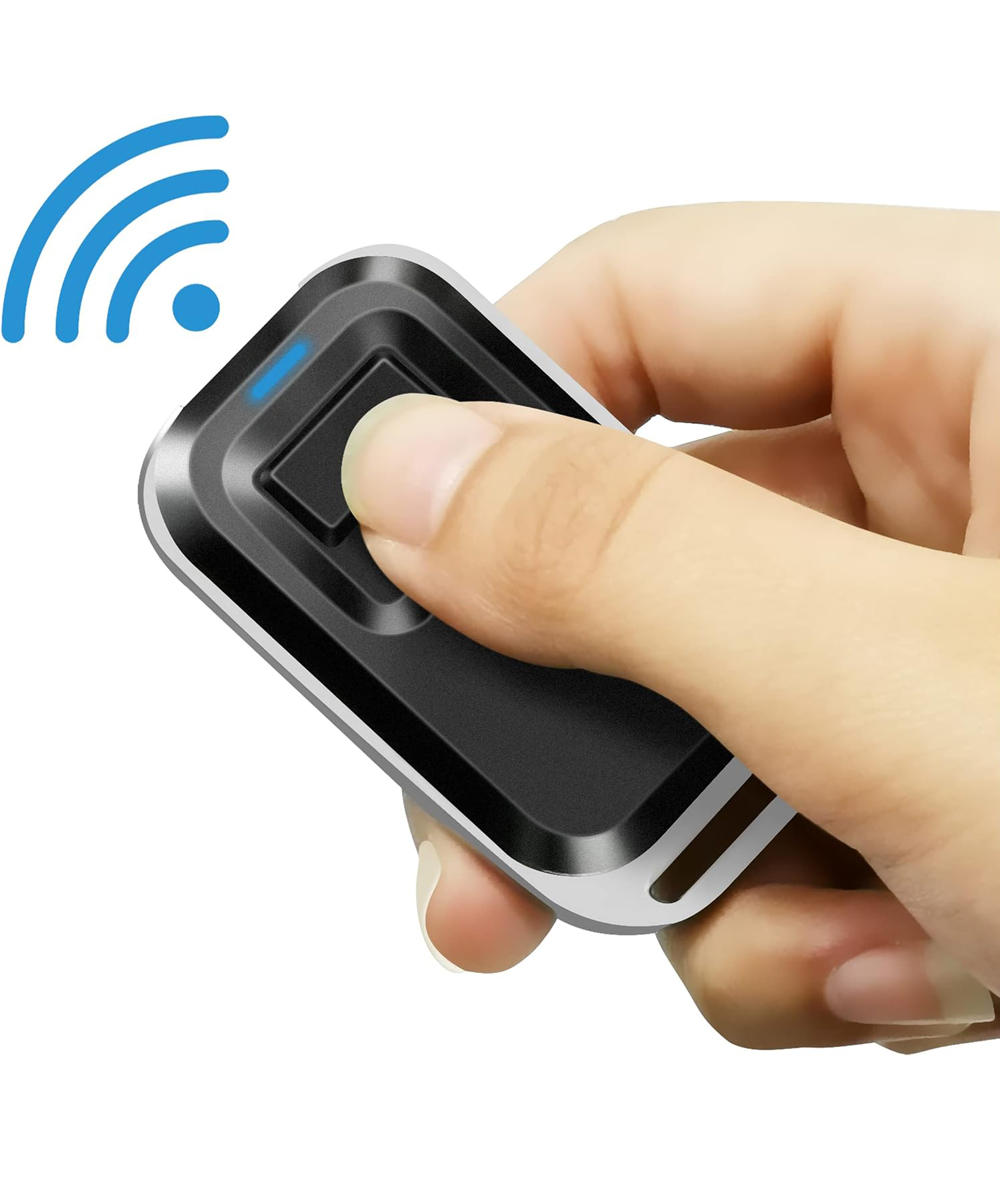

Remote Transmitter

• • Operating Voltage: 6VDC
  • Batteries Type: CR2016 (Built-in)
  • Service Life of the Battery: 50000 cycles tested
  • Transmitting Frequency: 433.92MHZ
  • Button: 1
  • EncodingType: Fixed code
  • Enclosure Material: Plastic
  • Dimension (LxWxH): approx. 2-9/32″x1-19/64″x15/32″ (58x33x12mm)

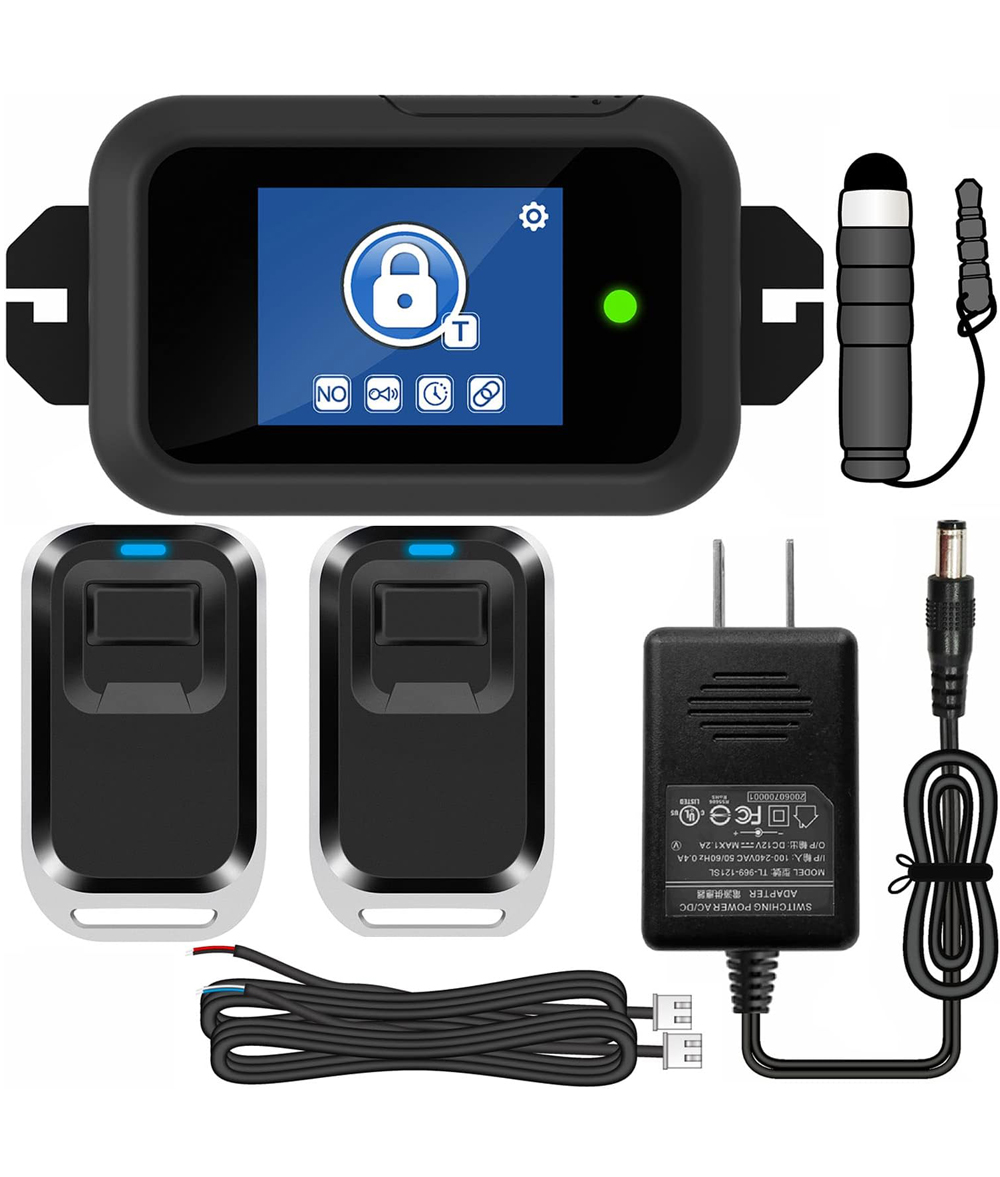

Packing List

• Remote Control x 1
• Transmitter x 2
• Power Adapter x 1
• Connecting Cable x 2
• Stylus Pen x 1
• English User Manual x 1
