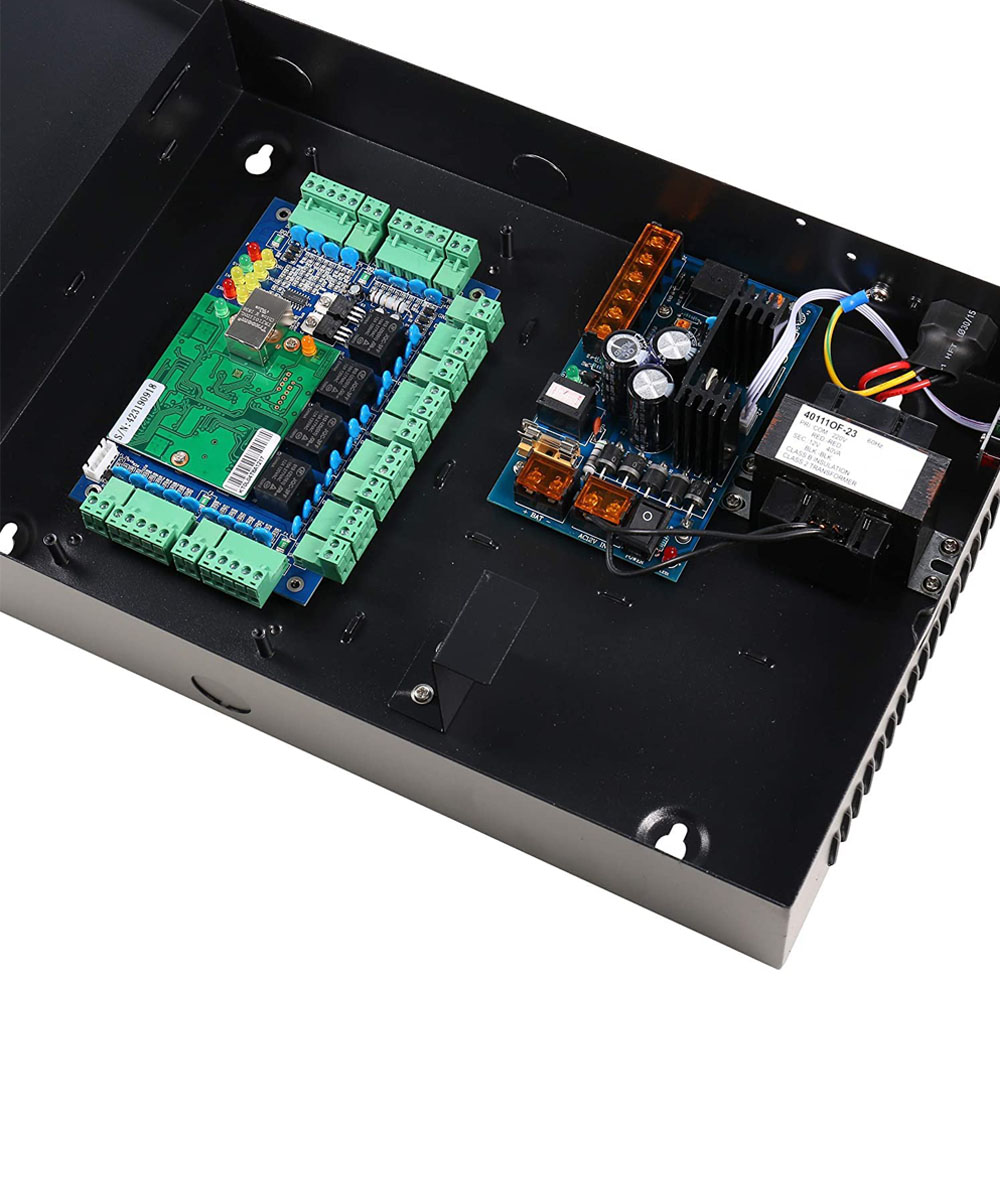

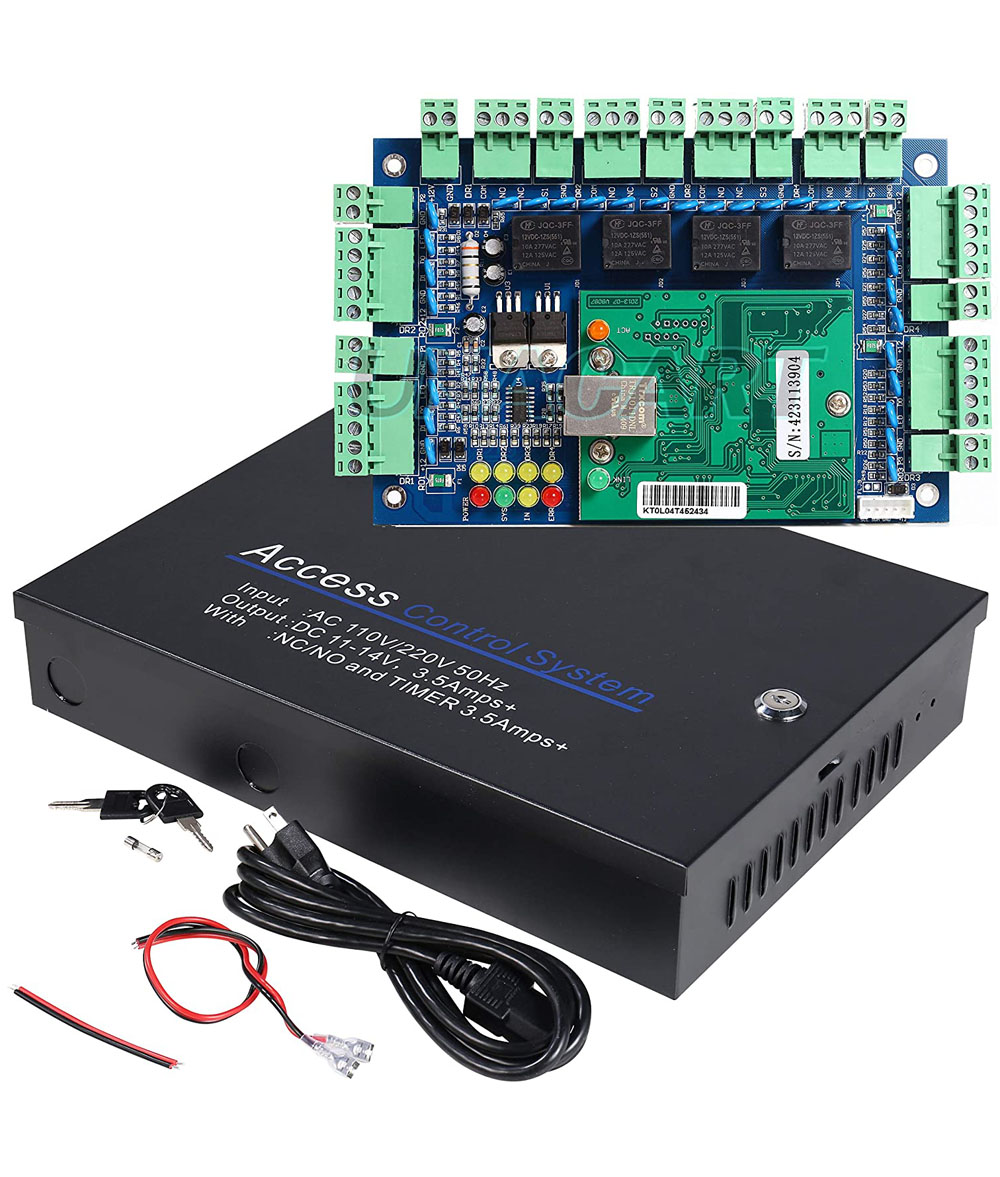

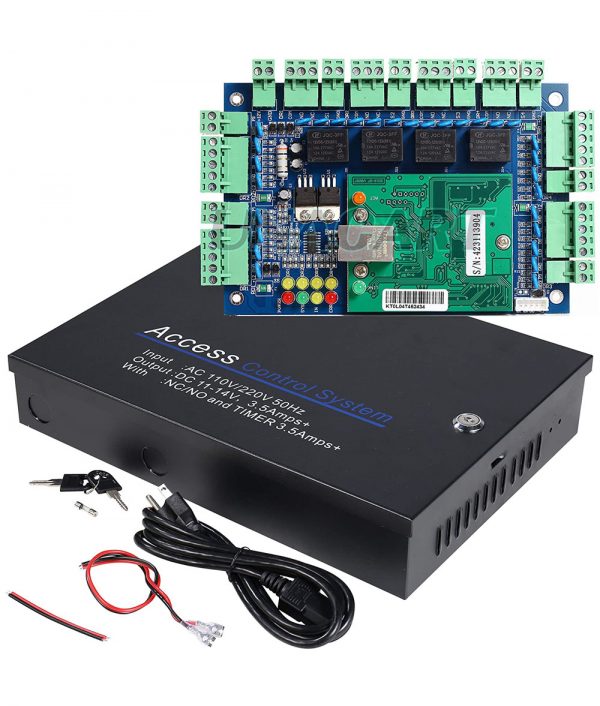

Commercial Grade Four Door Security Access Control Panel Including Power Supply with Backup Battery Link

Commercial Grade Four Door Security Access Control Panel Including Power Supply with Backup Battery Link

Features:

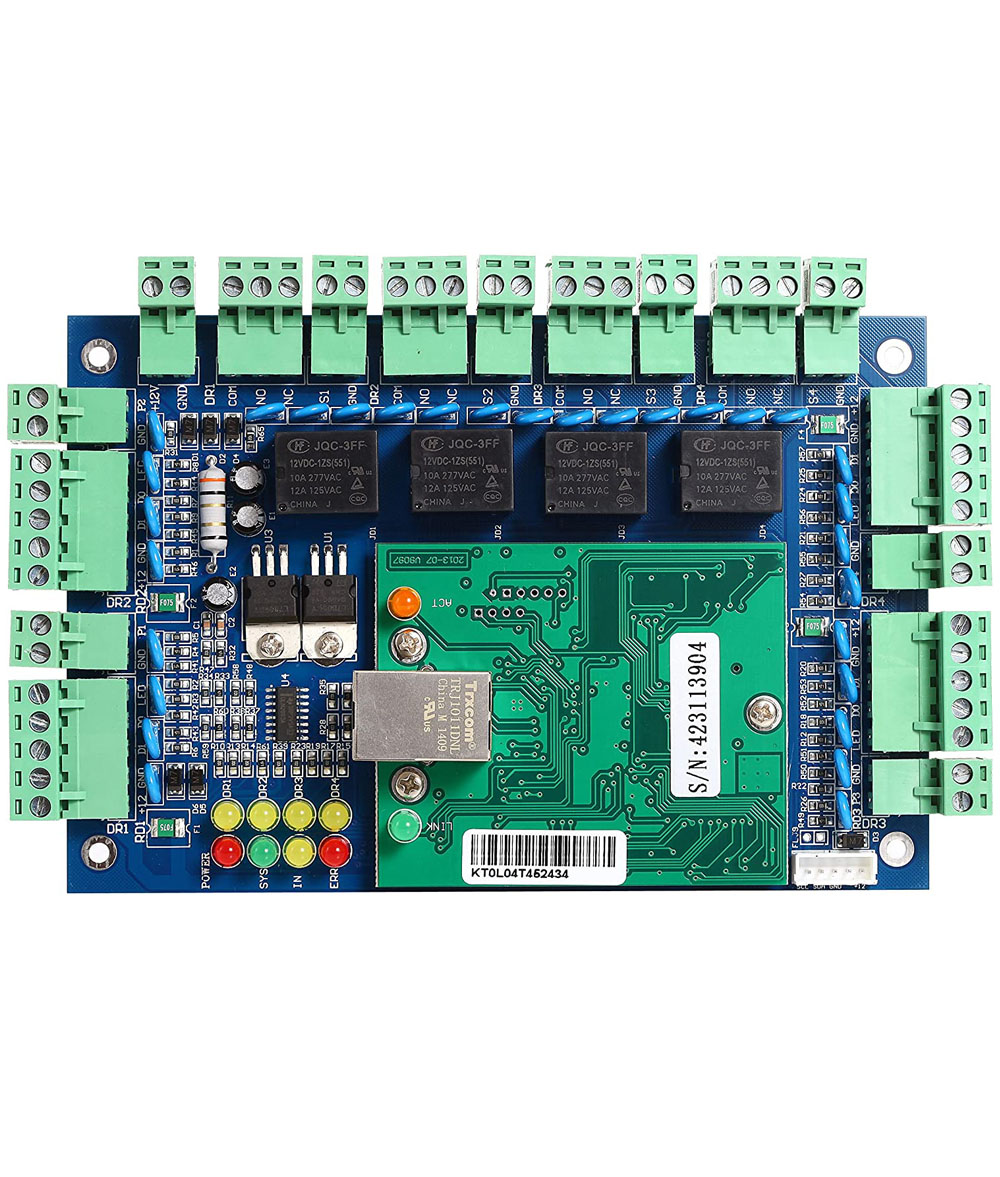

Access Board:

• Communication: TCP/IP
• Software Supportable Database: Access & SQL
• Power Supply Input: DC/12V
• Input Format of Reader: Wiegand 26-40 bit (All 125KHz or 13.56MHz card reader with compatible protocol)
• Quantity of Readers: 4 units
• Door Controlled: 4 door (Get in the door by swiping card, and get out door by button)
• Quantity of Users: 20,000 users
• Quantity of Event Buffers (offline): 100,000 event buffers
• Max Distance from Reader to Controller: 100m/328ft (suggestion distance 80m/262ft)
• Alarm for Long Time Door Open, Unlawful Entry, Intimidate
• Fire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
• Compulsive open and close door at long time: Yes
• Open door in remote distance: Yes
• Inter block: Yes
• Anti pass back and tail: Yes
• Multi card open door: Yes
• Open long time at specified time: Yes
• Urgency locking: Yes
• First card unlocking: Yes
• Note: The operation software of the access control panel can’t support iOS system and it only supports all version of Windows.

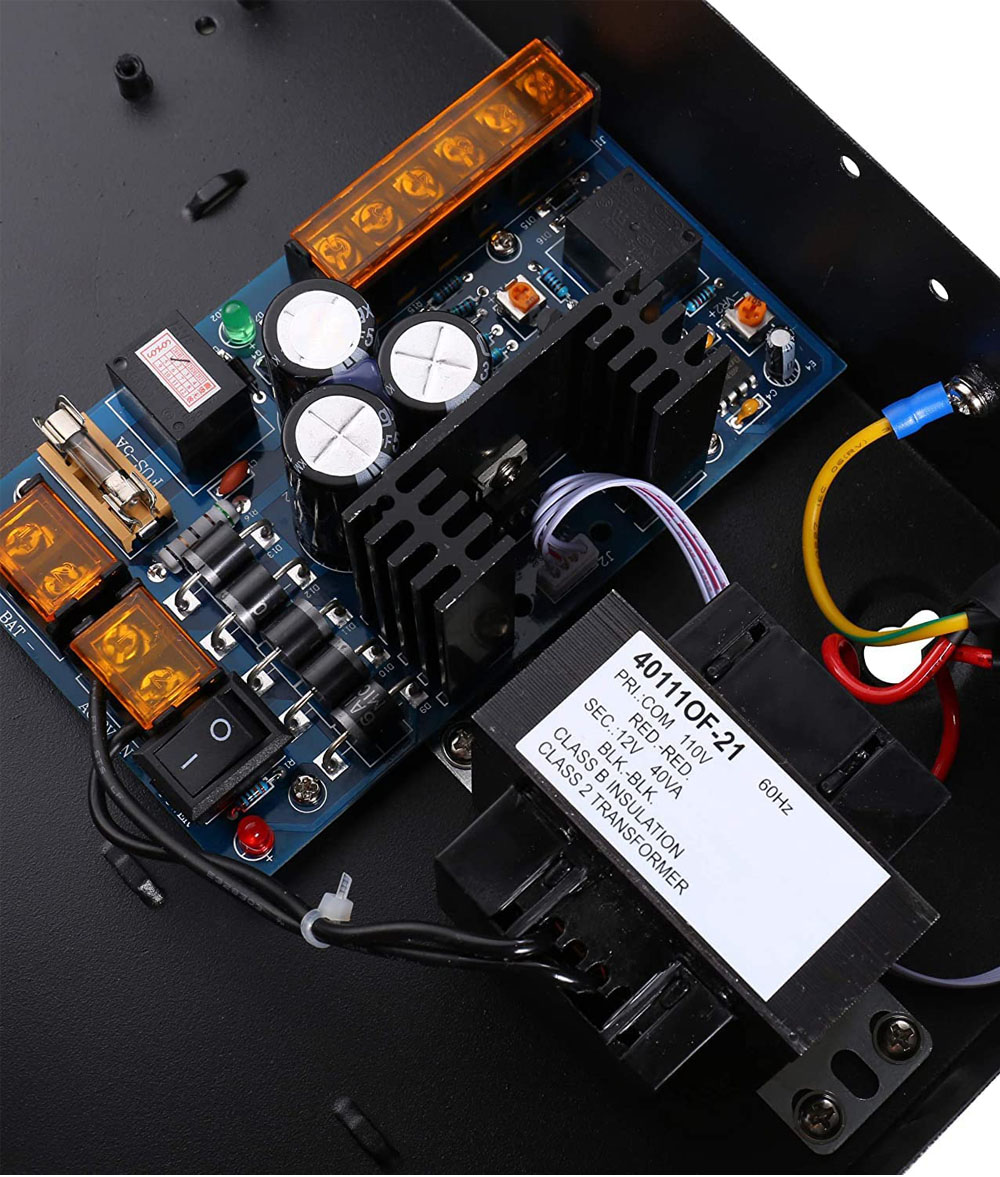

Power Box:

• Built-in reverse surge protection and Short-circuit protection function
• With charge and discharge function,can add a 7AH 12V lead-acid battery,can meet the needs of an electric mortise lock,a card reader and a controller to work 35 hours after power failure (External battery not included)
• Setting automatic protection function, built-in fuse
• Two +12V and two GND terminals

Specifications of Power Box:

• Input: AC110V/60Hz
• Output: DC12V/3.5A
• Power: 40W
• 12V/24V Adjustable Output: No
• Size: 371Lx259Wx78Hmm
• Weight: 3.3Kg / 5.5lb

Wiring:

Package:

• 1 x Access Control Board
• 1 x Power Supply Box
• 1 x CD
