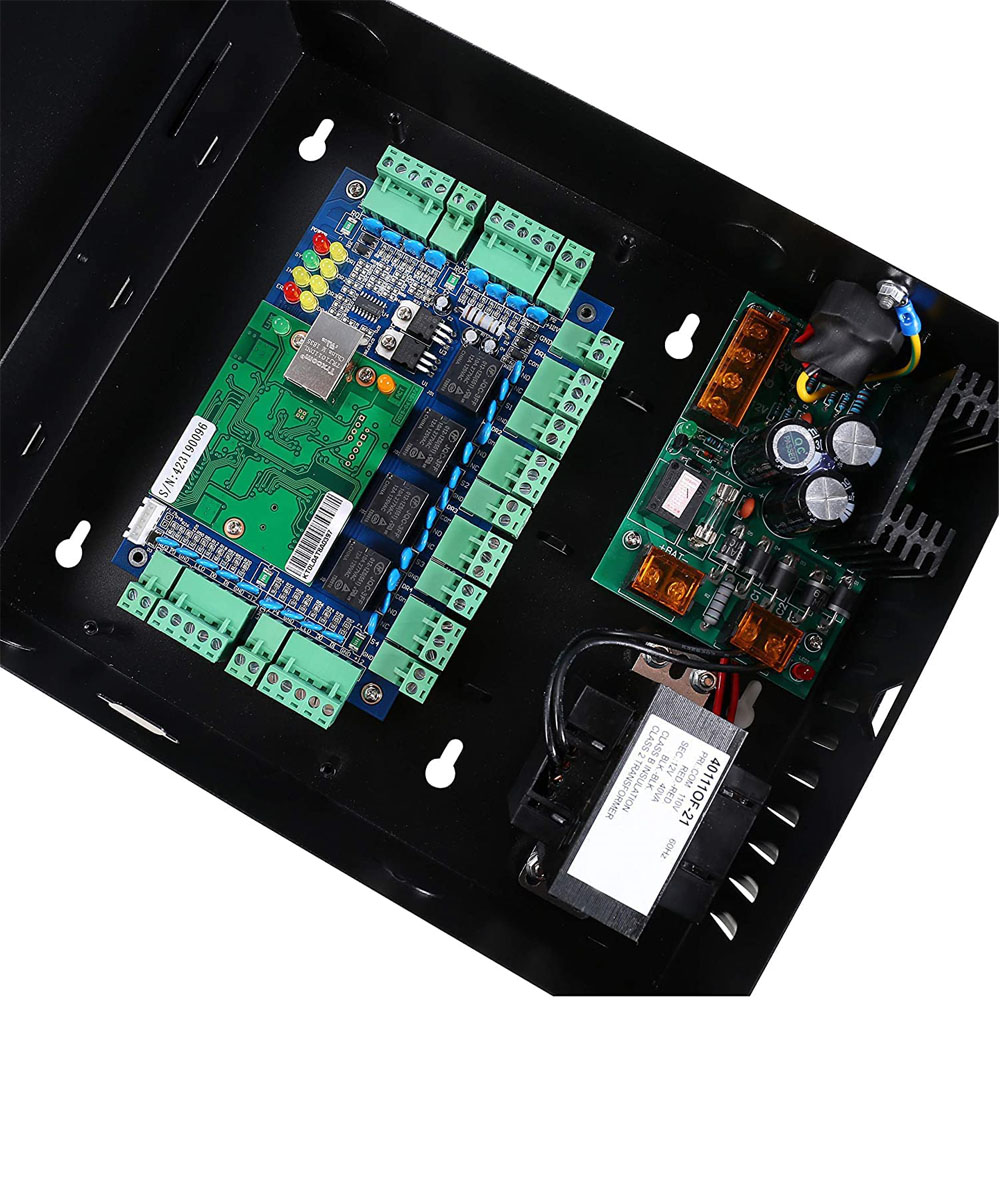

Power Supply Box Input AC220V Output DC12V including Wiegand 26-bit Access Control Board

Power Supply Box Input AC220V Output DC12V including Wiegand 26-bit Access Control Board



Features:

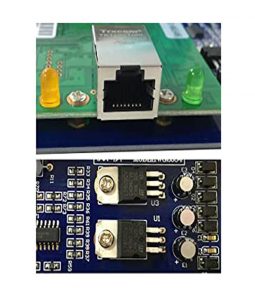

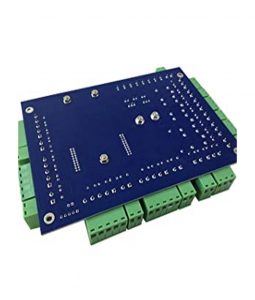

Access Control Board:

• Communication: TCP/IP
• Software Supportable Database: Access & SQL
• Power Supply Input: DC12V
• Input Format of Reader: Wiegand 26-40 bit (All 125KHz or 13.56MHz card reader with compatible protocol)
• Quantity of Readers: 4 units
• Door Controlled: 4 door (get in the door by swiping card, and get out door by button)
• Quantity of Users: 20,000 users
• Quantity of Event Buffers (offline): 100,000 event buffers
• Max Distance from Reader to Controller: 100m (suggestion distance 80m)
• Note: The operation software of the access control panel can’t support iOS system and it only supports all version of Windows.

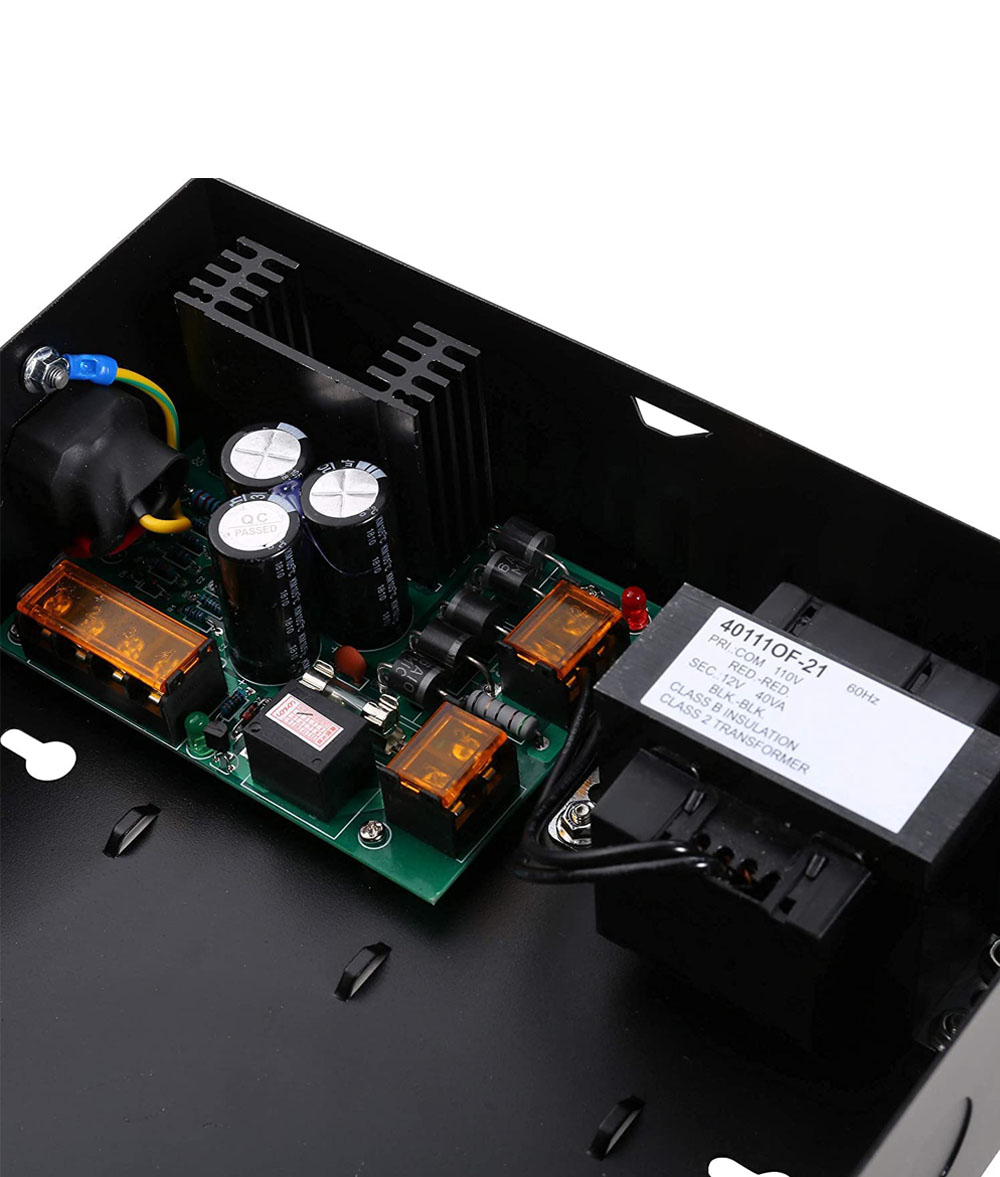

Power Supply Box:

• With charge and discharge function,can add a 7AH 12V DC battery,can meet the needs of an electric mortise lock,a card reader and a controller to work 35 hours after power failure (External battery not included)
• Two +12V and two GND terminals
• Input: AC220V/50Hz
• Output: DC12V/3.5A
• Power: 40W
• Charging Overload: Yes
• 12V/24V Adjustable Output: No
• Size: 11×9.2×2.6inch
• Weight: 2.5Kg

Functions:

Conventional functions:

• Offline operation
• Real time supervision
• Photo display when valid card
• Mass storage
• Flexible user privilege setup
• Remote unlocking
• Multi-user supervision
• Quick setting
• Convenience checking and query.
• Revisable and printable report form
• Report can be exported to excel file
  • • • • • • • • • • Multi ways access
                    • Alarm for long time opening
                    • Alarm for invalid card swiping
                    • Alarm for unlawful entry
                    • Unlocking at definite time
                    • e-map

Professional functions:

• Interface locking
• Intimidation alarm
• Integrated fire control
• Anti passback and anti tail
• Interlocking
• Multi-card unlocking
• Emergency double locking
• Indoor population checking
• Unlocking based on internal and external validation

Wiring:

This demo for fail safe lock. Need connect to NO port of controller if the lock is fail secure.

Wiring Video:

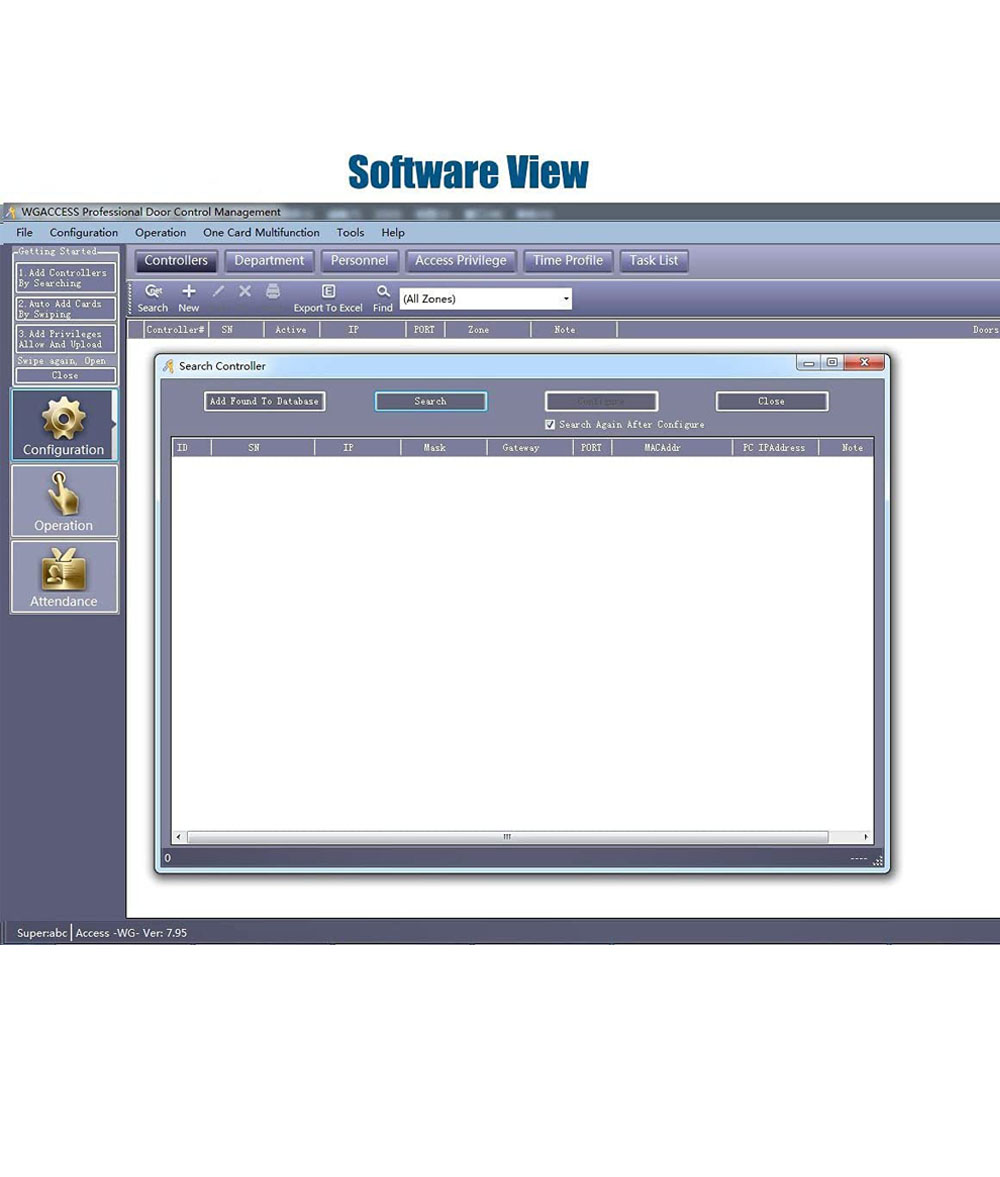

Software:



Easy of Management:

• All access devices support a mixed installation.
• With the support and attendance software, on-line patrol function Support multi-user multi-mashing management and monitoring in real-time

Support Smart Phone App Control:

• When add controller for the smart phone, to ensure that the WIFI of mobile phone and the network of controller are in the same LAN.





Package:

• 1 x Access Control Board
• 1 x Metal Power Box
• 1 x Software CD
