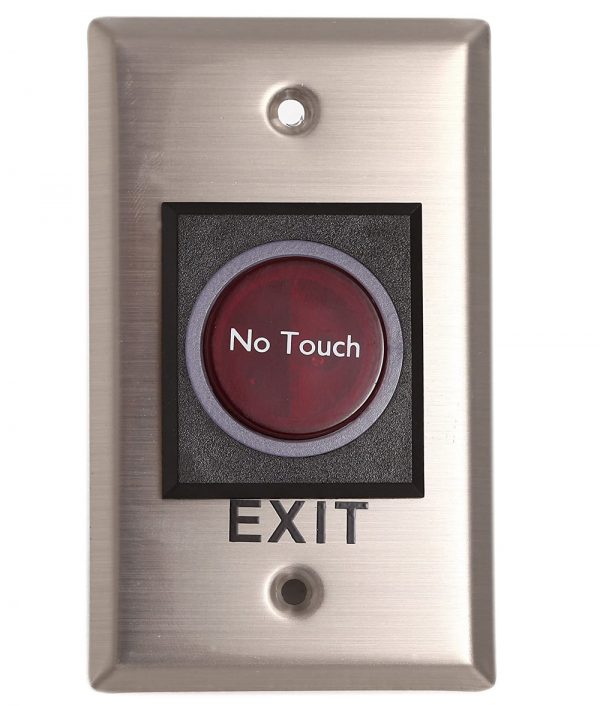

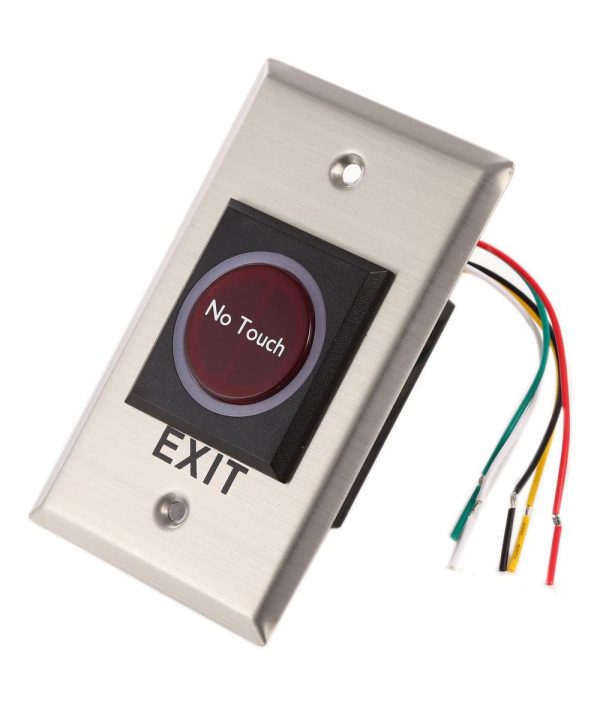

Infrared NO Touch Exit Button W/LED Back Light for Access Control Rectangular Type

Infrared NO Touch Exit Button W/LED Back Light for Access Control Rectangular Type

Features:

• No touch / Touch free Exit Sensor (Diffused Detection)
• Optical / Infrared Technology
• IP-55 Ingress Protection / Stainless steel Plate
• User friendly (Healthy protection)
• Free from contagious diseases spread
• Detection range: 0.1-10 cm / 0.04-3.94in
• Application: Gate/Door/Exit/Automation control
• High capacity of relay dry contact
• Normal open (NO) / Normal close (NC) / Common relay output
• Twin led indicators for sensor standby (BLUE LED) or approached (RED LED)
• LED indication.Stainless steel plate, very durable to use
• The switch responds agilely and quickly. IP-55 industrial protection level
• Suitable for doors, gates, or other exit automation control systems

Specifications:

• Contact Rating: 3A/AC120V, DC30V
• Input Voltage: DC12V
• Operation temperature range: -20℃-55℃ / -4℉~131℉
• Life: 500,000 Times
• Dimension: 115x70x29mm / 4.53×2.76×1.14in
• Weight: 85g / 0.19lb

Package:

• 1 x Release Button Switch (Rectangular type)

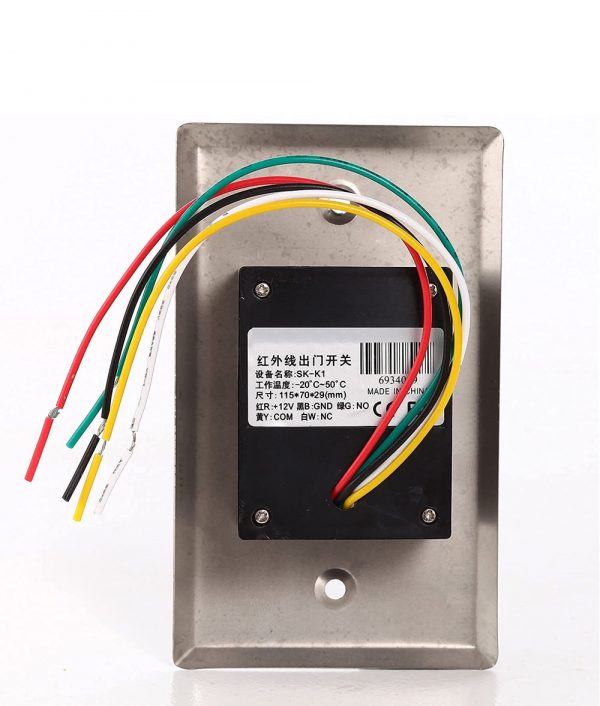

• 1 x 5 pin cables
