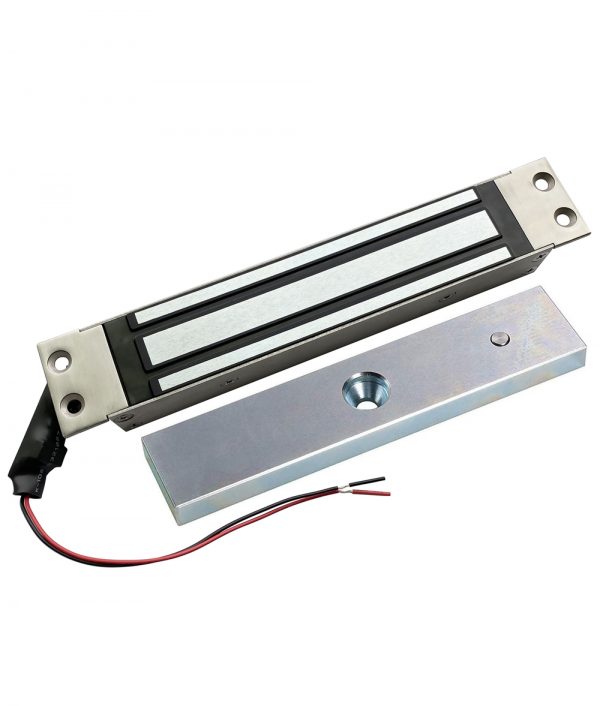

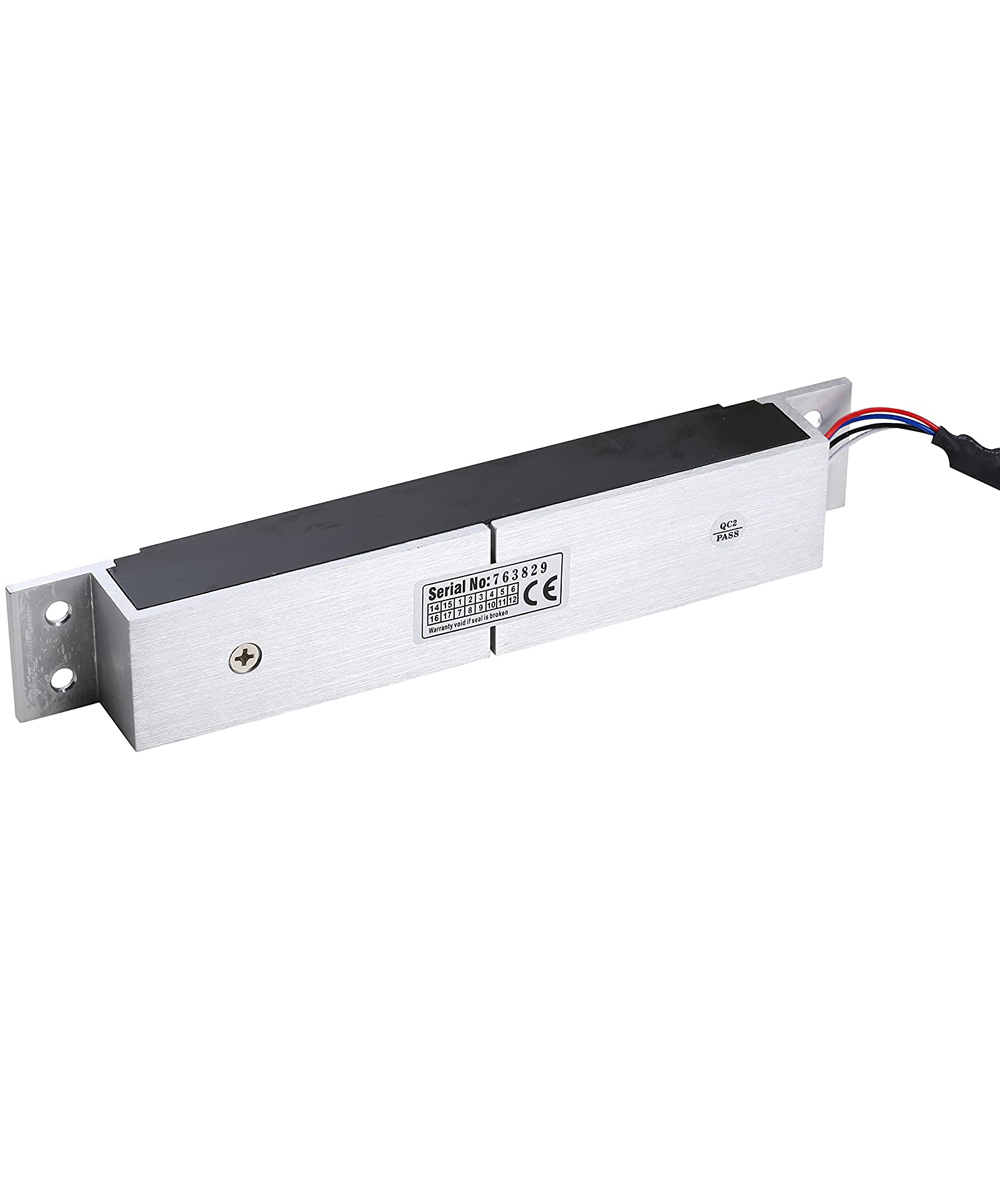

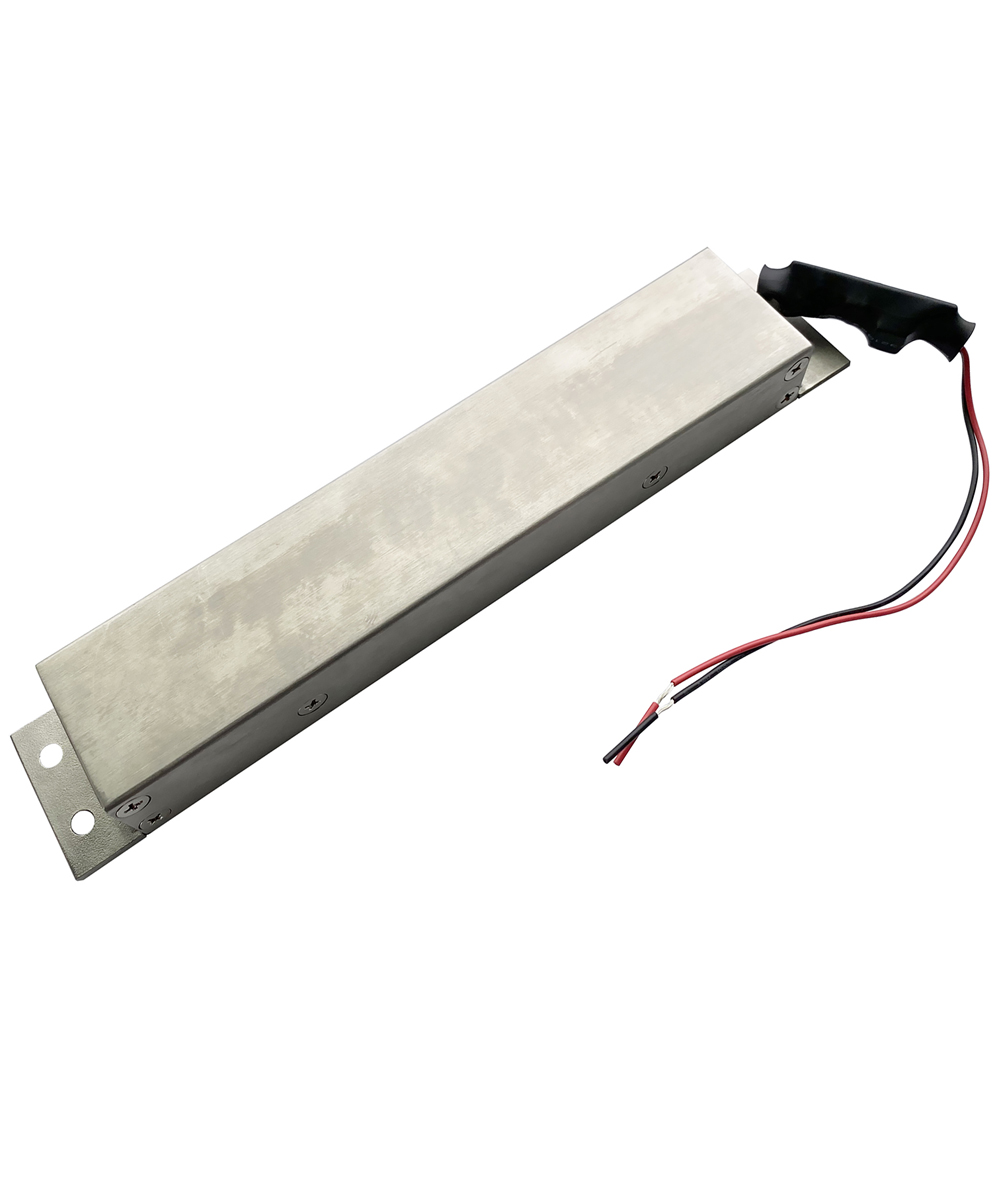

600lbs Holding Force Mortise Mount Electric Magnetic Lock for Sliding Door

600lbs Holding Force Mortise Mount Electric Magnetic Lock for Sliding Door

Features:

• NC mode – (locked while supplied with power), fail safe mode
• Safety function: Built-in voltage spike suppressor
• Material: Stainless steel

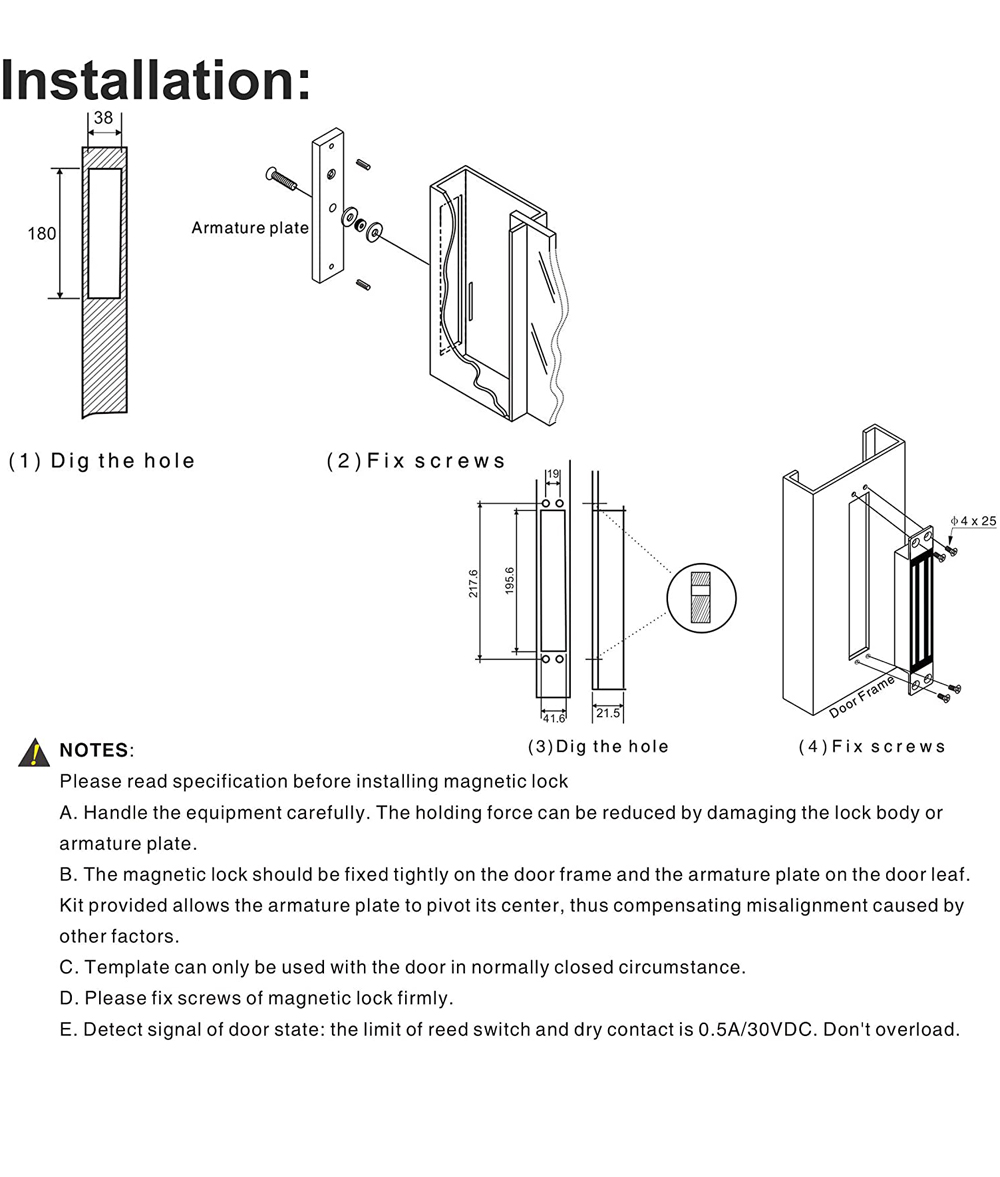

• Installation type: Mortise mount
• Collinear Load Test 280kg / 600lb
• Dual Voltage 12 or 24 VDC(optional)
• The Standard Voltage is 12VDC when Finished
• MOV Provides Reverse Current Protection
• Anti-Residual Magnetism Designed
• High Strength Material,Anodized Aluminum Housing
• Design without Mechanical Failure
• Increase the holding Force,Dual Insulative Housing

Specifications:

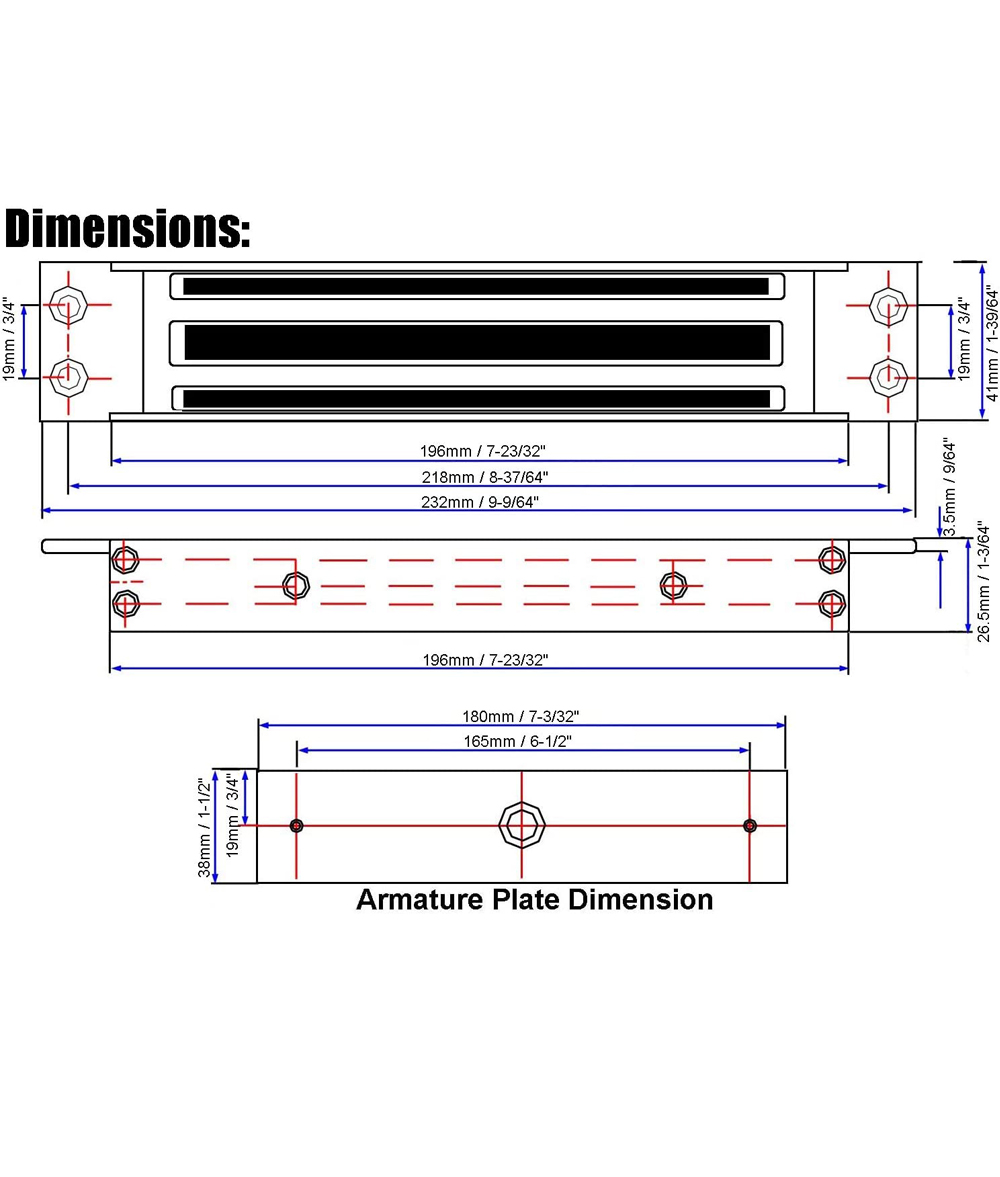

• Main Body Size: – Approx. 232Lx41Wx25.5H(mm) / – Approx. 9-9/64″x1-39/64″x1″
• Armature Plate Dimension: 180Lx38Wx11H(mm) / 7-3/32″x1-1/2″x7/16″
• Holding Force: 280kg / 600Lbs
• Input Voltage: 12 or 24VDC
• Current Draw: 12V/500mA or 24V/250mA
• Suitable: Wooden door,Glass door,Metal door,Fireproof door
• Surface Temp: Lesss than +20℃ / 68℉
• Operating Temp: -10℃~+55℃(14℉~131℉)
• Humidity: 0~90%(non-condensing)
• Cover Finish: Anodized aluminum
• Lock Finish: Zinc
• Armature Plate Finish: Zinc
• Weight: 2.1KG / 4.63lb

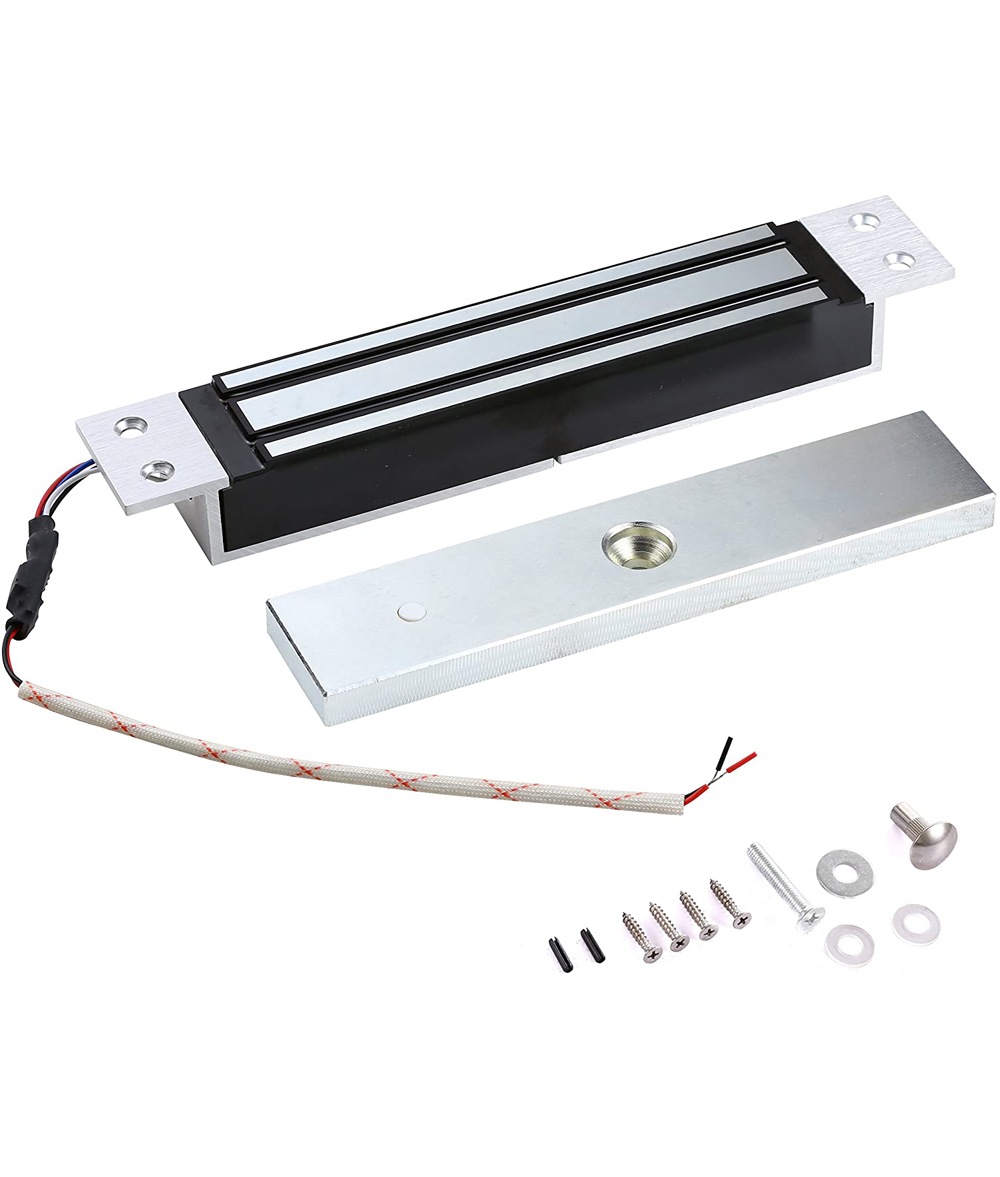

Package:

• 1 x Electric Magnetic Lock
• 1 x User manual
• 1 x Installation Kit
