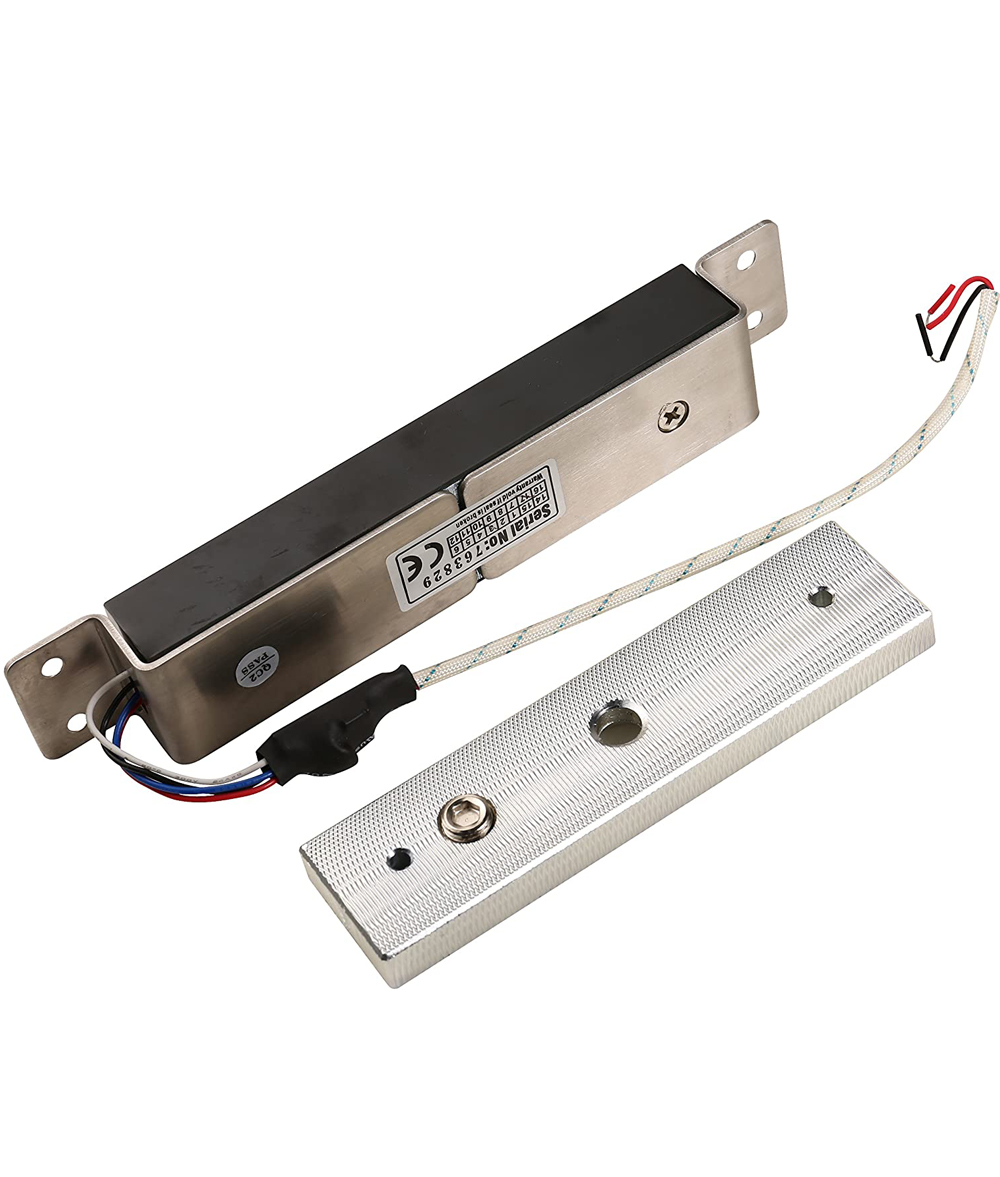

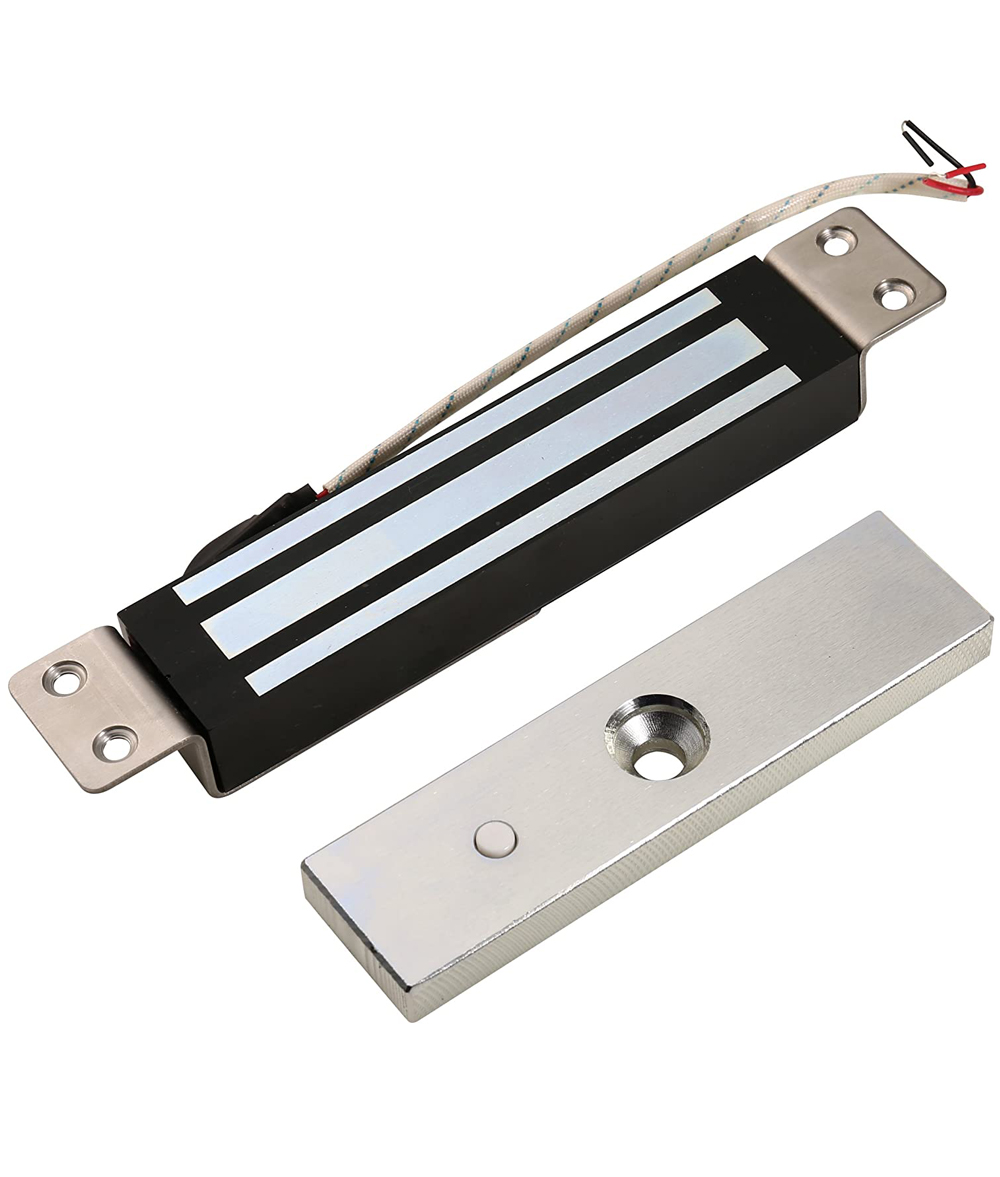

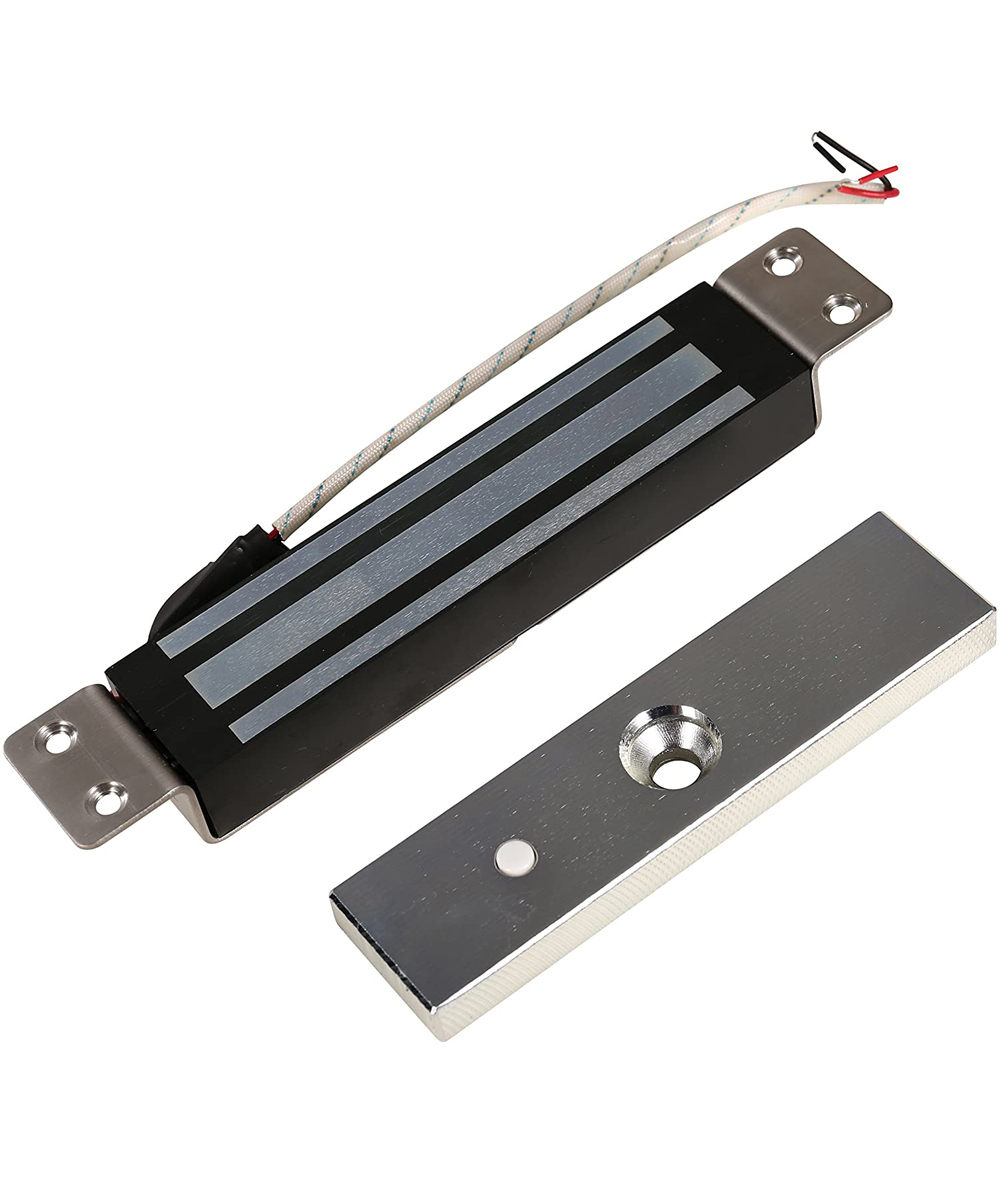

Conceal Mortise Mount 180KG 350Lbs Electric Magnetic Lock for Access Door

Conceal Mortise Mount 180KG 350Lbs Electric Magnetic Lock for Access Door

Features:

• Operating Mode: NC (locked while supplied with power), fail safe mode
• Collinear Load Test 180kg / 350lb
• Dual Voltage 12 or 24 VDC(optional)
• The Standard Voltage is 12VDC when Finished
• MOV Provides Reverse Current Protection
• Anti-Residual Magnetism Designed
• High Strength Material,Anodized Aluminum Housing
• Design without Mechanical Failure
• Increase the holding Force,Dual Insulative Housing
• Safety function: Built-in voltage spike suppressor
• Installation type: Concel mounted

Specifications:

• Size (LxWxH): 190x32x22.5(mm) / 7-31/64″x1-17/64″x57/64″
• Armature Plate Dimension (LxWxH): 130x32x10(mm) / 5-1/8″x1-17/64″x25/64″
• Holding Force: 180kg / 350Lbs
• Input Voltage: 12 or 24VDC
• Current: 12V/300mA or 24V/150mA
• Suitable: Wooden door , Glass door, Metal door , Fireproof door
• Surface Temp: Less than +20℃ / 68℉
• Operating Temp: -10℃~+55℃(14℉~131℉)
• Humidity: 0~90%(non-condensing)
• Cover Finish: Anodized aluminum
• Lock Finish: Zinc
• Armature Plate Finish: Zinc
• Weight: 1.2kg / 2.65lb

Package:

• 1 x Electric Magnetic Lock
• 1 x User manual
• 1 x Installation Kit
