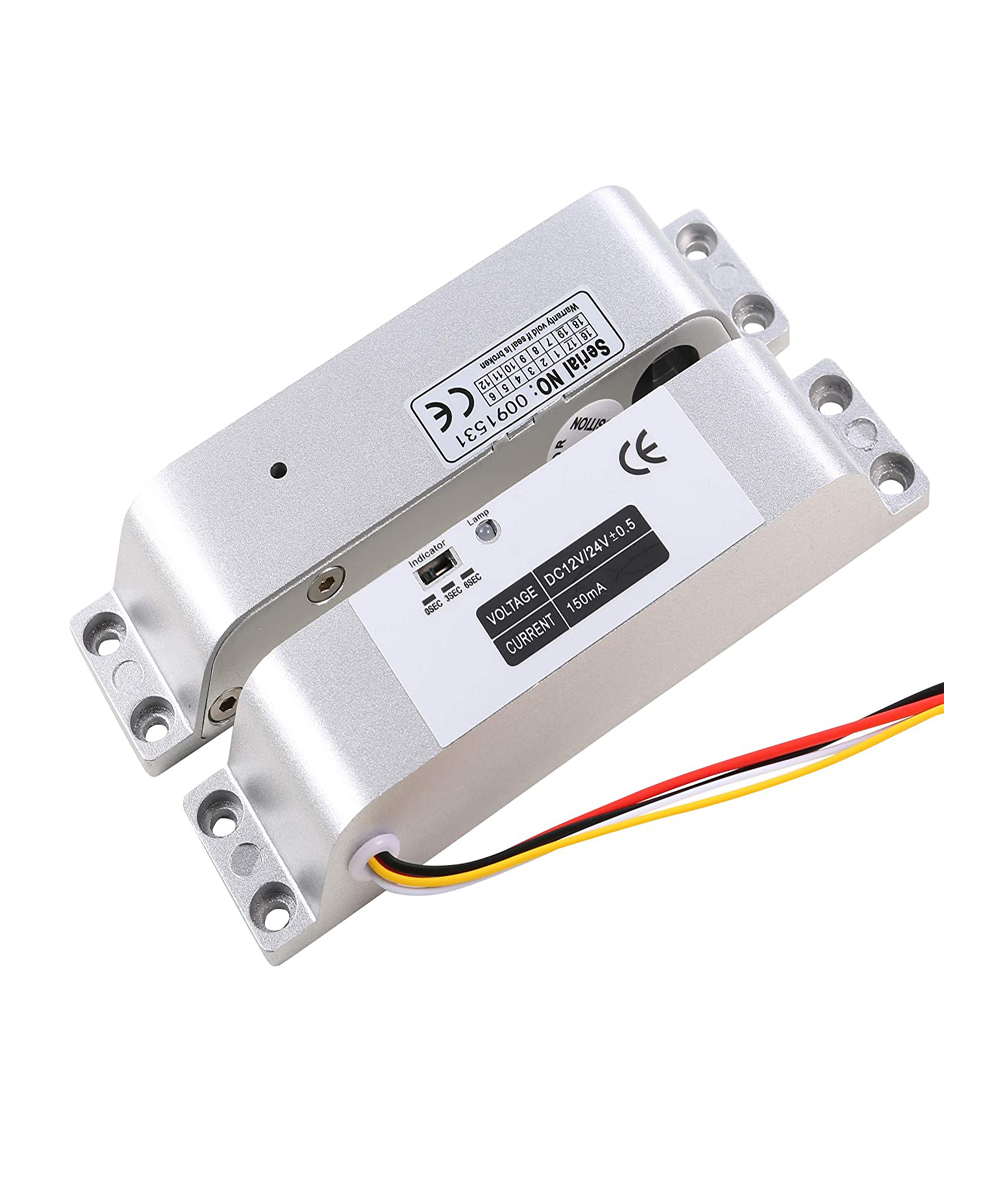

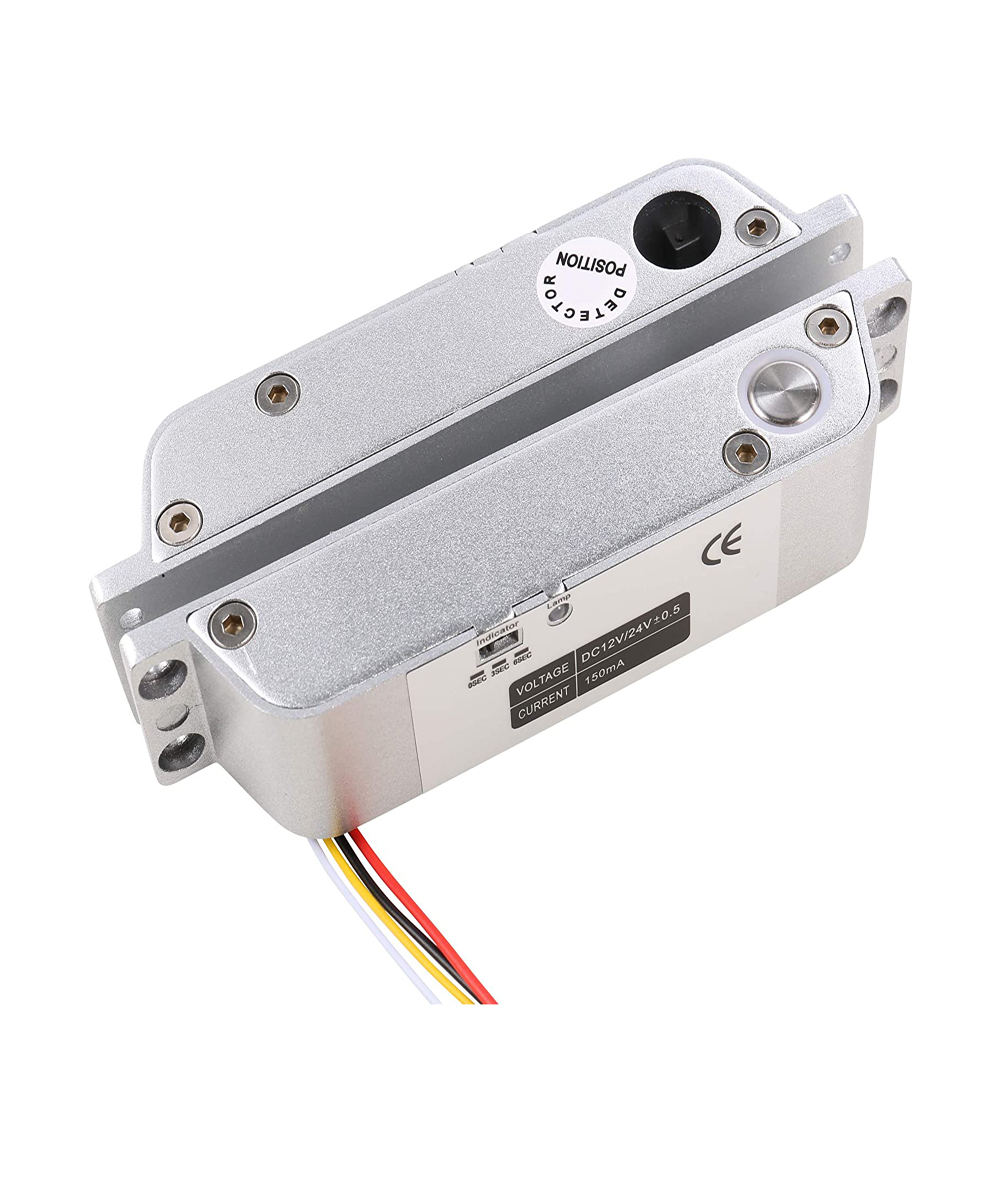

Fail-Safe Electric Drop Bolt Lock for Narrow Door Access Control System

Fail-Safe Electric Drop Bolt Lock for Narrow Door Access Control System

Features:

• Working Voltage: 12V/24V DC
• Working Current: Start state 1.2A; Persistent state 120mA
• NC mode – (locked while supplied with power), fail safe mode
• Wires: Red to “NC”, black to “GND”. Yellow line and white line are useless, don’t need to be connected
• Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.

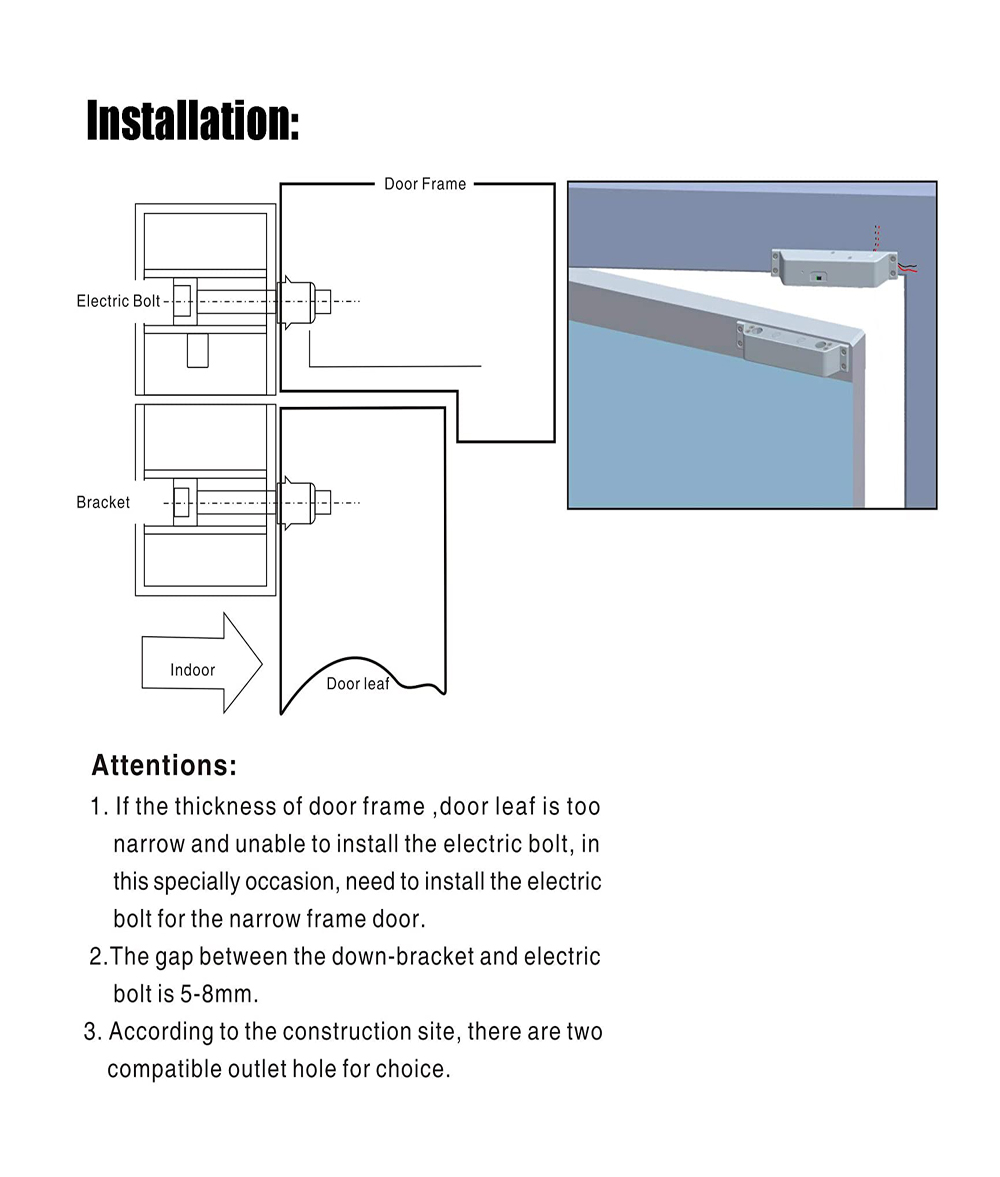

• Installation: Unfold install (surface mounted)
• Material: Aluminum alloy material
• Time delay: 0/3/6SEC
• Surface scrub treatment, durable and wear-resistant
• Lock body use hexagon screw, fixed panel, anti-theft and more security
• Coil type: Continuous working
• Locking mode: Magnetic induction

Specifications:

• Dimensions: 150x34x28mm
• Lock Core: The diameter is 12.5MM, extending the length of 15MM
• Working Voltage: 12VDC
• Working current: Start-up 1.2A Persistent state 120mA
• Operating Mode: NC (locked while supplied with power), fail safe mode
• Wires: red to “NC”, black to “GND”.
• Warm Note: yellow line and white line are useless, don’t need to be connected.

Package:

• 1 x Electri bolt lock
• 1 x Bag of installation kit
• 1 x Manual (English)
