ANSI Standard Heavy Duty Electric Strike Lock Fail-Secure or Fail-Safe Adjustable for Access Control Cylindrical Locksets (Input Voltage 12VDC)

ANSI Standard Heavy Duty Electric Strike Lock Fail-Secure or Fail-Safe Adjustable for Access Control Cylindrical Locksets (Input Voltage 12VDC)

Features:

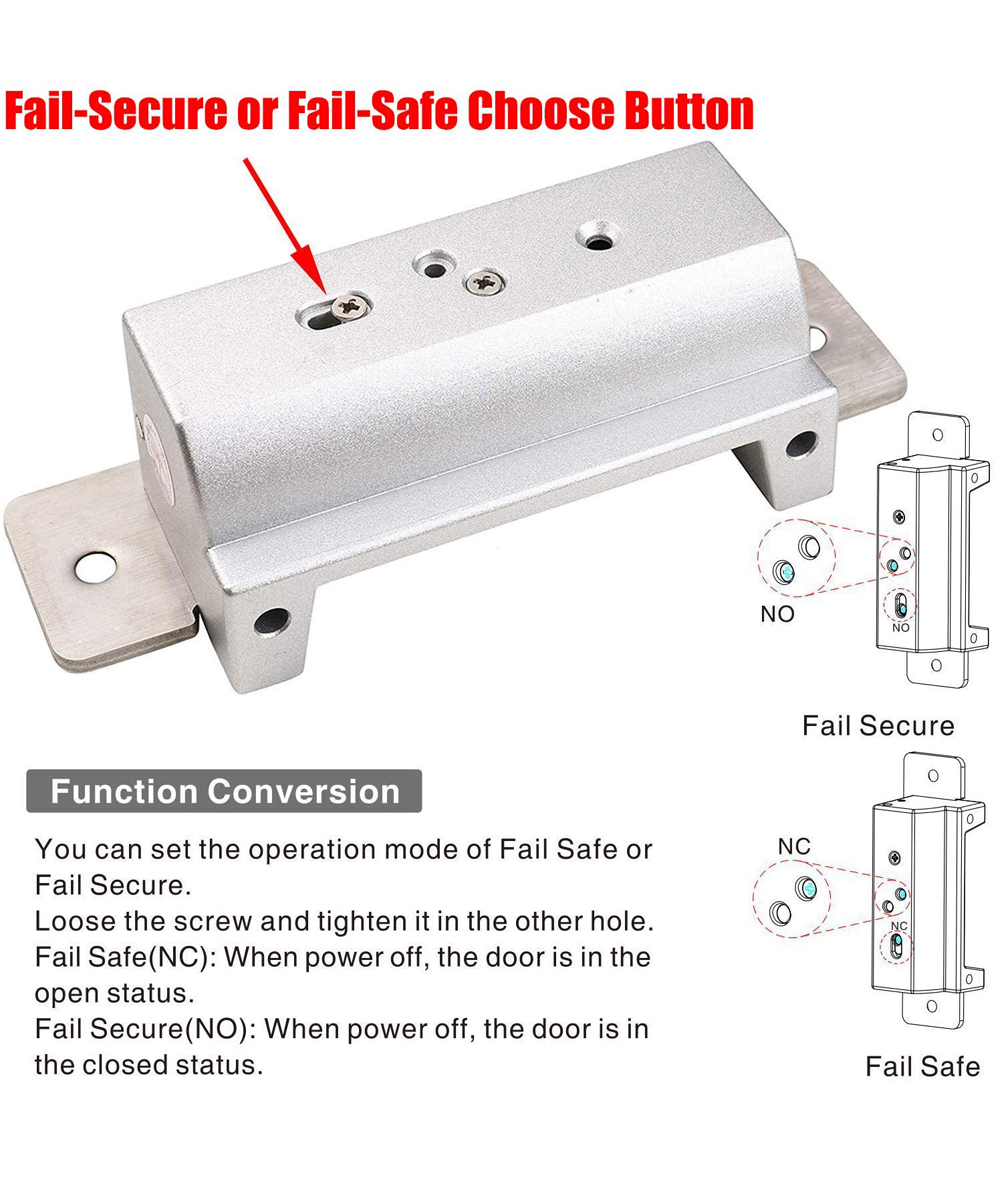

• Field-selectable for fail-safe or fail-secure operation on the back
• 2,200-lb (1000kg) Jaw strength, Tested to 500,000 cycles
• Complete mounting hardware included, Screw terminals for ease of wiring
• This Eelectric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system
• Can be used with virtually any cylindrical door locking system
• Reversible non-handed design fits either right hand or left-handed doors
• Shallow design for use with most metal doors
• Powered by a solenoid, not a buzzer coil
• Stainless-steel keeper for strength and long life
• Door indoor use only
• Special design,easy to adjust the distance of the Lock-tongue
• Testing to 1000000 cycles
• High-Temperature Painted, Durable and Beautiful Article
• Designed for Metal Frame drill a hole,then install it directly

Specifications:

• Input Voltage: 12VDC; Current: 220mA

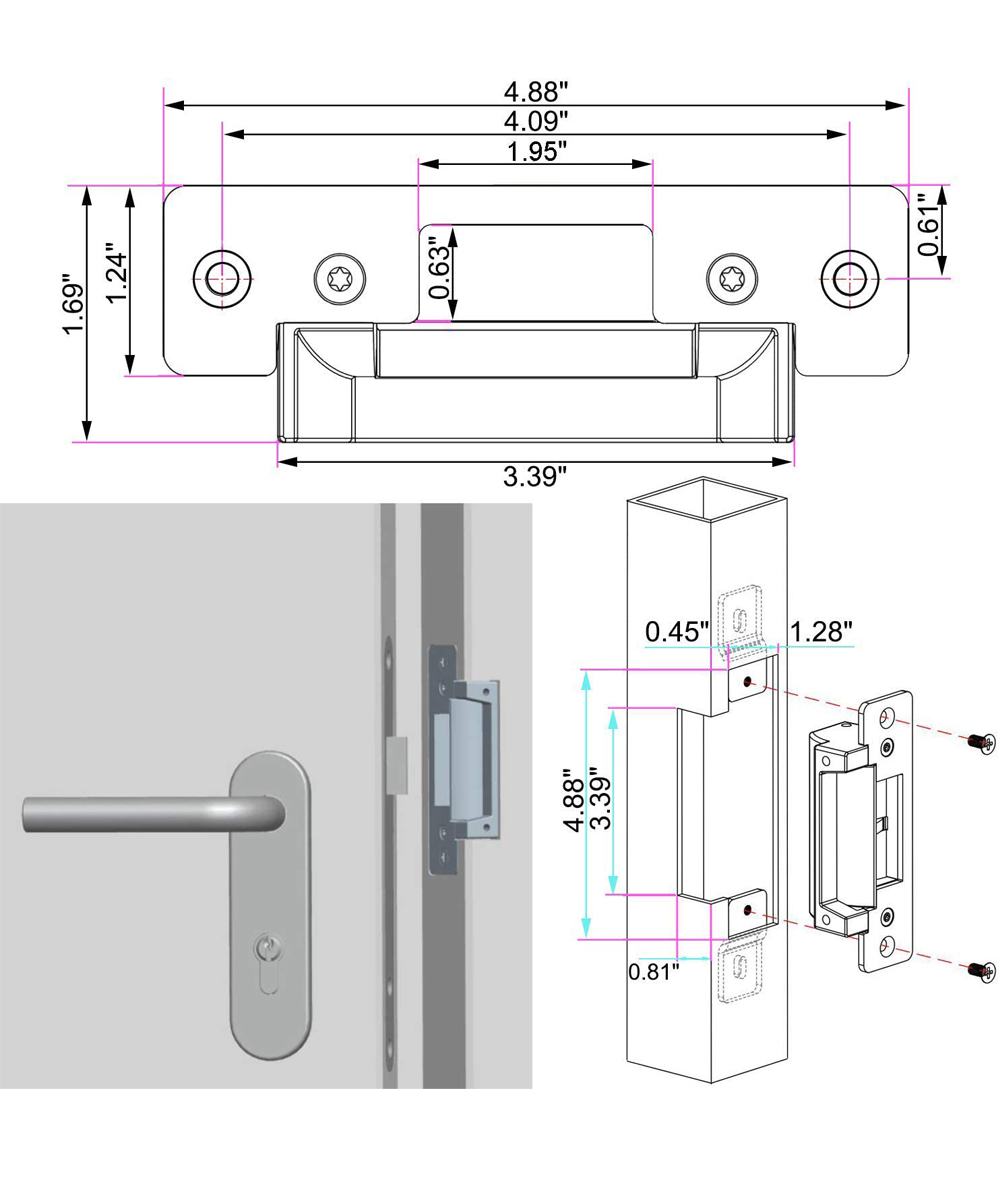

• Faceplate Size (LxW): 4-7/8″ x 1-15/64″ / 124×31.5mm
• Case Size: 1-7/32″ x 3-11/32″ x 1-17/64″ deep [31mm x 85mm x 32mm deep]
• Strike Opening: 11/16″ x 1-61/64″ x 3/4″ deep [17.5mm x 49.5mm x 19mm deep]
• Holding Force: 1000kg / 2204lb
• Face plate Housing: Painted Steel
• Function: Built-out MOV
• Weight: 0.38kg / 0.84lb

Note:

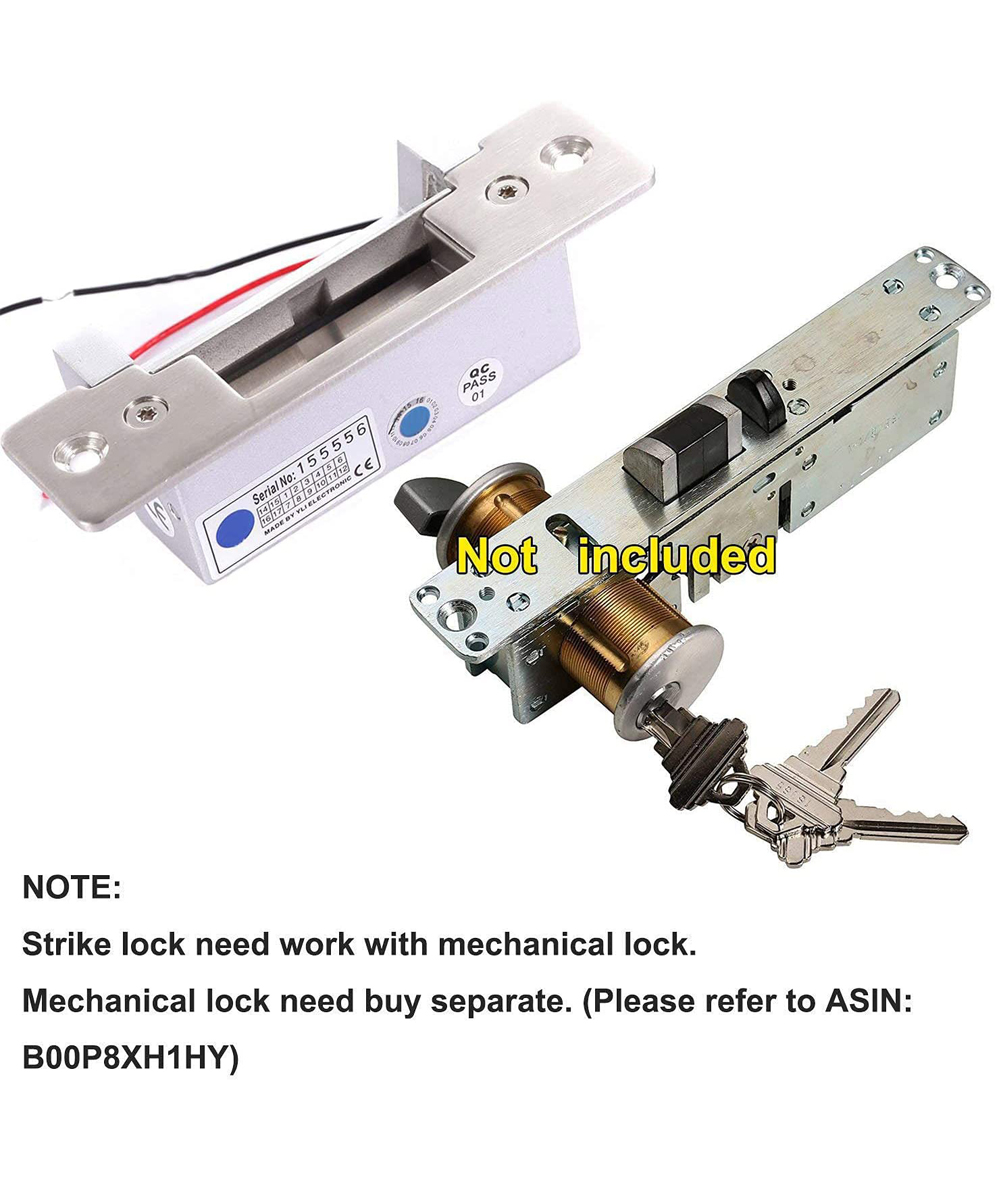

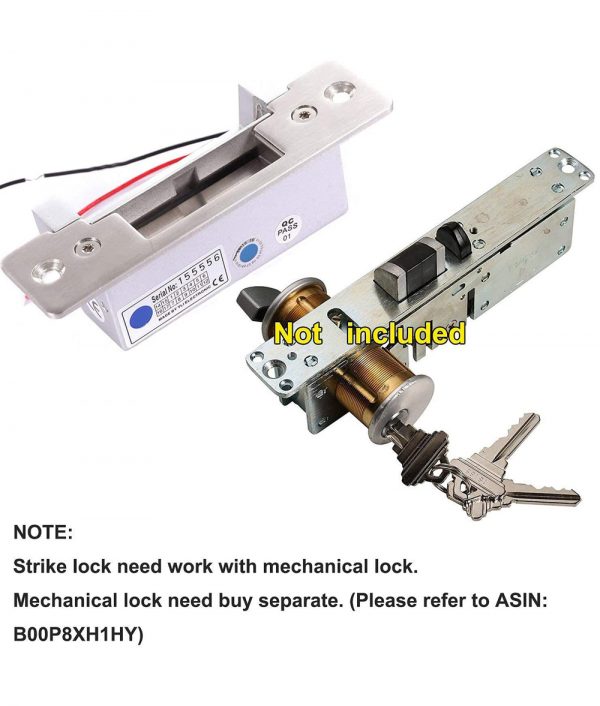

• Strike lock needs to work with cylindrical lockset which need to buy separately.
• Before placing order, please check the size of door’s frame to avoid wrong purchase.

Package:

• 1 x Electric Lock
• 1 x Diode
• 2 x Mounting Tabs
• 2 x Screw
• 1 x Manual
