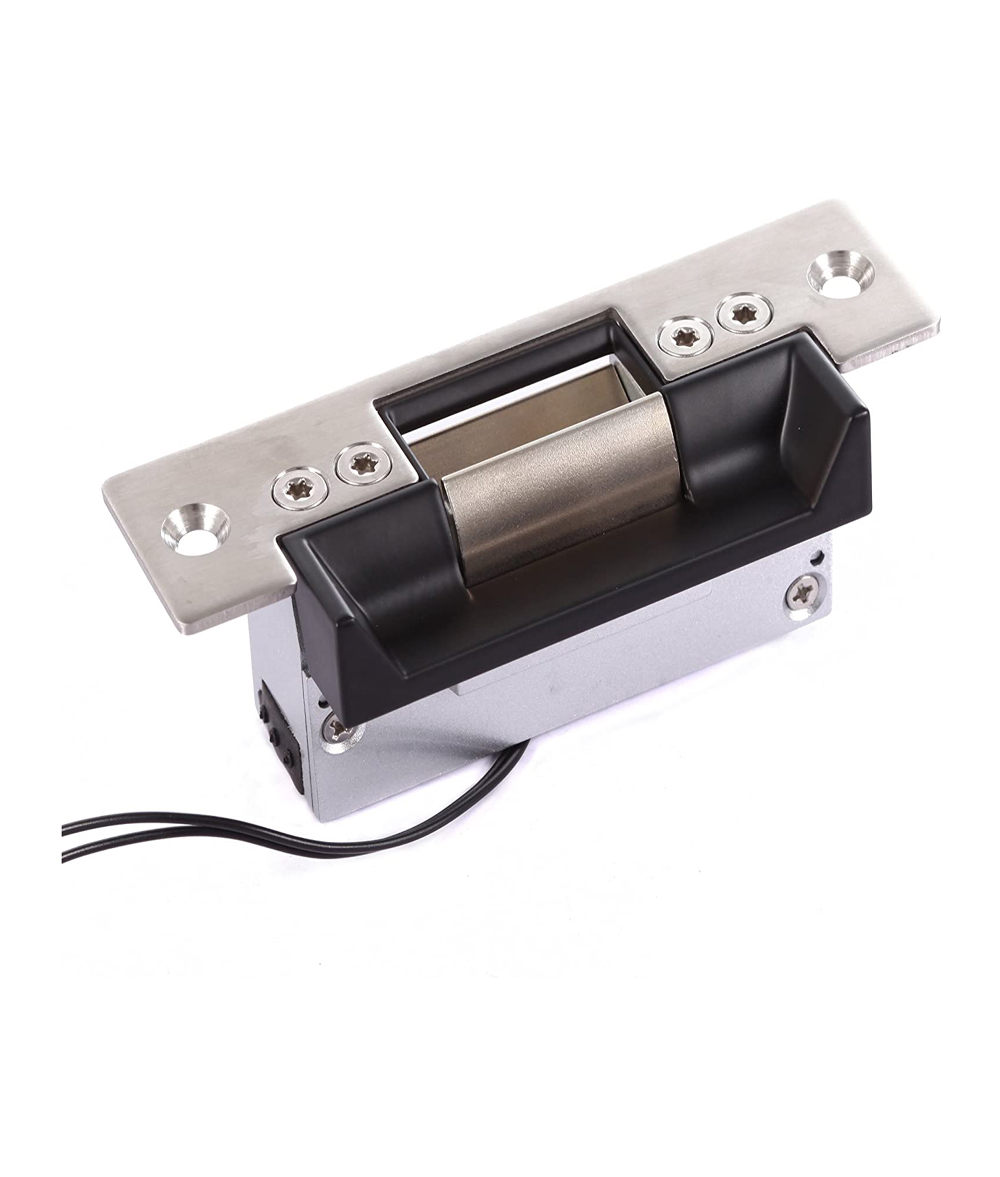

ANSI Standard Heavy Duty Electric Strike Lock Fail Safe for Door Access Control System

ANSI Standard Heavy Duty Electric Strike Lock Fail Safe for Door Access Control System

Features:

• Fail safe, NC mode (Unlocked when power is removed)
• Holding Force: 1000kg / 2204.62lb
• This electric strikes with 4-27/32″ faceplates are designed for use with mortise or cylindrical type lockset with up to 3/4″ latchbolt projection without deadbolt
• Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself. The electric strike must be positioned to accommodate offset mortise latches during installation
• Attention: Before placing order, please check the size of your door’s frame to avoid wrong purchase

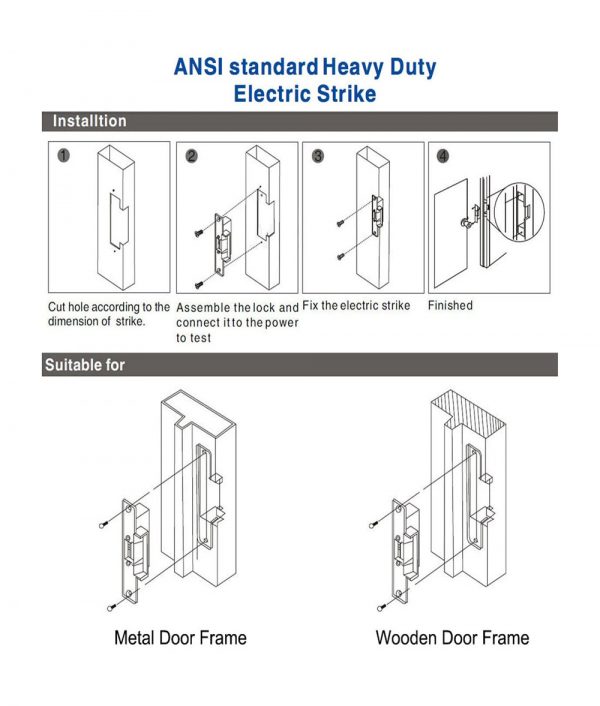

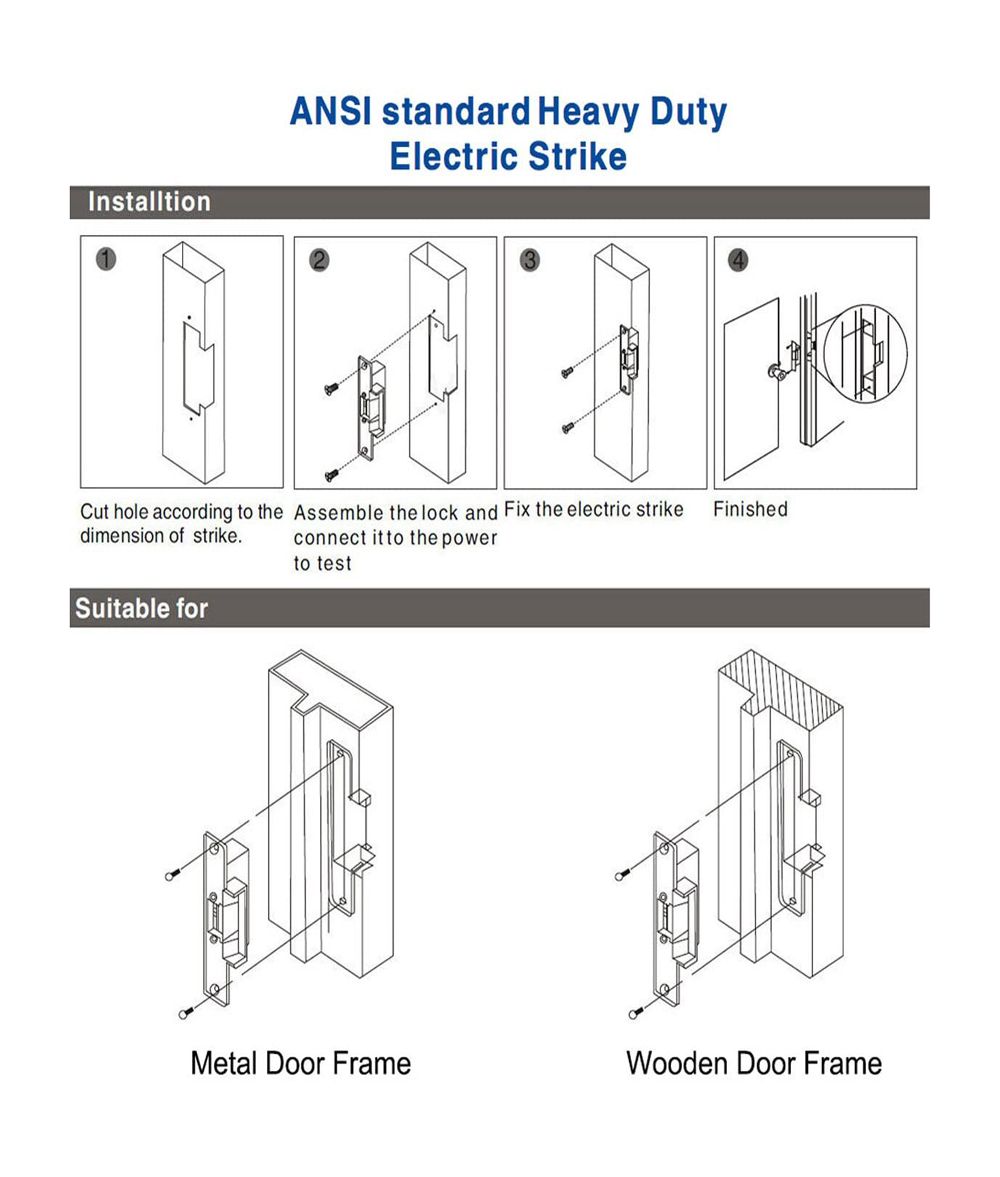

• Designed for Metal Frame drill a hole, then install it directly
• Testing to 1000000 cycles
• High-Temperature Painted, Duable and Beatiful Artical
• CE Certificate by European Union, MA Certificate by China Public Security office

Specifications:

• Fail safe, NC mode (Unlocked when power is removed)

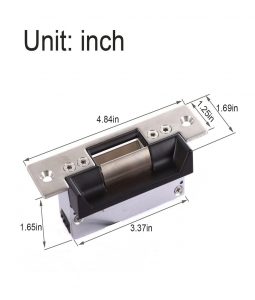

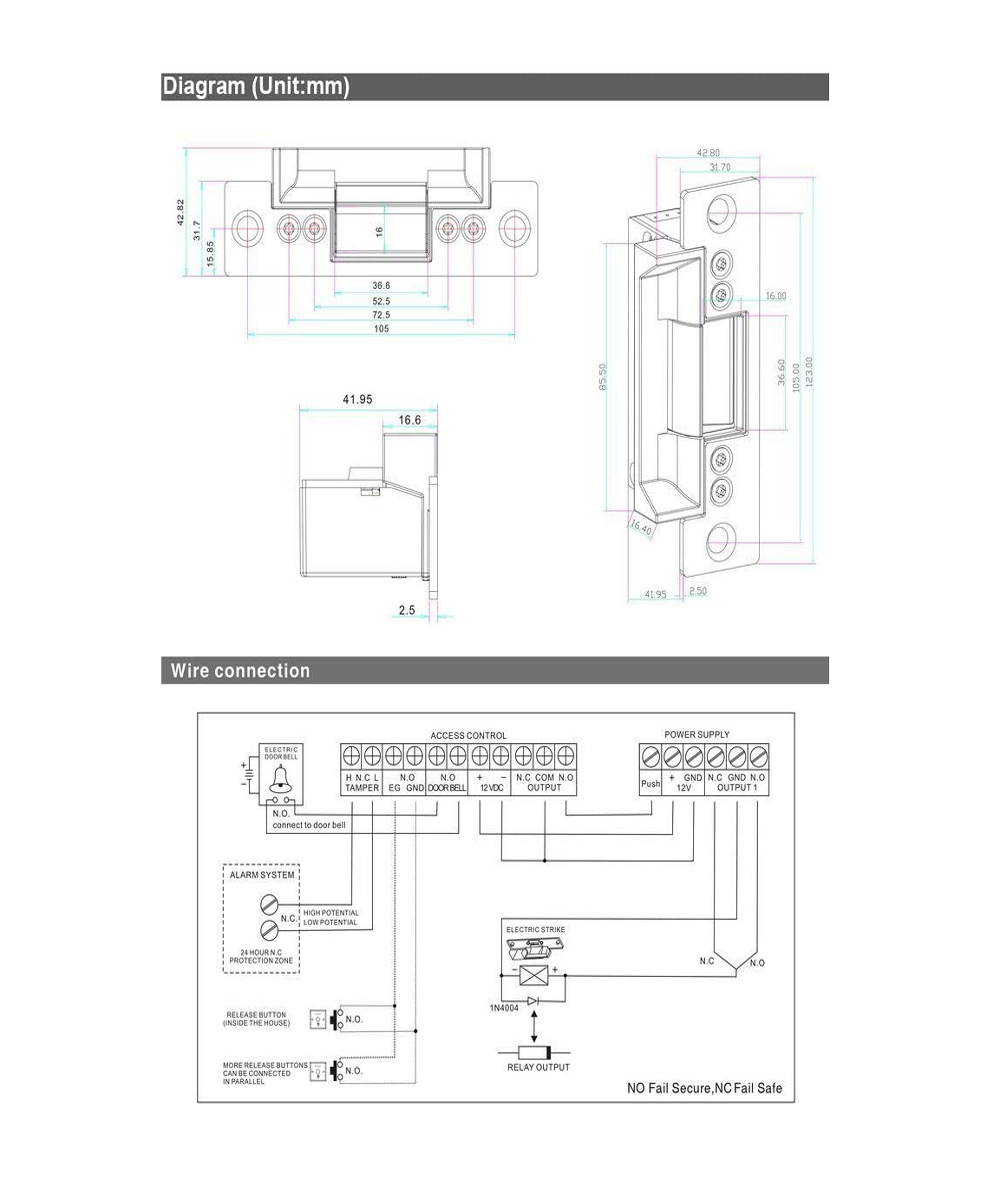

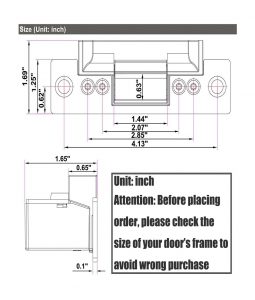

• Case Size (LxWxD): 85.5×25.5×39.5mm (3-23/64″ x 1″ x 1-9/16″)
• Faceplate Size (LxWxD): 123×31.7mm (4-27/32″ x 1-1/4″)
• Strike Opening(LxWxD): 36.6x16x16.6(mm) (1-7/16″ x 5/8″ x 21/32”)
• Latchbolt Projection: 19.1mm (3/4″)
• Face Plate Material: 304 Stainless Steel force structure
• Lock Material: Zinc alloy (baking varnish by high temperature)
• Holding Force: 1000kg
• Voltage: 12VDC
• Current: 320mA
• Suitable For: Wooden Door, Metal Door, PVC Door
• Surface Temperature: Within +20℃ / 68℉
• Suitable Temperature: -10℃~+55℃(14℉-131F)
• Operating Humidity: 0~90%(non-condensing)
• Face plate Housing: Painted Steel
• Lock Tongue: Surface by coating nickel
• Function: Built-out MOV
• Weight: 0.34kg / 0.75lb

Attention:

• Before placing order, please check the size of your door’s frame to avoid wrong purchase

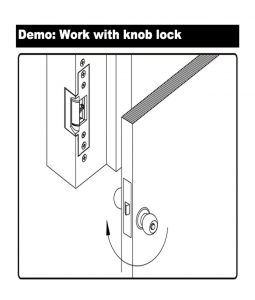

• Strike lock are designed for use with mortise or cylindrical type locksets which need buy separately.

Package:

• 1 x Electric Lock
• 1 x Manual
