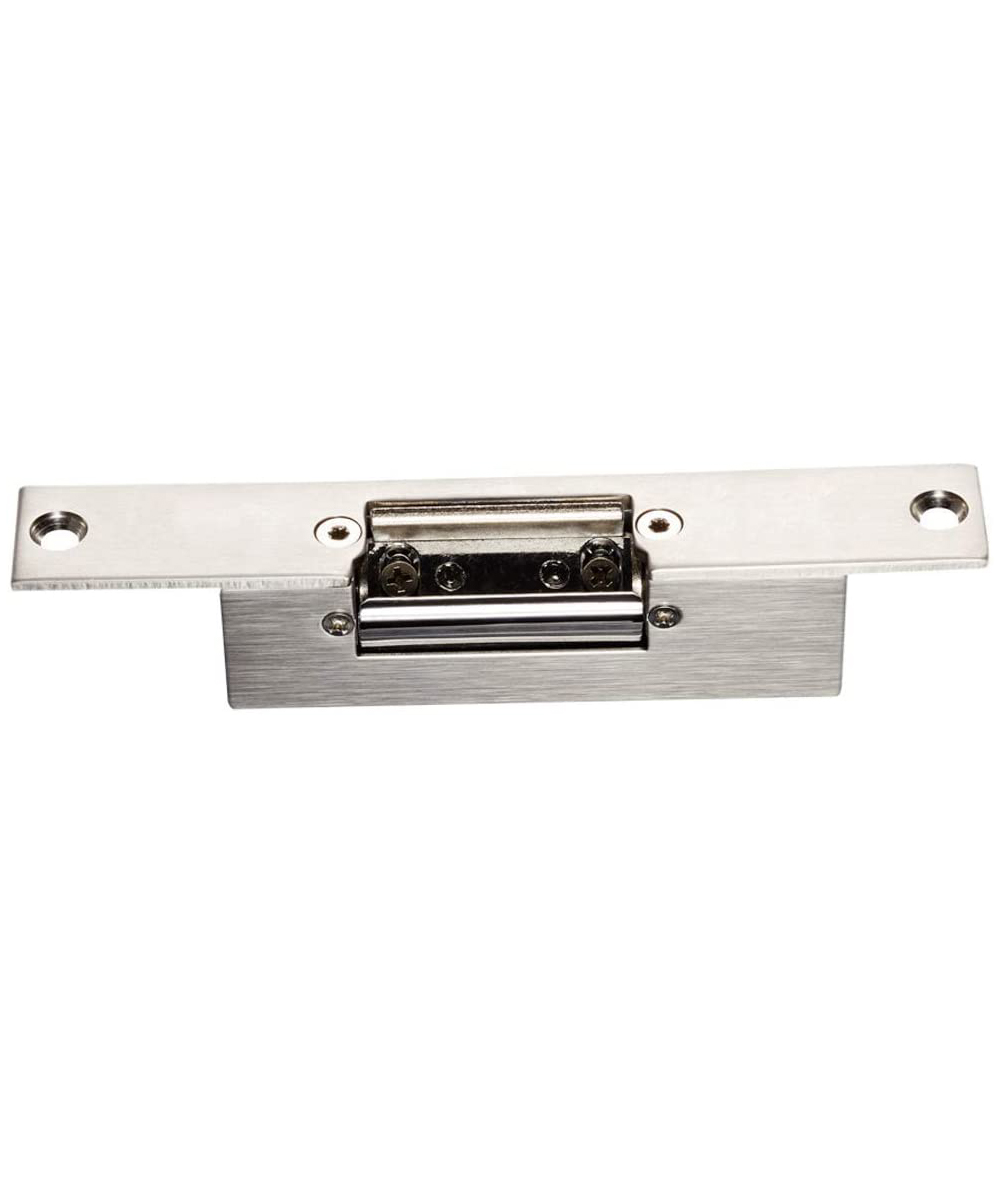

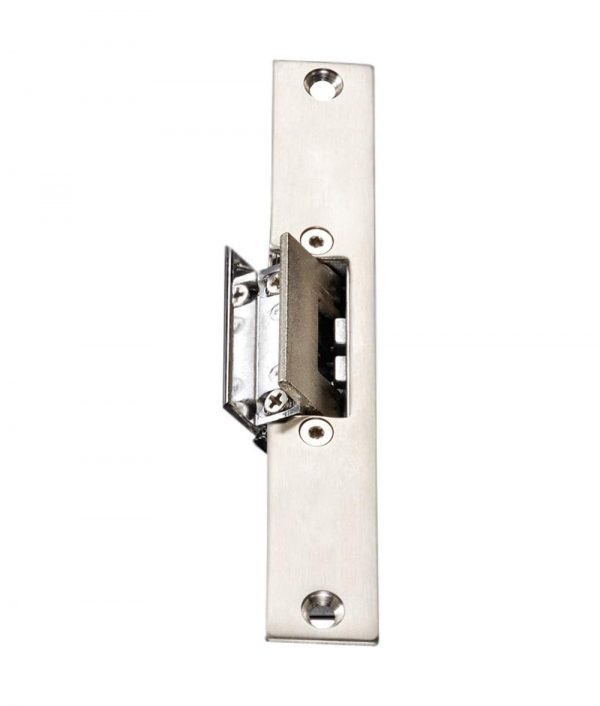

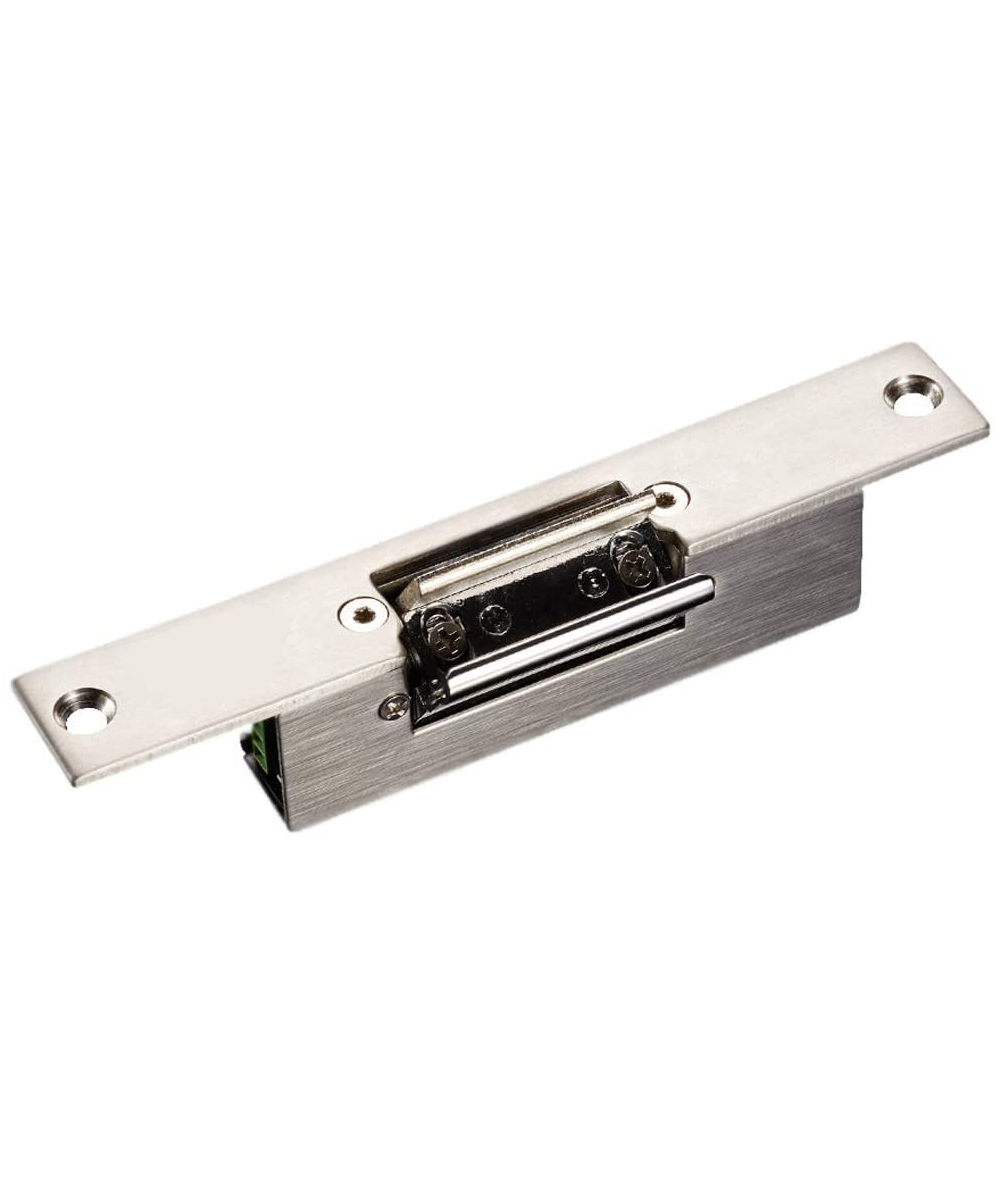

12V Electric Strike Lock Fail-Safe for Glass Door Without Frame

12V Electric Strike Lock Fail-Safe for Glass Door Without Frame

Features:

• Designed for the glass door without frame.The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door
• Holding Force: 500kg / 1100lb
• Voltage: 12VDC/200ma
• High-Temperature Painted,Durable and Beautiful Artical
• Fail safe – Unlocked when power is removed
• Material: Aluminum, Stainless Steel Bolt
• Testing to 1000000 cycles
• Suitable For: Glass door without frame
• CE Certificate by European Union, MA Certificate by China Public Security office

Specifications:

• Voltage: DC12V
• Current: 200mA
• Holding Force: 500kg / 1102lb
• Operating Humidity: 0~90%(non-condensing)
• Faceplate material: 304 stainless steel force structure
• Lock material: Zinc alloy (baking varnish by high temperature)
• Function : Built-out MOV
• Glass Thickness: 12-15mm / 0.47-0.59in
• Opening Mode: 90 Degree Swinging Door

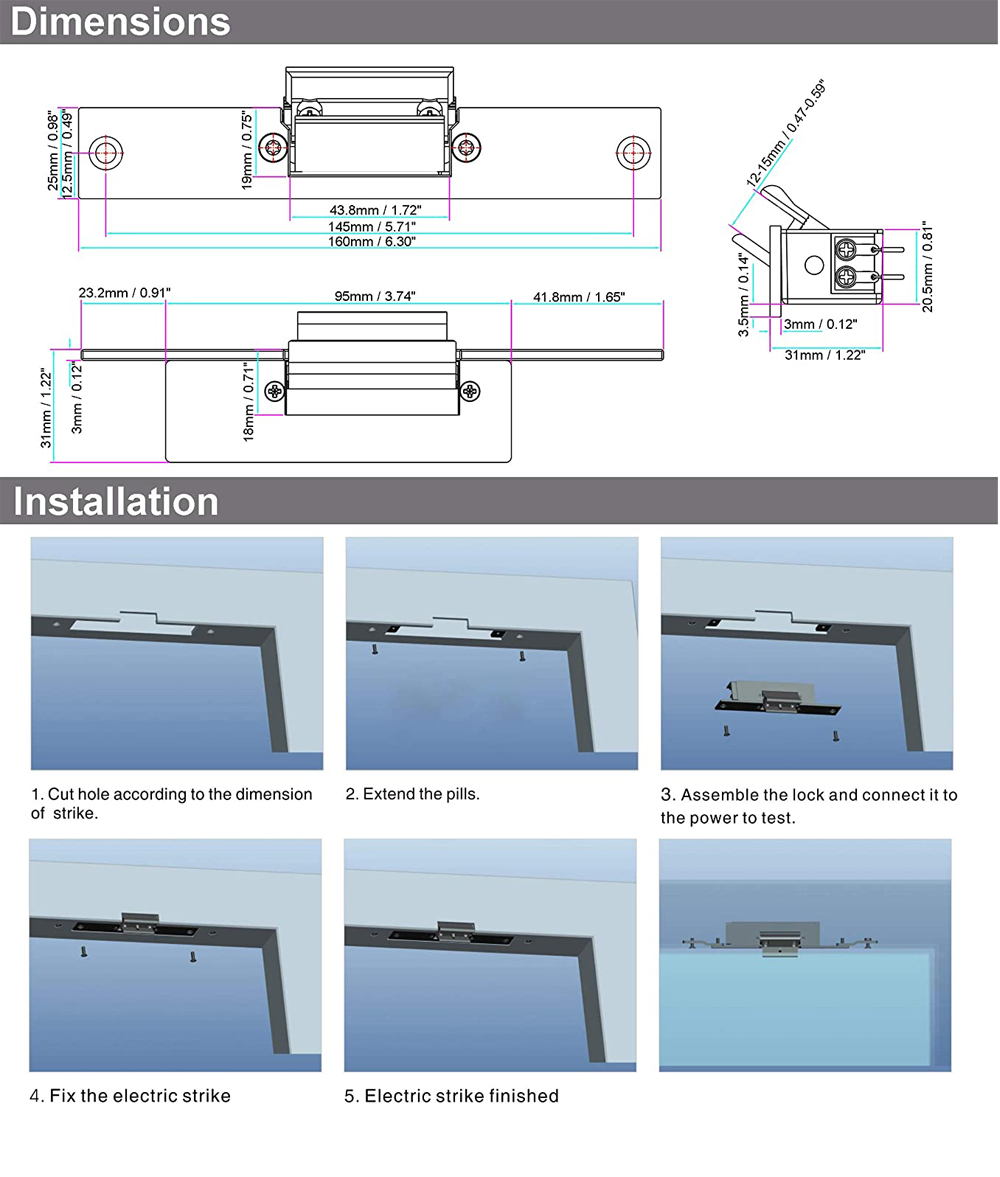

• Dimension: 160Lx25Wx31H(mm) / 6.3Lx0.98Wx1.22H(in)
• Weight: 0.4kg / 0.88lb

Package:

• 1 x Electric Lock (NC Mode)
• 1 x English Manual
