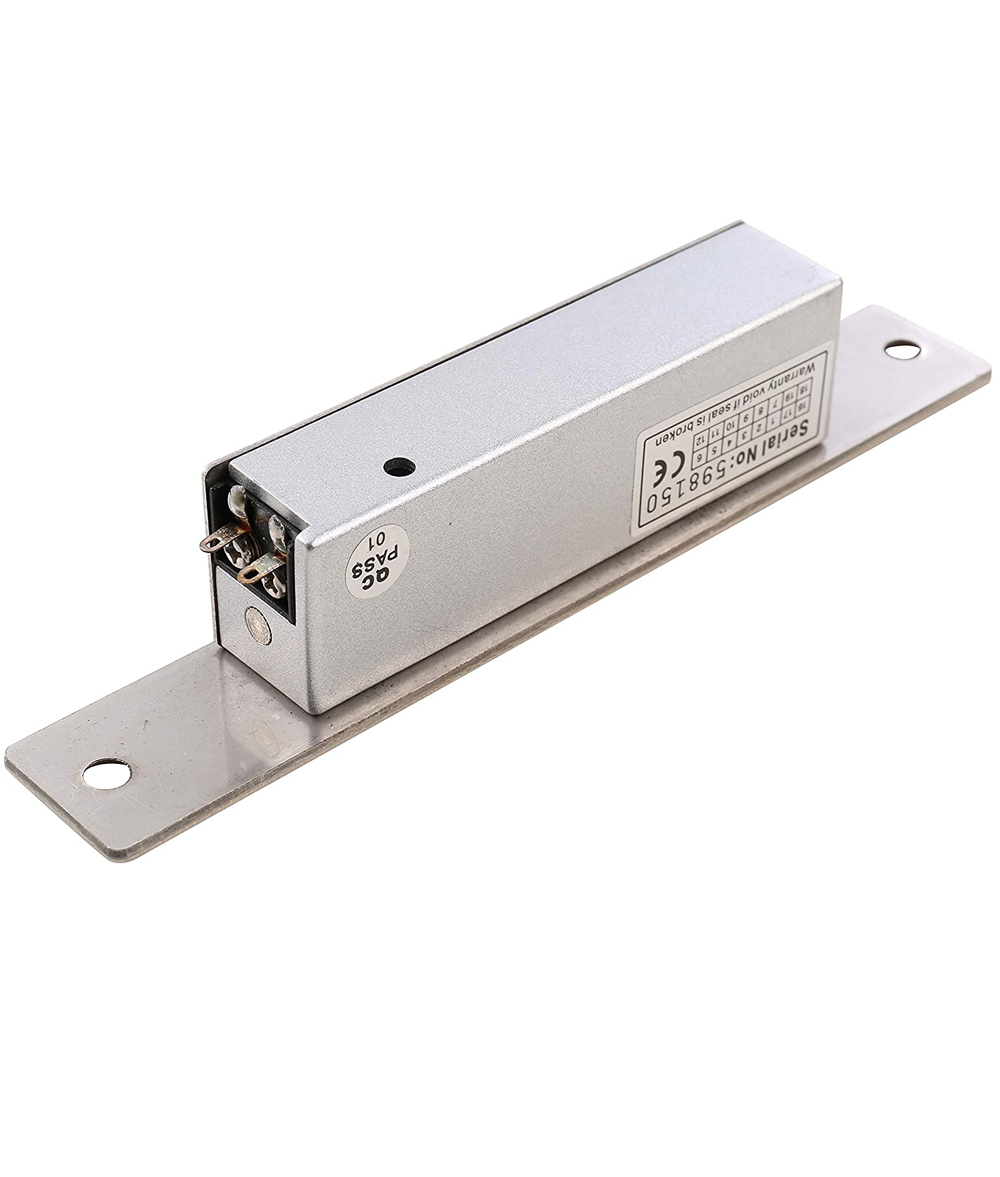

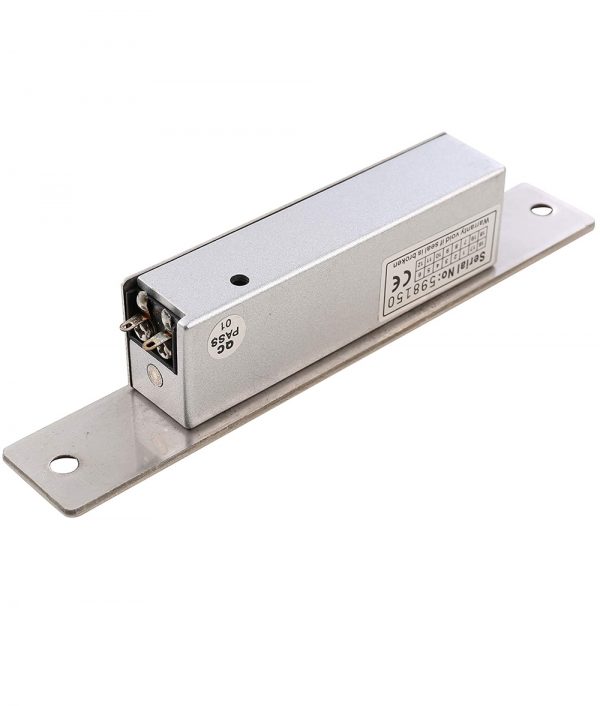

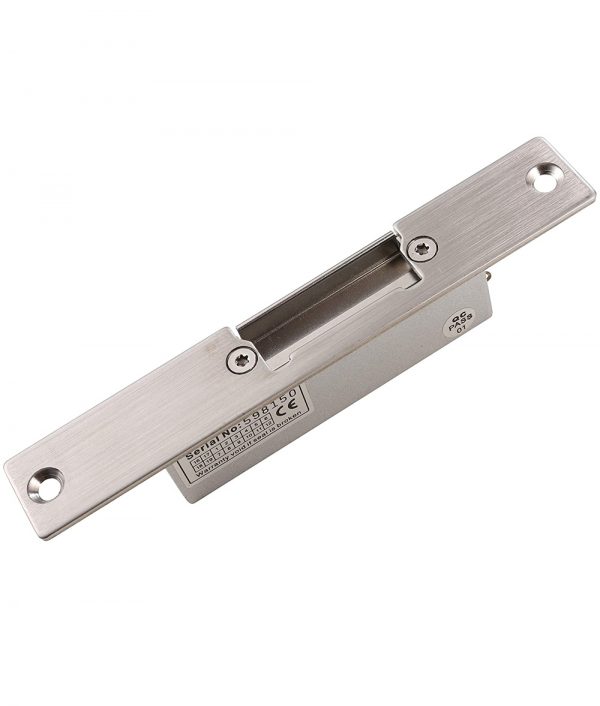

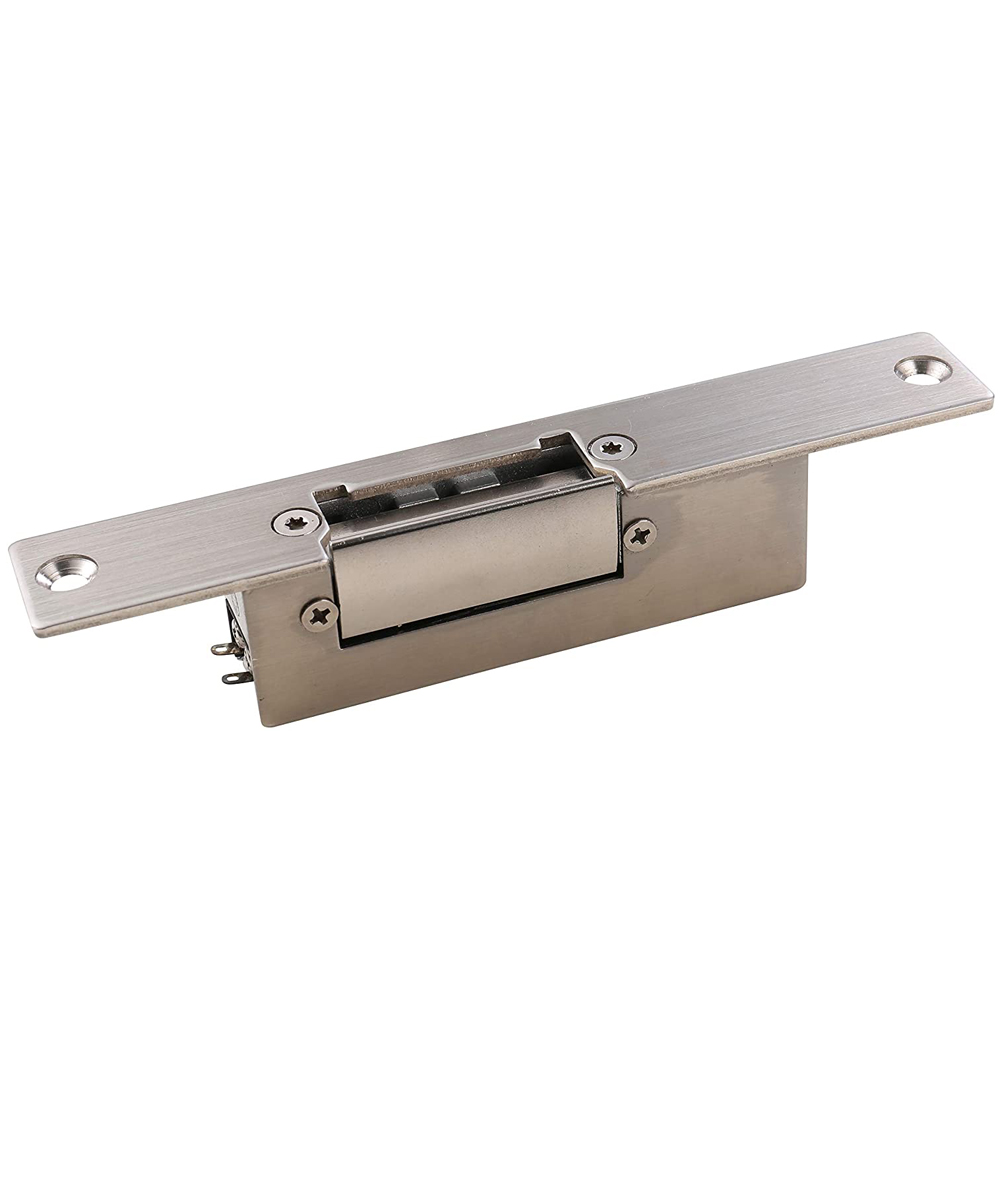

12VDC Narrow Type Electric Strike Lock Fail Safe Mode with Short Faceplate for Access Door

12VDC Narrow Type Electric Strike Lock Fail Safe Mode with Short Faceplate for Access Door

Features:

• Fail safe, NC mode (Unlocked when power is removed)
• Material: Stainless Steel
• Testing to 1000000 cycles
• High-Temperature Painted,Duable and Beatiful Article
• Holding Stength: 500kg / 1102lb
• CE Certificate by European Union, MACertificate by China Public Security office

Specifications:

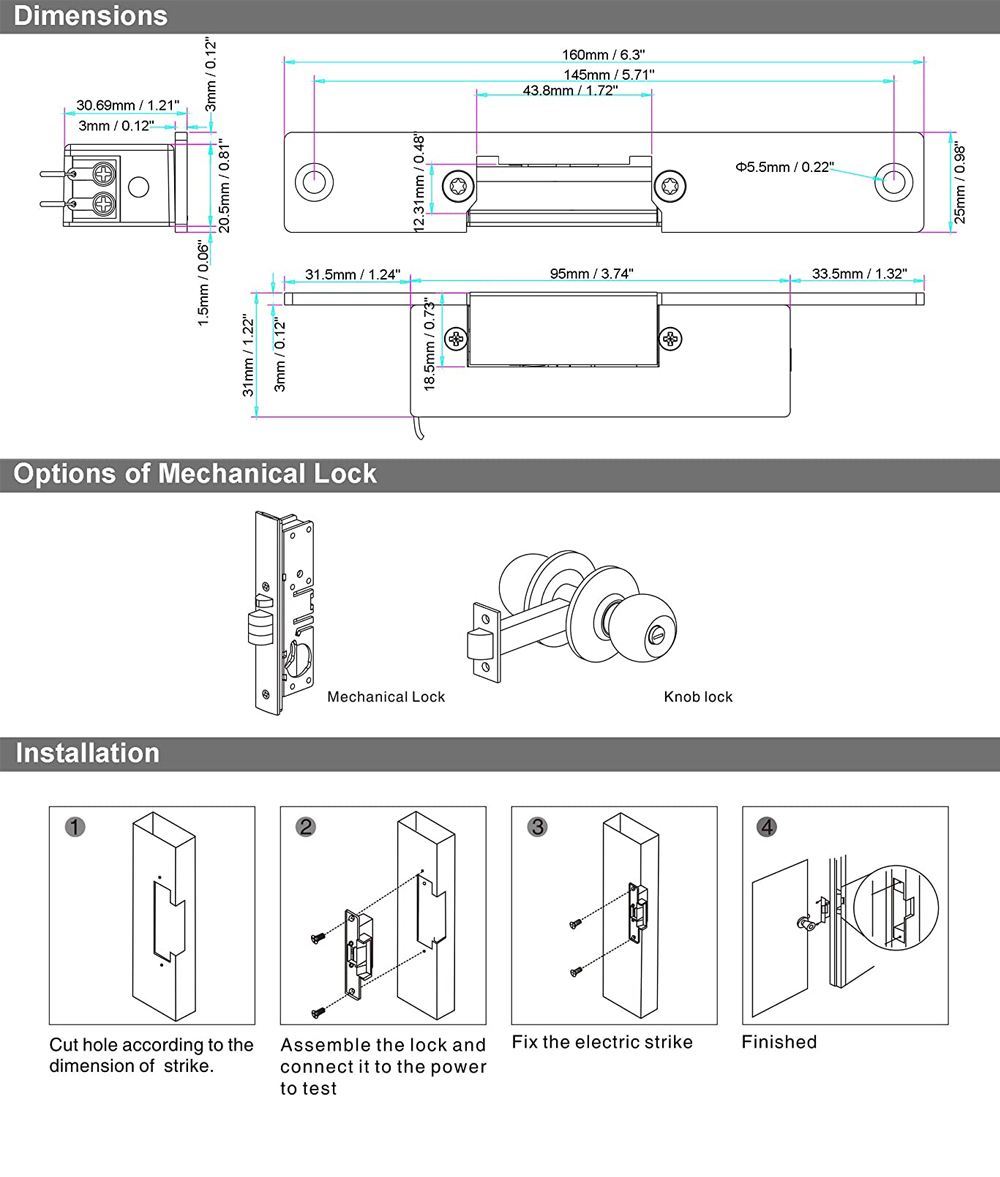

• Lock Size: 6.30Lx0.98Wx1.22H(in) / 160Lx25Wx31mm
• Strike Structure: Stainless Steel
• Holding Stength: 500kg / 1102lb
• Voltage: DC12V
• Current: 200mA
• Fail safe, NC mode (Unlocked when power is removed)
• Suitable For: Wooden Door,Metal Door, PVC Door
• Surface Temperature: Within +20℃ / 68℉
• Suitable Temperature: -10℃~+55℃(14℉-131℉)
• Operating Humidity: 0~90%(non-condensing)
• Face plate Housing: Painted Steel
• Bolt Housing: Stainless steel, Draw the Polishing of silk
• Function: Built-out MOV
• Weight: 0.36kg / 0.79lb

Package:

• 1 x Electric Lock (NC Mode)
• 1 x Manual
