Electric Strike Lock Fail-Secure for Access Control System Deadlatches or Cylindrical Locksets

Electric Strike Lock Fail-Secure for Access Control System Deadlatches or Cylindrical Locksets



Features:

• This lock offers fail-secure operation, so when power is lost, the strike locks the door
• The No-Cut Electric Door Strike (Fail-Secure) is used to convert a cylindrical lockset into an electronic access-controlled locking system
• This “no-cut” model is specially designed to fit most metal or wooden doors with only minimal cutting required of the door frame beyond the hole for the strike
• Provides 1,000-pound holding force/static strength Aluminum, Stainless Steel Bolt
• Testing to 1000000 cycles
• High-Temperature Painted, Durable and Beautiful Article
• CE Certificate by European Union, MA Certificate by China Public Security office
• The No-Cut Electric Door Strike (Fail-Secure) is used to convert a cylindrical lockset into an electronic access-controlled locking system
• This “no-cut” model is specially designed to fit most metal or wooden doors with only minimal cutting required of the door frame beyond the hole for the strike

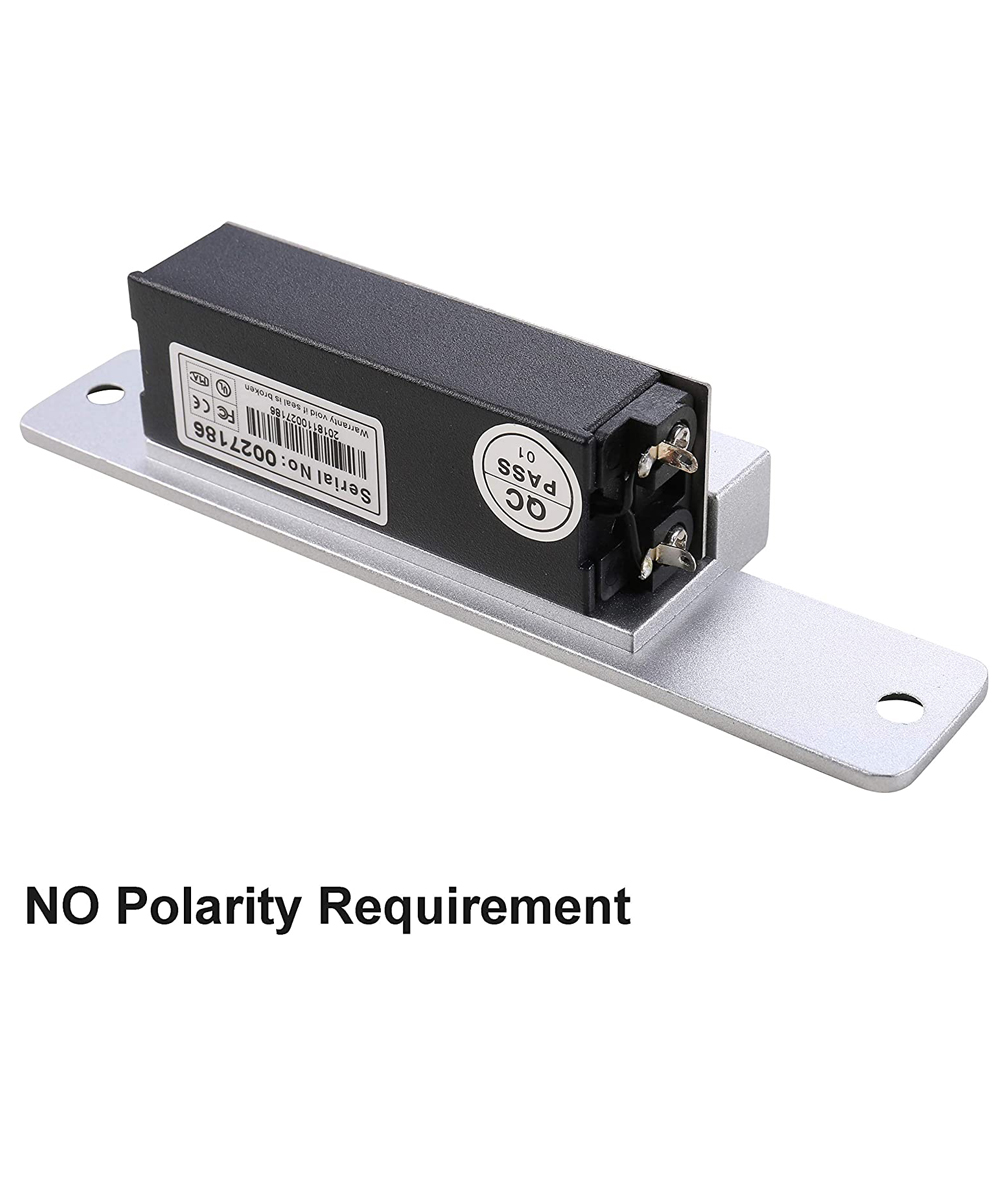

• Installation is further simplified by the strike’s 2-contacts, non-polarized connection to your access control or egress device, as well as its reversible non-handed design to fit either right- or left-handed doors. (This lock will polarized when the diode added)

Specifications:

• Faceplate Size: 5-29/32″x1-1/8″x1/8″ (150×28.5x3mm)
• It structure: Zinc alloy
• Finishing: Electroplating
• Holding Strength: 500kg / 1100 pounds
• Voltage: DC12V
• Current: 200mA
• Fail secure, NO mode (Locked when power is removed)
• Suitable For: Wooden Door, Metal Door, PVC Door
• Surface Temperature: Within +20℃ / 68℉
• Suitable Temperature: -10℃~+55℃(14℉-131℉)
• Operating Humidity: 0~90% (non-condensing)
• Function: Built-out MOV
• Net Weight: 0.29kg / 0.64lb
• Attention: Strike lock need work with mechanical lock or cylindrical lockset which sold separately
• This strike is not weatherproof and should only be installed indoors.

More Details:

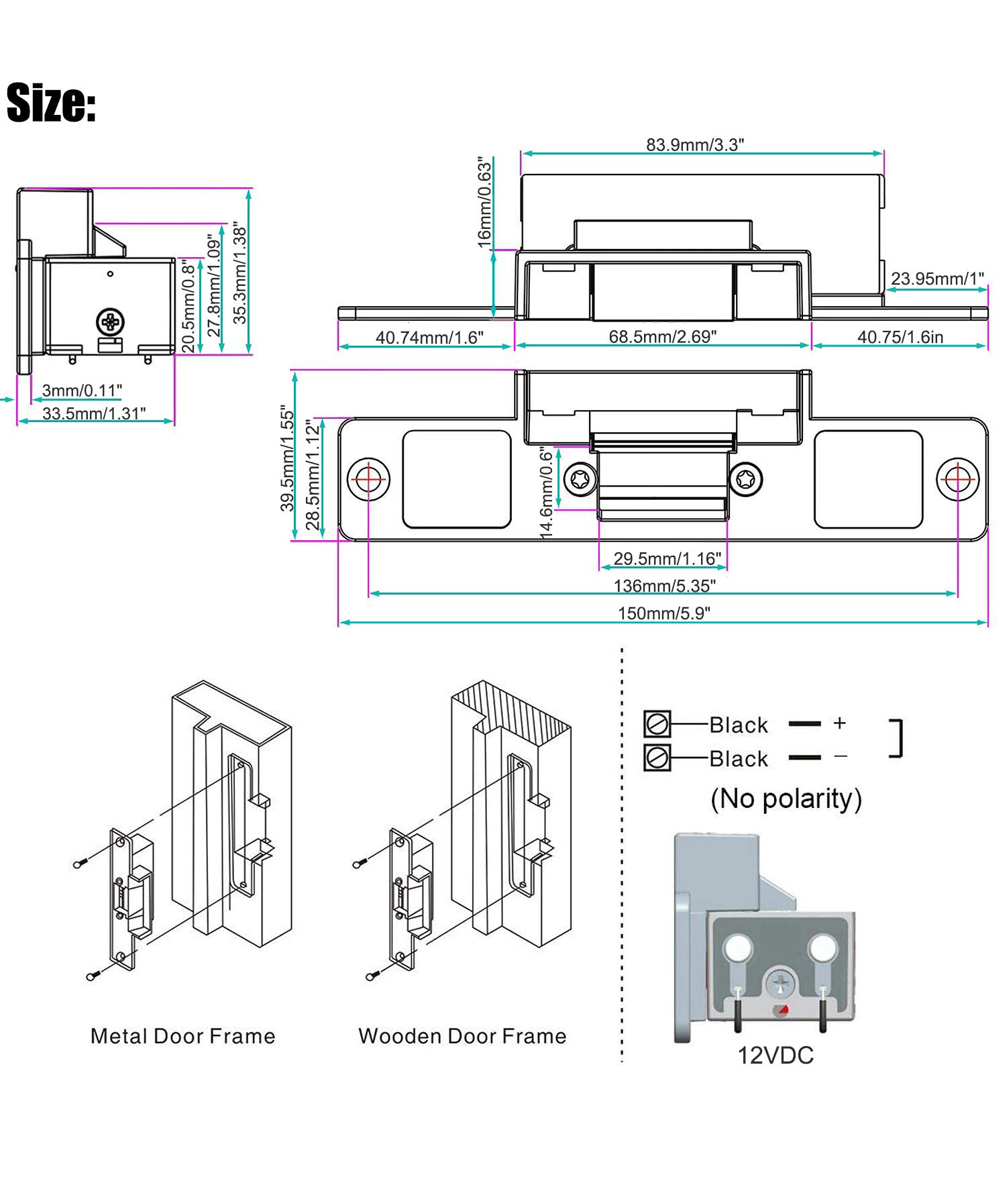

Lock Size:

• Faceplate Size: 5-29/32″x1-1/8″x1/8″ (150×28.5x3mm)

Work With Mechanical:

• Strike lock need work with mechanical lock or knob lock which need buy separately.
• Before placing order, please check the size of your door’s frame to avoid wrong purchase

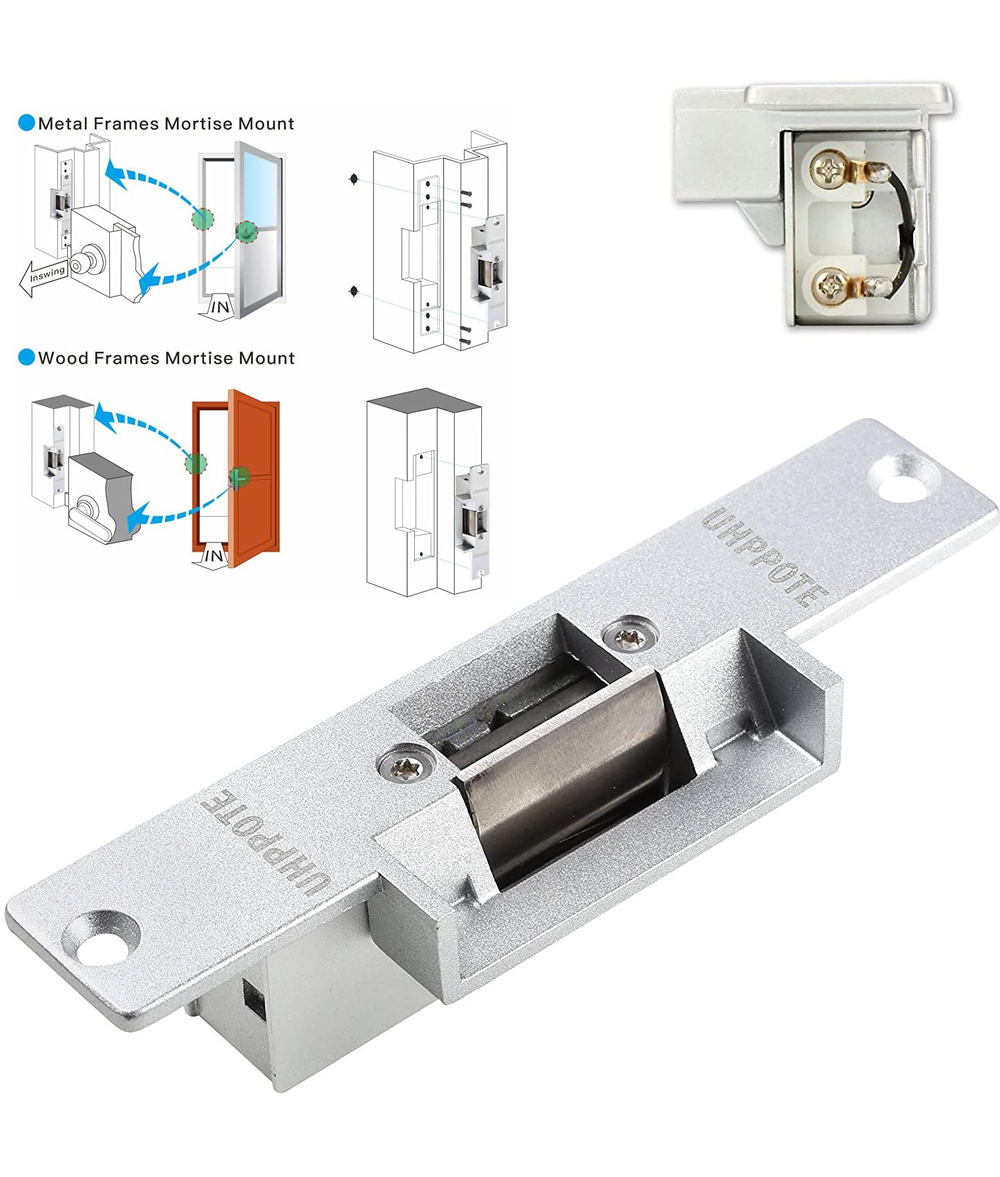

Installtion:





Tips:

• 1N4004 Diode: Prevent high voltage to two ends of the electronic lock while the contact of access control unit relay disconnect. Without diode, there will be high voltage pulse interference to circuits and the life time of the access control unit relay will be greatly reduced.
• This lock will polarized when the 1N4004 diode wired.

Package:

• 1 x Electric Lock (Fail-Secure Mode)
• 1 x Diode
• 1 x User manual
• 2 x Screw
