125KHz Single Door Proximity RFID Card Access Control Keypad with 10pcs Keyfobs

125KHz Single Door Proximity RFID Card Access Control Keypad with 10pcs Keyfobs

Features：

• High quality and high security, sensitively and response quickly.
• With backlight on keypad
• Classical appearance with useful function, designed for home and office.
• Full programming from the keypad, support add/delete cards, set password, etc.
• Can be used as a stand alone keypad, doesn’t need to connect on the computer.
• Application: Home, hotel, office, apartment, factory,etc.

Specifications:

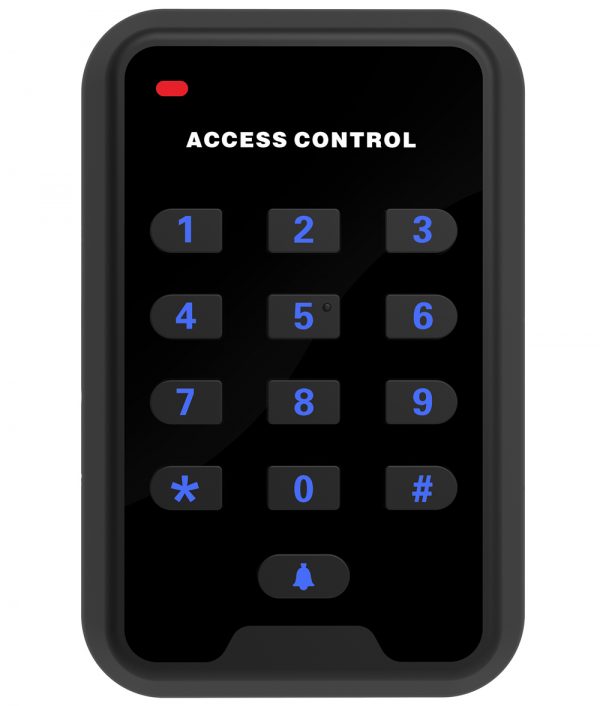

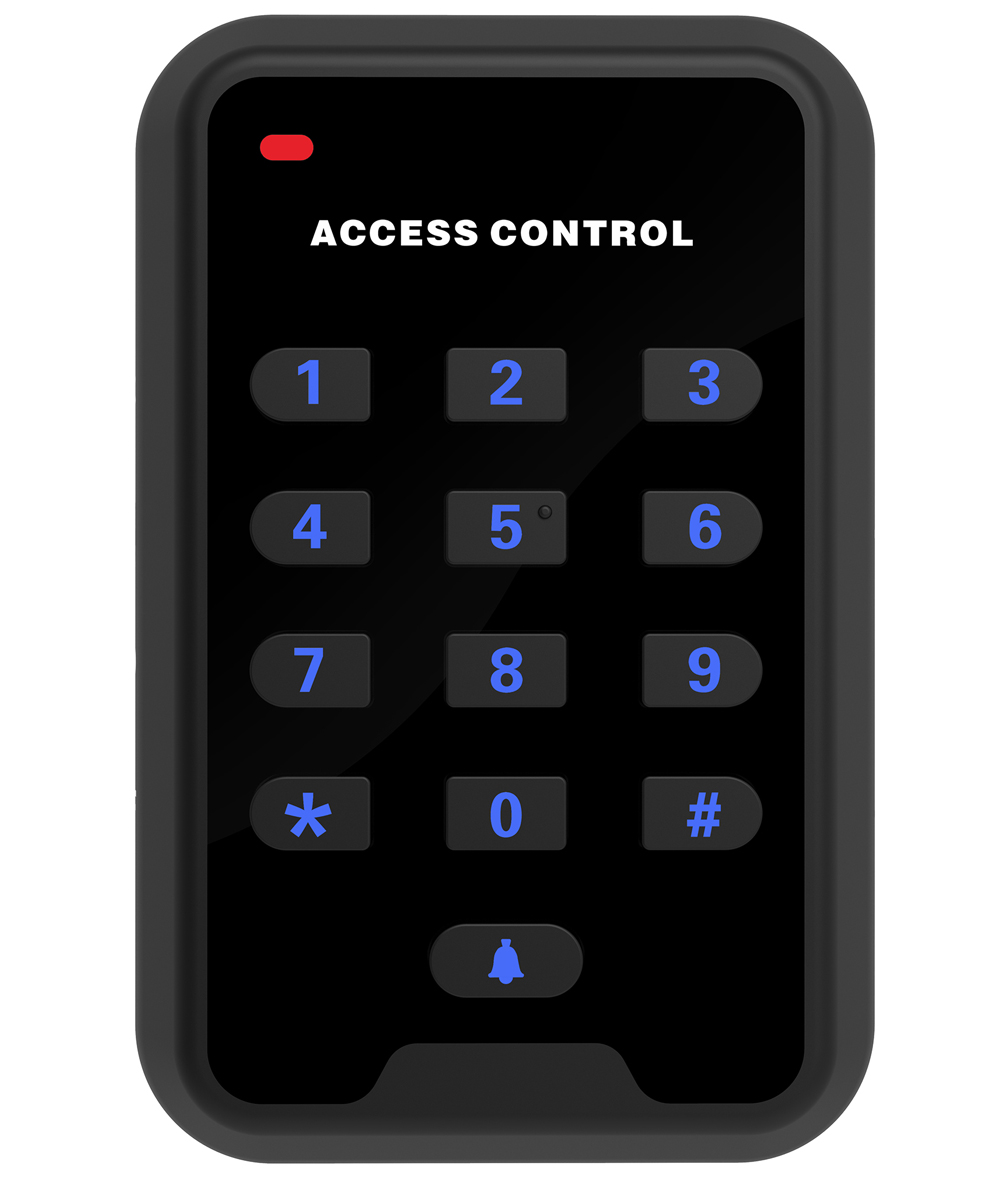

Access Control Keypad：

• With backlight on keypad; Non-waterproof
• Operating Voltage: 12VDC
• Lock Output Load: Max. 1.5A
• Idle Current: 50mA
• Card Capacity: 1000
• PIN Capacity: 500
• Card Type: Standard 125KHz EM
• Door Open Time: 0-99 seconds
• Card Reading Distance: Max. 6cm

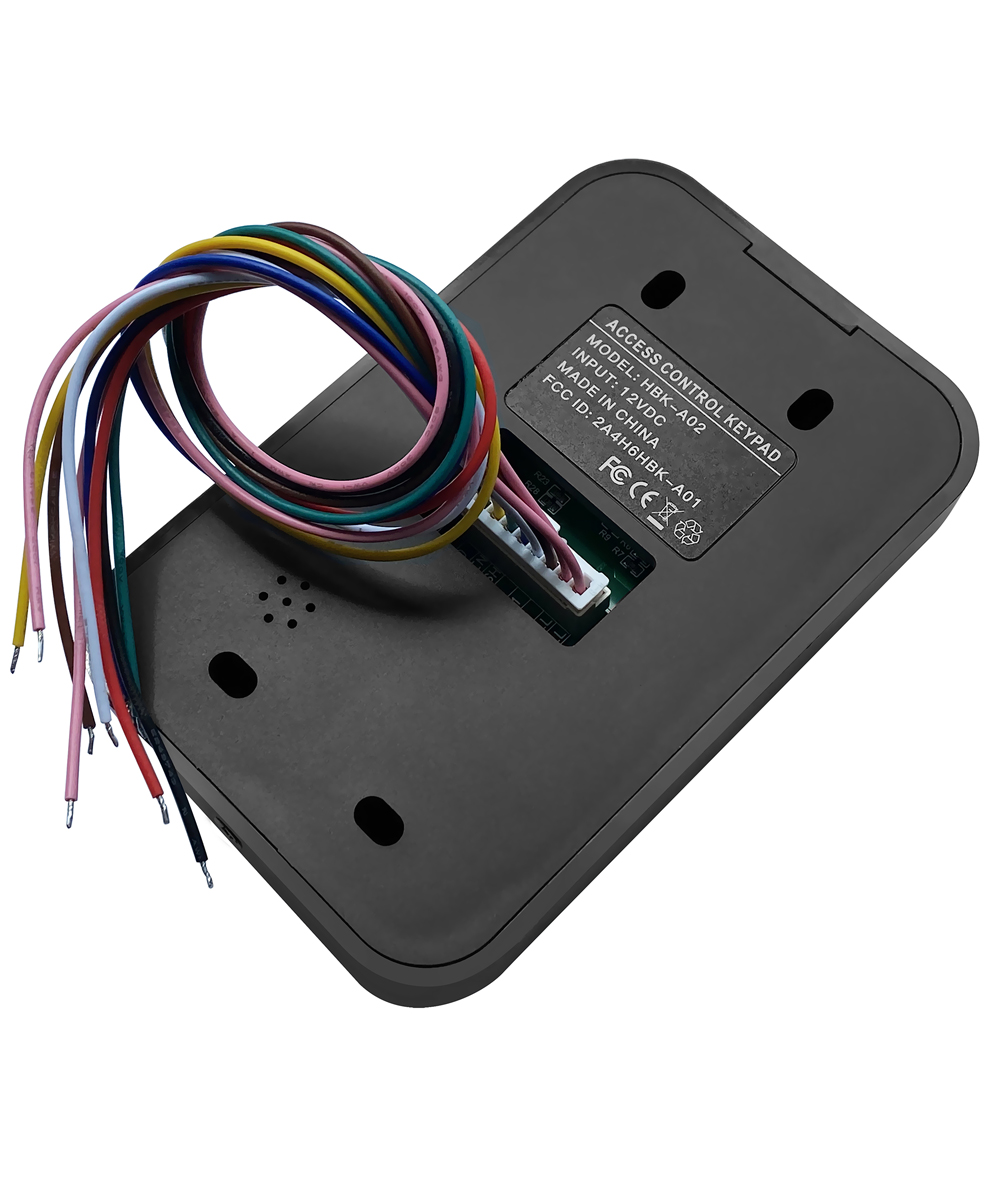

• Wiring Connections: Electric Lock, Exit Button, Bell
• Operating Temperature: -40℉-140℉
• Operating Humidity: 10%-90%RH
• Enclosure Material: PC + ABS
• Product Weight: 3.53oz / 100g
• Dimensions: 4-21/64″x2-51/64″x29/32″ / 110x71x23mm

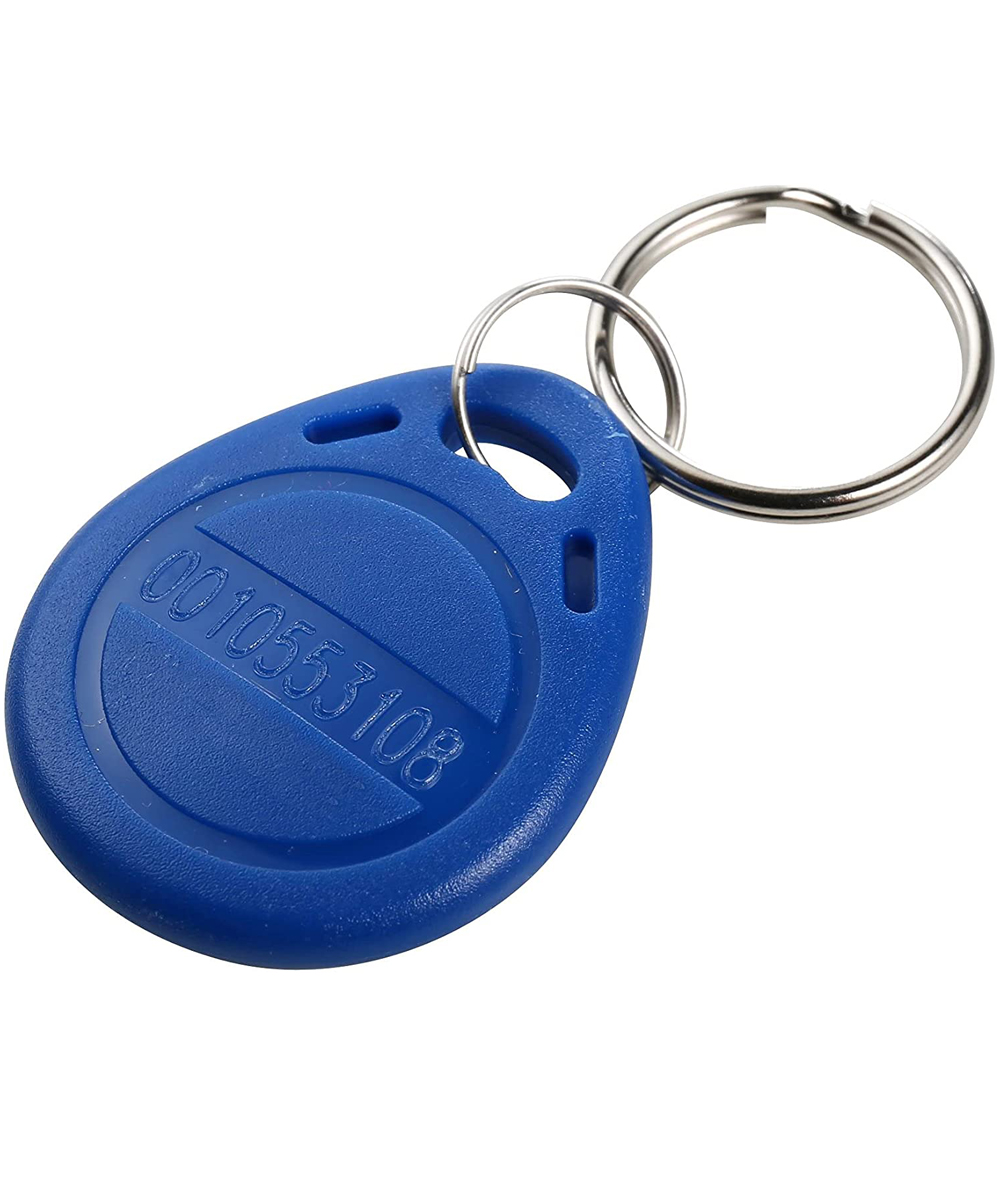

RFID Keyfobs:

• Works as a regular 125KHz RFID
• Card type: Standard EM card
• Chip: TK4100
• Compatible with standard EM ID access devices or ID reader
• Contactless transmission of data and supply energy
• Card material: PVC
• Detection distance: 2-10mm
• Color: Blue
• Read only, not HID card
• Please keep in mind that this RFID cards can’t be compatible with UHF reader and encrypted readers, for example, the reader of following brands: HID, Indala,Cobra, APCiK, Paradox, Radio, Honeywell,etc.
• Each card pre-programmed with a unique ID number, first 10 digitals are printed on the card.
• Application: Attendance, access control, identification, tag card.

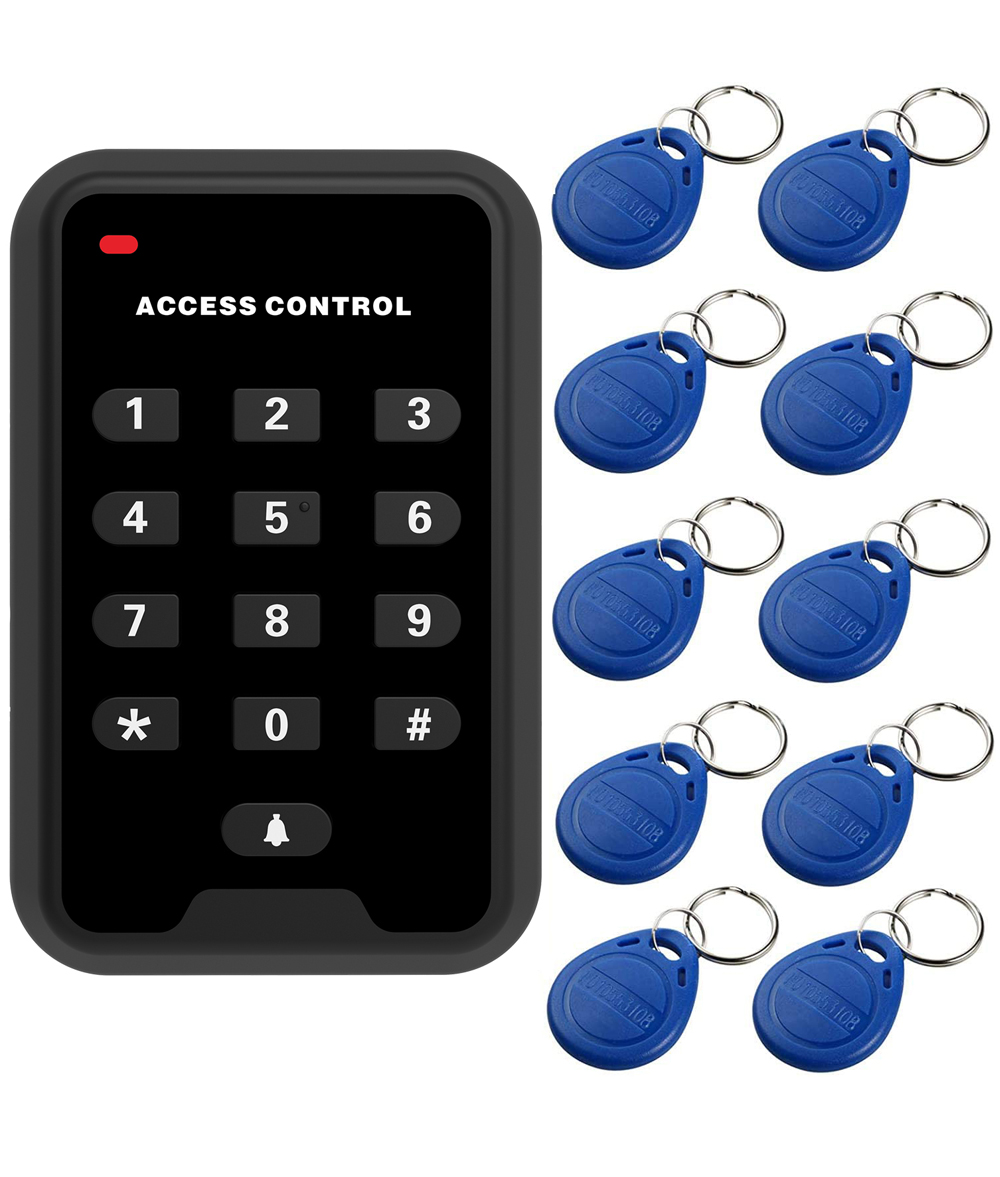

Package:

• 1 x Access Control
• 1 x English User Manual
• 10 x Keyfobs
