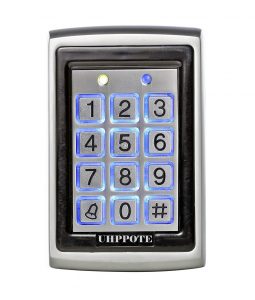

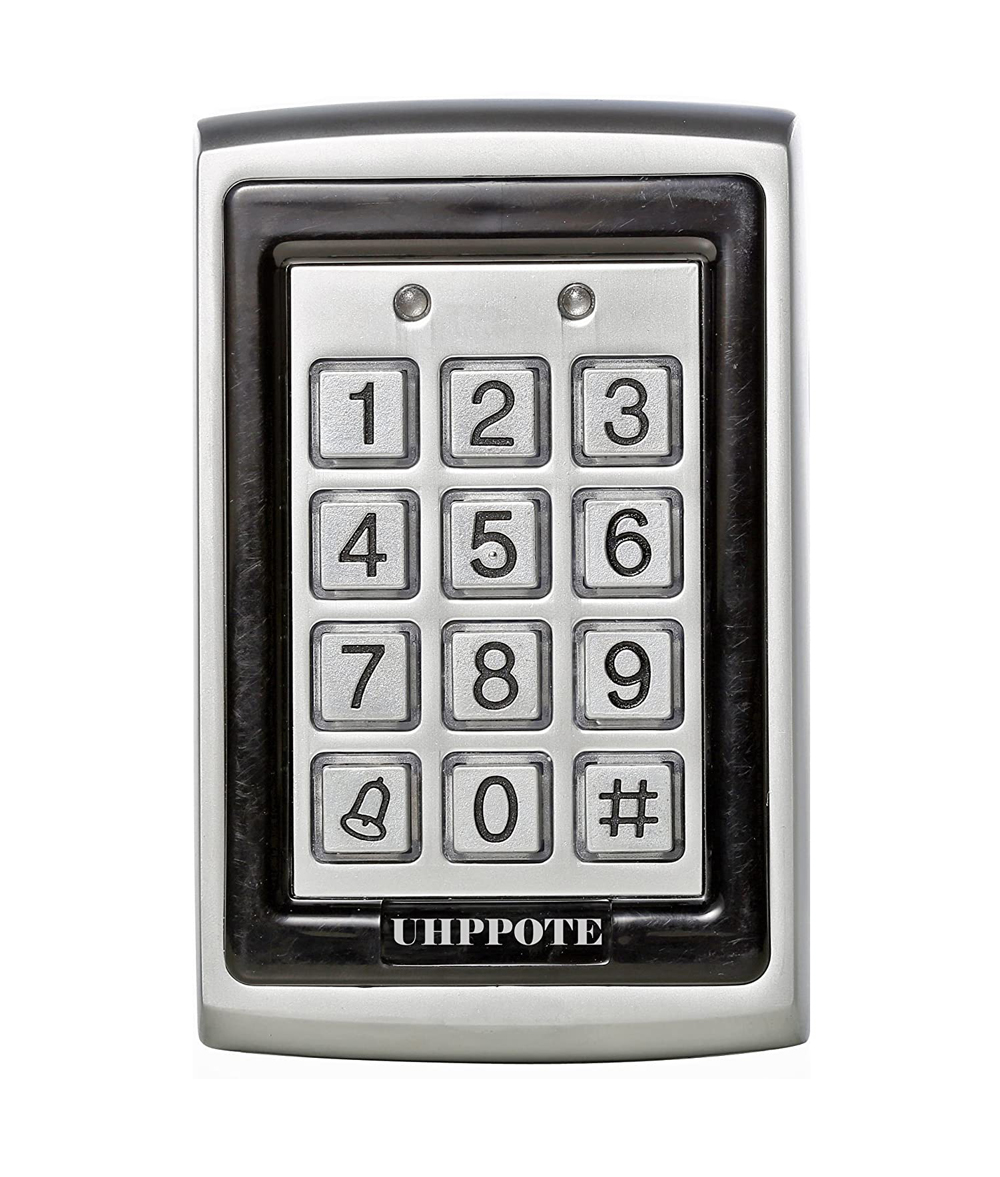

125Khz EM-ID Metal Case RFID Access Control Keypad with Back Light Support 500 User

125Khz EM-ID Metal Case RFID Access Control Keypad with Back Light Support 500 User

Features:

• Metallic case for better protection. Non-waterproof
• Support 500 standard users
• Support entry modes: Password Only / ID Card Only / Password + ID Card
• Can add card number and delete card number as your requirement
• Classical appearance with useful function
• Alarm function

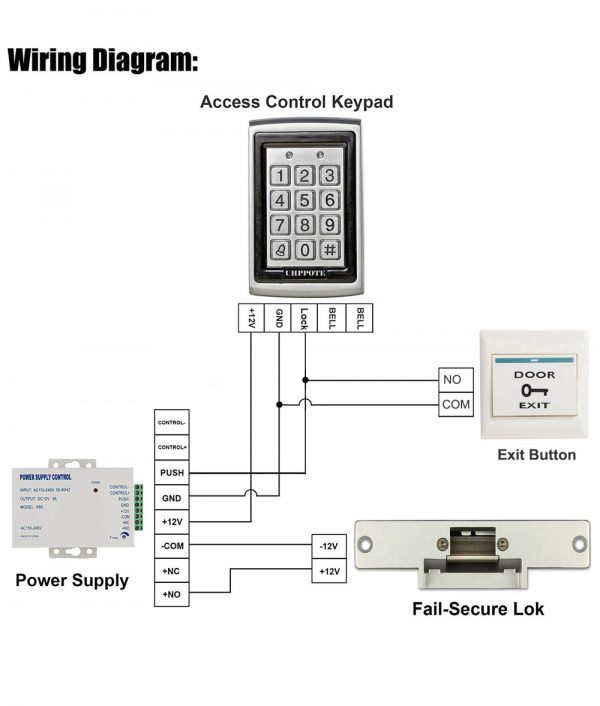

• With lock relay output, secure / normal Mode, NO / NC output
• Built-in bell button can connect a external bell
• Built-in proximity card reader (125KHZ ASK modulation)
• Built-in keypad for PIN code entry
• Sensitively and response quickly
• Auxiliary input & auxiliary output
• 8 Auxiliary Modes including: door ajar, forced door, shunt, door monitor, normal / secure
• Internal buzzer
• 2 status/programming interface LED’S
• 3 user levers: normal user, secure user, master user
• Code search feature that helps make maintaining user codes easier
• Built-in case and back tamper bell, chime, siren, battery backup, tamper output features available with IBA power supplies
• Programmable siren time
• Programmable lock strike release time

Specifications:

• Input Voltage: DC12V
• Frequency: 125kHz
• PIN Digits Capacity: 4-digits
• Compatible Cards: All 26-bit EM cards (Can’t support some encrypted cards,such as HID, Cobra, APCiK etc)
• Operation Temperature: -31℃ ~ 63℃ / -23.8℉~145.4℉
• Net Weight: Approx. 410g / 0.9lbs

Package:

• 1 x Metal Door Access Control
• 1 x User Manual
