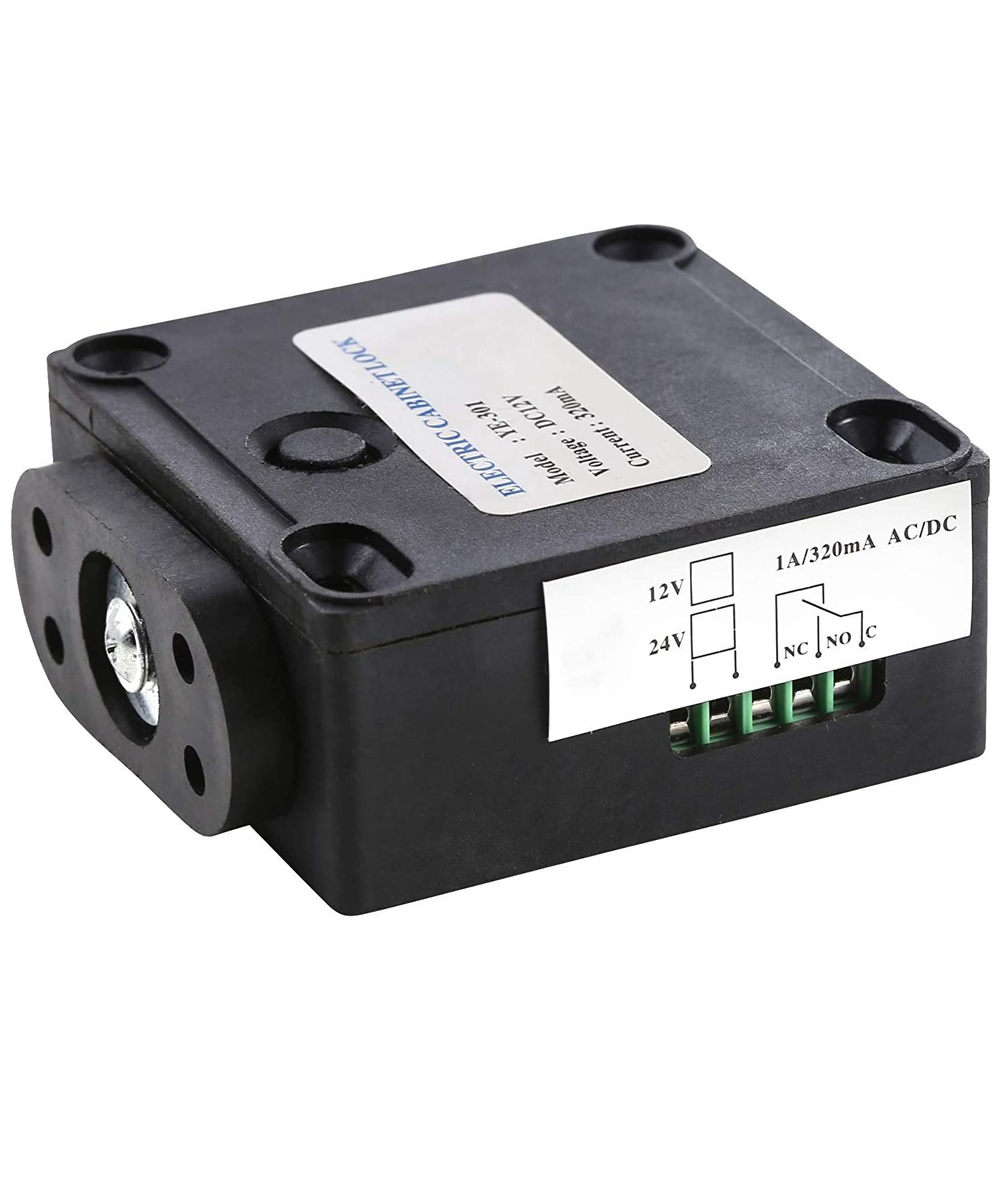

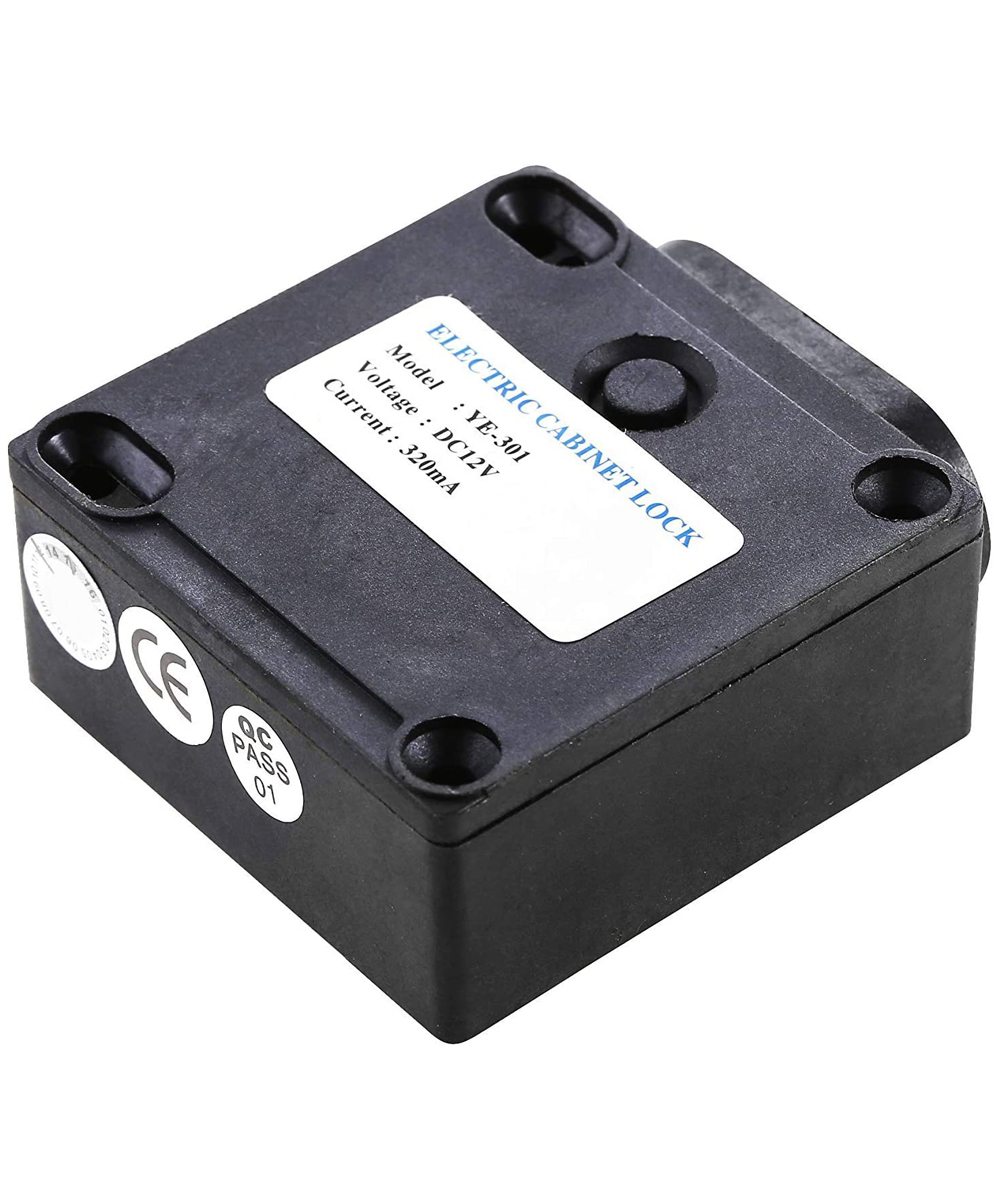

Fail-Secure Motorized Electric Cabinet Lock Drawer Lock File Lock

Fail-Secure Motorized Electric Cabinet Lock Drawer Lock File Lock

Features:

• The Electric Cabinet Lock is designed to electronically secure cabinets and drawers which is very convenient for installation.
• Electronically secure lockers, cabinets, cases, file cabinet, storage cabinet, public cloak room and drawers
• Lock status sensor allows for monitoring whether the lock is engaged
• Door status sensor allows for monitoring whether the door is closed completely
• Compatible with existing keypads or readers
• The addition of a keypad or remote control of your choice provides true access control and convenience of use.

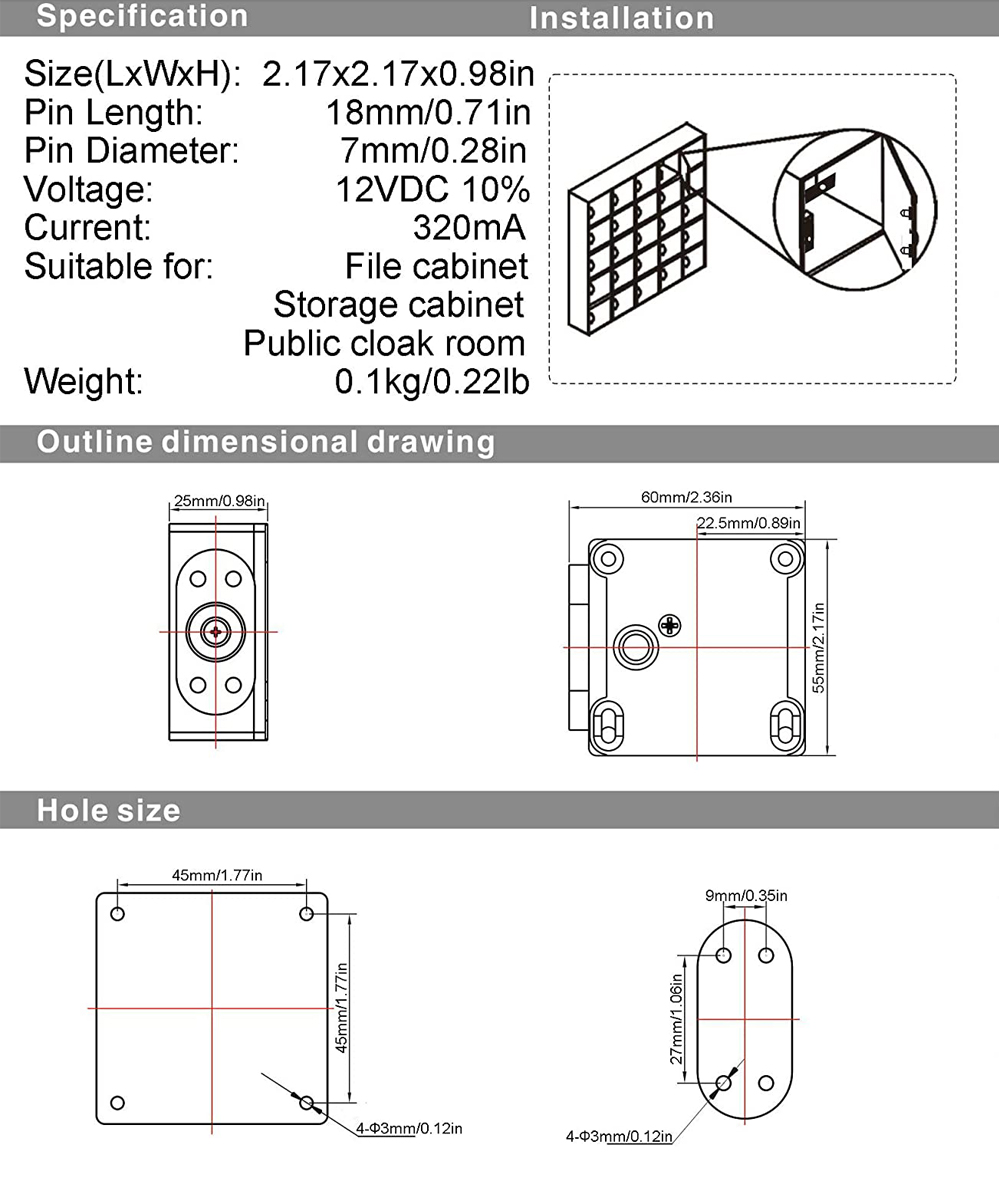

Specifications:

• Holding force: 50kg / 110lb
• Lock body size: 55LX55WX25H(mm) / 2.17Lx2.17Wx0.98H(in)
• Pin length: 18mm / 0.71in; Pin diameter: 7mm / 0.28in
• Operating voltage: 12VDC; Current: 320mA
• Weight: 0.12kg / 0.24lb
• Housing material: Polyamide
• Operating Temperature: 14℉~113℉(-10℃~45℃)
• Suitable For: File cabinet, storage cabinet, public cloak room

Wiring Diagram:

Package:
