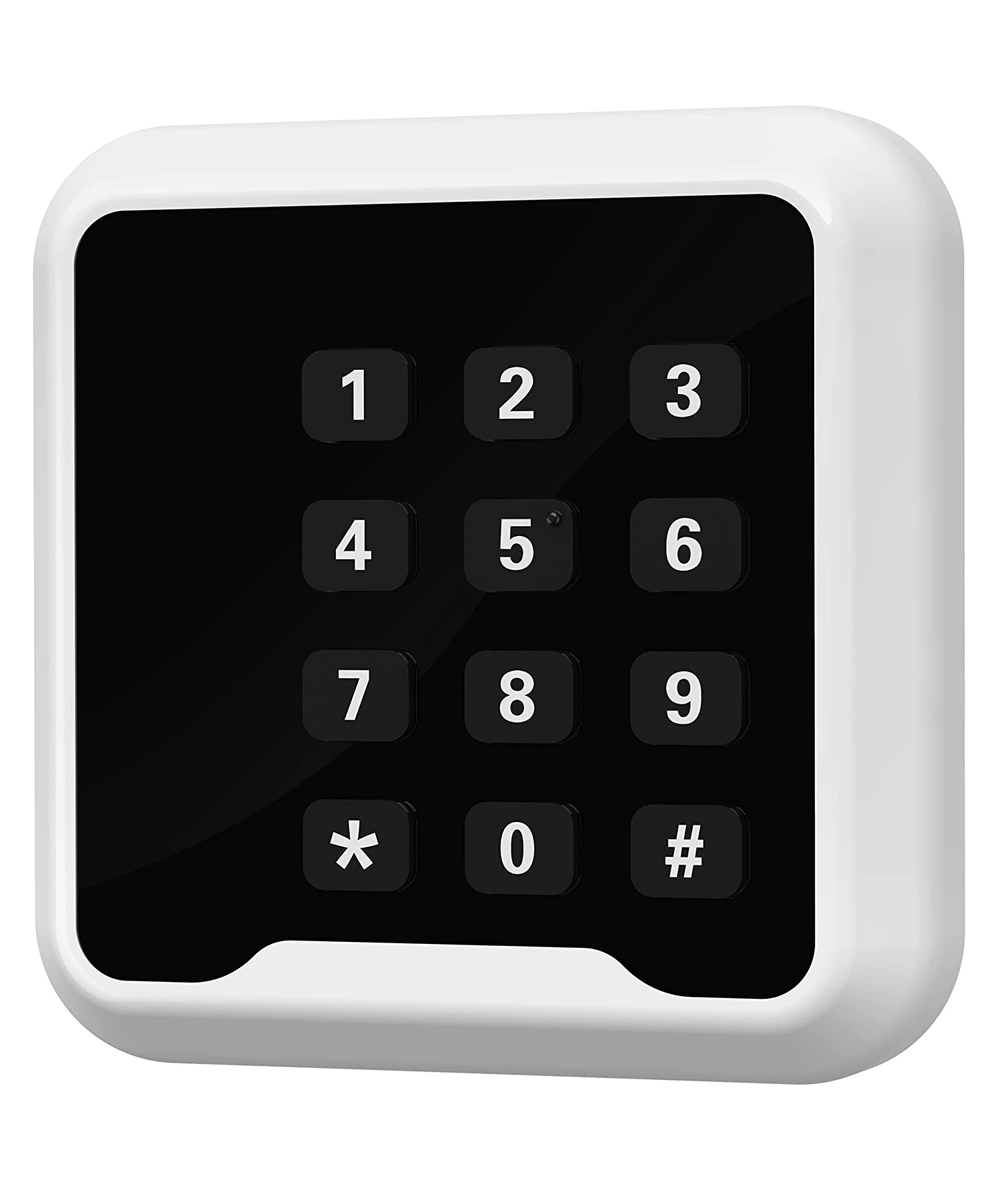

Proximity RFID Card Keypad Reader 125KHz Wiegand 26 Bit for Door Access Control System

Proximity RFID Card Keypad Reader 125KHz Wiegand 26 Bit for Door Access Control System

Features:

• The maximum reading distance is 6cm.
• Waterproof, conforms to IP66.

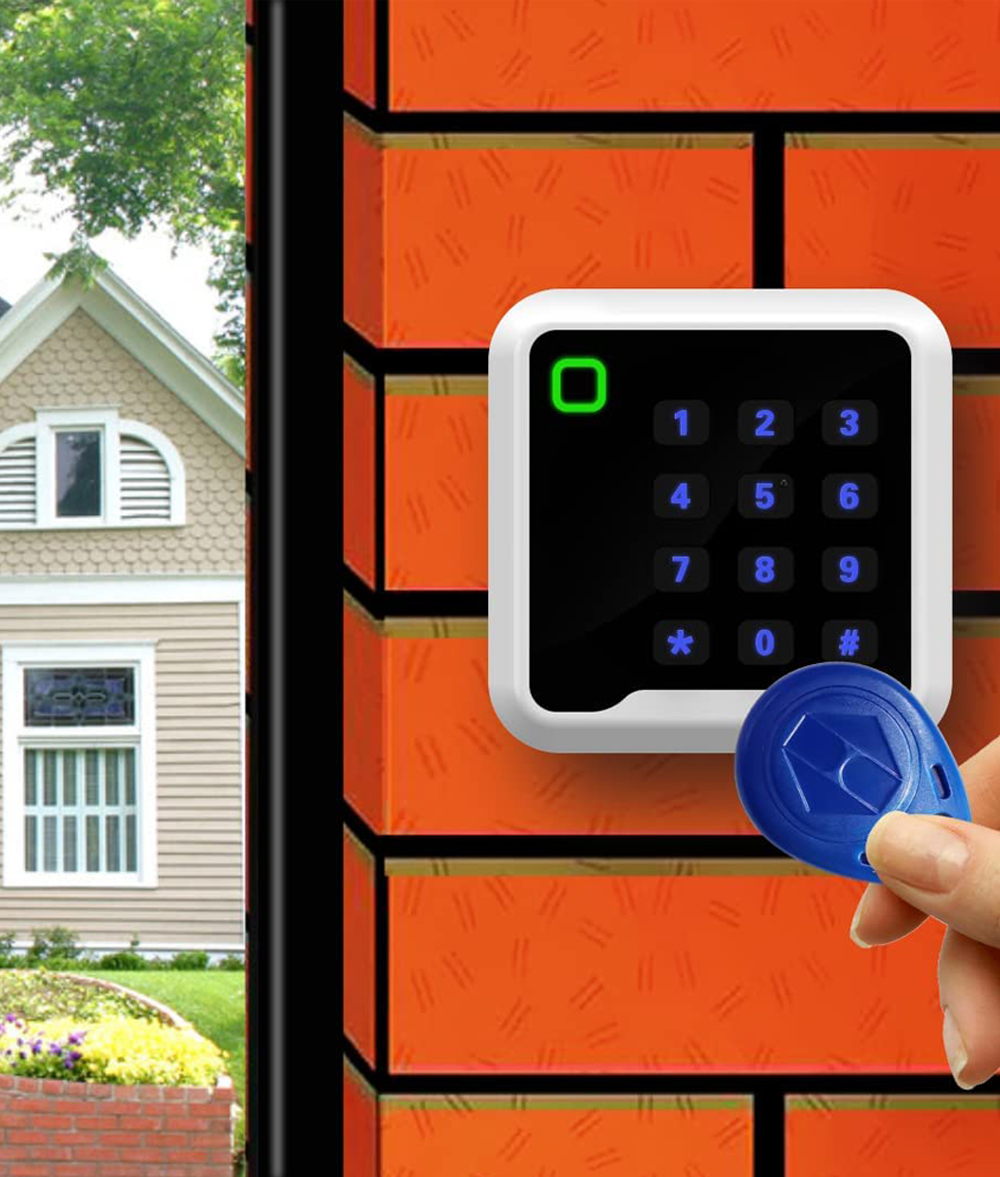

• It is useful for safety door system, easy to connect and use.
• Ultra-low power consumption, the standby current is less than 50mA.
• Support wiegand 26bits or wiegand 34bits output format.
• Fast response speed, the door opening time is less than 0.3s.
• This device uses high performance MCU to ensure stable performance, and low-power circuit makes the service life longer.
• Widely used in factories, houses, residential quarters, offices, mechanical and electrical control equipment and so on.
• This RFID card reader can’t work-alone and it needs to work with Wiegand protocol access controller, such as access control panel, fingerprint device or master controller.

Specifications:

• Working Voltage: 12VDC
• Static Current: ≤50mA
• Card Type: EM-ID
• Frequency: 125KHz
• Working Temperature: -40 to +140°F
• Working Humidity: 10%-90%RH
• Waterproof Rating: IP66
• Enclosure Material: Plastic
• Panel Material: PC
• Enclosure Color: White
• Enclosure Size: 86x86x18mm
• Communication Distance: Less than 328ft
• Lead Cable Length: 25cm
• Status Indication: Bi-color LED + Buzzer
• Output Format: Wiegand 26 bit or Wiegand 34 bit (Selectable)

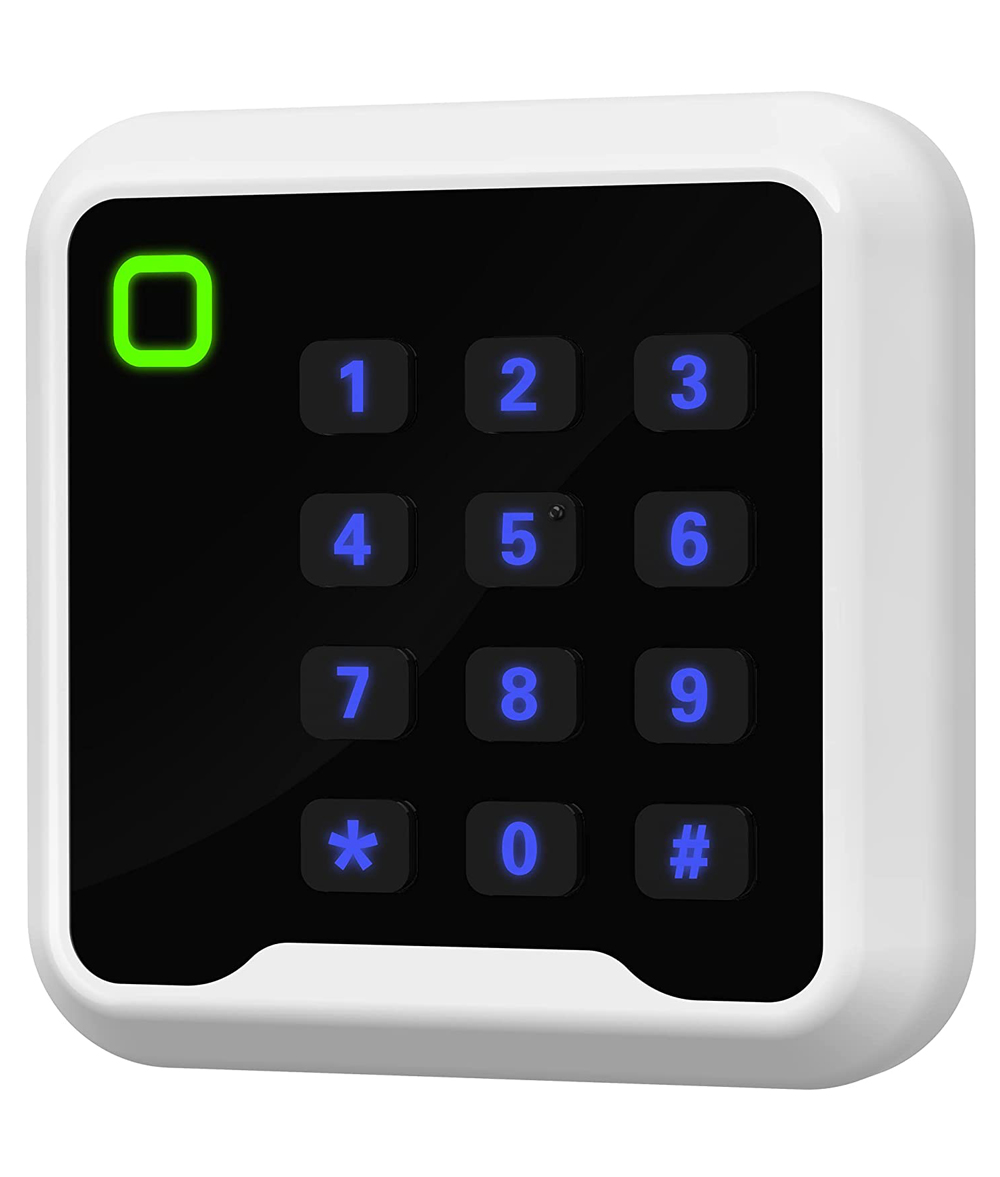

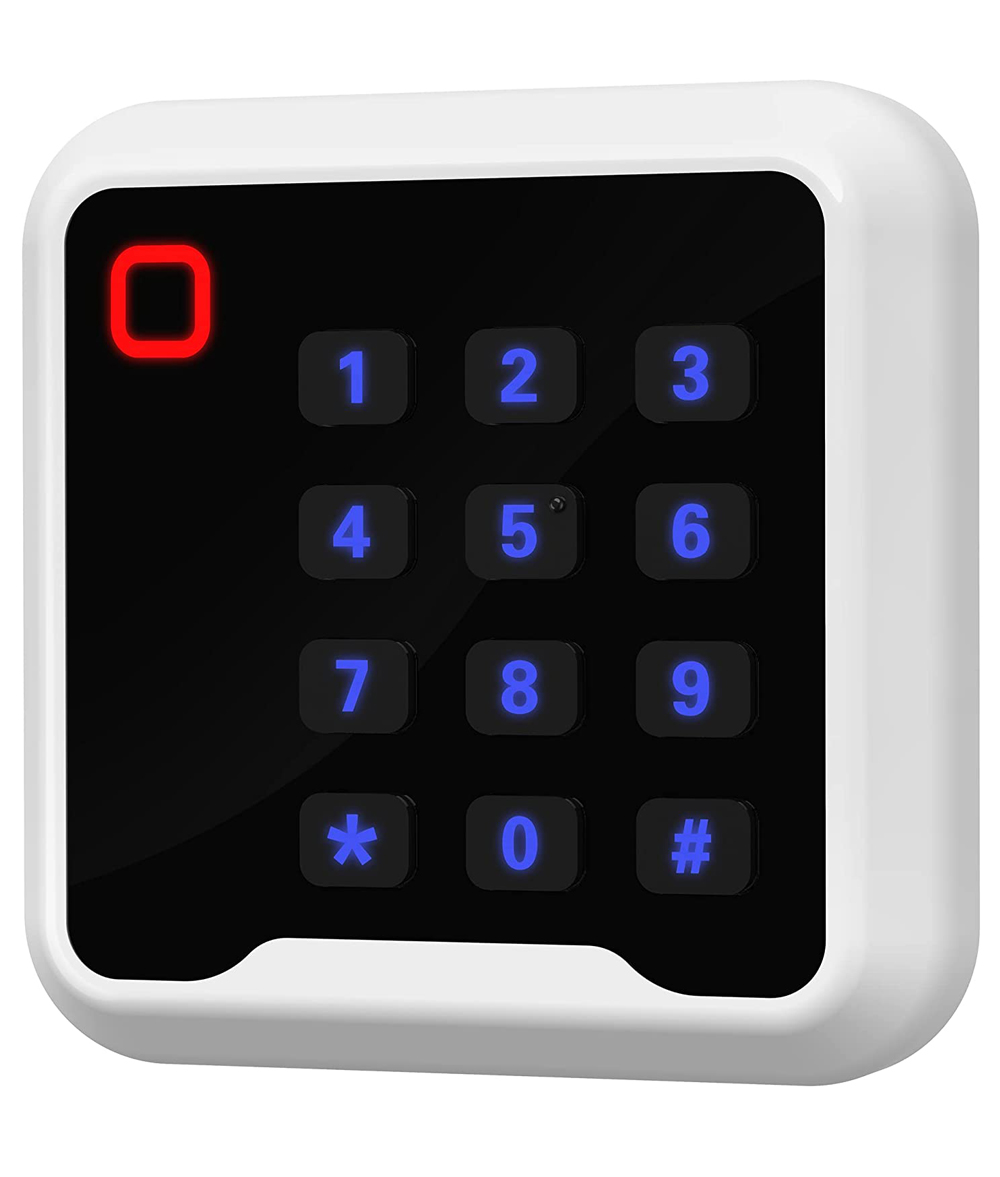

• LED Status Indication: Red means standby, Green means activated

Note:

• Please notice that our wiegand reader can’t be compatible with some encrypted cards, such as HID, Indala, Cobra, APCiK, Paradox, Radio, Honeywell,etc.
• Can’t work alone, need work with access control panel.


Package:

• 1 x Wiegand Reader
• 1 x English User Manual
• 4 x Plastic Anchors
• 4 x #7 x 1″ Self-Tapping Screw
