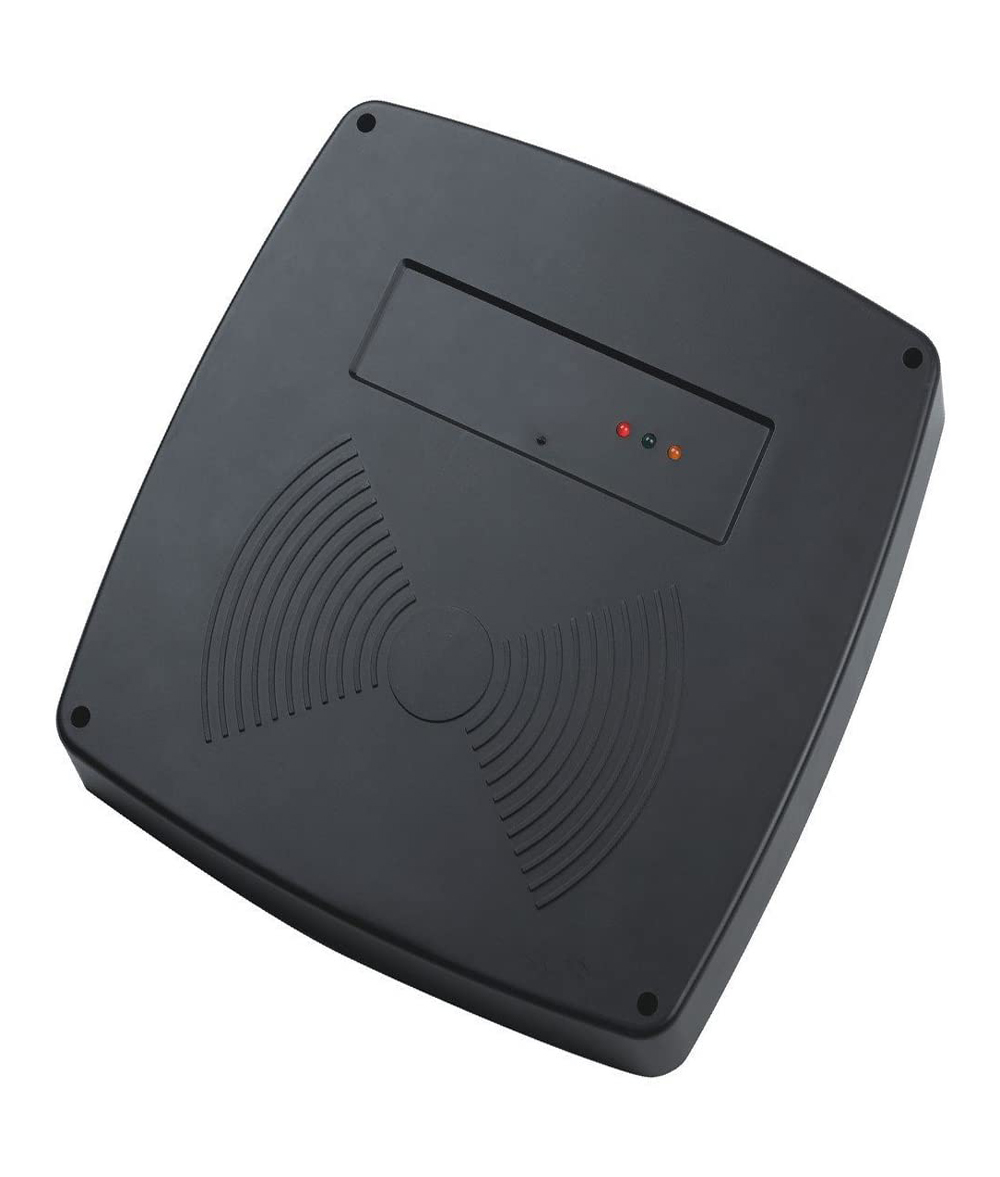

Middle Reading Distance Range (Up to 40″) Wiegand 26-bit 125KHz Card Reader for Access Control Parking System

Middle Reading Distance Range (Up to 40″) Wiegand 26-bit 125KHz Card Reader for Access Control Parking System

Features:

• Data Output Format: Wiegand 26-Bit; Mainly used for parking, elevator, logistics industry,etc
• Card Type: EM-ID Card (Can’t support encrypted cards, such as HID, Indala,Cobra, APCiK ,Paradox,Radio,Honeywell,etc)

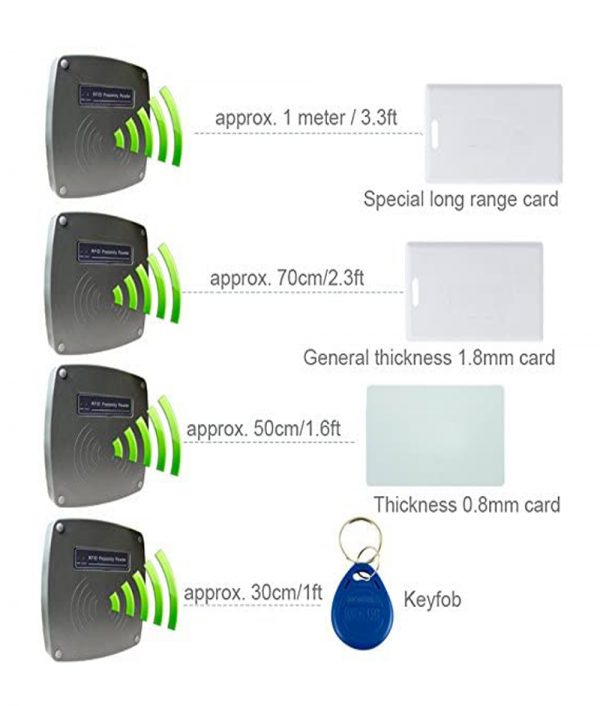

• 30cm-100cm proximity range dependence on cards quality
• The Reading range is a complex parameter,So called “Middle Range”,only means the unit works with the special long range card,that is a 2mm thickness credit size card.
• Normally, the unit can also work with normal EM cards,normal 2mm/0.08″ thickness card can reach 60cm/23.6″ range, 0.8mm/0.03″ card can reach 40cm/15.7″ range.

Specifications:

• Decode time: <0.2s
• Communication: Wiegand 26 bit
• Card type: EM card,EM compatible card, EM4100/TK4100 (Can’t support some encrypted cards,such as HID, Cobra, APCiK etc)
• Frequency: 125khz
• Induction Distance: Common Card up to 30-40cm (11.8″-15.7″) / Long range proximity card up to 80-100cm (31.5″-39.4″)
• Power supply: 12VDC
• Data transfer range: max.80mA
• Current: 200mA
• Working Temperature: 0~70℃ / 32℉~158℉
• Working Humidity: Less than 80%
• Dimension (LxWxH): 230x230x35mm / 9.1″x9.1″x1.4″
• Material: Plastic casing & epoxy saturated
• Built-in antenna: Yes
• Built-in buzzer: Yes
• Application: Parking, elevator, logistics industry,etc.

Notifications:

• The Reading range is a complex parameter, So called “1M range”,only means the unit works with the special long range card,that is a 2mm thickness credit size card.
• Normally, the unit can also work with normal EM cards, normal 2mm / 0.08″ thickness card can reach 60cm / 23.6″ range, 0.8mm / 0.03″ card can reach 40cm / 15.7″ range.

Remarks:

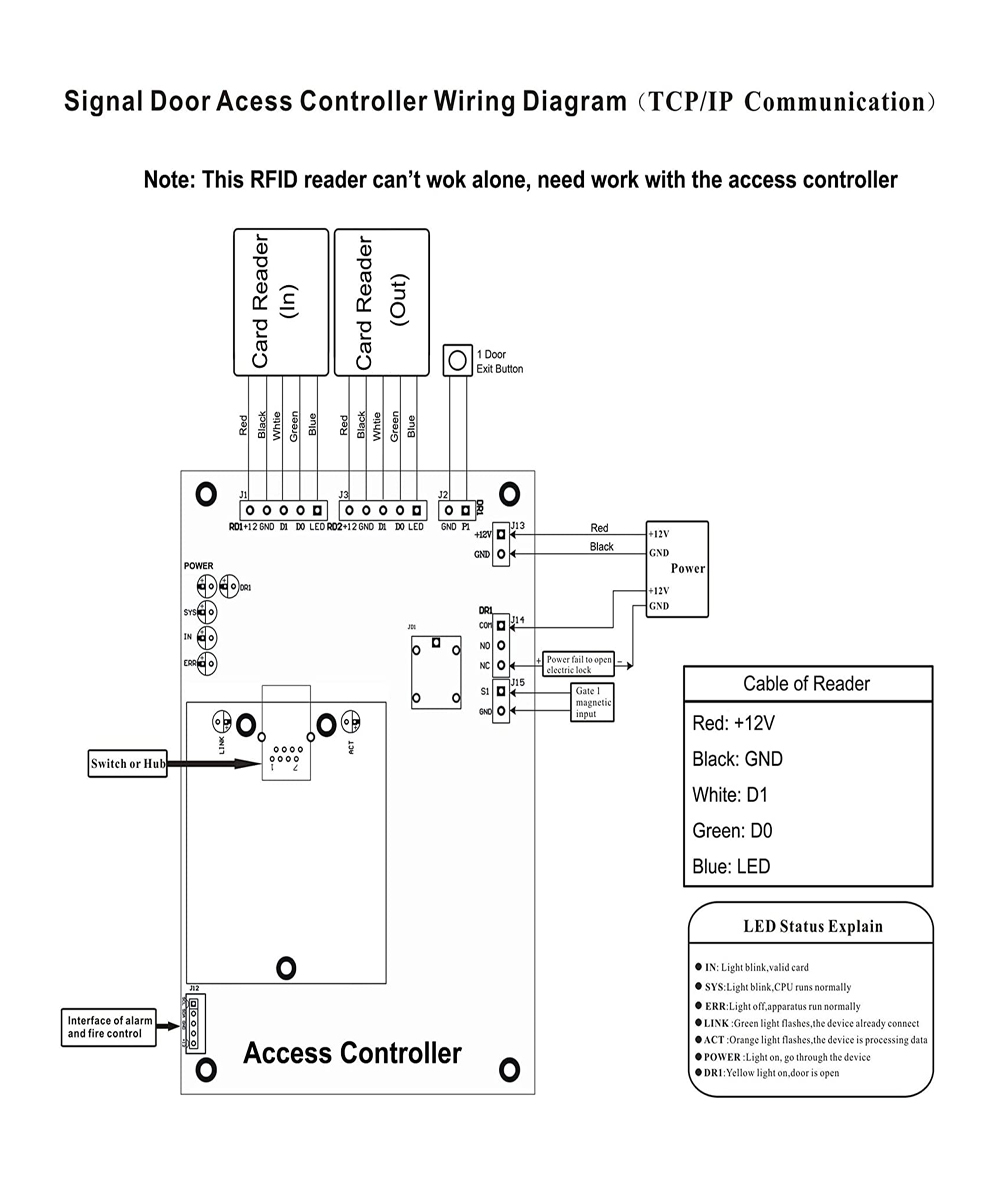

• Can’t work alone, need work with access control panel.

Package:

• 1 x Proximity Waterproof Reader
• 1 x English manual
