Electric Drop Bolt Lock Fail Safe 12VDC with Time Delay for Access Control

Electric Drop Bolt Lock Fail Safe 12VDC with Time Delay for Access Control

Features:

• Low temperature, safe & durable
• Low power, environmental protection
• Special photoelectricity control,three steps current application
• Long life with 500000 cycles
• MOV Provides Reverse Current Protection
• Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt
• Double protection for loading current
• Certificate: CE&MA
• A:The Low Current is Changed immediately
• B:When door frame doesn`t coincide with doorleaf,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature
• C:The Photoelectricity Control Technology, prevent the mechanical defect

Specifications:

• The new structure optimization design,more stable and more secure
• Fail Safe: Unlocked when power is removed

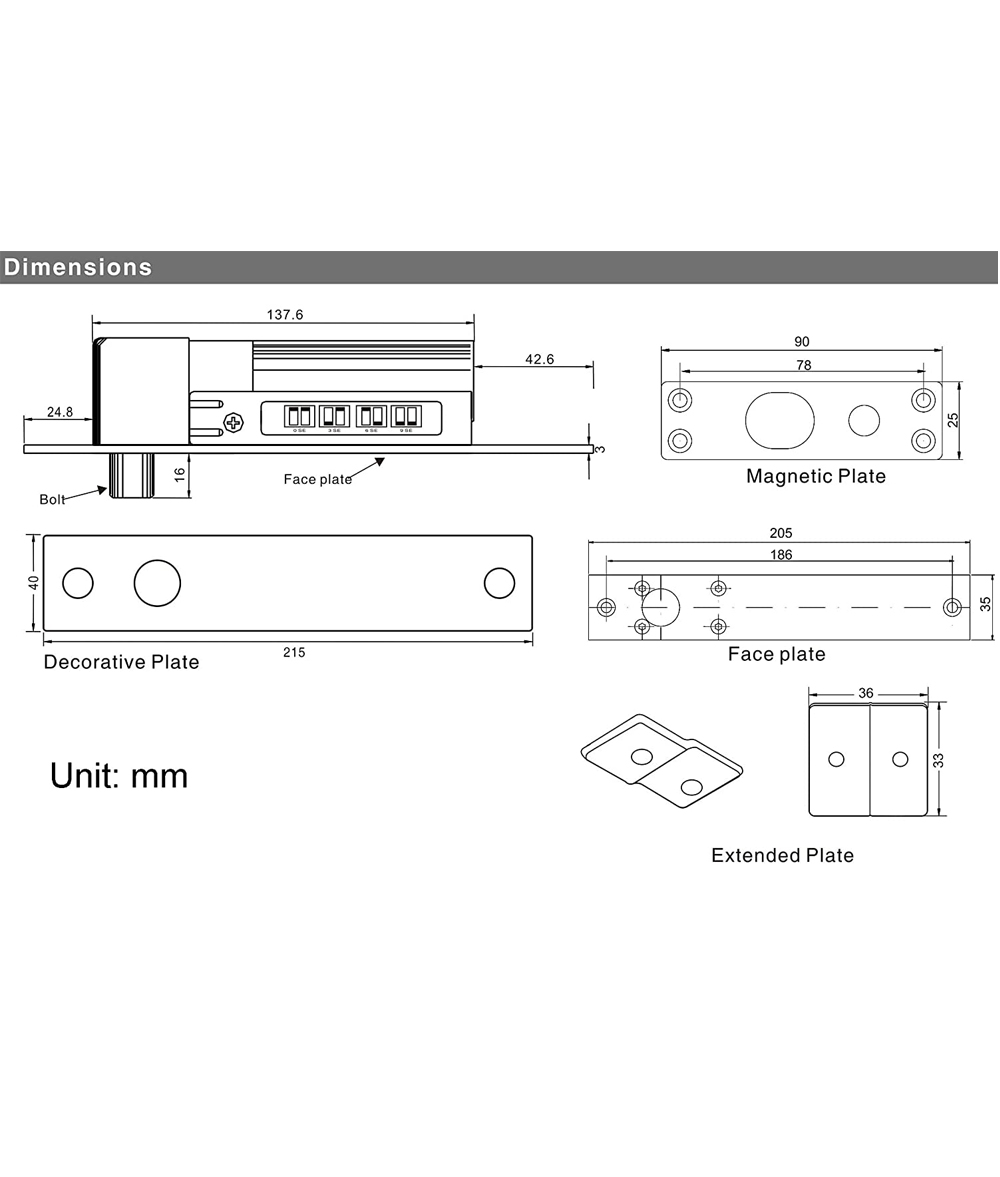

• Face Plate: 205Lx35WX41.5H(mm) / 8.1″x1.4″x1.6″
• Working voltage: DC12V/1A
• Start Current: 900mA
• Standby Current: 120mA
• Solid Bolt: Polishing housing, 800Kg/1763lb Holding Force
• Suitable For: Wooden Door, Glass Door, Metal Door, Glass Door
• Induction Distance: 5/16″
• Operating temp: 14℉~131℉
• Operating Humidity: 0~90%(non-condensing)
• Special Designed: Tested to 500000 cycles
• Face place material: High Aluminum
• Weight: 1.59lb

Package:

• 1 x Electric Bolt Lock
• 1 x Panel cover
• 1 x Induction lock
• 1 x Screw kit
