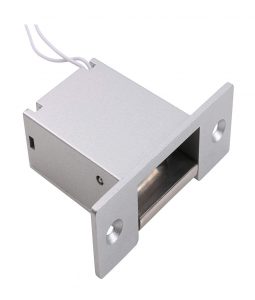

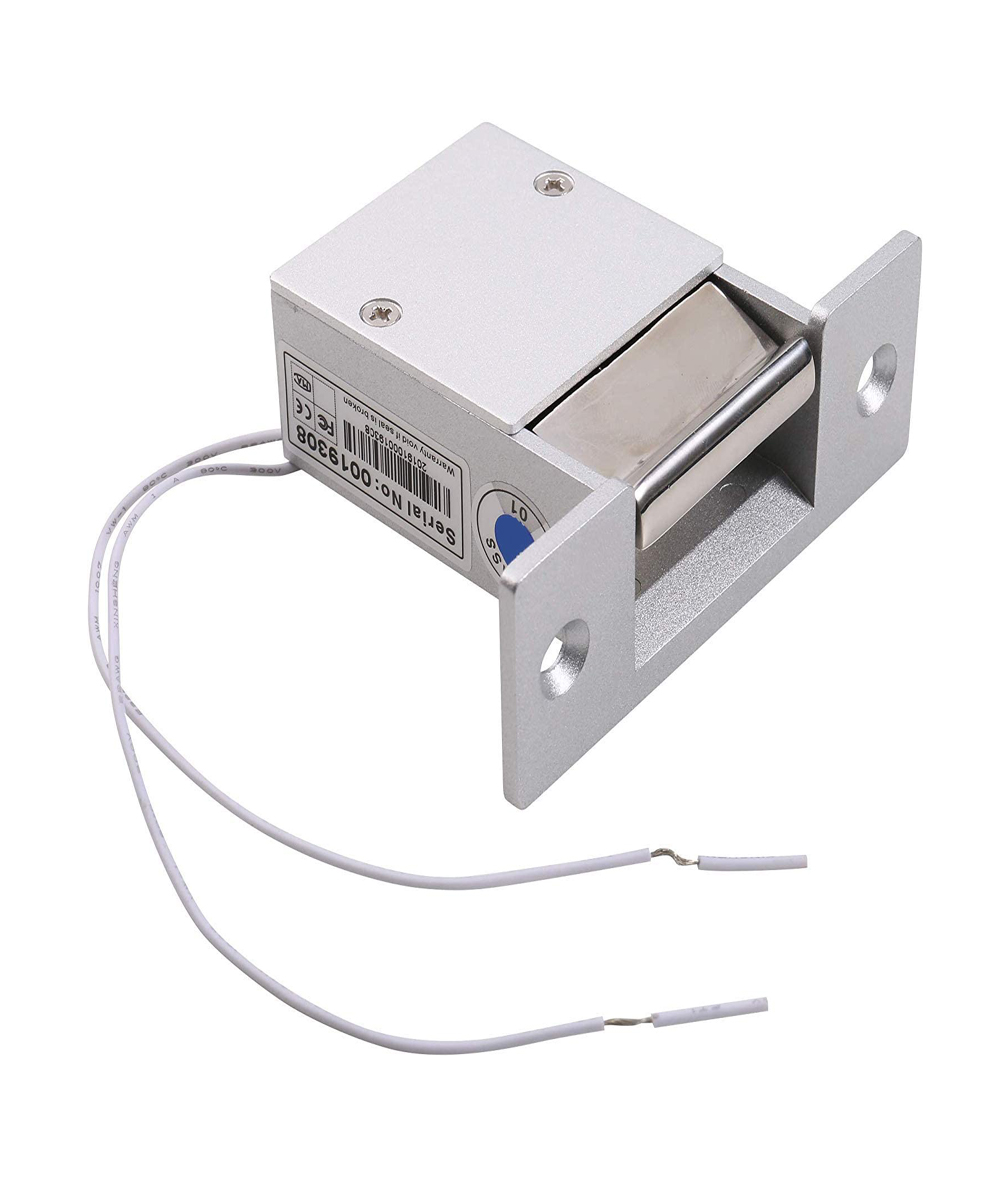

Electric Strike Lock for Access Control System Fail Secure

Electric Strike Lock for Access Control System Fail Secure

Features:

• Fail secure, NO mode (Locked when power is removed)
• Holding force 500kg / 1100lbs
• Testing to 1000000 cycles
• High-Temperature Painted,Duable and Beatiful Artical
• CE Certificate by European Union, MA Certificate by China Public Security office
• Suitable For: Wooden Door, Metal Door, PVC Door
• Function: Built-out MOV

Specifications:

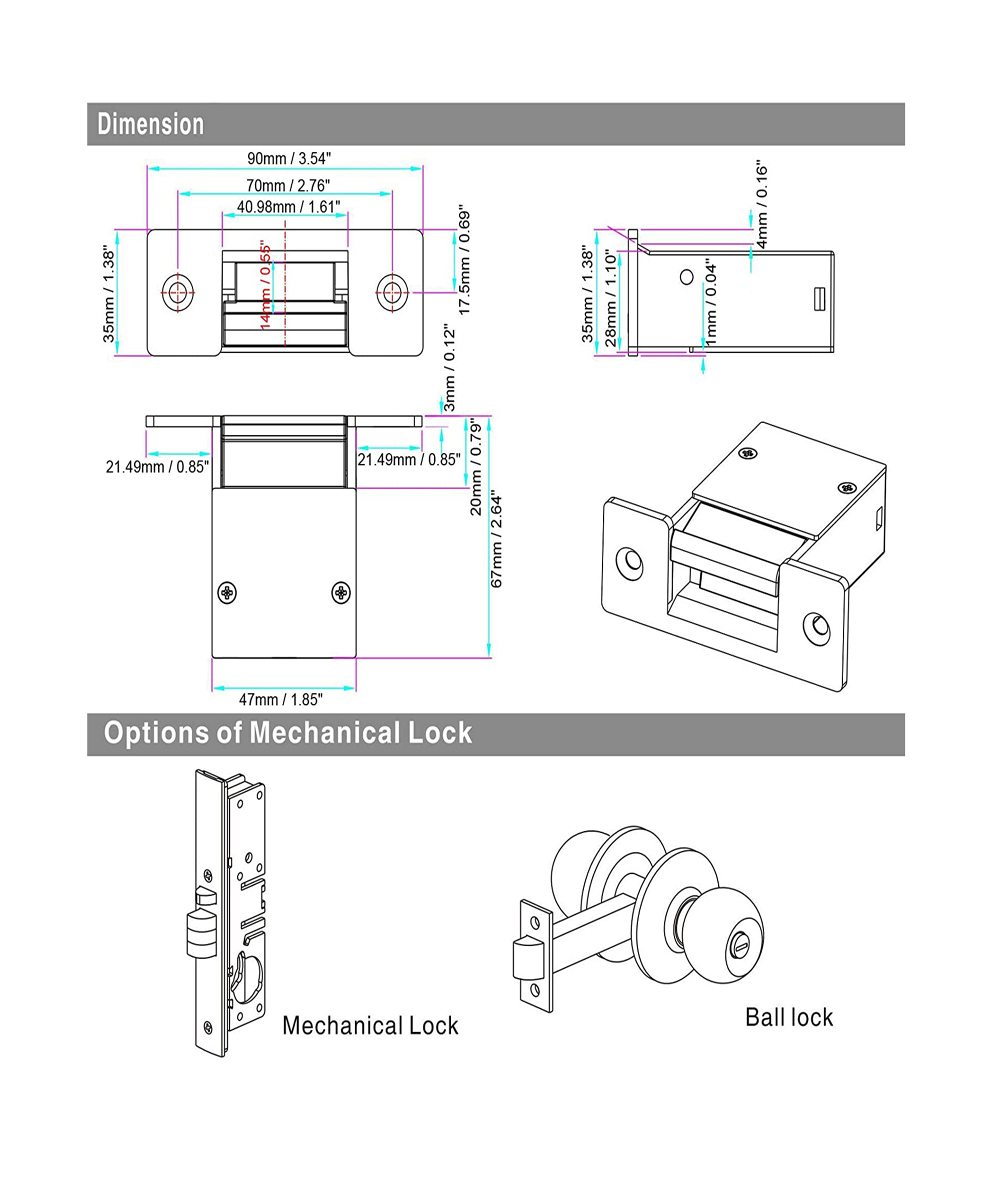

• Lock Size(LxWxH): 90x35X67mm / 3.54″x1.38″x2.64″
• Strike Structure: Stainless Steel
• Face Plate Housing: Painted Steel
• Holding Force: 500kg/1100lbs
• Voltage: 12/24 VDC/AC
• Current: 12V/550mA; 24V/1100mA
• Fail Secure, No mode
• Suitable For: Wooden Door, Metal Door,PVC Door
• Surface Temperature: Within +20℃ / 68℉
• Suitable Temperature: -10℃~+55℃(14℉-131℉)
• Operating Humidity: 0~90% (non-condensing)
• Function: Built-out MOV

Note:

• Strike Lock needs to work with mechanical lock. Mechanical lock needs to buy seperately.

Package:

• 1 x Electric Lock (NO Mode)
• 1 x English Manual
