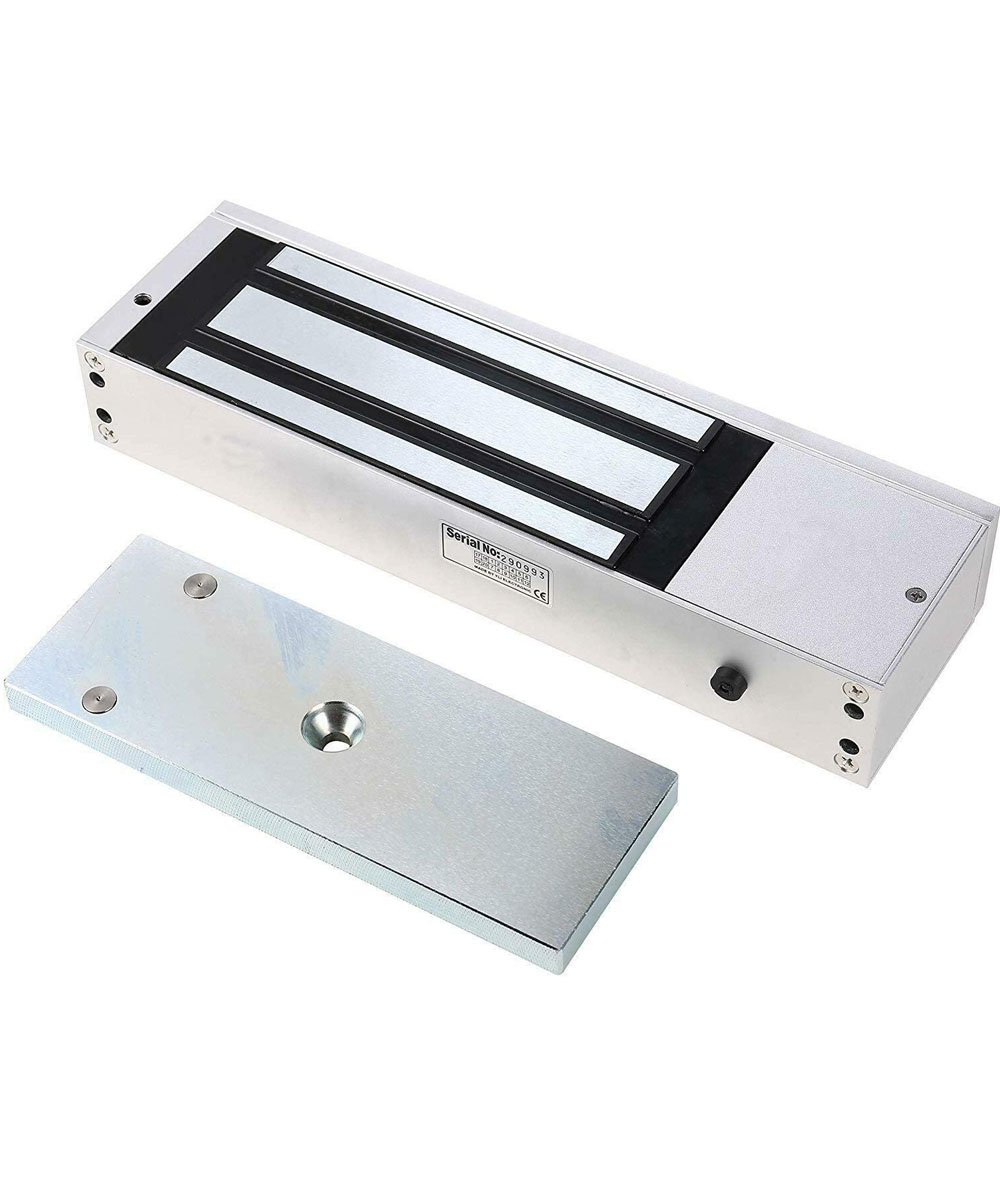

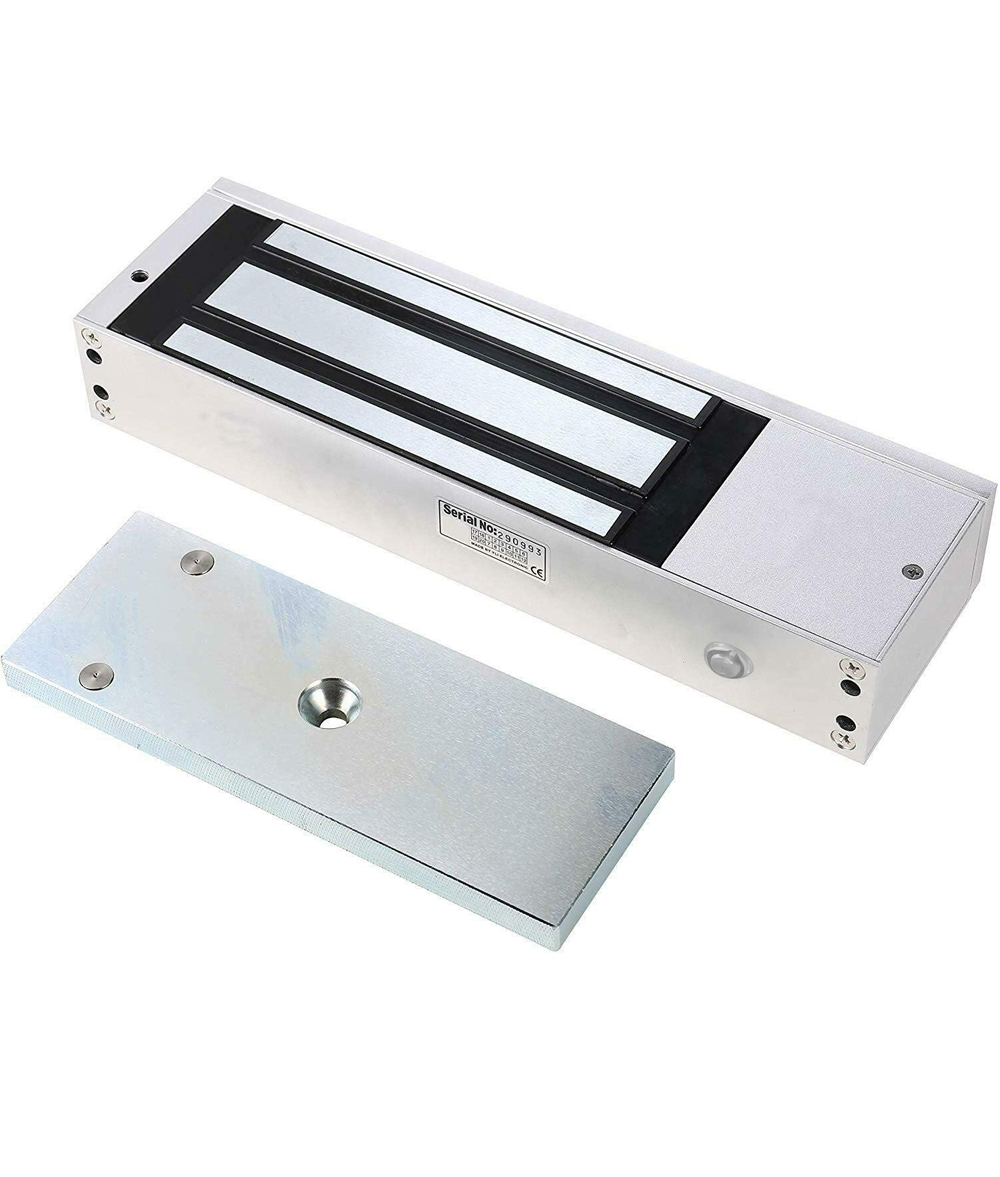

1500lbs Holding Force Electric Magnetic Lock Fail Safe for Single Door Access Control

1500lbs Holding Force Electric Magnetic Lock Fail Safe for Single Door Access Control

Features:

• Collinear Load Test 750kg/1500lb
• Dual Voltage 12 or 24 VDC
• LED Indicates the Door Status

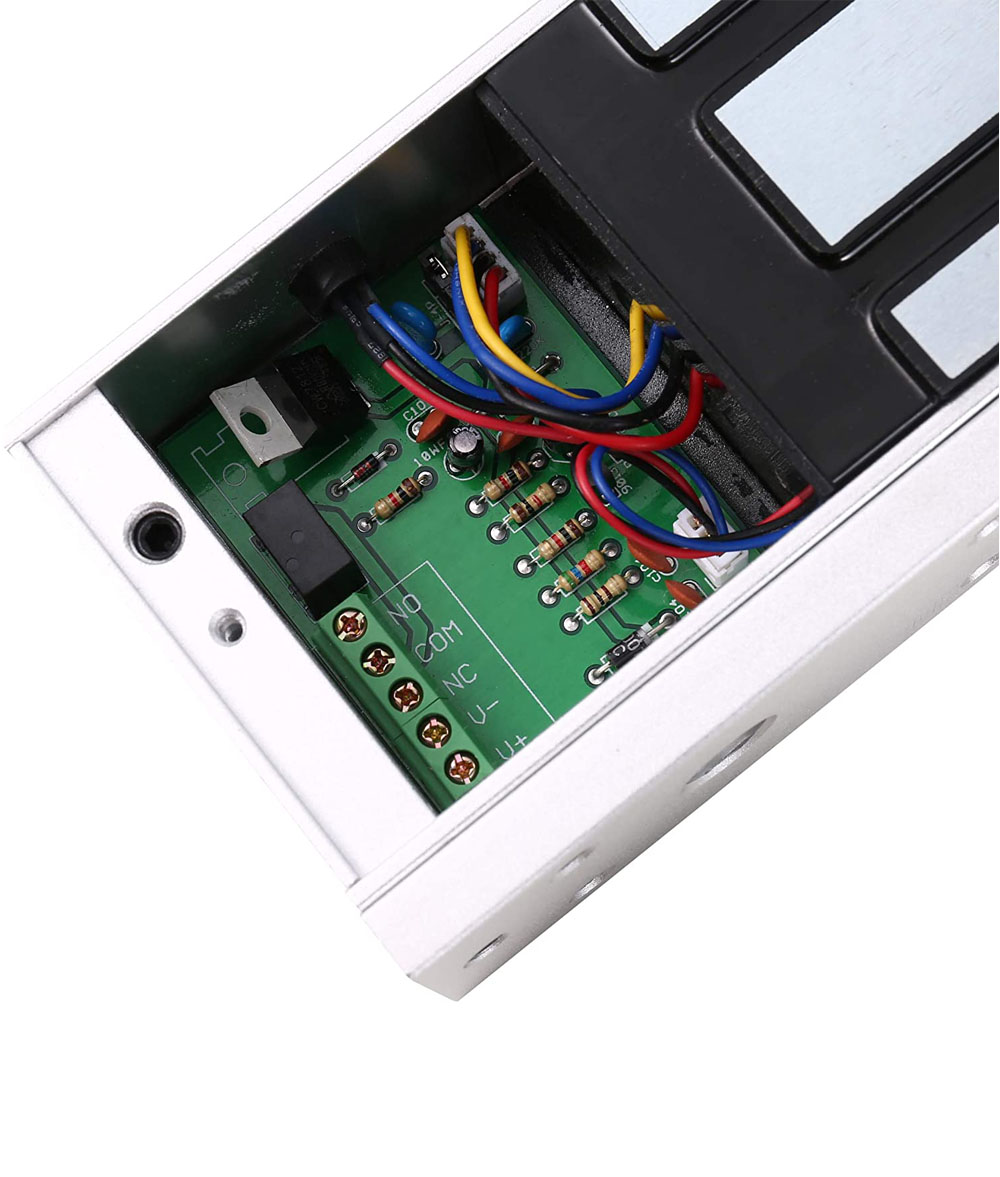

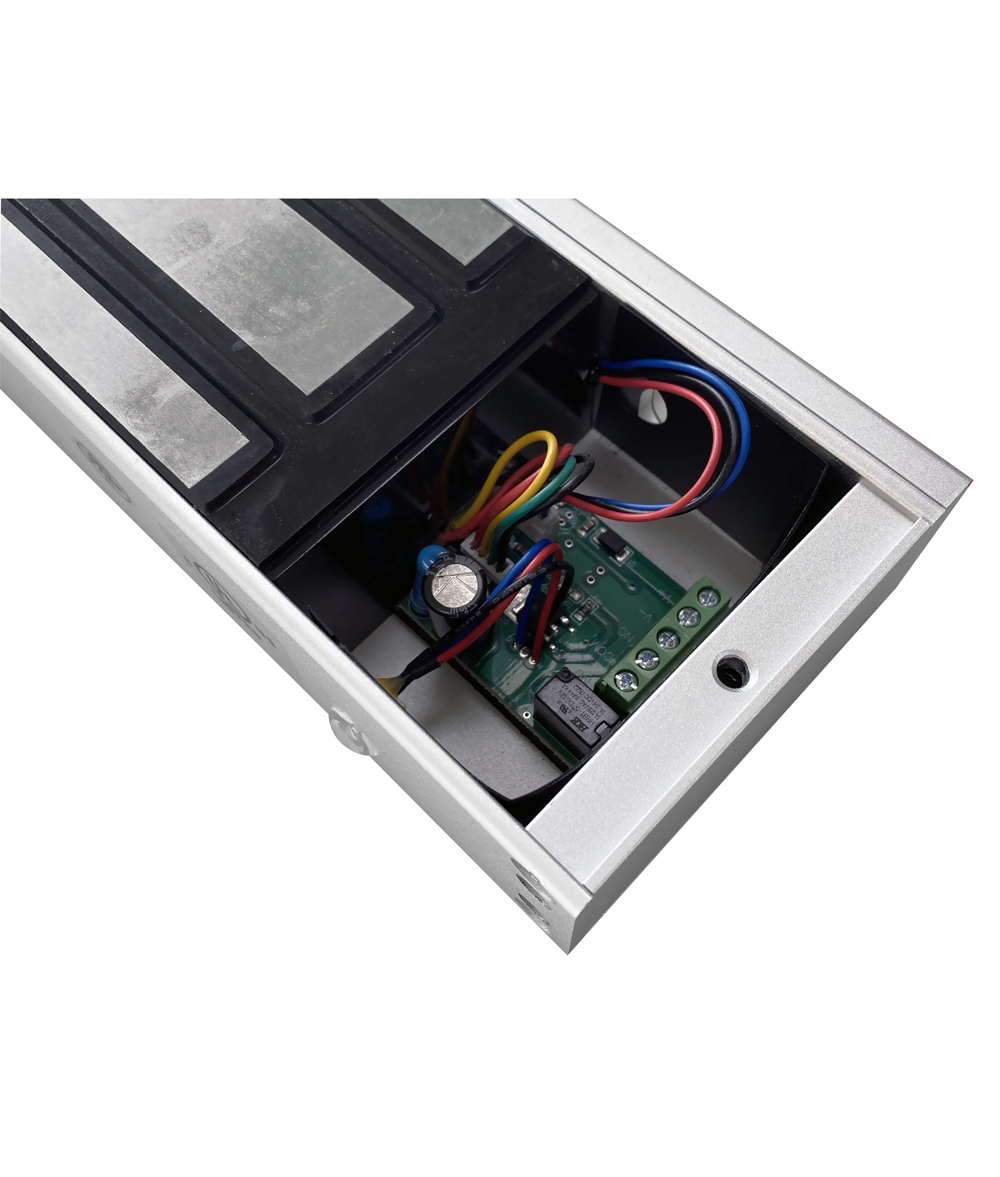

• Lock Status sensor(NO/NC/COM)
• Anti-Residual Magnetism Designed
• This single door electric lock is for glass door, wooden door, fireproof door, sliding door and metal door. Inbuilt dry contacts lock status signal output ( NO, NC, COM).
• Special anti-residual magnetism designed.
• The Standard Voltage is 12VDC when Finished
• MOV Provides Reverse Current Protection
• High Strength Material, Anodized Aluminum Housing
• Design without Mechanical Failure
• Increase the holding Force, Dual Insulative Housing
• CE Certificate by European Union, MA Certificate by China Public Security Office

Specifications:

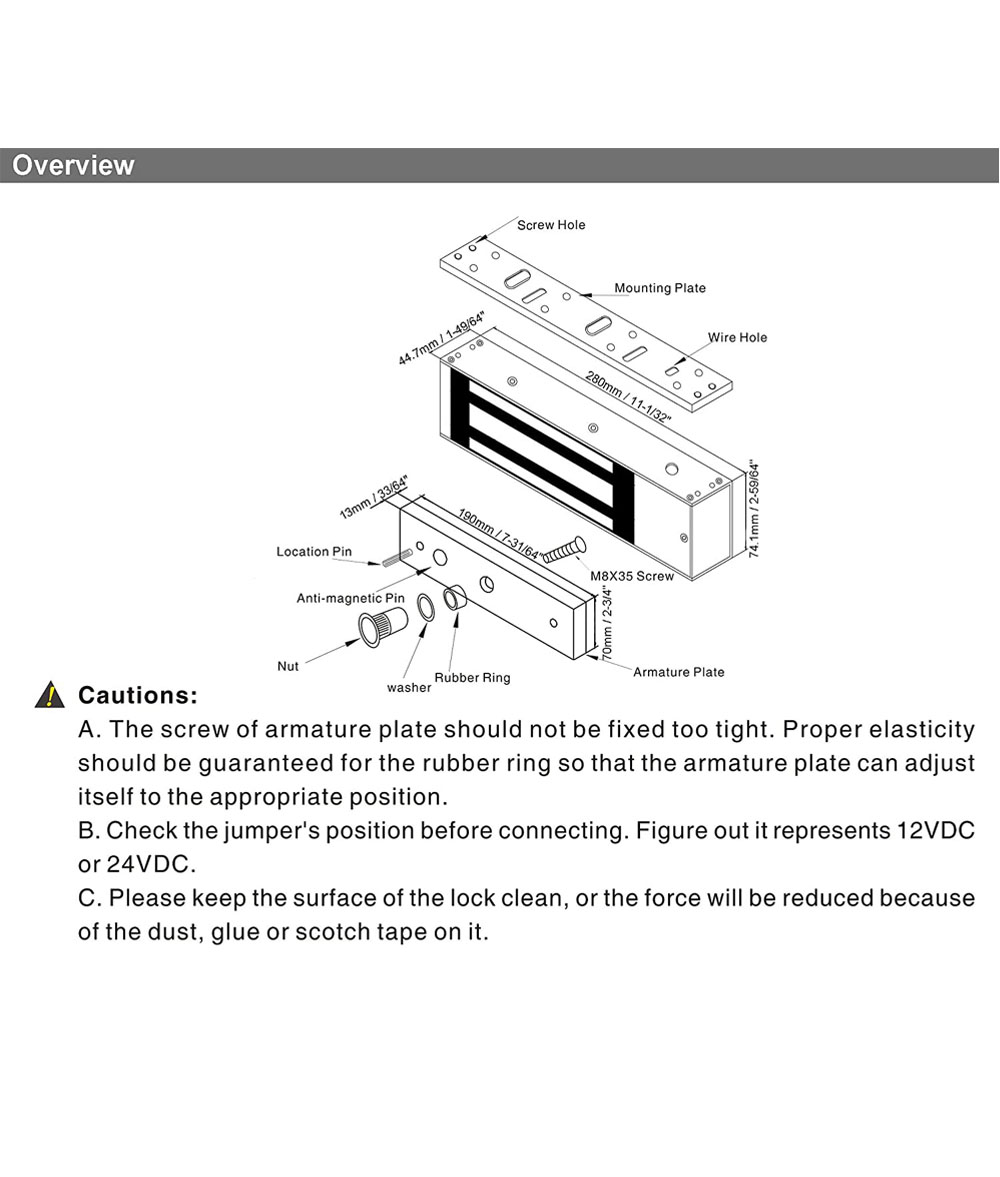

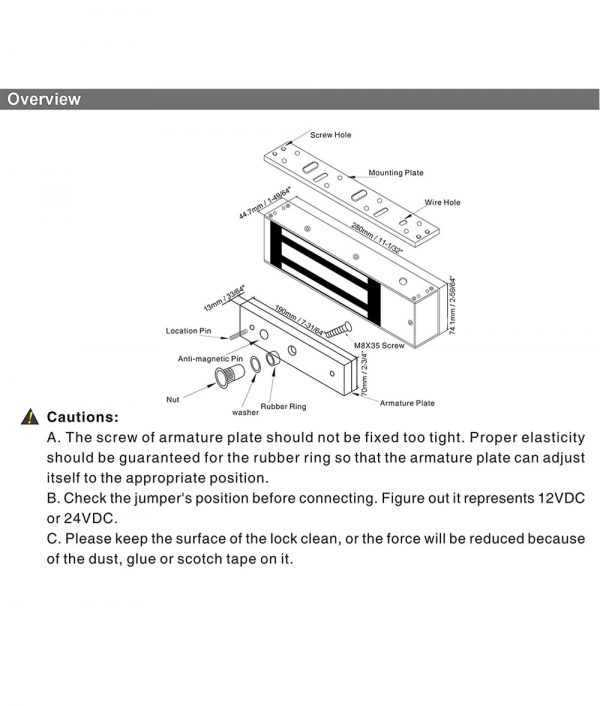

• Size: 280Lx81.6Wx46H(mm) / 11″x3.2″x1.8″
• Armature plate: 190Lx70Wx13H(mm) / 7.5″x2.8″x0.5″
• Holding Force: 750kg / 1500Lbs
• Voltage: 12 or 24VDC
• Current Draw: 12V/420mA or 24V/210mA
• Signal Output: Dry Contact, Max Rating of Contact Current 3A
• LED: Red indicates the door is unlock, Green indicates the door is lock
• Suitable for: Wooden door, Glass door, Metal door, Fireproof door
• Surface Temp: Less than +20℃ / 68℉
• Operating Temp: -10℃~+55℃(14℉-131℉)
• Suitable Humidity: 0-95%(non-condensing)
• Finishes for Shell: Anodized aluminum
• Finishes for Magnetic: Zinc
• Finishes for Armature: Zinc
• Weight: 5.9kg / 13lb

Attention:

• Armature plate installed too tight will lead to result the lock weak force, recommend loosen the armature plate screws a little in this case.
