1200Lbs Holding Force Outdoor Electromagnetic Lock with Mount Bracket for Inswinging Door

1200Lbs Holding Force Outdoor Electric Magnetic Lock with Mount Bracket for Inswinging Door

Features：

• NC mode – (locked while supplied with power), fail safe mode
• Signal Output: Dry Contact,Max Rating of Contact Current 3A
• Design without Mechanical Failure, Depending on the powerful Magnetic force
• Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
• Reach IP-68 waterproof Grade. The case is 100% waterproof treatment., which made of stainless steel material
• Collinear Load Test 500kg / 1200lb
• Dual Voltage 12 or 24 VDC(optional)
• The Standard Voltage is 12VDC when Finished
• MOV Provides Reverse Current Protection
• The Shell Finished with Stainless Steel, more Strong and Durable
• Special Waterproof, Indoor and Outdoor can be installed
• Increase the holding Force, Dual Insulative Housing
• CE Certificate by European Union, MA Certificate by China Public Security Office

Specifications:

Electromagnetic Lock:

• NC mode – (locked while supplied with power), fail safe mode
• Lock Size: 220Lx63Wx36H(mm)
• Armature plate: 185Lx60Wx13H(mm)
• Holding Force: 500kg / 1200Lbs
• Input Voltage: 12 or 24VDC
• Current: 12V/480mA or 24V/240mA
• Suitable: Wooden door, Glass door, Metal door, Fireproof door
• Signal Output: Dry Contact, Max Rating of Contact Current 3A
• Surface Temp: Less than +20℃ / 68℉
• Operating Temp: -10℃~+55℃(14℉~131℉)
• Humidity: 0~95%(non-condensing)
• Finishes for Shell: Anodized aluminum
• Finishes for Magnetic: Zinc
• Finishes for Armature: Zinc
• Waterproof Level: IP-68
• Weight: 4.5kg

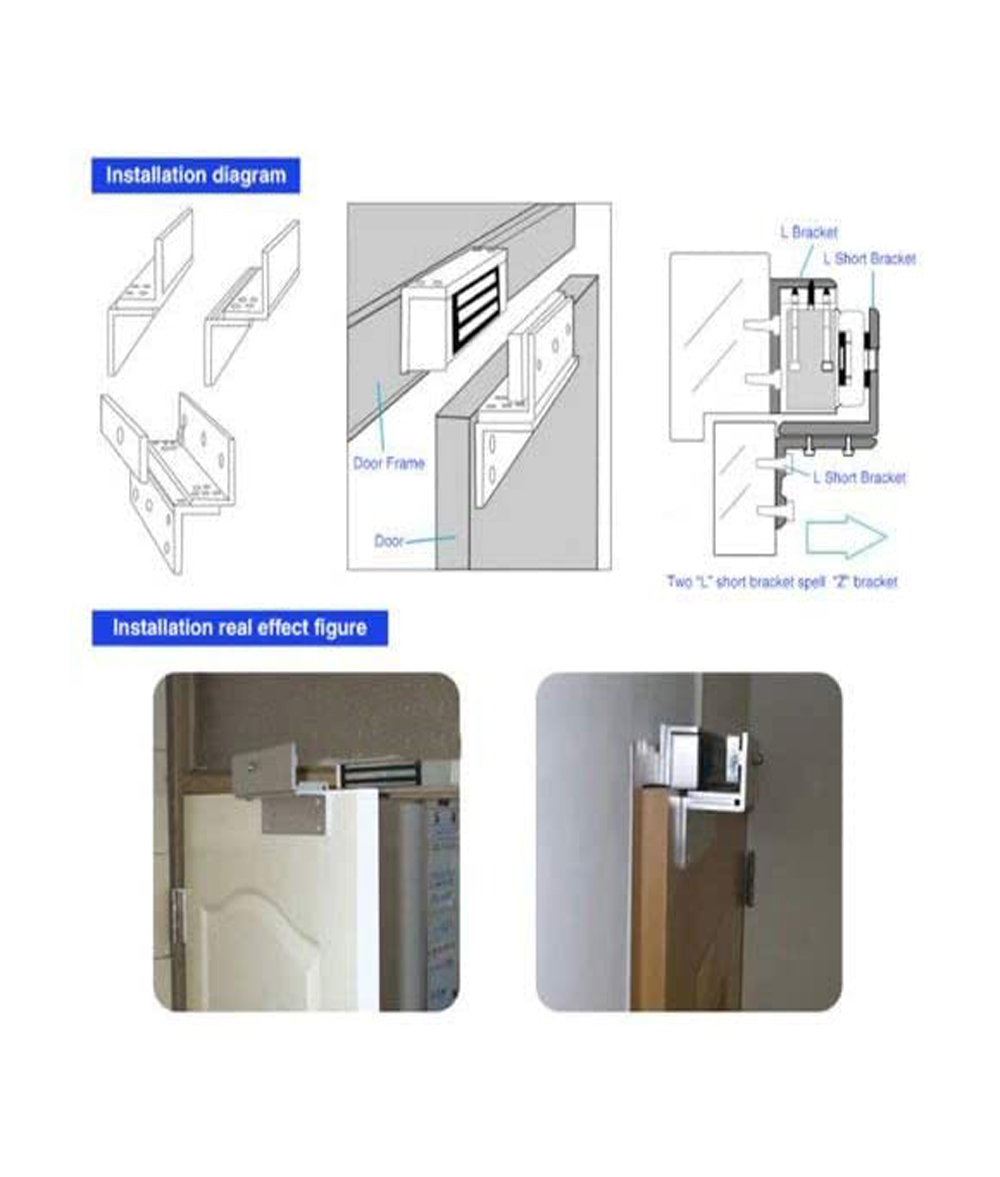

Bracket:

• Dimension: L: 220Lx63Wx36H(mm) / Z: 185Lx60Wx30H(mm)
• Material: High Strength Aluminum, Sandblast Finished
• Suitable: Narrow Door
• Opening Mode: 90 Degree Door
• Finished for Shell: Anodized aluminum
• Weight: 1.34kg

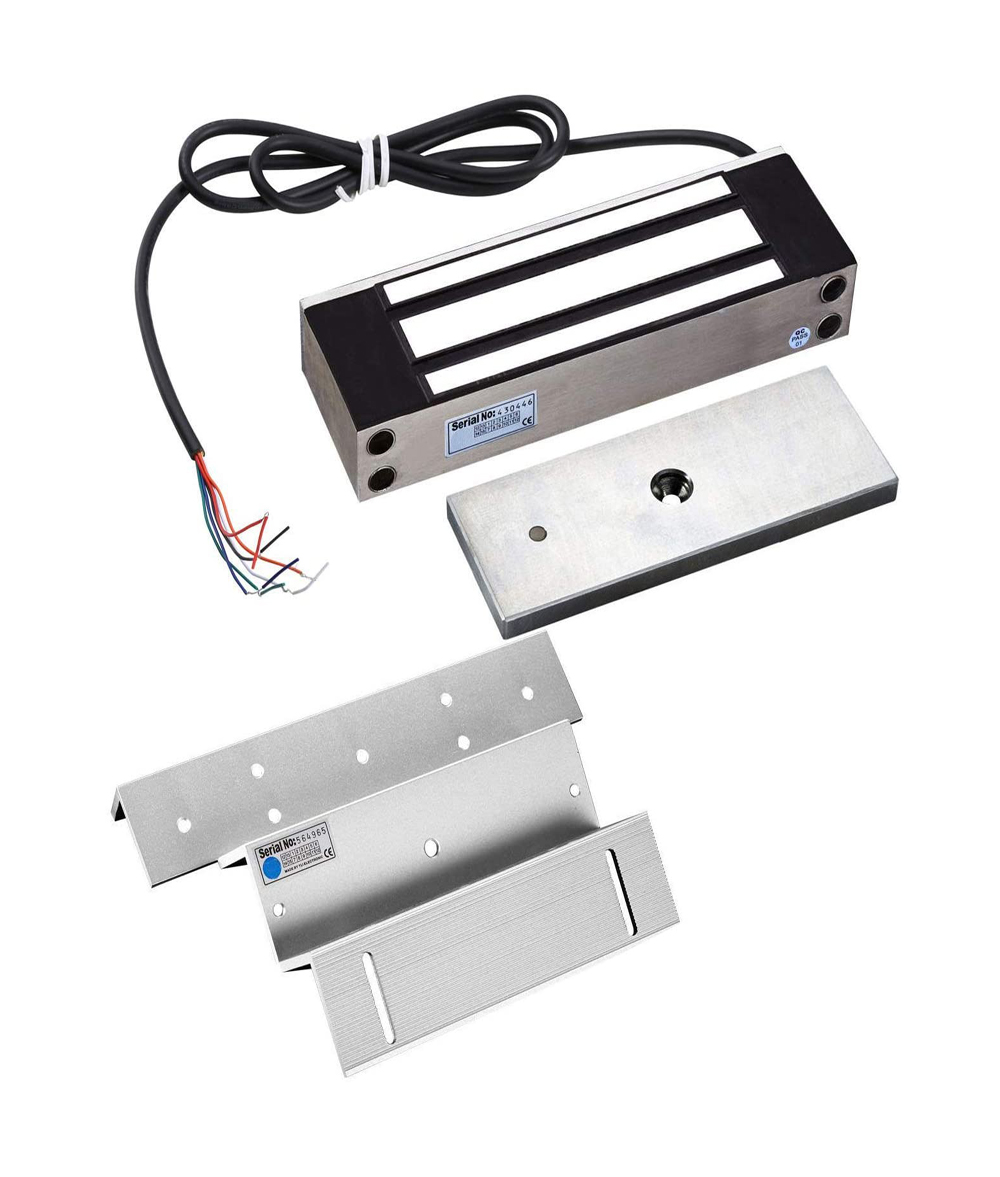

Package：

• 1 x Electric Magnetic Lock
• 1 x Bracket
• 1 x User manual
• 1 x Installation Kit
