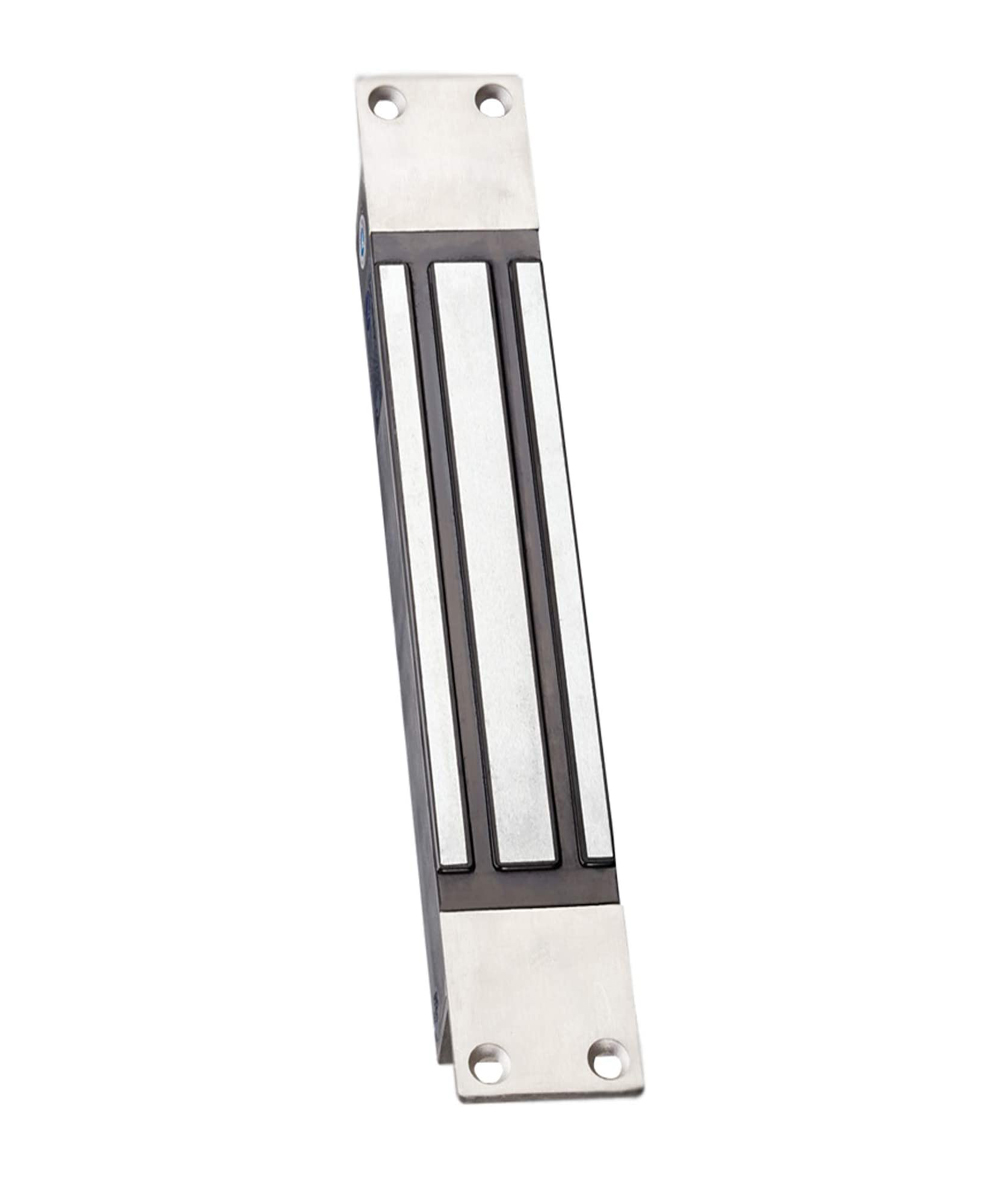

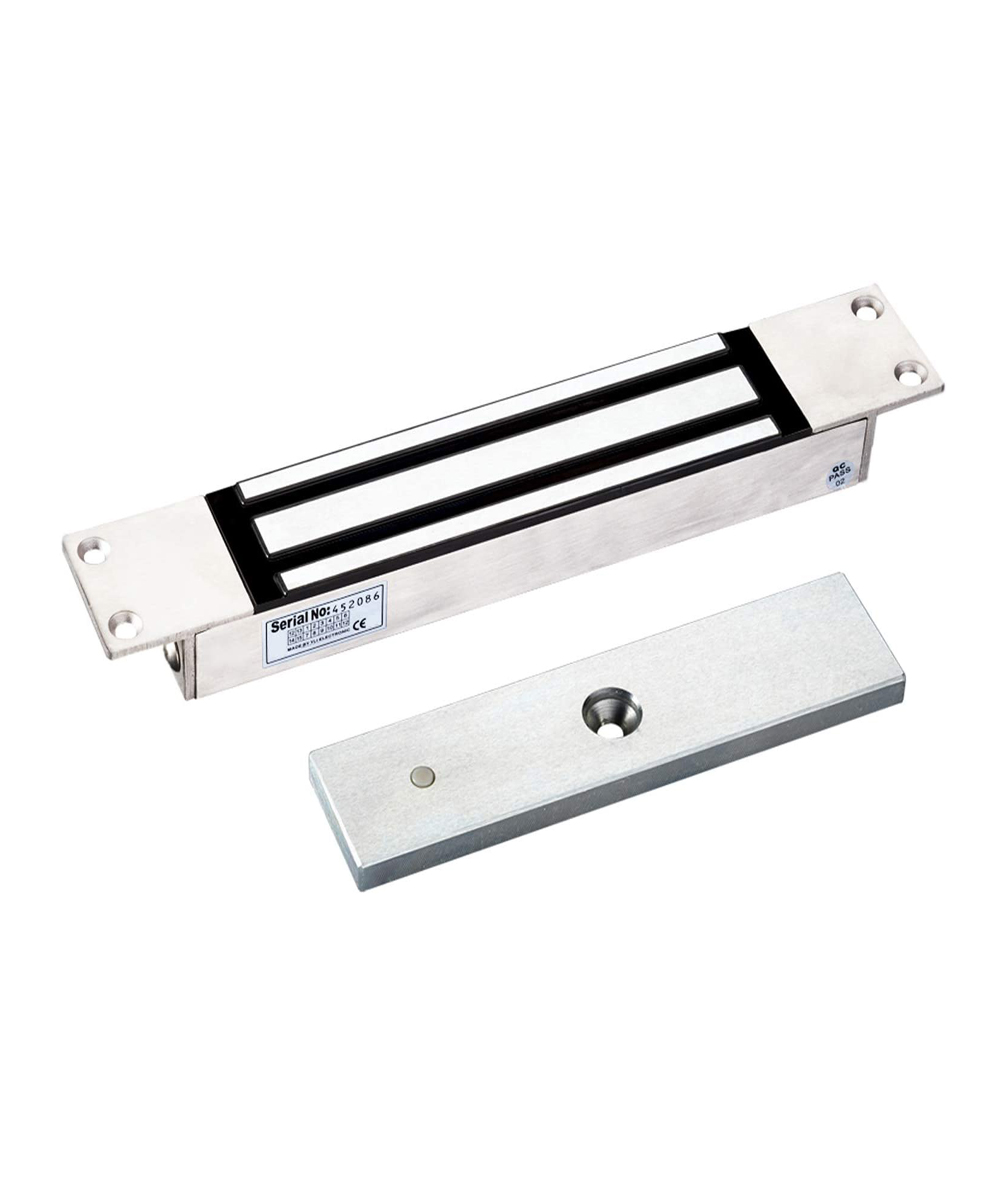

350kg 800Lbs Holding Force Fail-Safe Electric Magnetic Lock Mortise Mount for Single Door Access Control

350kg 800Lbs Holding Force Fail-Safe Electric Magnetic Lock Mortise Mount for Single Door Access Control

Features:

• Collinear load test 350Kg, 800pounds.
• MOV provides reverse current protection.
• The standard voltage is 12VDC when finished.
• 100 percent waterproof, all the parts pressurize in resin.
• CE Certificate by European Union, MA Certificate by China Public Security Office.
• Dual voltage 12 or 24 VDC (optional), the standard voltage is 12VDC when finished.
• Suitable for wooden door, glass door, metal door, fireproof door.
• The shell finished with stainless steel, more strong and durable.
• Special waterproof, indoor and outdoor can be installed.
• Design without mechanical failure, depending on the powerful magnetic force. Increase the holding force, dual insulated housing.

Specifications:

• Lock Size: 273Lx44Wx27.2H(mm)/10.75”Lx1.73”Wx1.07”H
• Armature Plate: 190Lx45Wx11H(mm)/7.48”Lx1.77”Wx0.43”H
• Holding Force: 350kg(800Lbs)
• Voltage: 12 or 24VDC
• Current Draw: 12V/480mA or 24V/240mA
• Suitable: wooden door, glass door ,metal door , fireproof door
• Signal Output: dry contact, max rating of Contact Current 3A
• Surface Temp: ≤ +20℃( +68℉)
• Operating Temp: -10～+55℃(14℉~131℉)
• Suitable Humidity: 0~95%(non-condensing)
• Finishes for Shell: anodized aluminum
• Finishes for Magnetic: zinc
• Finishes for Armature: zinc
• Weight: 2.7kg

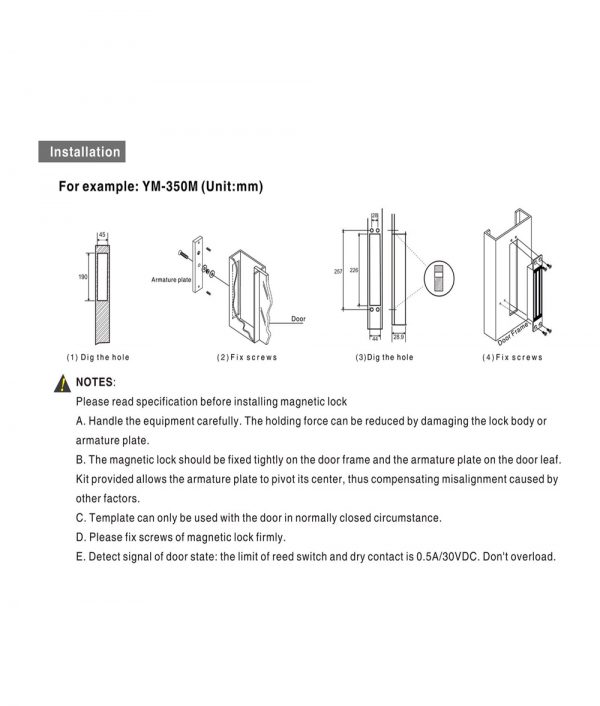

Installation:

Package :

• 1 x Electric magnetic door Lock
• 1 x Installation kit
• 1 x User manual
