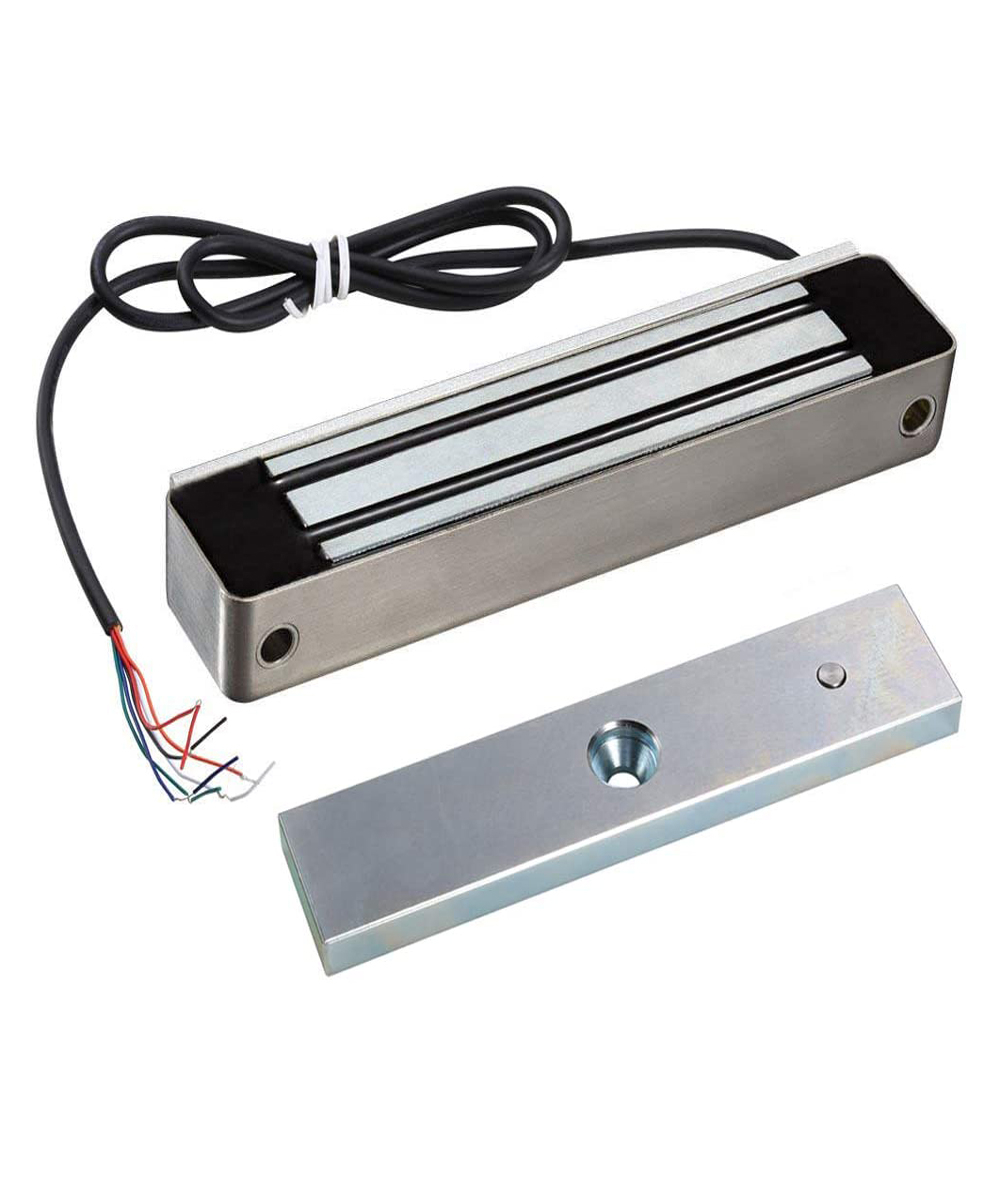

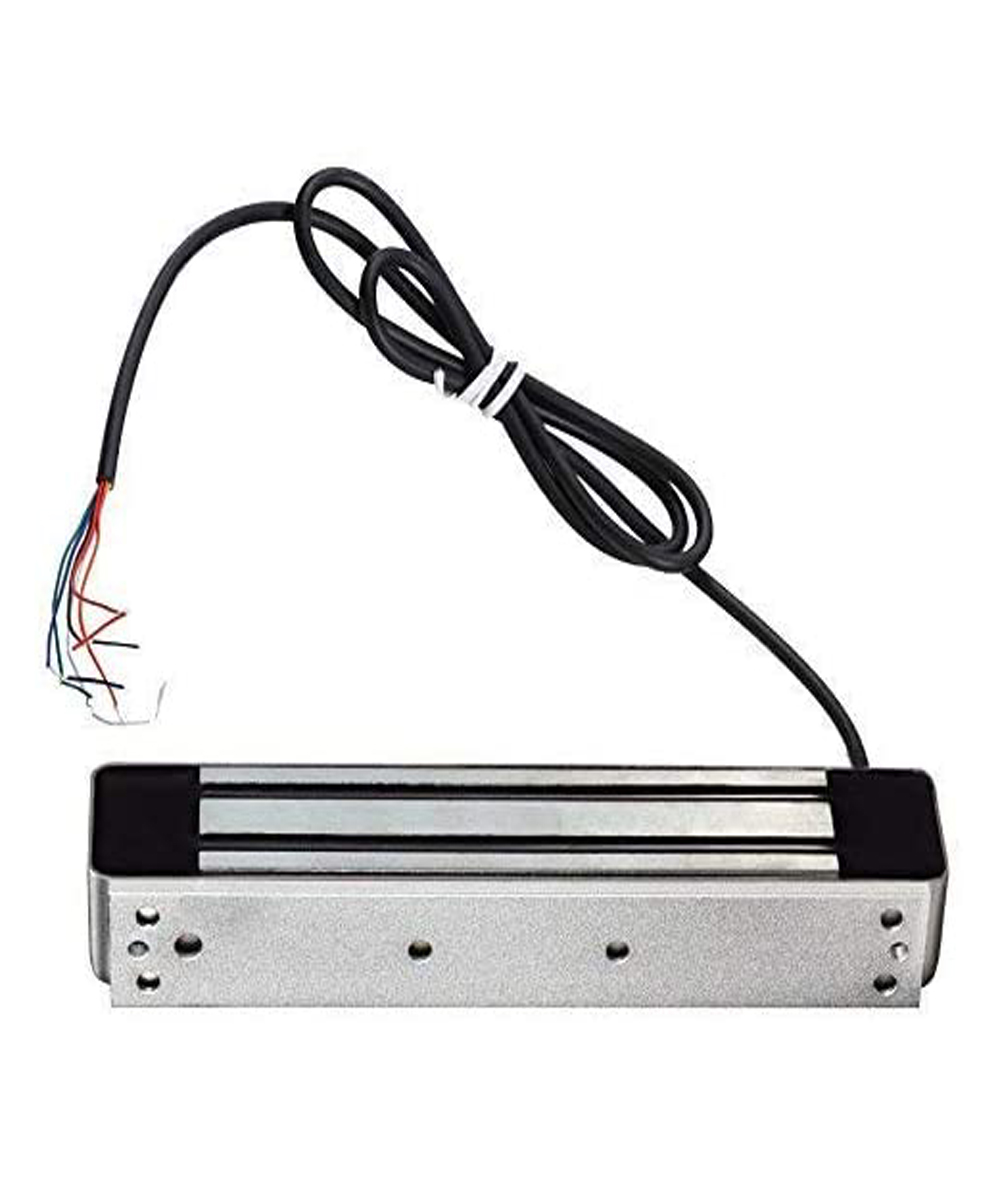

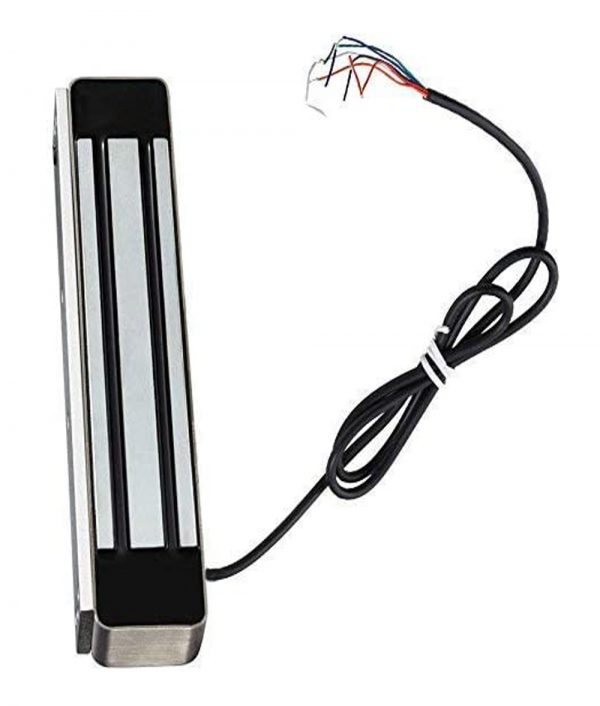

600 Pounds Holding Force Single Door Electric Magnetic Lock Outdoor Gate Lock

600 Pounds Holding Force Single Door Electric Magnetic Lock Outdoor Gate Lock

Features:

• This single door electric lock with waterproof function, the case is stainless steel and it is 100% waterproof treatment.
• All the accessories are sealed inside the lock cylinder. Specially for metal door, heavy door and so on.
• IP-68 waterproof design, for indoor or outdoor use
• Collinear Load Test 280kg / 600lb
• Dual Voltage 12 or 24 VDC(optional)
• The Standard Voltage is 12VDC when Finished
• MOV Provides Reverse Current Protection
• Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
• The Shell Finished with Stainless Steel, more Strong and Durable
• Special Waterproof, Indoor and Outdoor can be installed
• Design without Mechanical Failure, Depending on the powerful Magnetic force
• Increase the holding Force, Dual Insulative Housing
• CE Certificate by European Union, MA Certificate by China Public Security Office

Specifications:

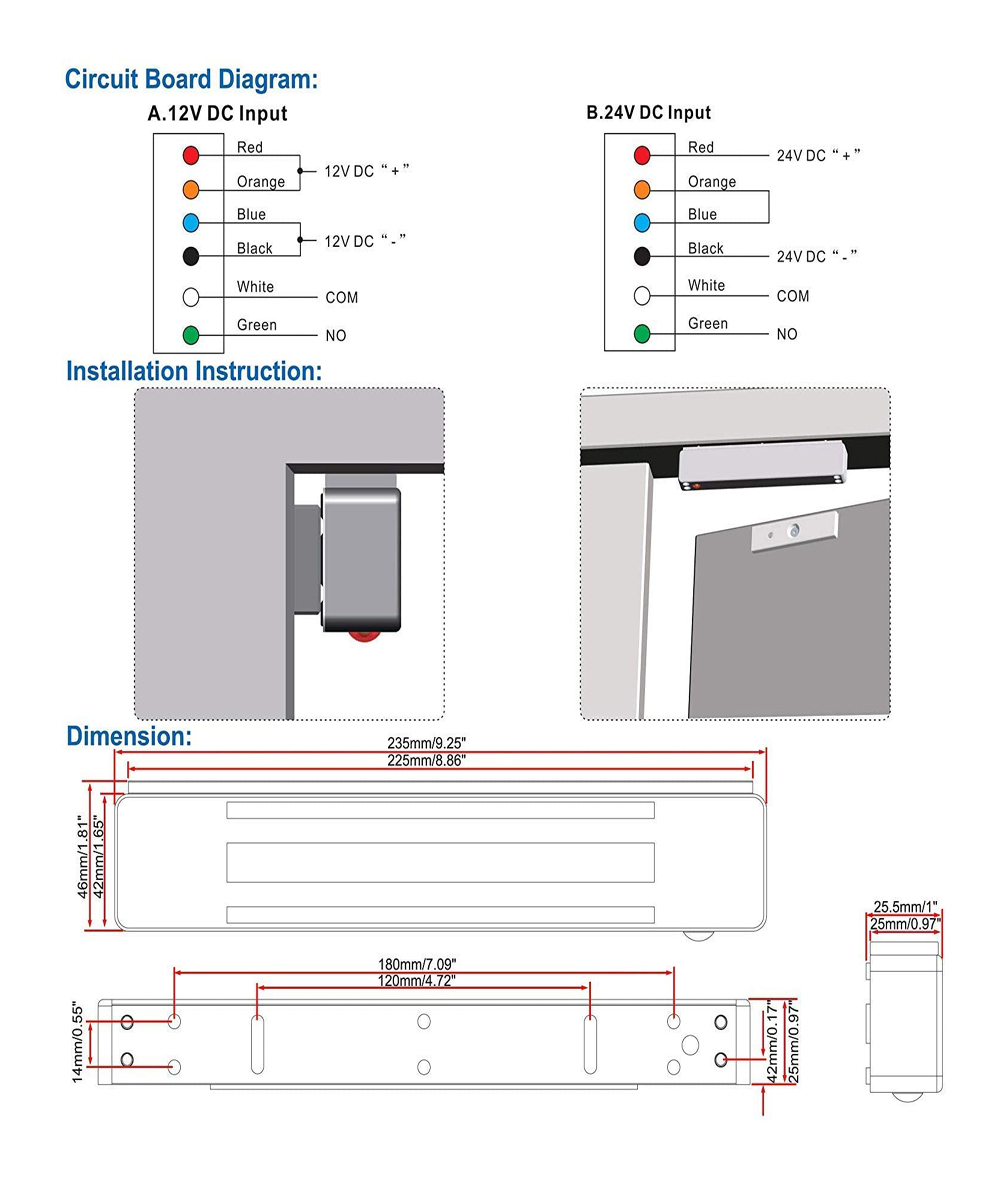

• Size: 235Lx46Wx25.5H(mm) / 9.25″x1.81″x1″
• Holding Force: 280kg / 600Lbs
• Input Voltage: 12 or 24VDC
• Current: 12V/520mA or 24V/260mA
• Suitable: Wooden door, Glass door, Metal door, Fireproof door
• Signal Output: Lock Signal NO/COM
• Operating Temp: -10℃~+55℃(14℉-131℉)
• Waterproof Level: IP-68
• Weight: 2kg / 4.4lb

Package:

• 1 x Electric Magnetic Lock
• 1 x User manual
• 1 x Installation Kit
