280KG 600Lbs Force Portable Waterproof IP-68 Single Door Electric Magnetic Lock DC12/24V

280KG 600Lbs Force Portable Waterproof IP-68 Single Door Electric Magnetic Lock DC12/24V

Features:

• IP-68 waterproof design, for indoor or outdoor use
• Dual Voltage 12V/24V DC (optional)
• With LED indicator for door status and lock signal output contact
• With integrated design, the anti-impact strength is three times higher than the traditional one
• The speed of installation is three times faster than the traditional one
• Patented product, counterfeiting is not permitted
• Suitable for: Wooden door, metal door, fireproof door

Specifications:

• NC mode – (unlocked when power is removed), fail safe mode

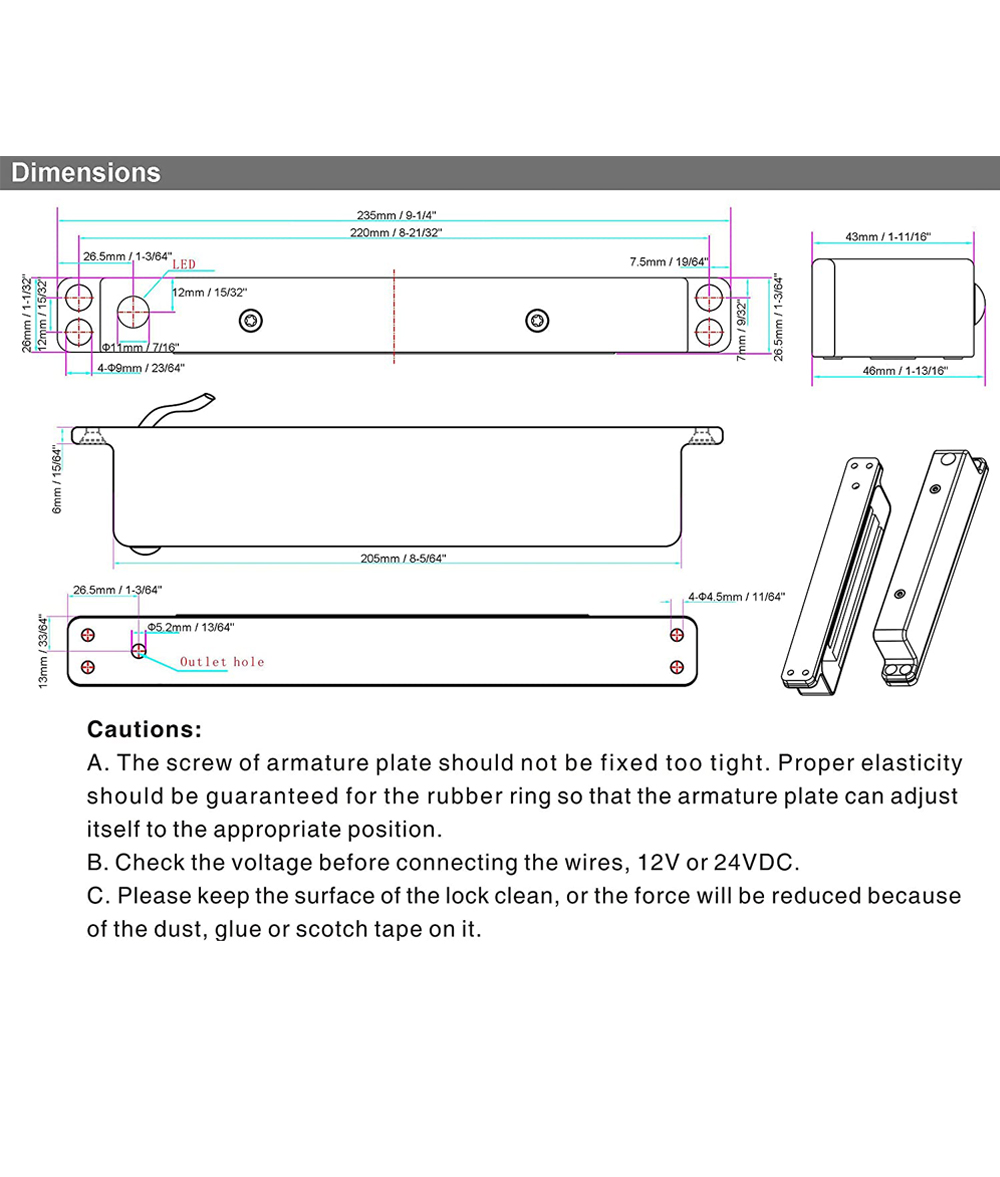

• Size: 235Lx26.5Wx43H(mm) / 9.25Lx1.04Wx1.69H(in)
• Input Voltage: DC12V or DC24V
• Current: 12V/520mA;24V/260mA
• Holding Force: 280kg(600Lbs)
• Signal Output: Lock signal(NO/COM)
• LED: Red shows locked;Green shows unlocked
• Operating Temp: -10℃~+55℃ / 14℉~131℉
• Weight: 2.4KG / 5.29lb

Package:

• 1 x Magnetic Lock
• 1 x User Manual
