600-lb Holding Force Single Door Electromagnetic Lock Waterproof for Outdoor – Face Mounting
Features:
- Collinear Load Test 280kg / 600lb
- MOV Provides Reverse Current Protection
- The Shell Finished with Stainless Steel,more Strong and Durable
- Waterproof, All the Parts Pressurize in resin
- Suitable for: Safety door, fireproof door, iron door, aluminum door,wooden door, glass door, metal door
- YM-280FW single door electric lock with waterproof function, the case is stainless steel and it is waterproof treatment.
- All the accessories are sealed inside the lock cylinder. Specially for metal door, heavy door and so on.
- Face mounting
- For indoor & outdoor applications
- For sliding or swinging gates
- Water resistant and vandal resistant
- Attractive stainless-steel housing
- Dual voltage: 12/24 VDC operation
- The Standard Voltage is 12VDC when Finished
- Complete mounting hardware included
- Collinear Load Test 280kg / 600lb
- 100 percent waterproof,All the Parts Pressurize in resin
- Design without Mechanical Failure, Depending on the powerful Magnetic force
- Increase the holding Force, Dual Insulative Housing
- CE Certificate by European Union,MA Certificate by China Public Security Office
Specifications:

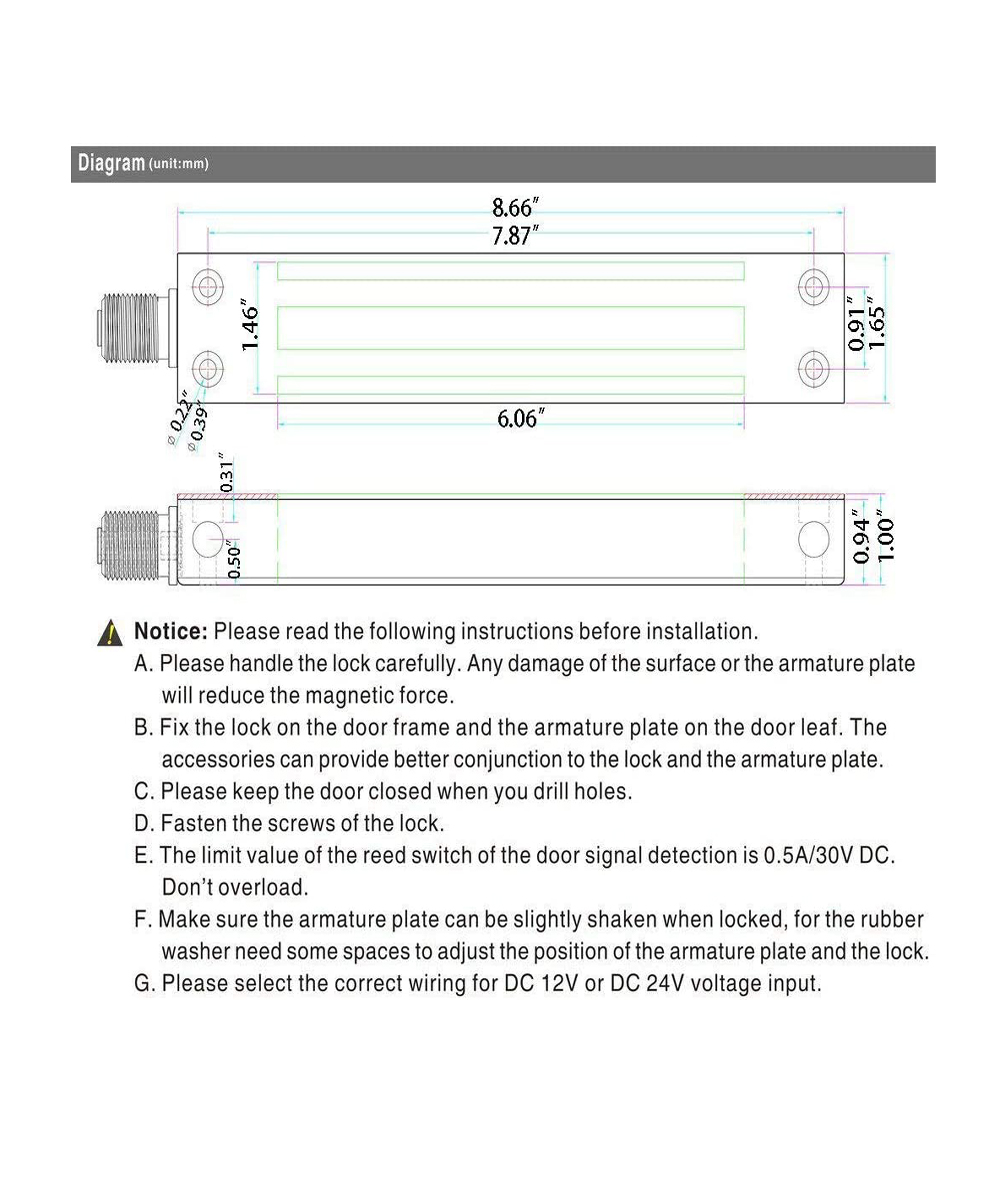

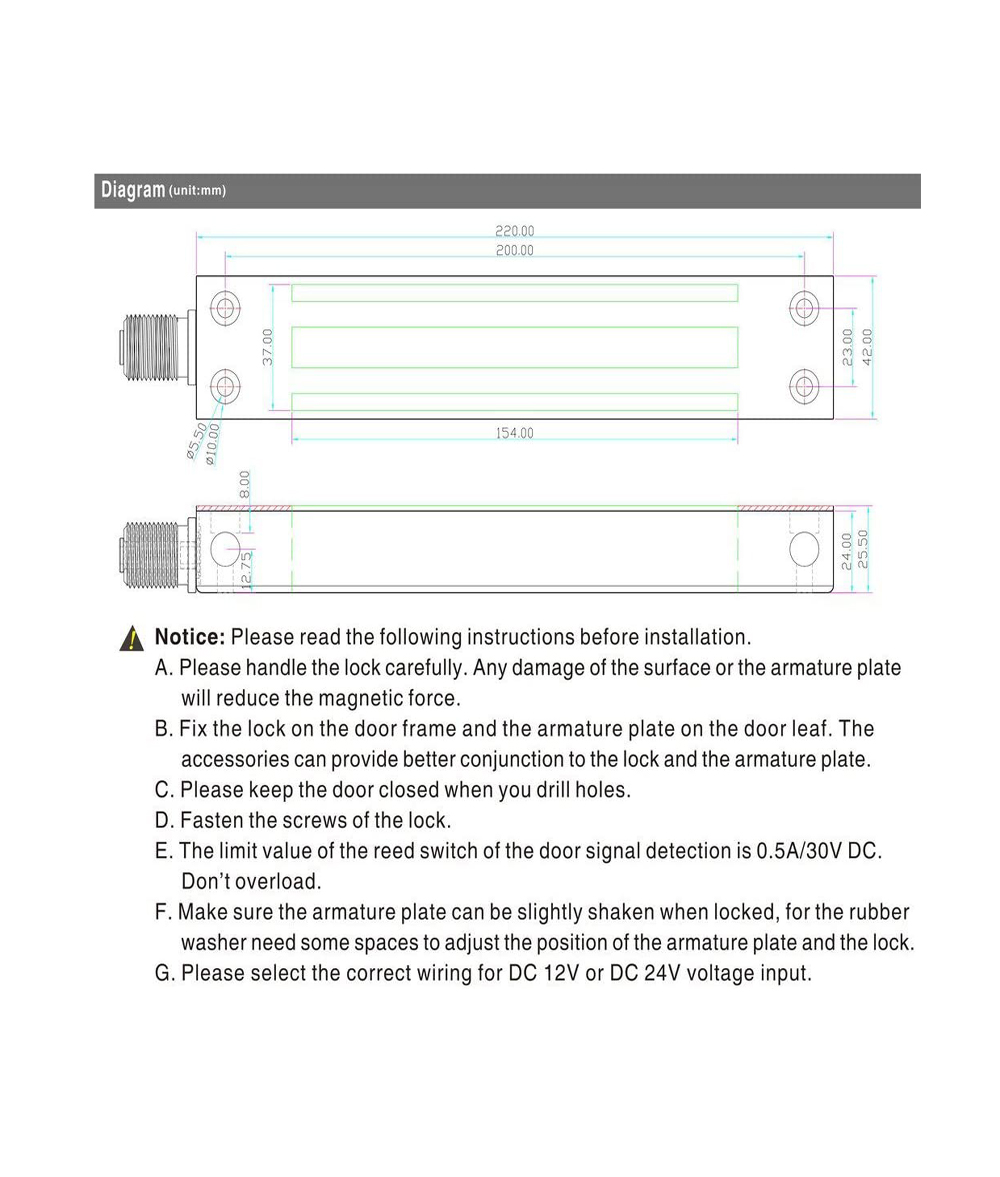

- Size: 220Lx42Wx25.5H(mm) / 8.66Lx1.65Wx1H(in)
- Holding Force: 280kg / 600Lbs
- Input Voltage: 12 or 24VDC
- Current: 12V/500mA or 24V/250mA
- Suitable: Wooden door, Glass door, Metal door, Fireproof door
- Signal Output: Door Signal NO/COM
- Operating Temp: -10℃~+55℃(14℉~131℉)
- Weight: 2.1kg / 4.63lb

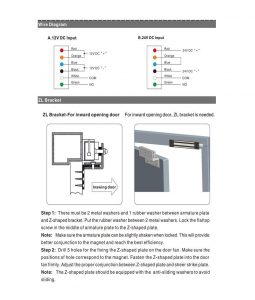

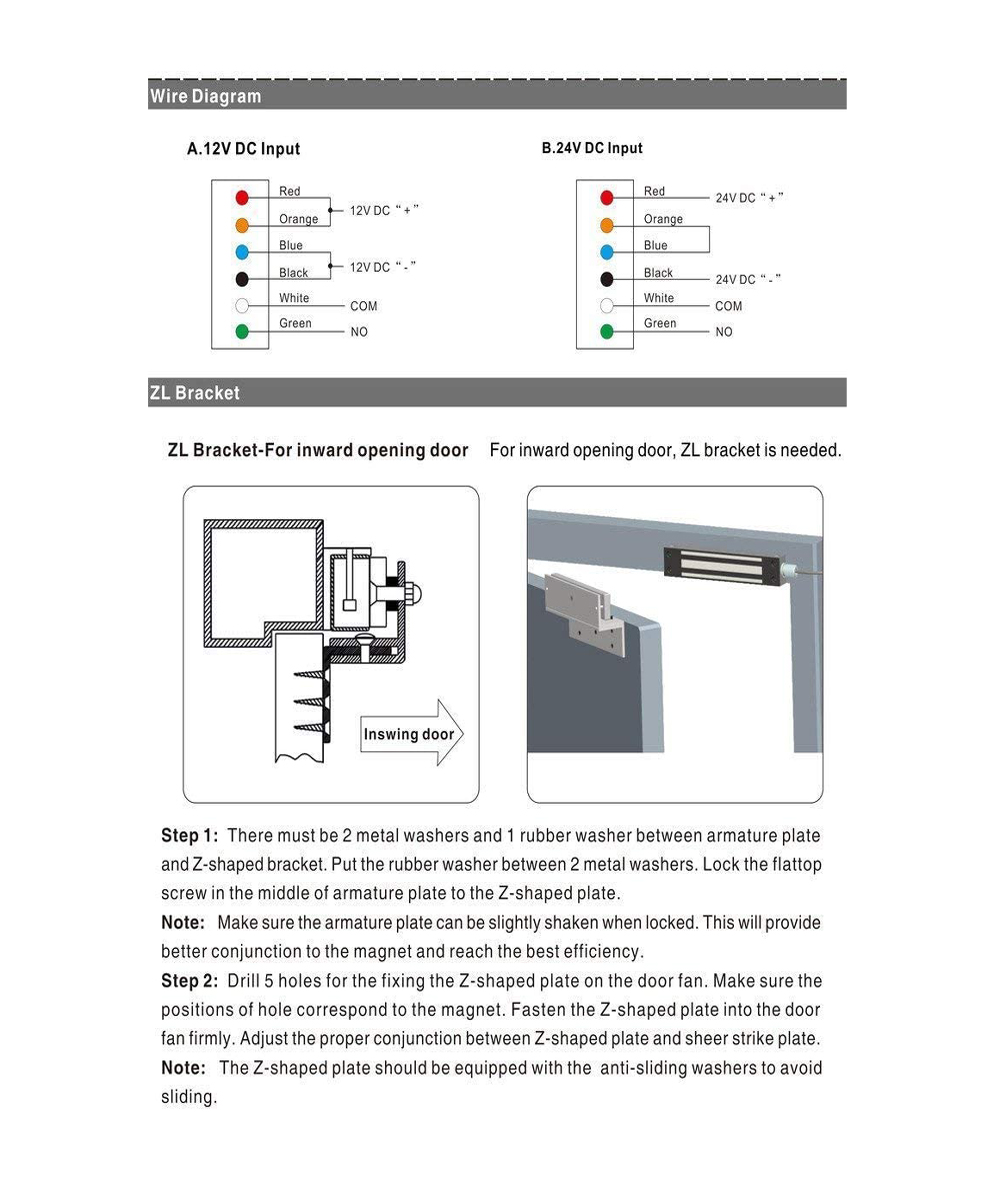

Wiring:

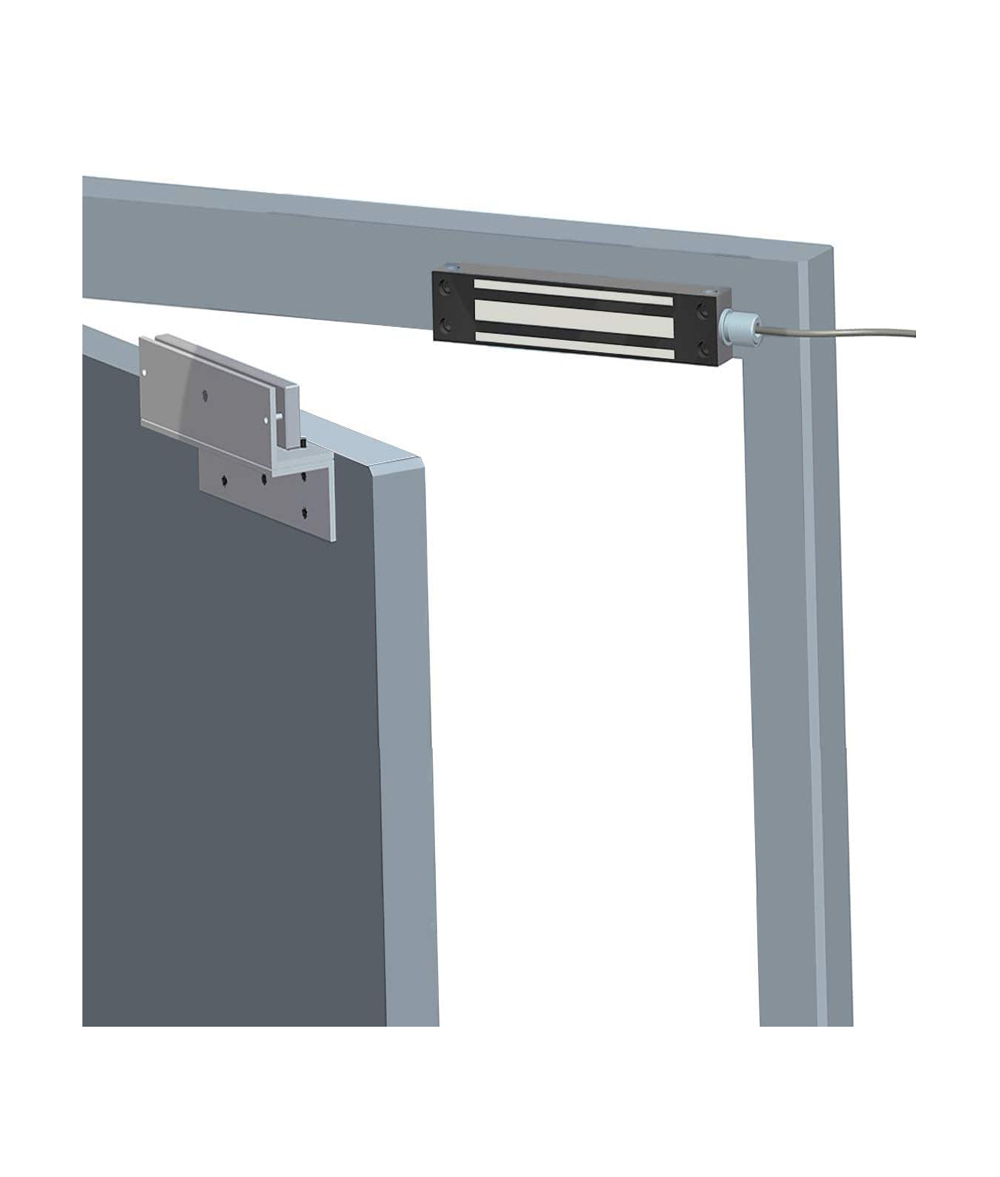

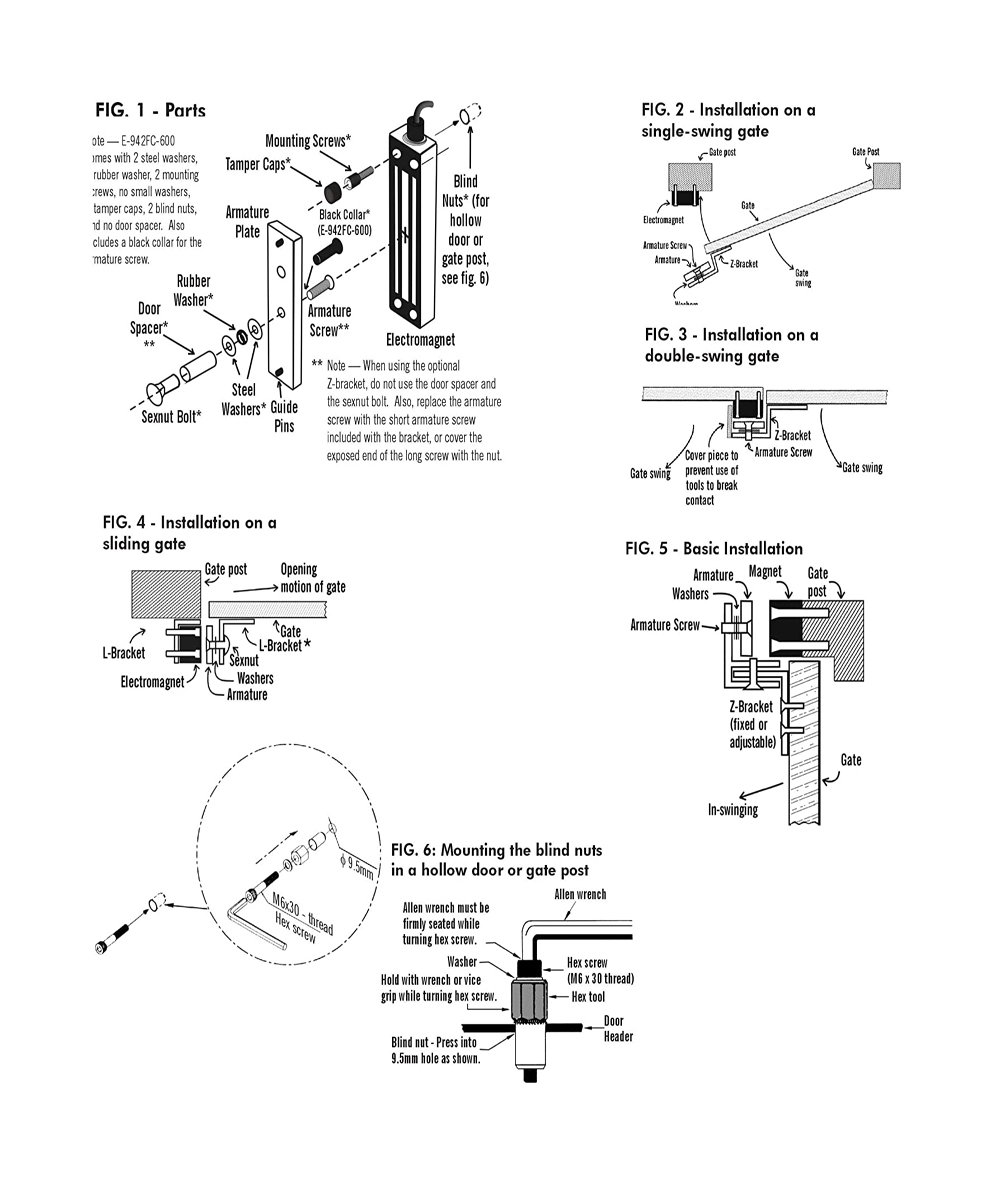

Installation:
Package:
- 1 x Magnetic Lock
- 1 x Install Kit
- 1 x English Manual
- “Z” & “L” Bracket are not included
