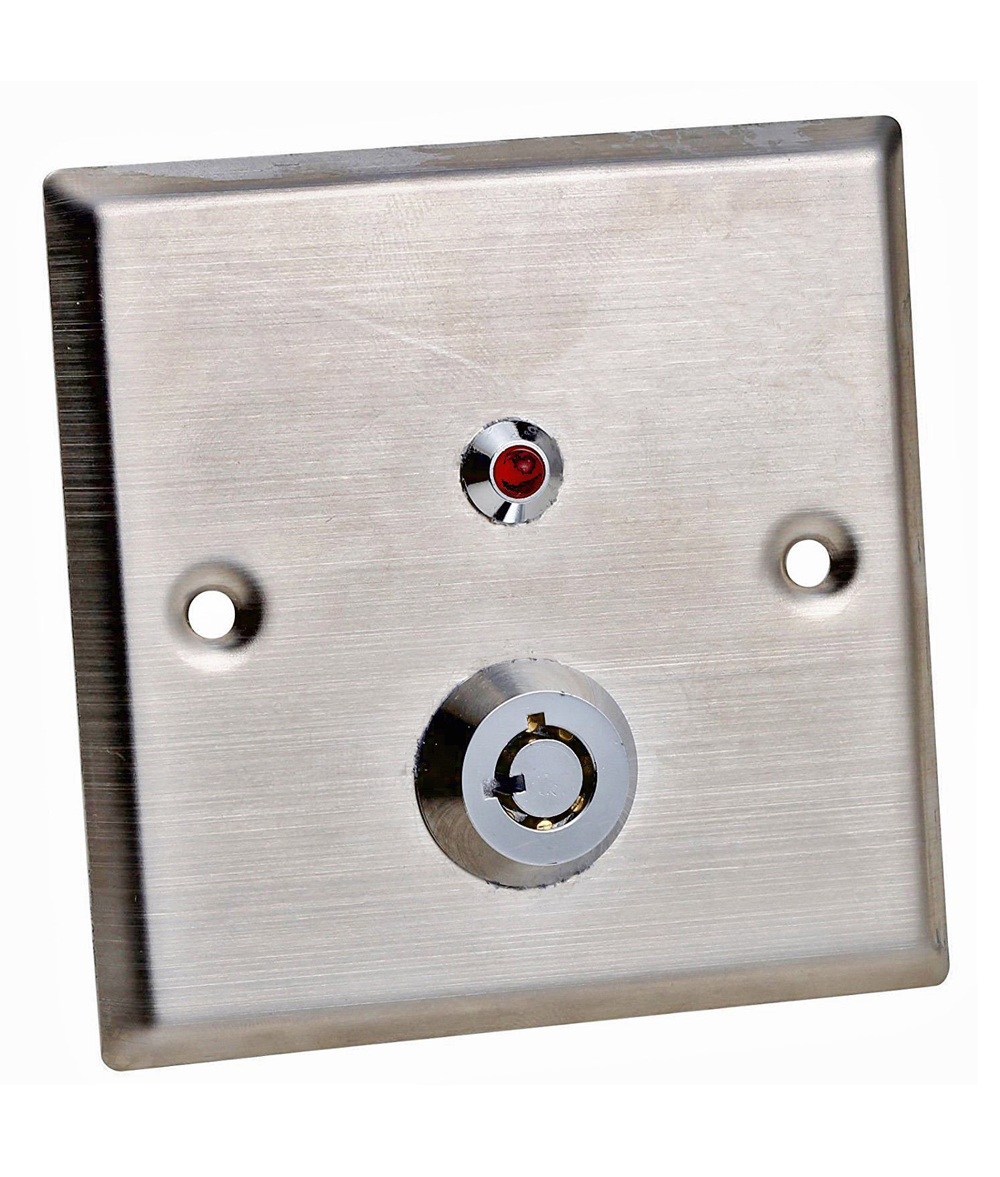

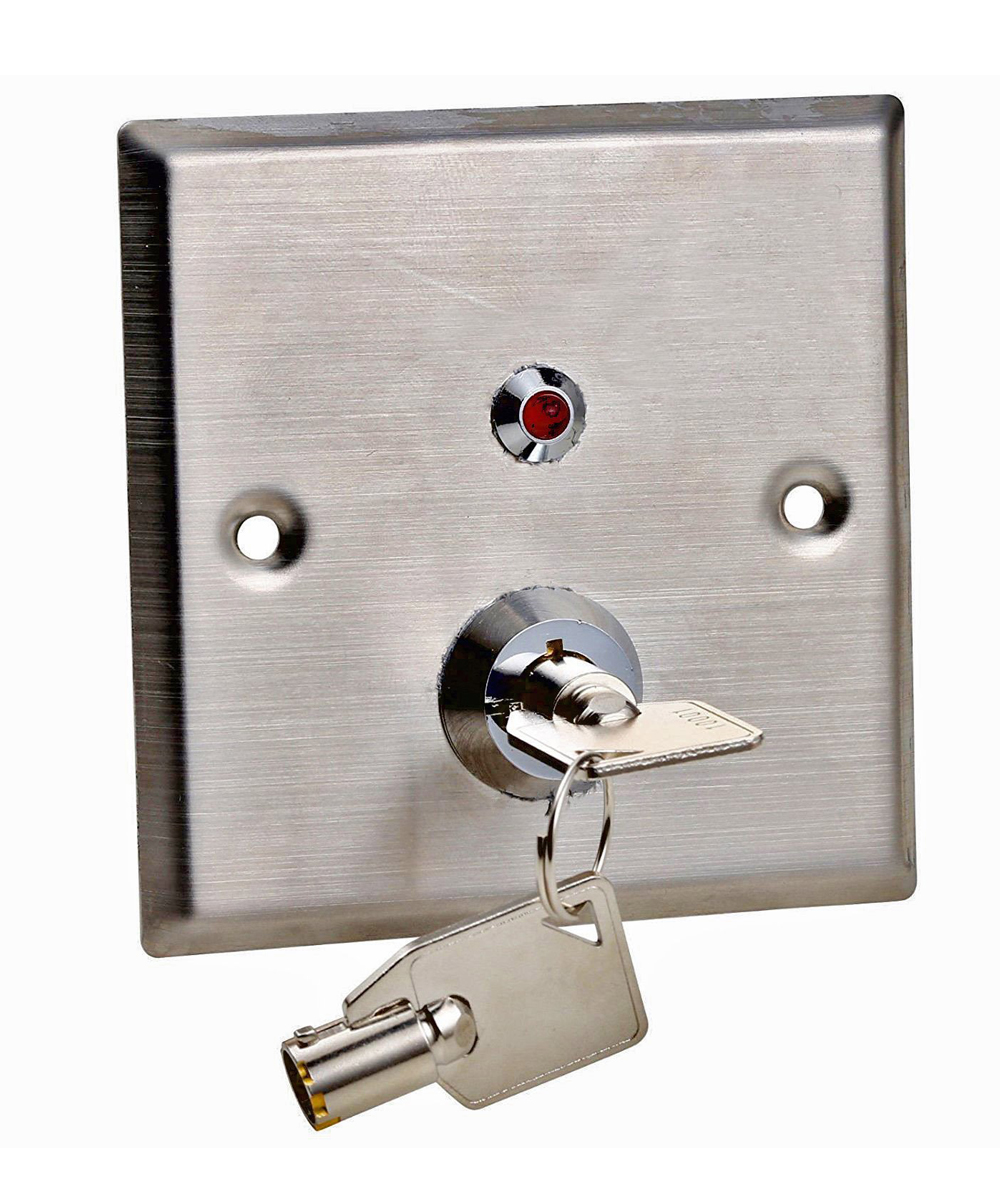

Stainless Steel Hollow Door Release Exit Button Emergency Key Switch with LED

Stainless Steel Hollow Door Release Exit Button Emergency Key Switch with LED

Features:

• Design with no Mechanical Bolt
• Defend and Duplicate the Key, Safer to Use
• Stainless steel panel, metal Button
• Tested to 500,000 Cycles
• Three Contact Output, Suitable for all kinds of the Locks
• The Best Choice of Access Control

Specifications:

• Dimensions: 86Lx86Wx20H(mm) / 3.39Lx3.39Wx0.79H(in)
• Standard structure: Stainless steel panel, metal Button
• Current rating: 3A@36VDC Max LED/12VDC

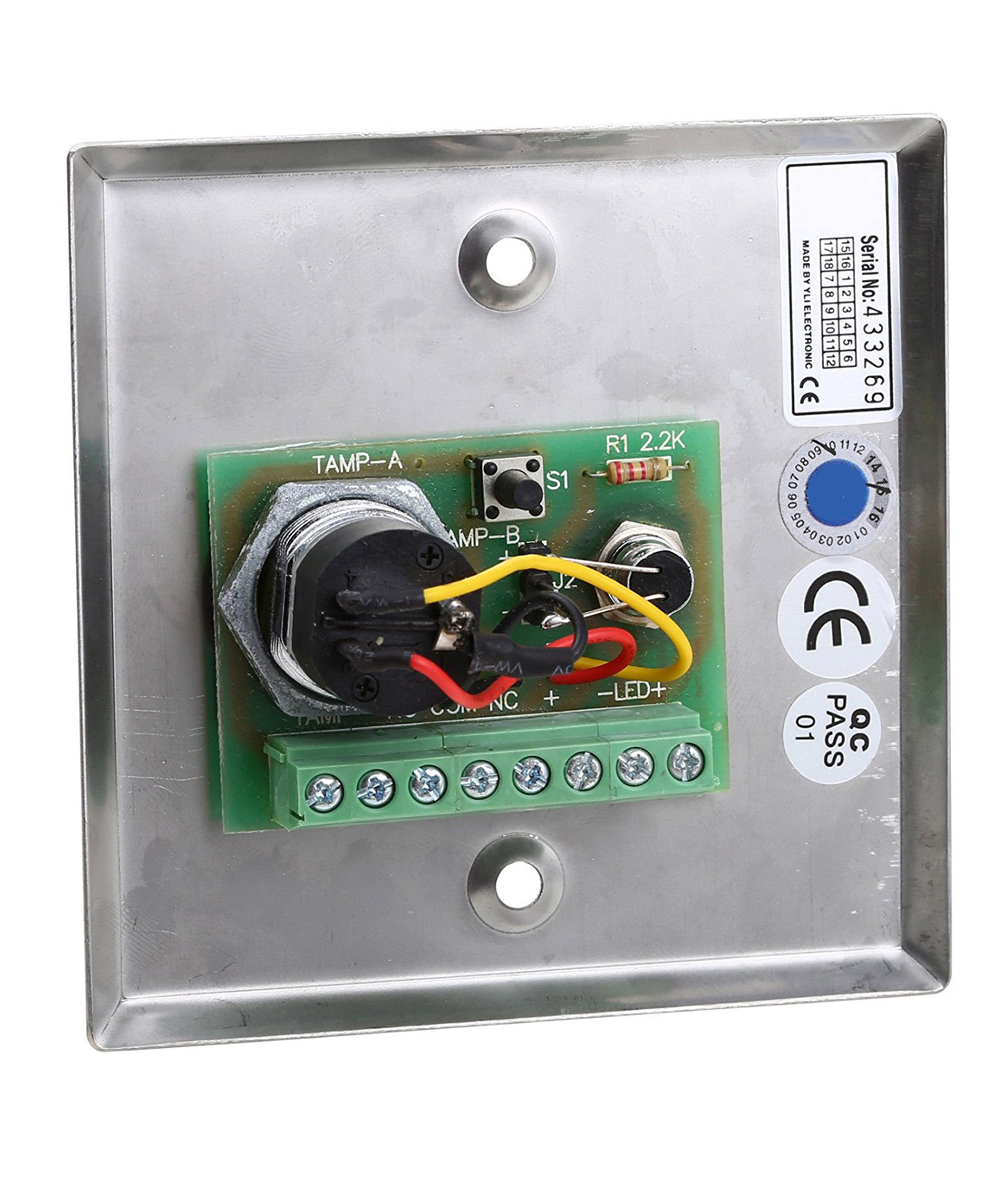

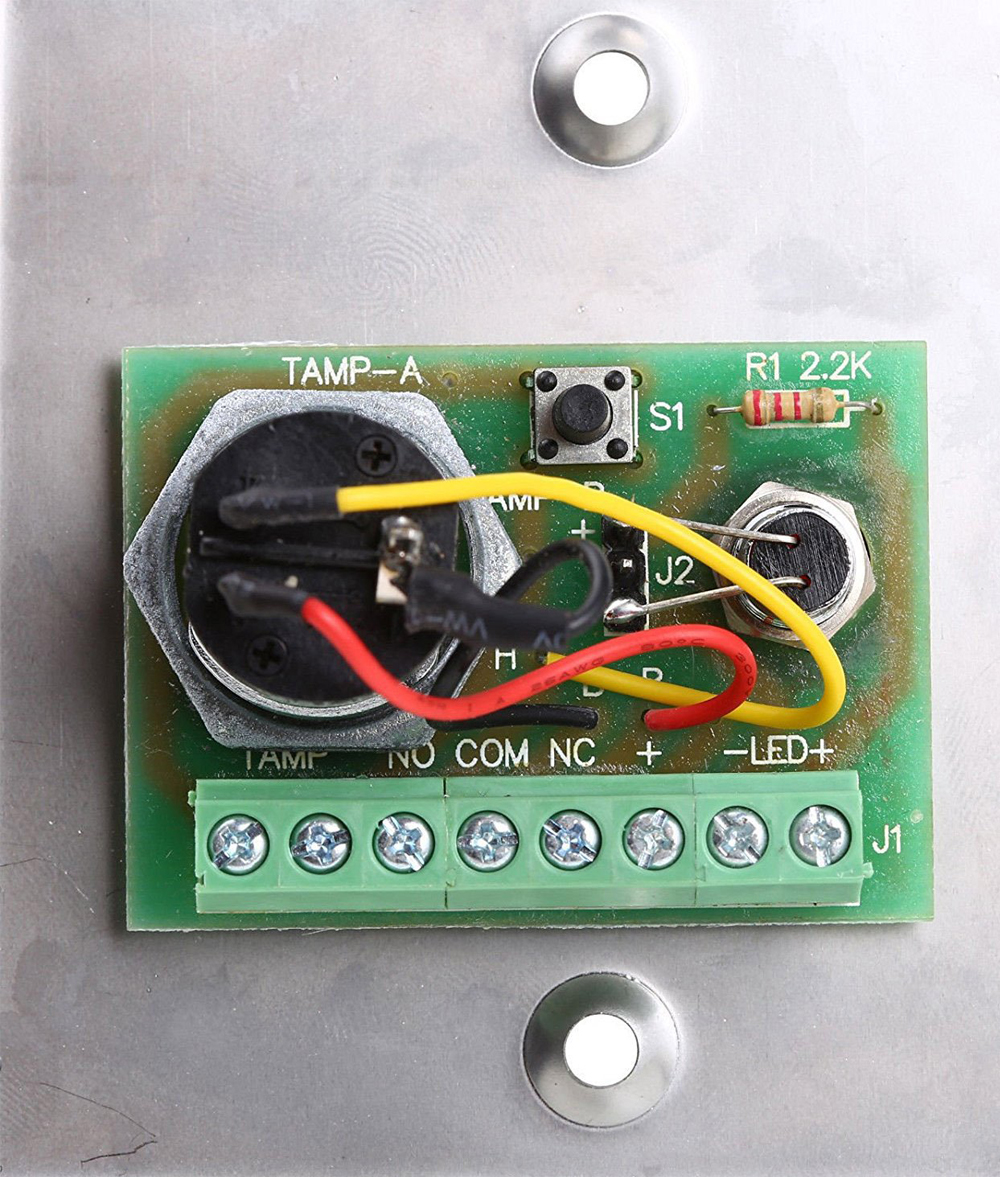

• Output contact: TAMP / NO / COM / NC / -LED+
• Mechanical life: 500,000 tested
• Suitable for door: Hollow Door
• Safe Type: Weatherproof, Defend and Duplicate the Key
• Operating temp: -10℃~+55℃(14℉-131℉)
• Operating humidity: 0-95% (non- condensing)
• Panel Material: Stainless steel panel,wire drawing finished
• Weight: 160g / 5.6oz

Package:

• 1 x Exit button
