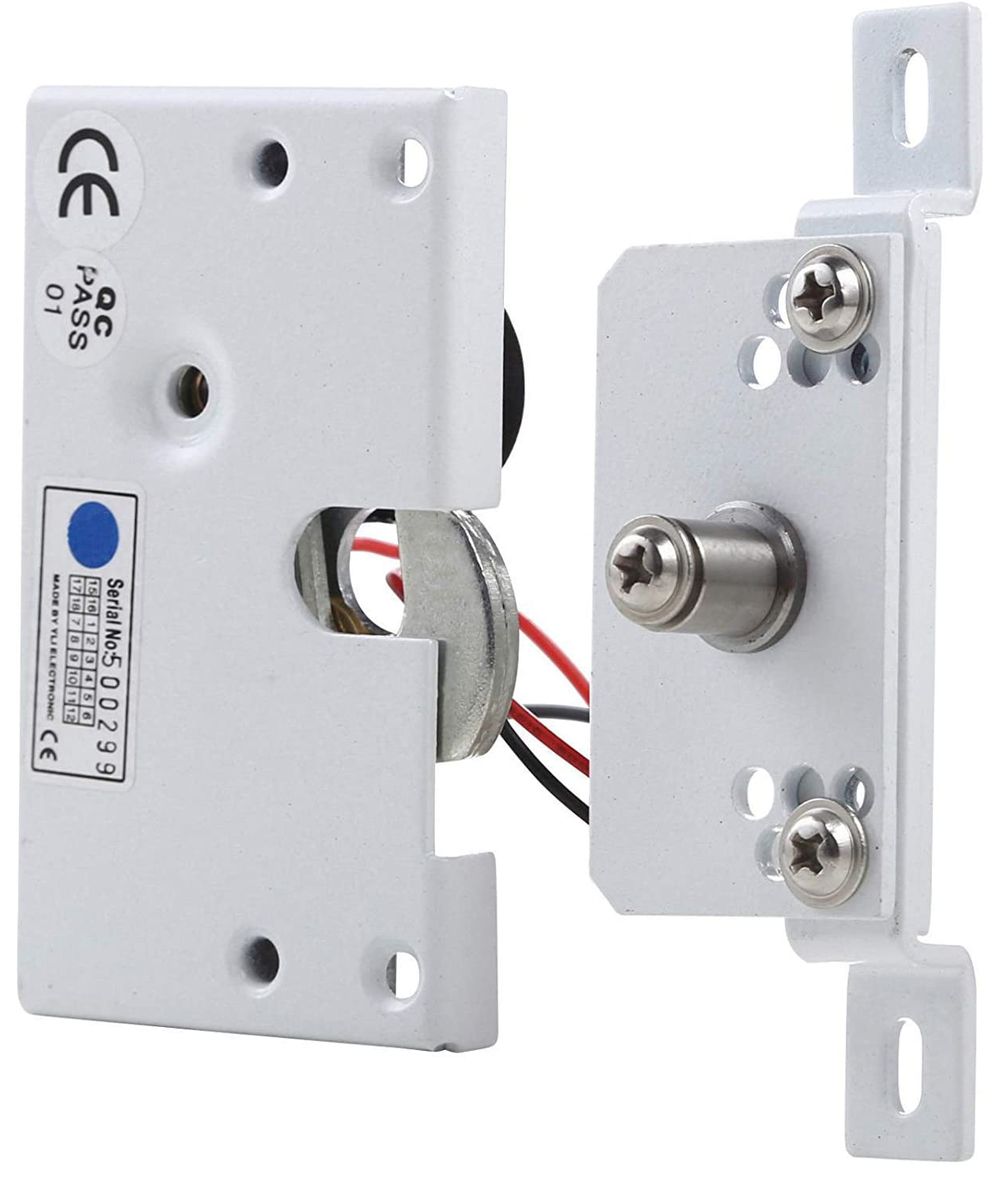

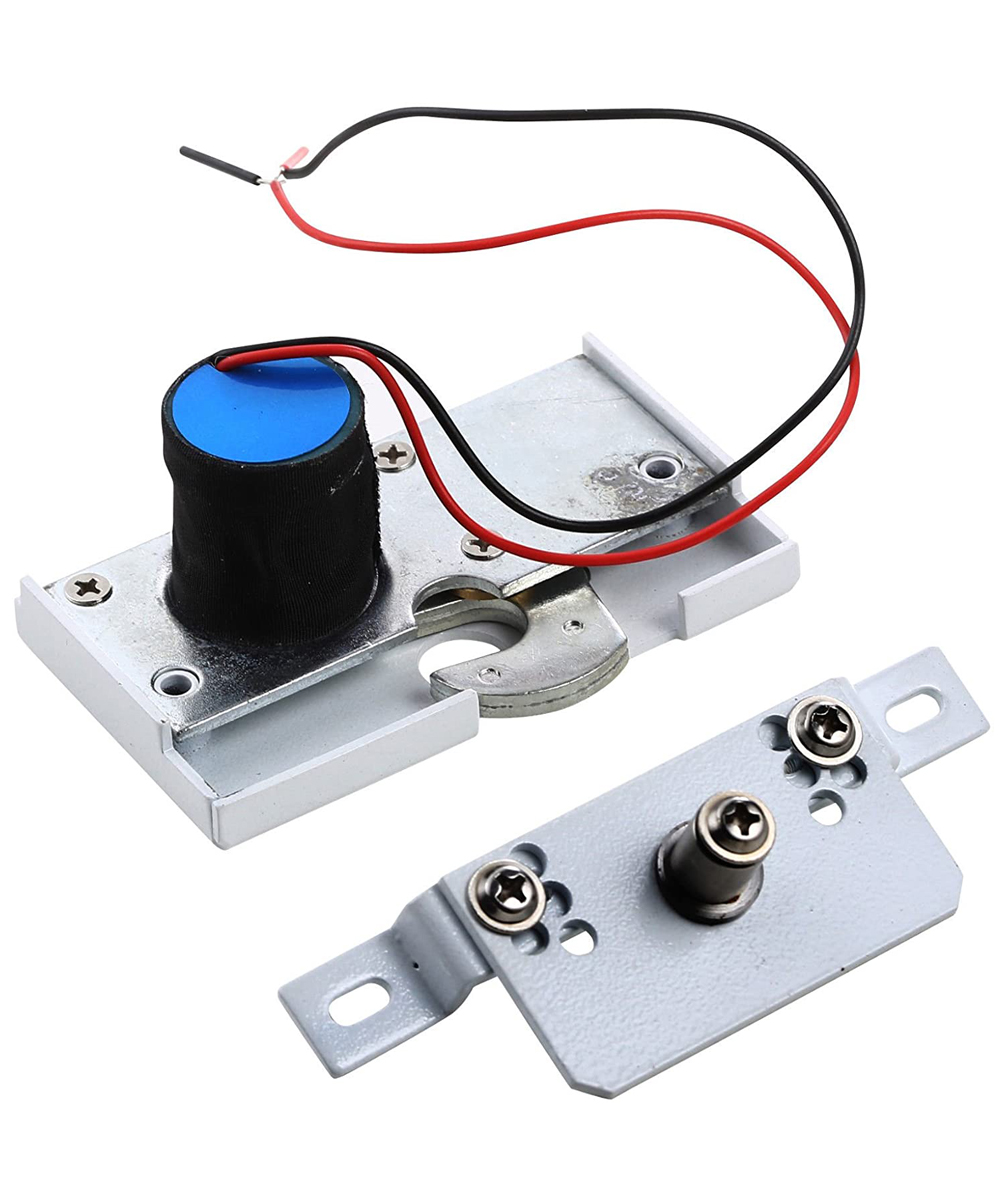

12VDC Dedicated Electric Hook Lock Fail Safe for Sliding Rail Door and Window

12VDC Dedicated Electric Hook Lock Fail Safe for Sliding Rail Door and Window

Features:

• Installed on hollow metal doors, plastic-steel doors and other sliding rail type doors and windows.
• The standard appearance of the structure apply to various brand hollow metal and plastic-steel doors and windows.

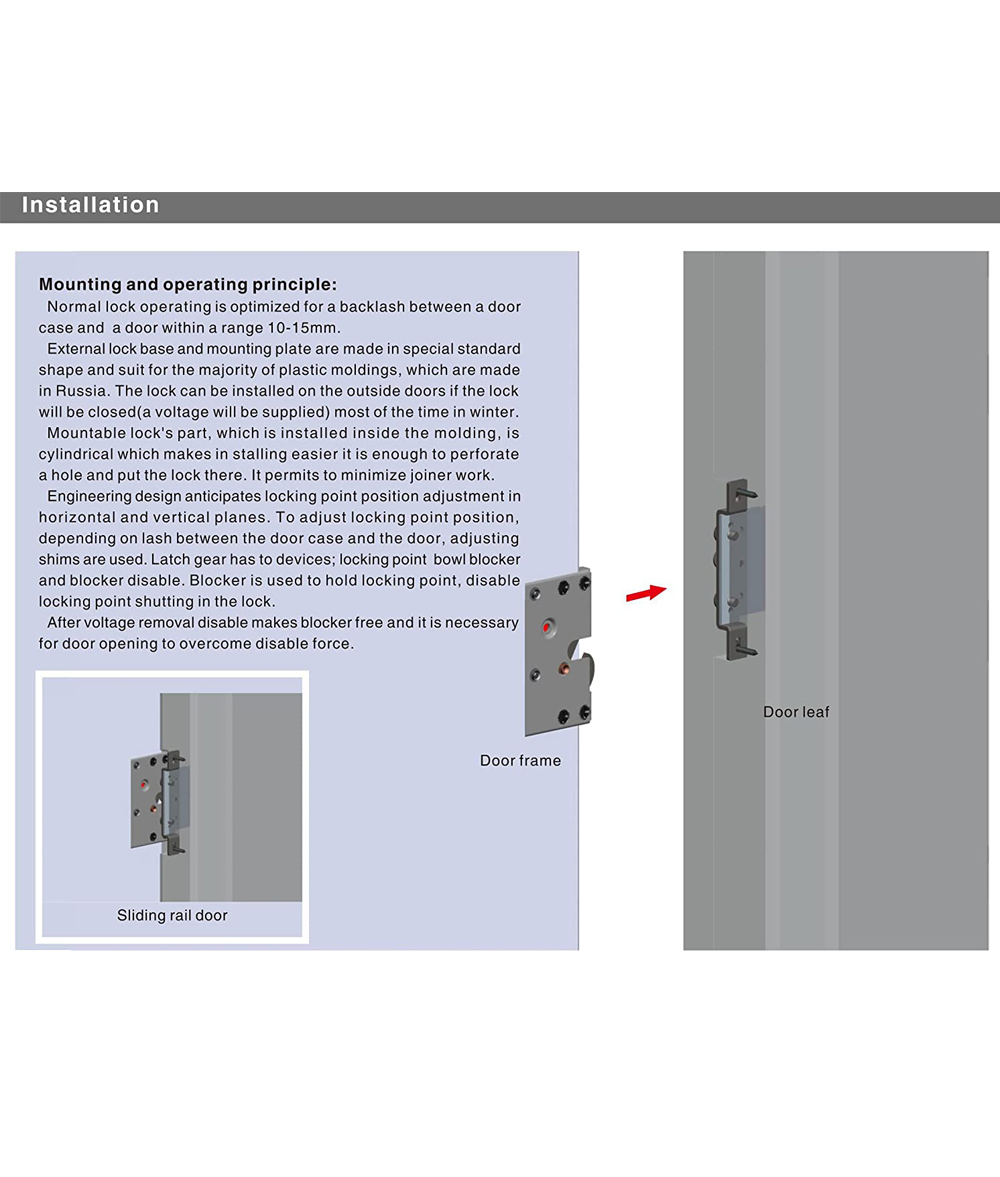

• The fixed installation parts can be installed on the frame, cylindrical assemblies embeds in the frame, easy to install.
• There are anticorrosion coating protection for Latch bolt components and Lock bolt
• The Fail safe feature design, meet with the demand of emergency exit
• The special usage design, during the product life cycle, it don’t need to do preventive maintenance and lubricant, etc
• YEH-210 is a dedicated electric hook lock suitable for hollow metal and plastic-steel doors and windows.
• Electric hook lock suitable is to install in the temperature circumstance between -40℃~+50℃ / -40℉~122℉,the retention force is larger than 300kg,is a type of dedicated electric hook lock effectively apply to Left and right push-pull sliding rail doors and windows.

Specifications:

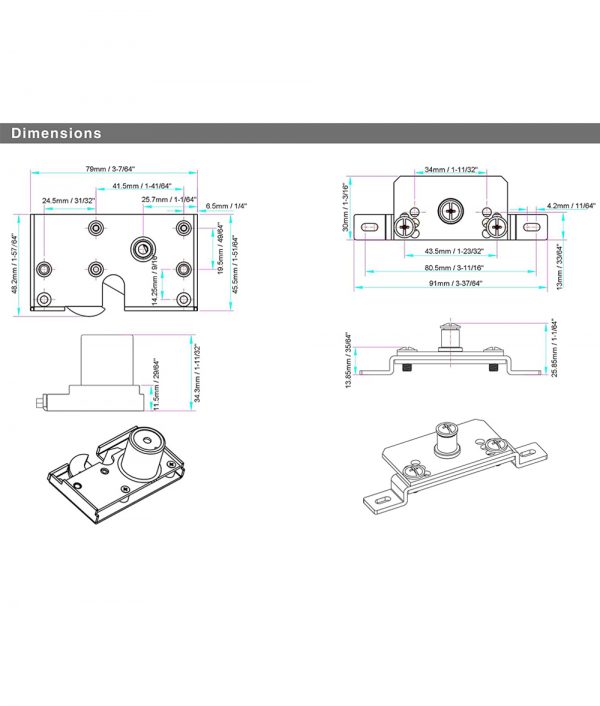

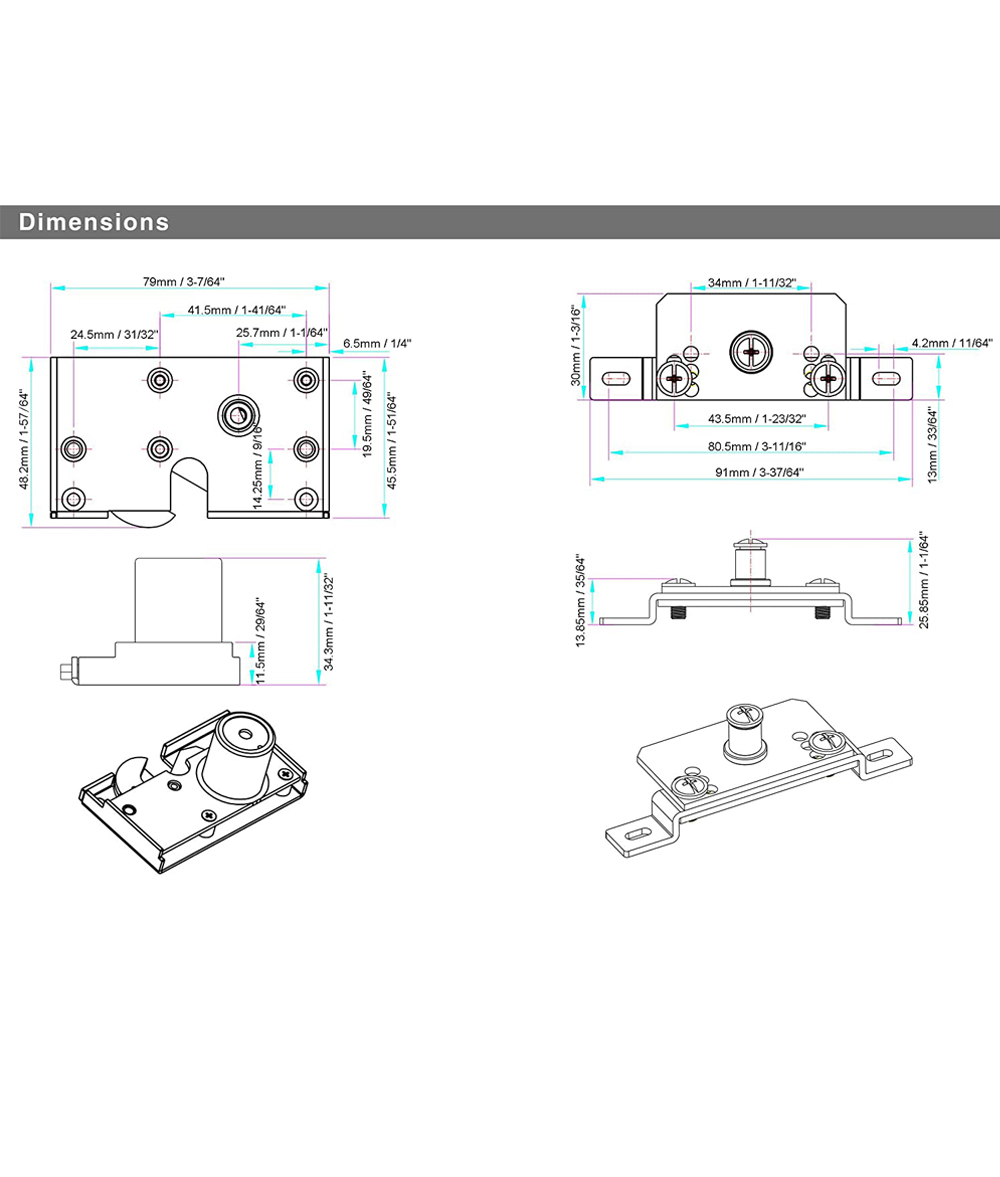

• Dimension: 79Lx45.5Wx34.3H(mm) / 3.11″x1.79″x1.35″
• Door catch: 91Lx30Wx25.85H(mm) / 3.58″x1.18″x0.98″
• Voltage: 12VDC
• Current: 100mA
• Holding Force: 300kg / 661lb
• Operating Temp: -40℃~+50℃ / -40℉~122℉
• Operating Humidity: ＞95%
• Weight: 0.28Kg / 0.62lb

Package:

• 1 x Electric Hook Lock
