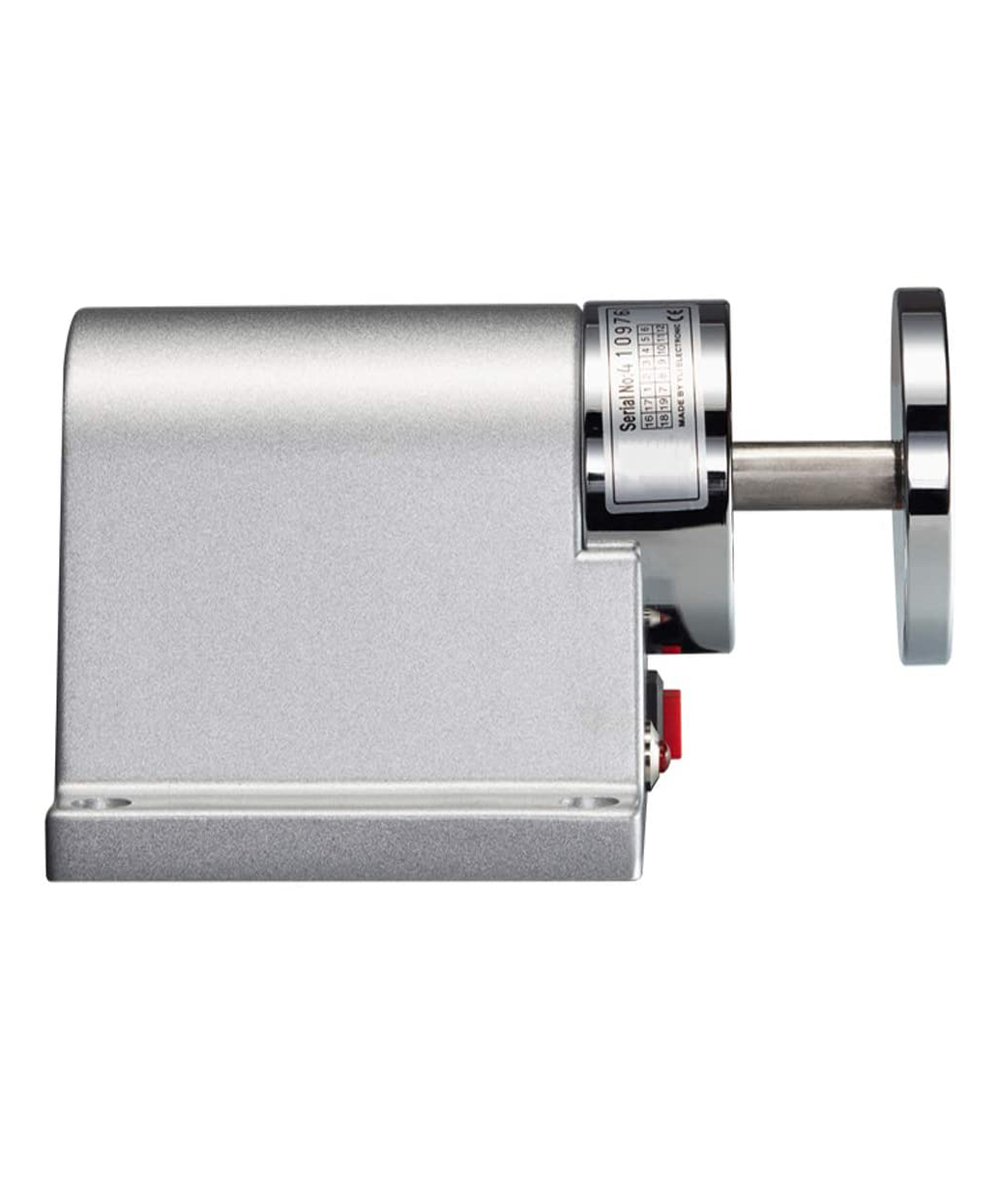

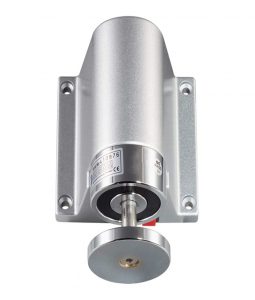

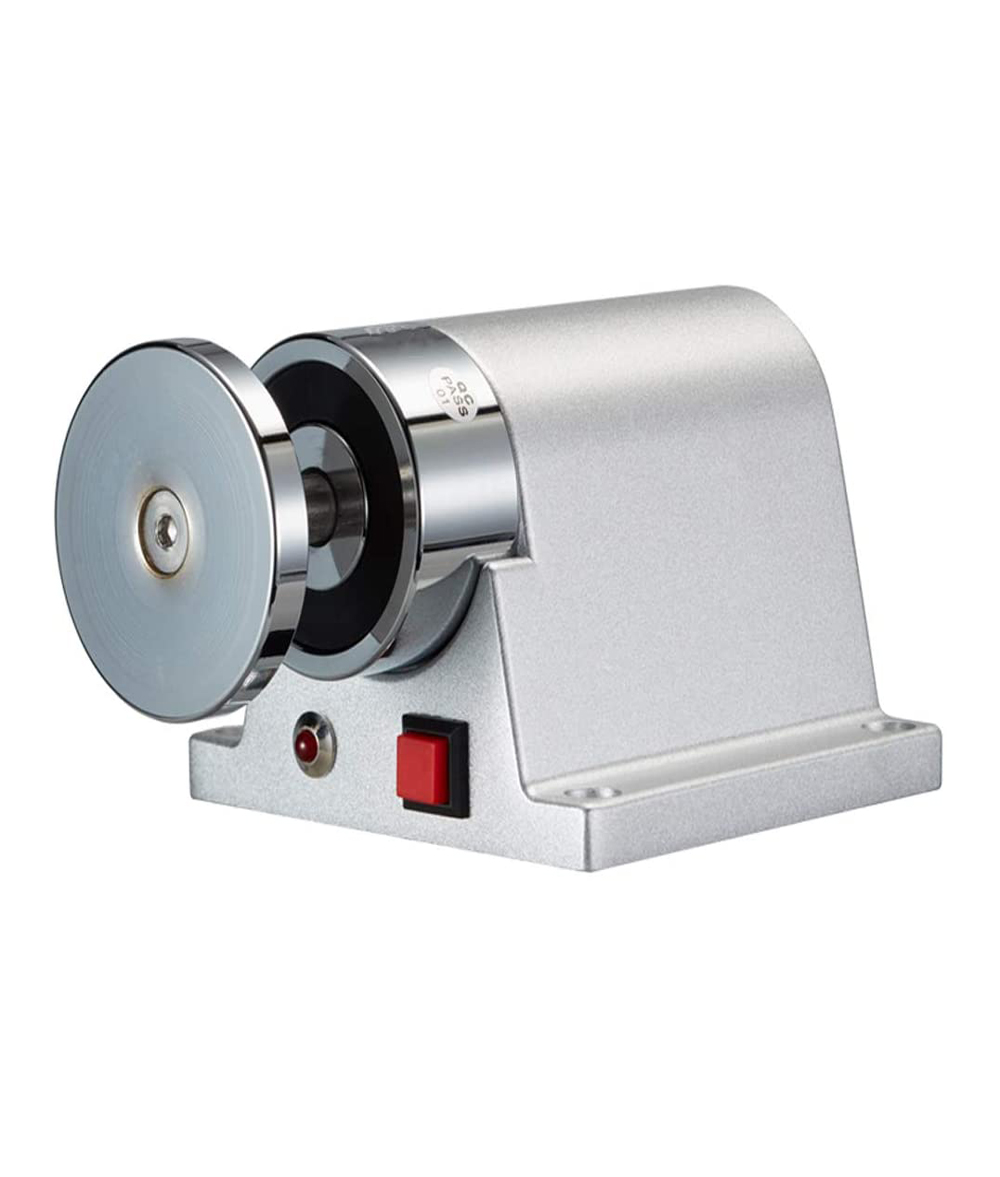

Electromagnetic Door Holder Stopper with Bolt Access Control System

$76.90

This product is a new type of electromagnetic door holder. Combining electricmagnetic body and metal plate, it enables door holder to achieve unlocking without electric current. Structure and functions are all in one, coming with bolt, LED, release button which will unlock door without electricity, double voltage design.

SKU: UT-YD-610 Categories: ,

Electromagnetic Door Holder Stopper with Bolt Access Control System



Features:

  • This product is a new type of electromagnetic door holder, electricmagnetic body and metal plate are combined, it enables door holder to achieve unlocking without electric current, structure and functions are all in one, comes with bolt, LED, release button which will unlock door without electricity, double voltage design
  • Optional: The hand moves and closes the door to release the button

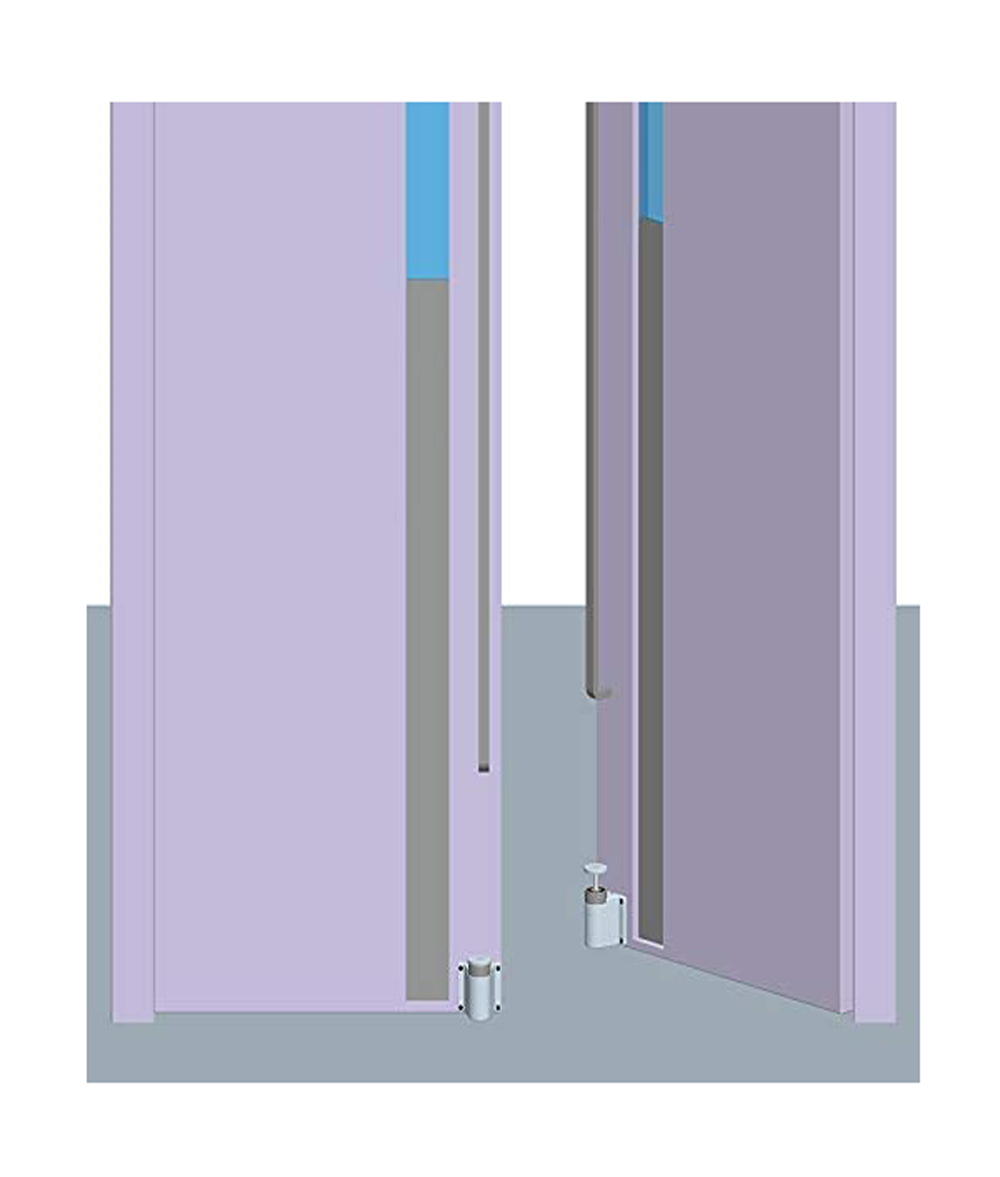

  • Suitable for: all kind of the single & double smoke proof door
  • Itegrated structure, alloy die-casting technology.
  • Comes with bolt,application of spring principle, bolt and metal plate are combined.
  • Double voltage design, DC12V or 24V optional

Specifications:

UT YD 610 3

  • Dimension(LxWxH):148x100x76.65mm / 5.83×3.94×3.02in
  • Suction plate size: Φ54x8mm / Φ2.13×0.31in
  • Voltage 12/24VDC + 10%(adjustment)
  • Current Draw: 12V/140mA 24V/70mA
  • Optional: The hand moves and closes the door to release the button
  • Suitable for: all kind of the single & double smoke proof door
  • Surface Tem: ≤+20℃
  • Operating Temp: -10~55℃ / 14~131F
  • Suitable Humidity: 0-90%(Relative humidity)
  • Weight: 1.5kg

Remarks:

  • The default setting is 24VDC

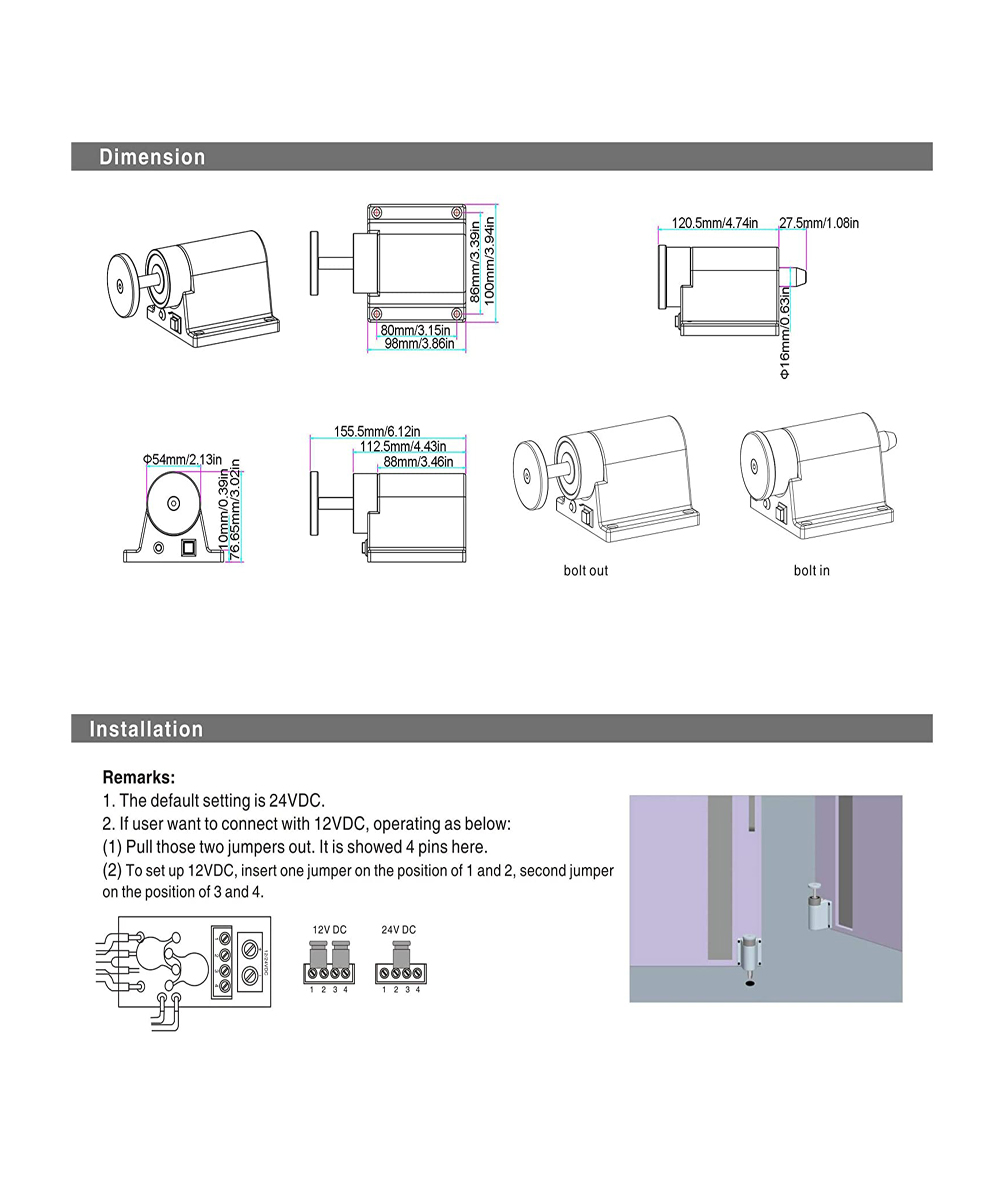

  • If you want to connect with 12VDC,please refer to the picture.

Package:

  • 1 x Electromagnetic door holder with bolt

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.



Weight 1.5 kg
Dimensions 14.8 × 10 × 7.7 cm
