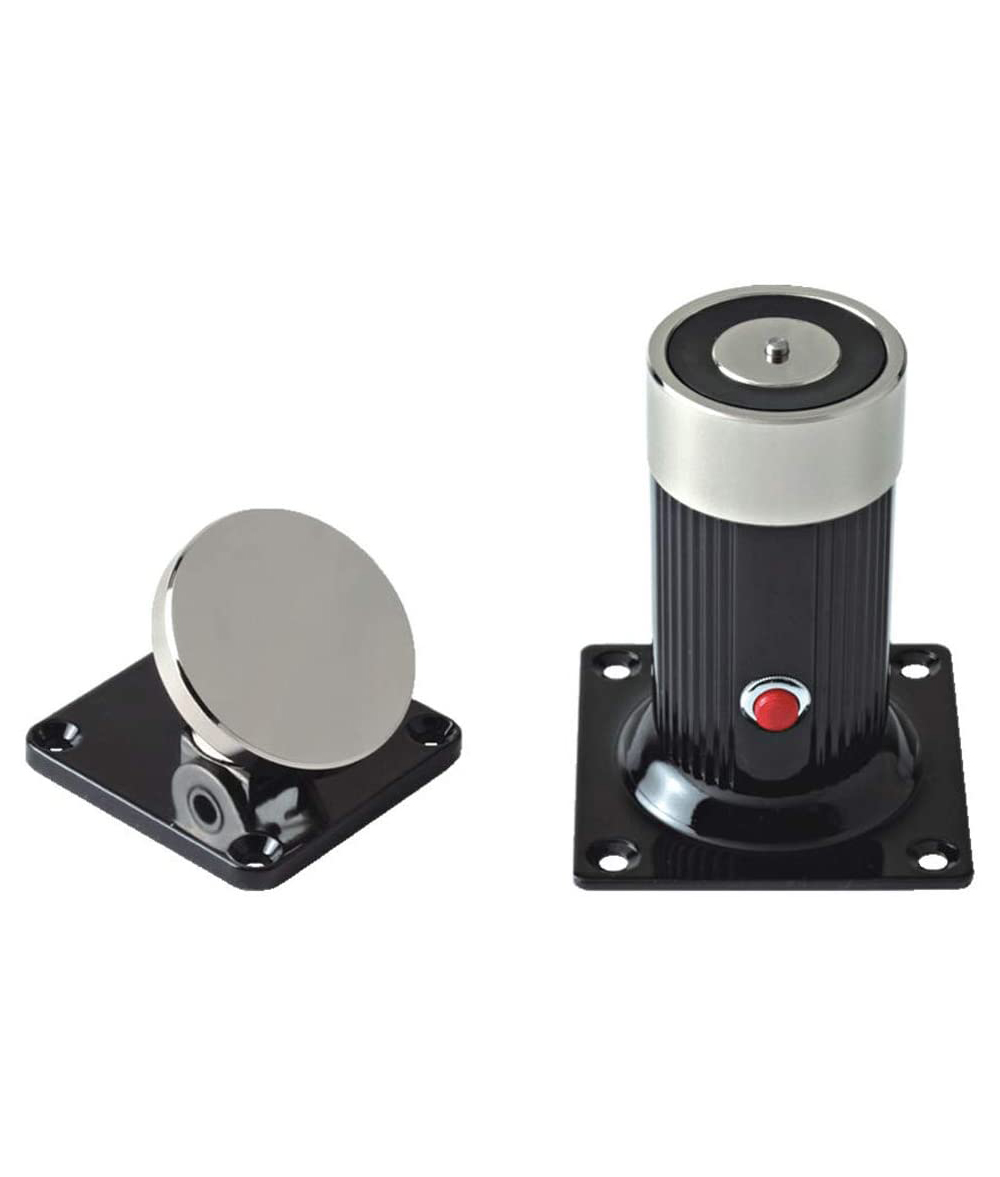

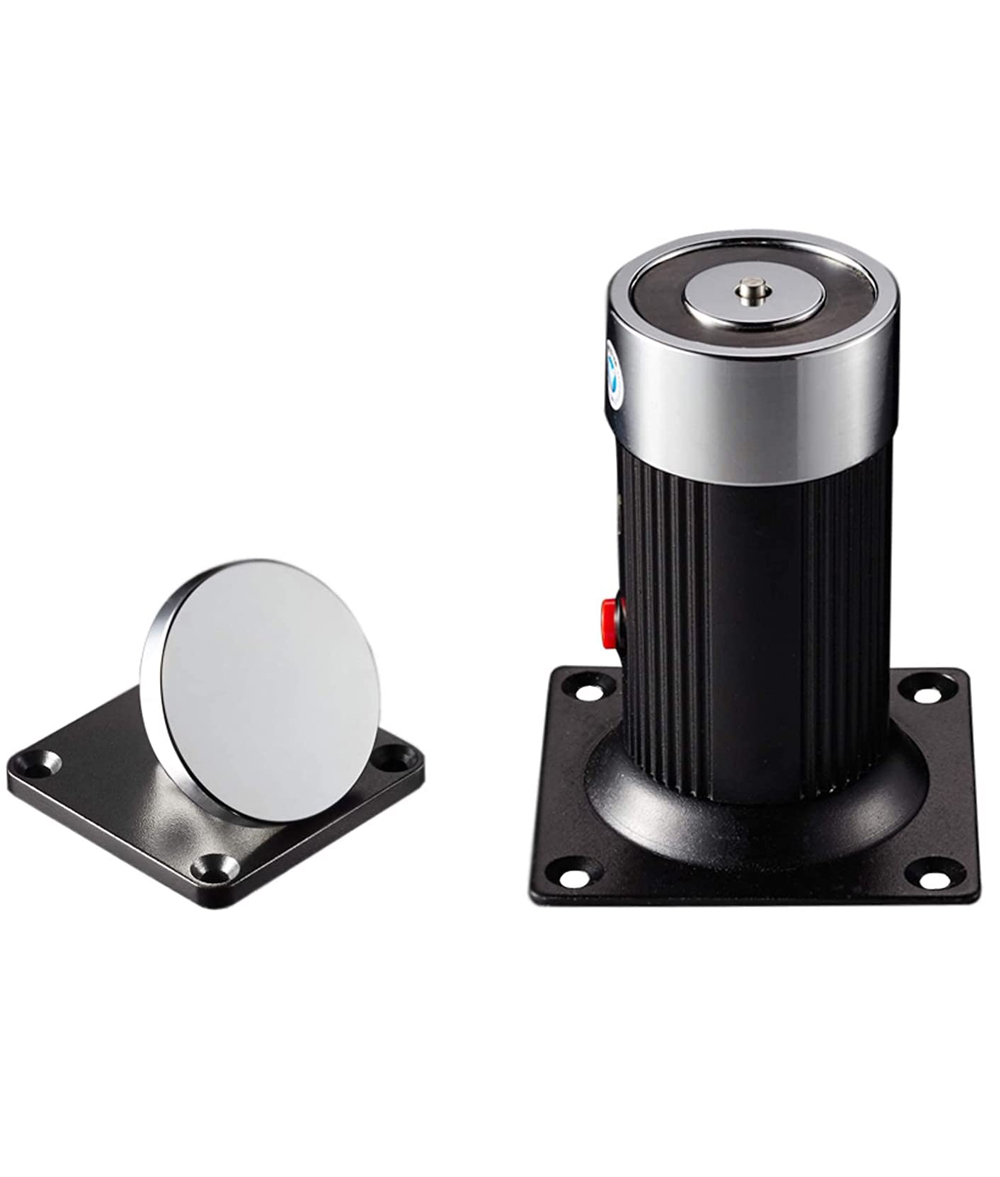

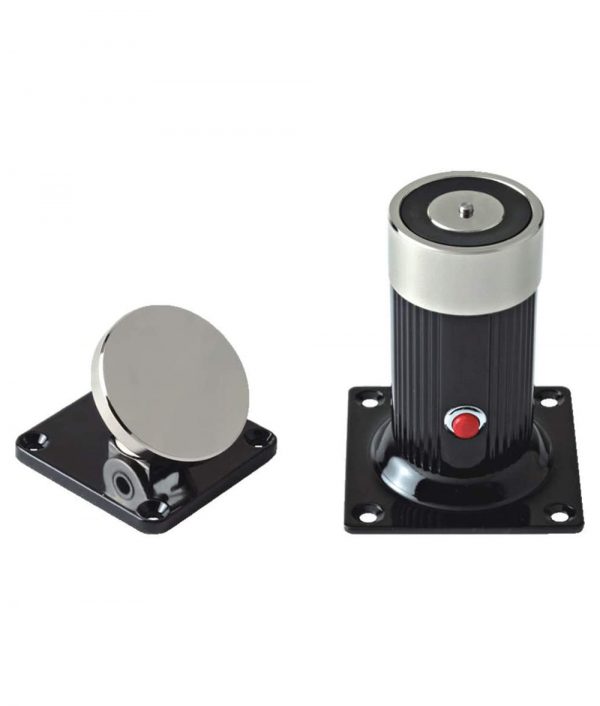

Electromagnetic Door Holder Smokeproof 110Lb Holding Force with Release Button – Extended Flush Wall Mount

Electromagnetic Door Holder Smokeproof 110Lb Holding Force with Release Button – Extended Flush Wall Mount

Features:

• This is a long type wall mount door holder.The low power consuming design, makes it more environment friendly and more durable. Professional anti-residual magnetism design ensures highest security. It will release automatically the fire door when fire alarms. It also contains build-out release button for testing and build-in MOV which reverse current protection.
• Col linear Load Test 50kg/110pounds
• Dual Voltage 12/24 VDC(Adjustable)
• The Standard Voltage is 24VDC when Finished
• Wall mounting direction
• Reliable Fail-Safe mechanism
• MOV Provides Reverse Current Protection
• Low Power,Environmental Protection
• Anti-Residual Magnetism Design
• Professional Design, Dual Insulate Housing
• Automatically close the smoke proof door when fire happens
• CE Certificate

Specifications:

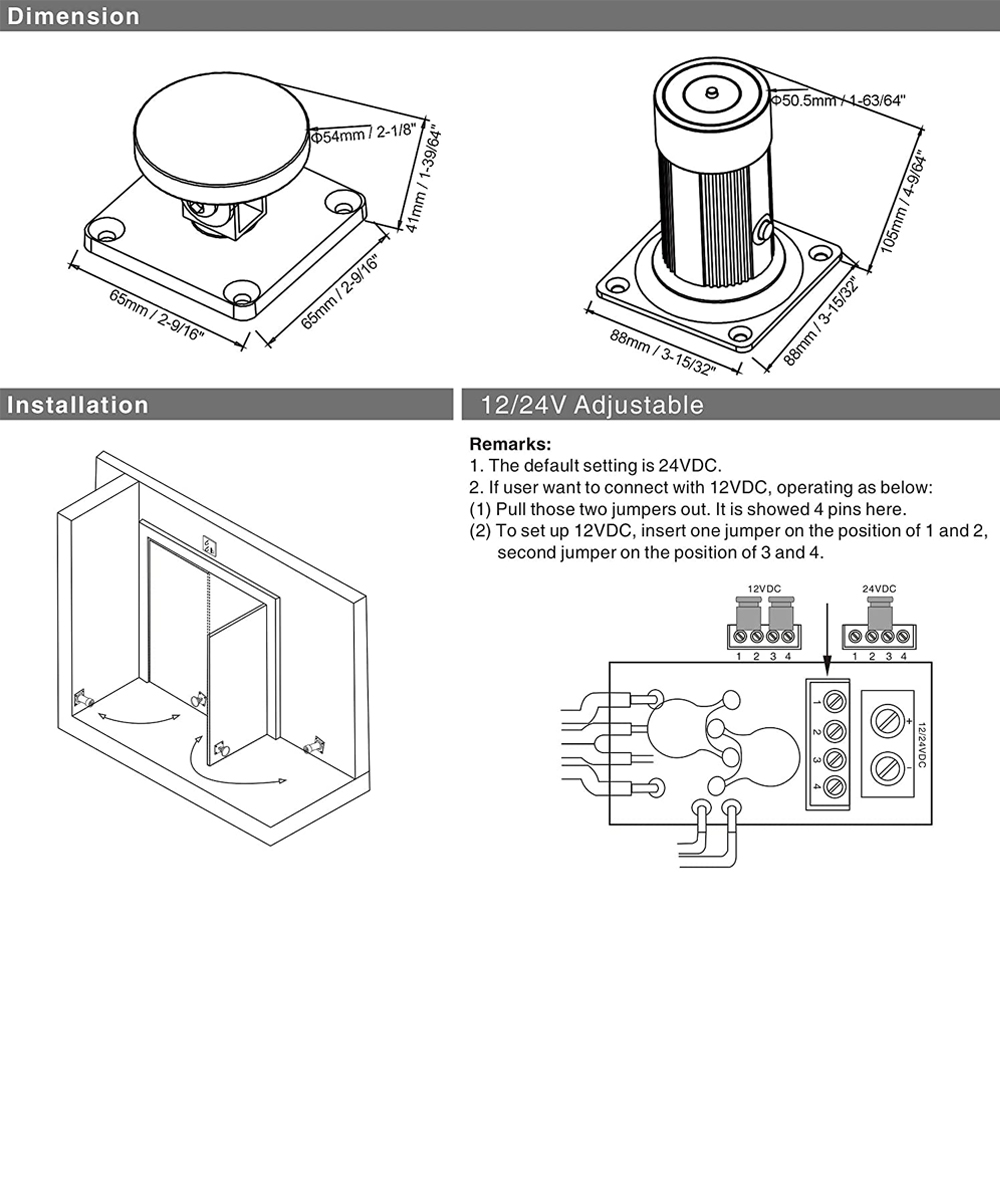

• Dimensions: L80xW80xH105(mm) / L3.15xW3.15xH4.13(in)
• Holding Force: 50kg / 110Lbs
• Voltage: 12/24VDC+/- 10%(Adjustable)
• Current Draw: 12V/140mA 24V/70mA
• Suitable for: All kinds of Single & Double Smokeproof Door
• Surface Temp: less than +20℃ / 68℉
• Operating Temp: -10℃~+55℃(14℉~131℉)
• Suitable Humidity: 0~90%(relative humidity)
• Finishes for Shell: High Temperature Paint and Environmental Protection Zinc
• Finishes for Armature: Zinc
• Weight: 1.0kg / 2.2lb

Installation：

Remarks:

• The default setting is 24VDC
• If user want to connect with 12VDC,operating as bellow:
• 1 Pull those two jumpers out. It is showed 4 pins here
• 2 To set up 12VDC, insert one jumper on the position of 1 and 2, second jumper on the position of 3 and 4
