Intelligent DC12V Electric Bolt Lock Fail Safe NC Mode with Adjustable Ball 2000kg / 4409lb Holding Force

Intelligent DC12V Electric Bolt Lock Fail Safe NC Mode with Adjustable Ball 2000kg / 4409lb Holding Force

Features:

• To prevent the damage of the lock caused by the improper locking position.
• To align the position of the magnetic plate and the bolt in a short time, which can reduce the relock time of the electric bolt
• Fail Safe: Unlocked when power is removed, with all-metal construction.with 304 stainless steel solid bolt and 4409lb holding for
• It can operate at the temperature of 60 ℃(140℉) or -40℃(-40℉) below zero based on the all-metal linkage parts.
• With the diversified design of durable magnetic valve, special photoelectric control system, ultra-low temperature and power consumption design, anti-intrusion and smart circuit.
• Low Temperature, safe & Durable.
• Low Power, Environmental Protection.
• Special photoelectricity control,three steps current application.
• Long Life with 500000 Operations.
• MOV Provides Reverse Current Protection.
• Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.

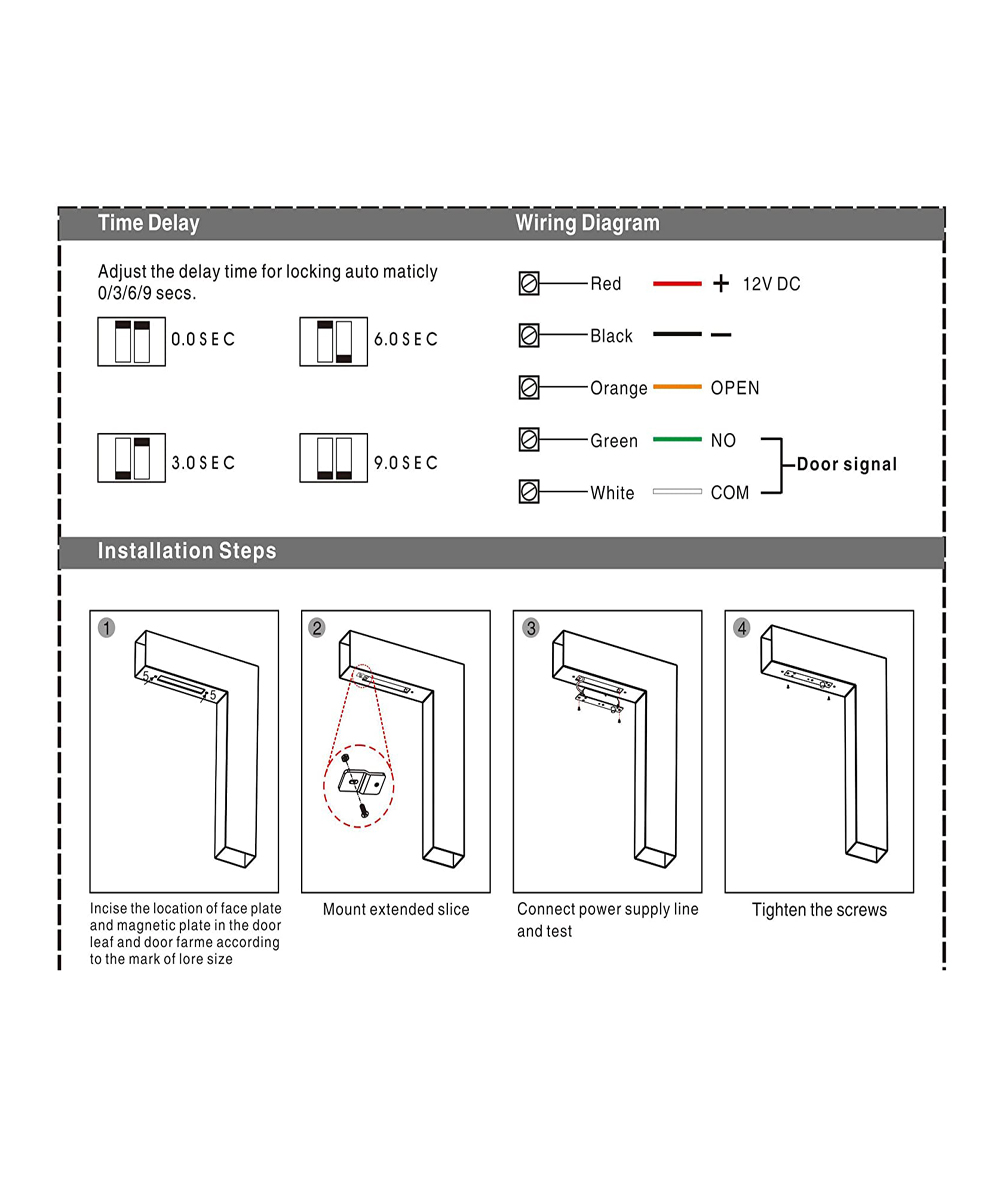

• Autolock Time Delay: 0,3,6,9sec.
• Lock signal:NO/NC/COM;Door signal:NO/COM.
• Double protection for loading current.
• Auto-relock if no Action within 5 secs.
• Certificate:CE&MA.
• Photoelectricity Control,Low Temperature，
  A:The Low Current is Changed immediately;
  B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
  C:The Photoelectricity Control Technology,prevent the machanical defect.

Specifications:

• Feature: Fail Safe-Unlocked when power is removed

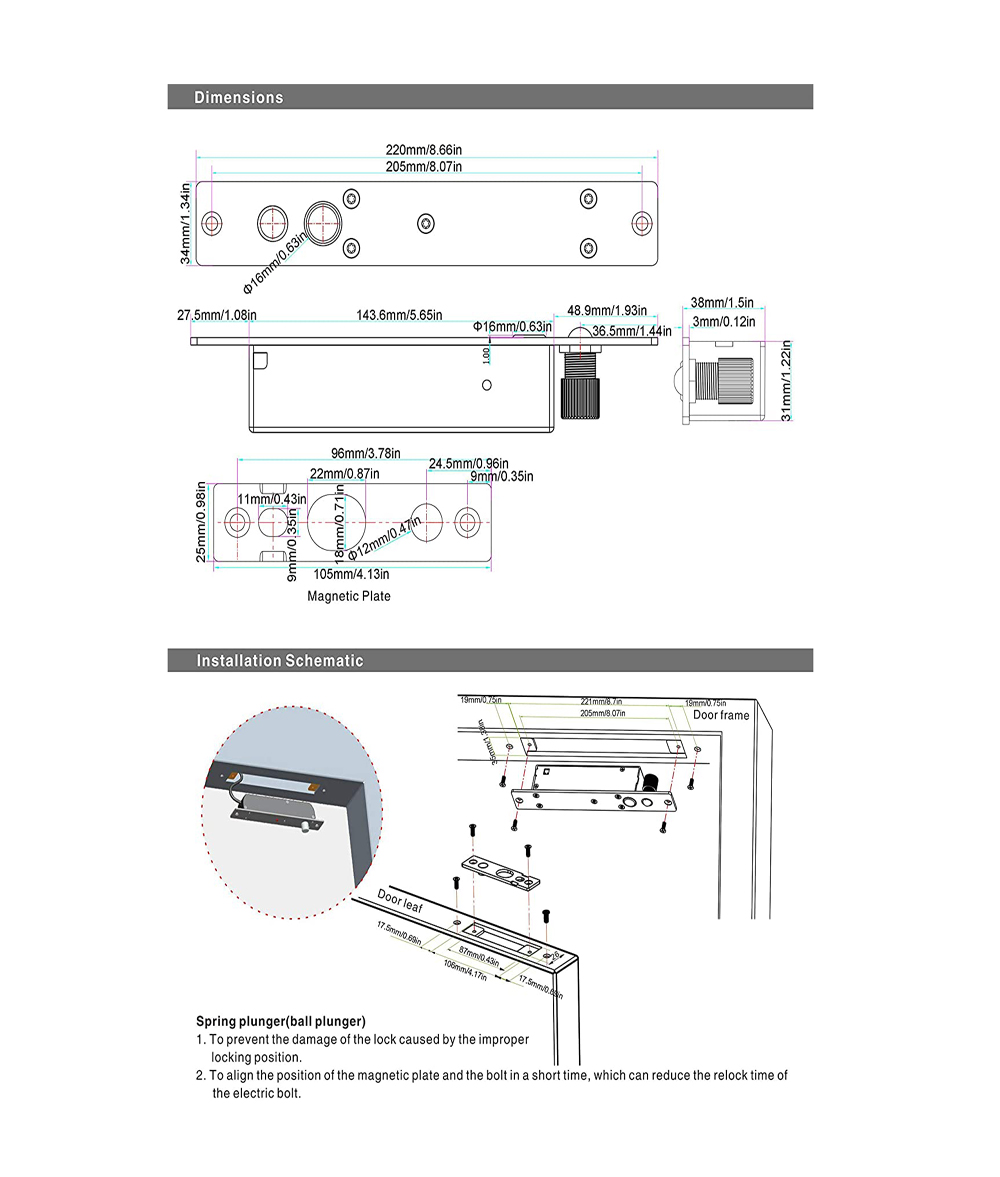

• Lock Body(LxWxH): 220x34x38mm / 8.66×1.34×1.5in
• Magnetic Plate(LxWxH): 105x25x3mm / 4.13×0.98×0.12in
• Bolt: 16(length) * 16(diameter)(mm) / 0.63(Length) * 0.63(diameter)(inch)
• Voltage: 12VDC±1 0 %
• Start Current: 1200mA
• Standby Current: 200mA
• Signal Output: Door signal: NO/COM
• Suitable For: Wooden door, metal door, fireproof door, glass door
• Detection Distance: Within 8mm(0.31in)
• Material: 304 stainlesssteel , wiredrawfinishing
• Weight 1.0kg

Package:

• 1 x Electric Bolt Lock (Fail Safe NC Mode)
