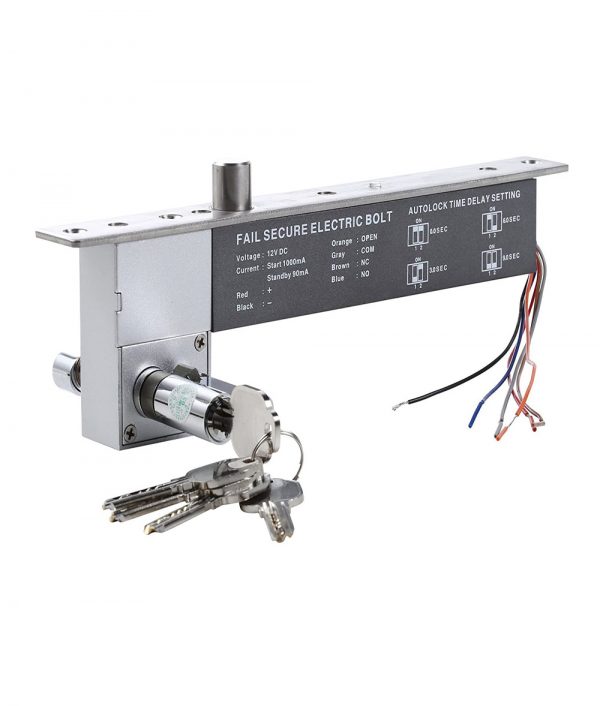

Electric Drop Bolt Lock Key & Manual Open Fail Secure Electric Manual Open with Cylinder

Electric Drop Bolt Lock Key & Manual Open Fail Secure Electric Manual Open with Cylinder

Features:

• Low Temperature, safe & Durable
• Low Power, Environmental Protection
• Special photoelectricity control, three steps current application
• Long Life with 500000 cycles
• MOV Provides Reverse Current Protection
• Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt
• Autolock Time Delay: 0,3,6,9sec
• Door statue signal output contact NC/NO/COM
• Double protection for loading current
• Auto-relock if no Action within 5 secs
• Certificate: CE&MA
• Photoelectricity Control, Low Temperature
• Fail secure electric bolt lock with cylinder, suitable for wooden door, metal door and heavy door. We supply integrity equipment to collocate with fully frameless glass door, swing-in door and so on. Build-in Photoelectricity control and low temperature.

Specifications:

• Fail Secure: Locked when power is removed

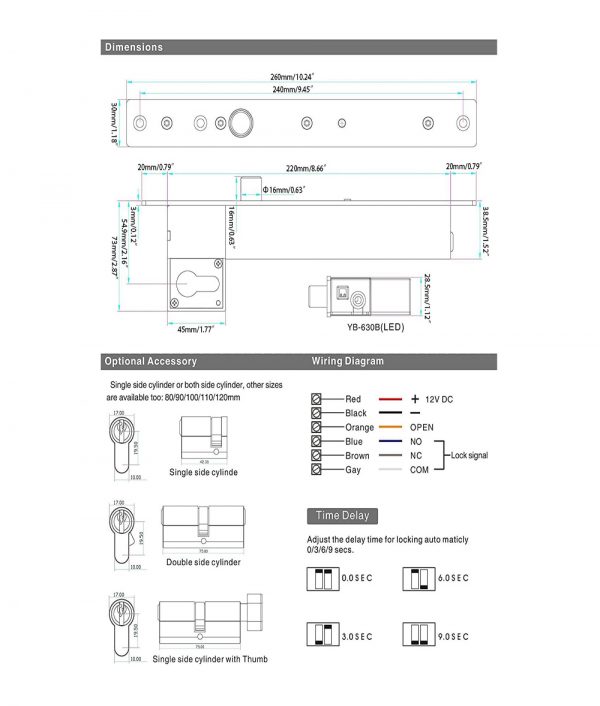

• Lock Body: 260Lx30WX73H(mm) / 10.24Lx1.18Wx2.87H(inch)
• Magnetic Plate: 100Lx25Wx3H(mm) / 3.94Lx0.98Wx0.12H(inch)
• Bolt: 16mm/0.63in DIA, stainless steel 16mm/0.63in throw
• Voltage: DC12V
• Start Current: 900mA
• Standby Current: 140mA
• Solid Bolt: Polishing housing, 2000Kg Holding Force
• Suitable For: Wooden Door,Metal Door
• Autolock Time Delay: 0/3/6/9 sec
• Signal Output: Door status Output,NO/NC/COM
• Surface Temp: Low Temperature
• Induction Distance: 8mm/0.31in
• Operating temp: -10℃~+55℃(14℉~131F)
• Operating Humidity: 0~90%(non-condensing)
• Special Designed: Tested to 500000 operations
• Face place material: Stainless Steel
• Weight: 1.8kg / 3.97lb

Package:

• 1 x Electric Lock
• 1 x Screw Kit
• 1 x Manual
• Tips: Default come with single side cylinder with Thumb
