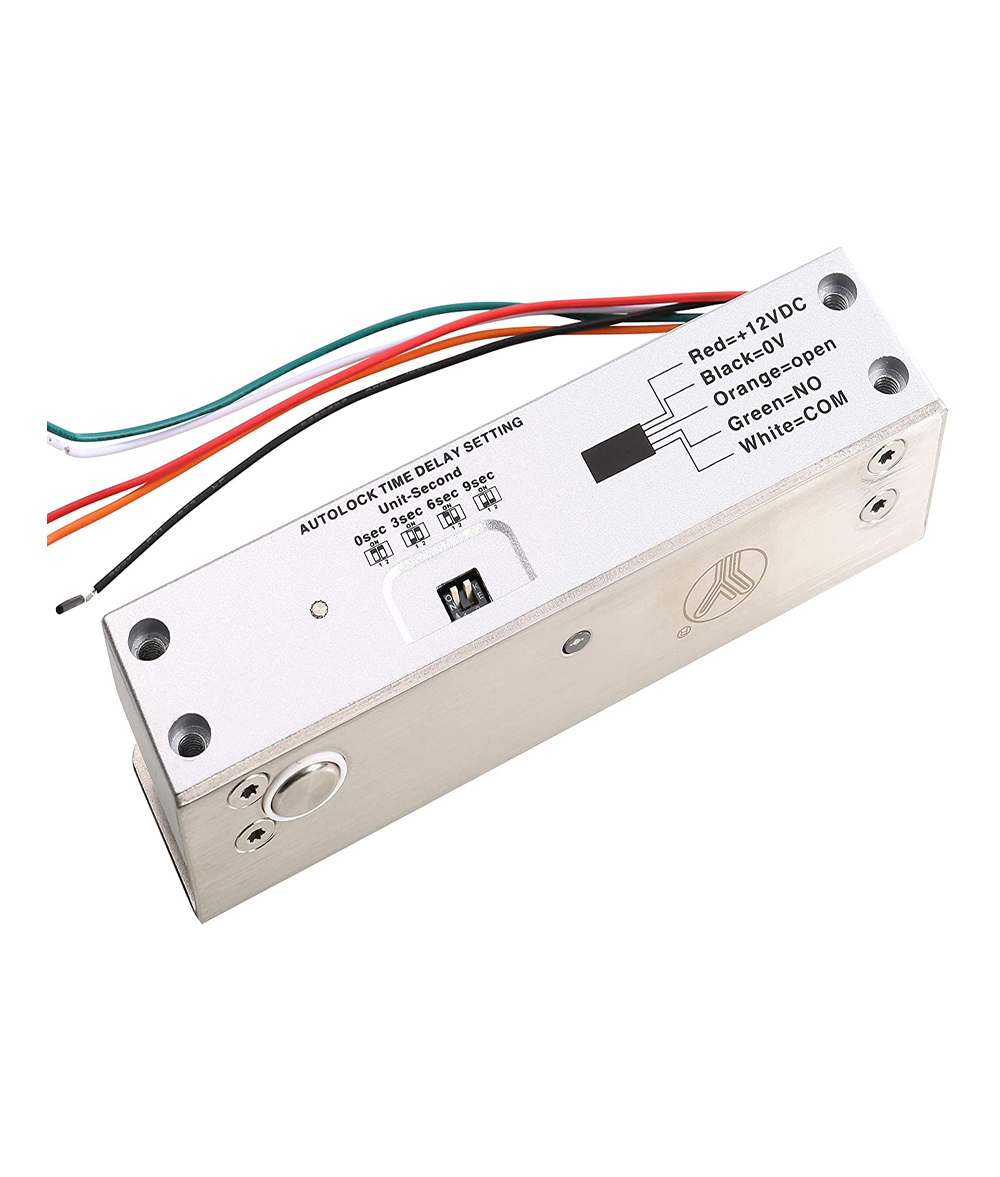

Security Fail Safe Electric Bolt Lock Designed for Fully Frameless Glass Door

Security Fail Safe Electric Bolt Lock Designed for Fully Frameless Glass Door

Features:

• Low Temperature, safe & Durable
• Low Power, Environmental Protection
• Special photoelectricity control,three steps current application
• Long Life with 500000 cycles
• MOV Provides Reverse Current Protection
• Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt

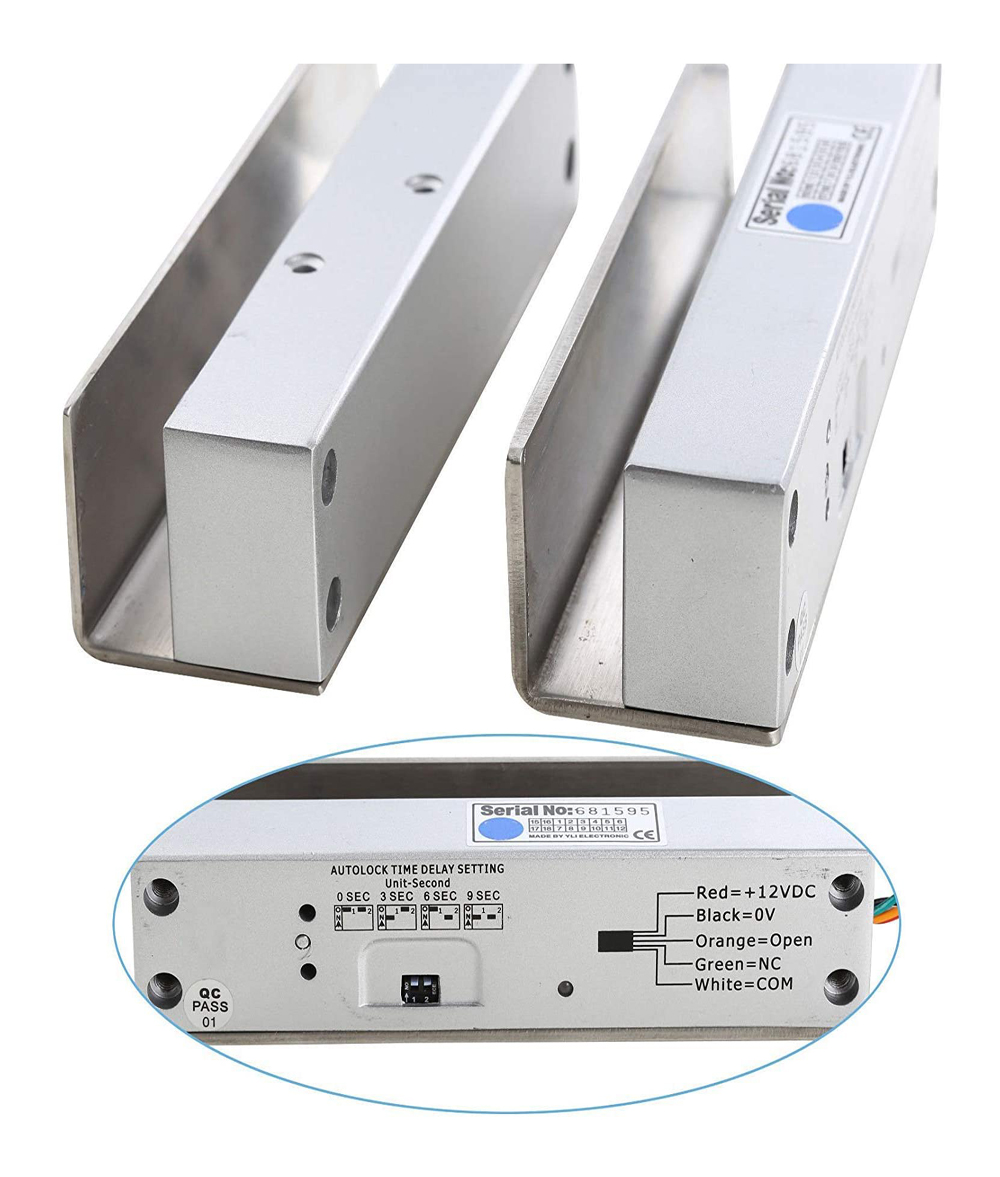

• Autolock Time Delay: 0,3,6,9sec
• Door status signal output contact (NC.COM)
• Double protection for loading current
• Auto-relock if no Action within 5 secs
• Certificate:CE&MA
• Photoelectricity Control,Low Temperature
  A:The Low Current is Changed immediately
  B:When door frame doesn’t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature
  C:The Photoelectricity Control Technology,prevent the machanical defect

Specifications:

• Feature: Fail Safe

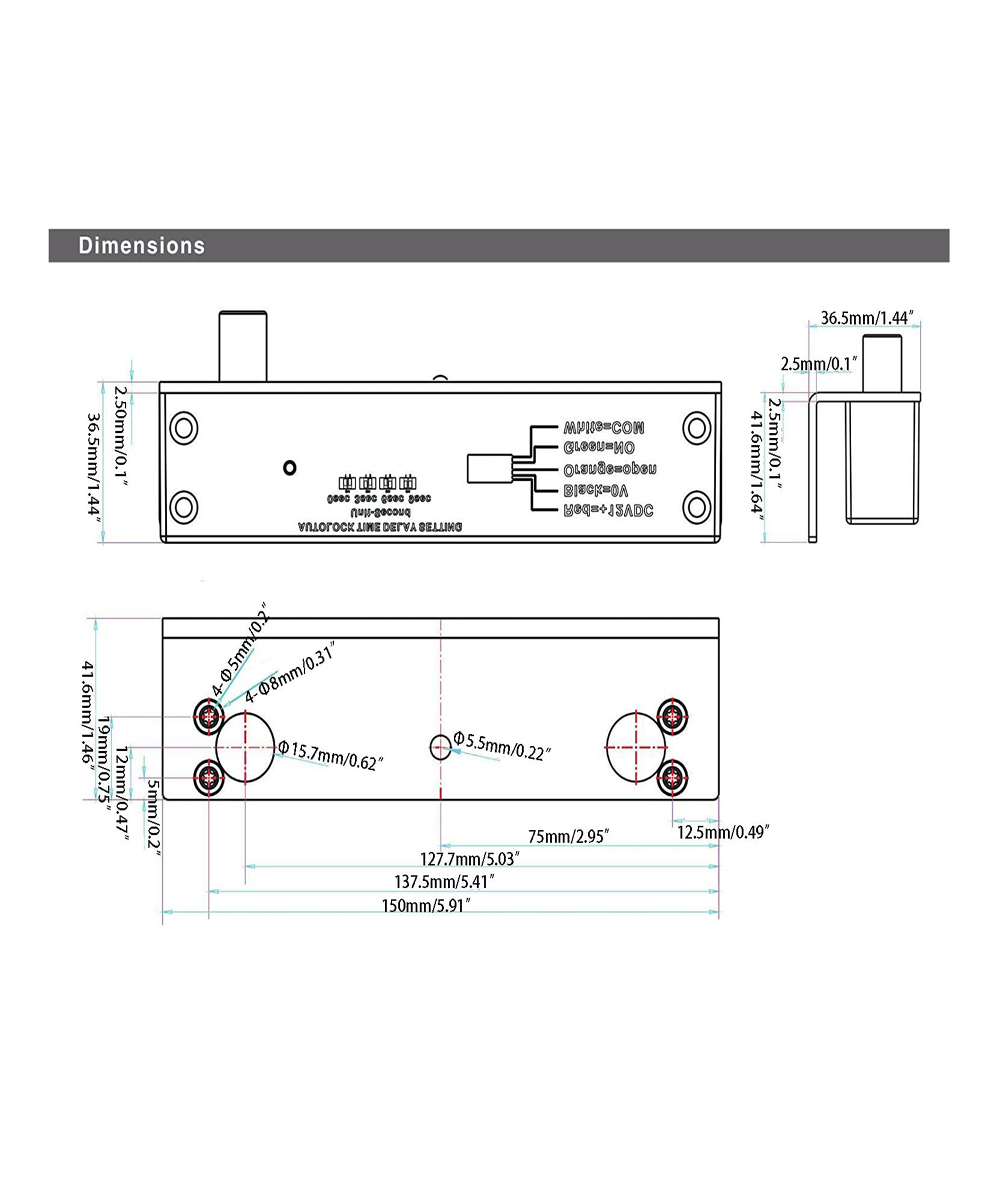

• Face Plate: 150Lx40WX37H(mm) / 5.90”Lx1.57”Wx1.46”H
• Bolt: c16(prolongation)*13(diameter)(mm)
• Voltage: DC12V
• Start Current: 960mA
• Standby Current: 180mA
• Solid Bolt: polishing housing, 1000kg Holding Force
• Suitable For: 12mm Electric Bolt For Fully Frameless Glass Door
• Signal Output: Door status Output,NC/COM
• Surface Temp: Low Temperature
• Induction Distance: 8mm/0.31in
• Operating temp: -10℃~+55℃(14℉~131℉)
• Operating Humidity: 0~90%(non-condensing)
• Special Designed: Tested to 500000 operations
• Face plate material: Stainless Steel
• Weight: 1.36kg / 3lb

Installation:

Package:

• 1 x Electric Bolt Lock
• 1 x English Manual
