2.4GHz WiFi Electric Stike Access Control Door Lock Kit System with Remote and Smartphone APP Control

2.4GHz WiFi Electric Stike Access Control Door Lock Kit System with Remote and Smartphone APP Control



Describe:

• The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the receiver, which can program up to 40 remotes, and it has a range of 164 feet.
• The function of the receiver is that when the power is on, the lock of your kit is locked and when you press the remote the lock will unlock temporarily to open the door.
• Requires 2.4 GHz Wi-Fi connection. Quick & easy installation without the need of a professional.
• Tuya Smart is a smart home center that can let you control and manage your favorite smart devices of different brands in a single APP.
• Easy Use: Transmits data to a cloud platform through the Wi-Fi Router, which enables you to remotely control the connected appliances via free Tuya Smart App.You can download the iOS version in App Store and the Android version in Google Play.
• Grouping Function: It allows users to assign all added devices to different groups so that they can easily check and manage the devices. To use this feature, simply click the drop-down menu on the top of device list.
• Smart Scene: The smart scene allows users to use one device to automatically trigger ON/OFF one or more devices.
• Share Control: Device owners can share control of their own devices to other Tuya Smart users. Invite your family members to control your smart home together!
• Scheduled Timing: User can reset repeat or single timing schedules to turn on/off devices according to your needs.Imaging that the door is off in the evening and on in the morning every day automatically.
• Loop Timing: A loop timer allows users to turn on/off the door at preset intervals.
• Tuya Smart provides a multi-language version, which supports Chinese, English, Danish, French, Russian, Italian, Polish, Deutsch, Spanish, Japanese, etc.
• Tuya Smart offers cloud service at a global scale, ranging from Asia, North America, South America to Europe, etc.
• The exit button doesn’t bring a delay, it mean you have to press the exit button at the same time for open the door

Remote Control Receiver:

• Standard: Wi-Fi 2.4GHz
• Working Voltage: 12VDC
• Frequency: 433MHz
• Output Current: 1A
• Built-in Buzzer: Yes
• Work Mode: Momentary/Toggle
• DC Encoding Type: Learning code
• Firing Range: 164 feet(open) in theory, 15%-30% in reality
• Material of Shell: ABS plastic
• Transmitters can be paired: 40

Remote Transmitter:

• Working voltage: 6VDC (Built-in button battery)
• Operating Current: 8mA
• Powerd by: 2pcs CR2016/3V batteries (Included)
• Service Life of the Battery: 50000 cycles tested
• Transmitting Frequency: 433MHZ
• Key: 1 Key
• Case material: Plastic

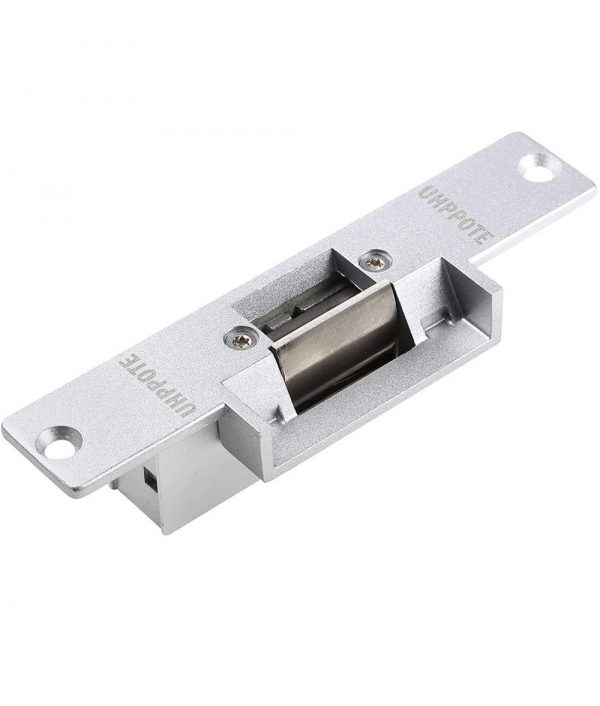

Electric Strike Lock:

• Input Voltage: 12VDC
• Current: 200mA
• Holding Force: 500kg / 1100Lbs
• Fail secure, NO mode (Locked when power is removed)
• Suitable For: Wooden Door, Metal Door, PVC Door
• ATTENTION: Strike lock will work with mechanical lock or knob lock which need buy separately.
• With two contacts and no polarity requirement. (The lock will have polarity when a diode added.)
• Size (LxWxH): 150×39.5×34(mm) / 5-29/32″ x 1-9/16″ x 1-11/32″
• Function: Built-out MOV
• Net Weight: 0.29kg

Push to Exit Button:

• Dimensions (LxWxH): 90x35x26.5(mm) / 3-35/64″ x 1-3/8″ x1.0 1-3/64″
• Standard Structure: Stainless steel Panel, Steel Button
• Mechanical Life: 500000 tested
• Current Rating: 3A@36VDC Max
• Output Contact: NO/COM
• Operating Temp: 10～+55℃(14-131F)
• Operating Humidity: 0-95% (relative humidity)
• Panel Material: Stainless steel Panel, Wire Drawing Finished
• Suitable for hollow door

Power Adapter:

• Type: 12V 1A Power Supply Wall Charger
• Input: AC100V-240V 50/60Hz
• Max Output: DC12V / 1A (1000mA)
• AC Cord length: 4 feet / 1.2 meter
• Wire Type: 22AWG
• Output transformer adapter : 5.5X2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
• Net weight: 66g
• Certificate: FCC

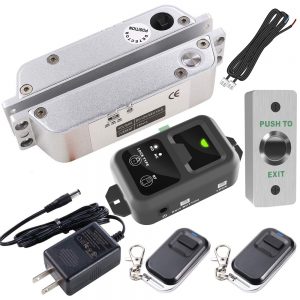

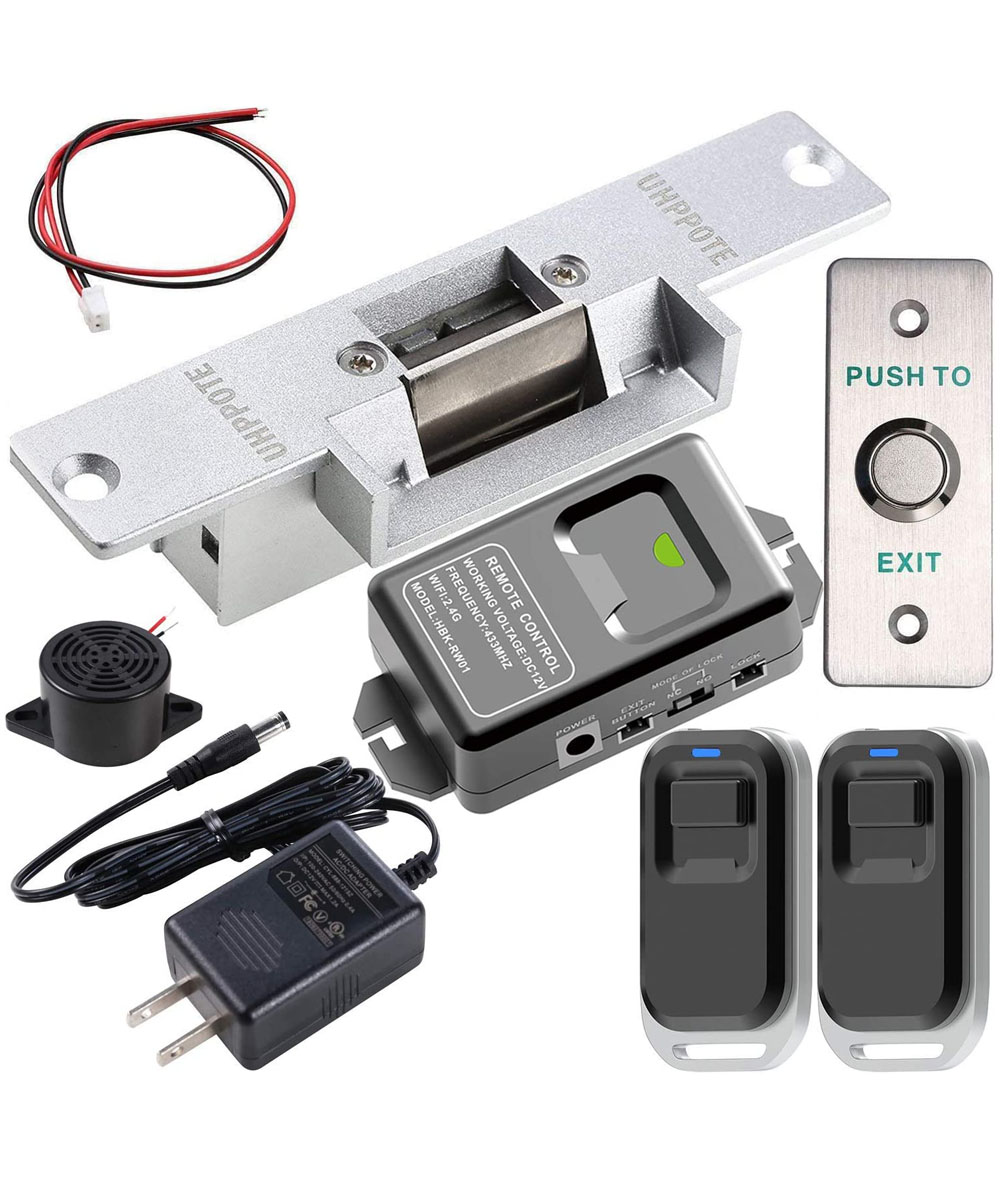

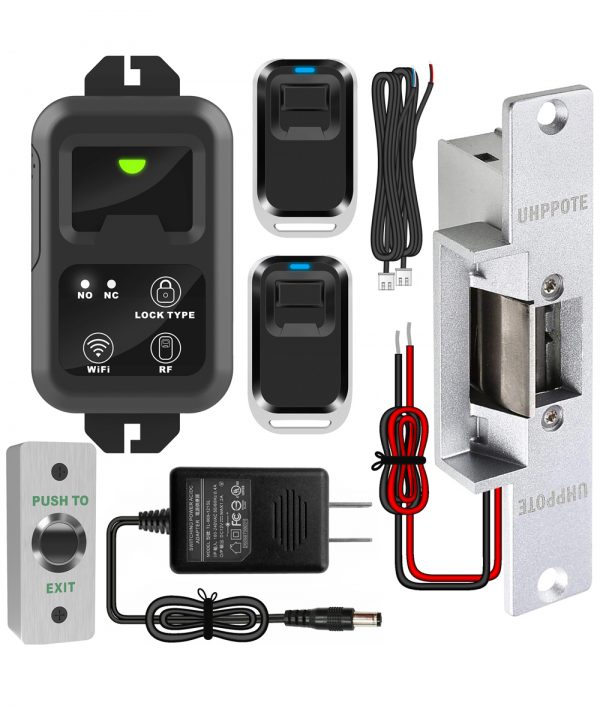

Package:

• 1 x Electric Strike Lock
• 1 x Remote Receiver
• 2 x Remote Transmitters
• 1 x Push to Exit Button
• 1 x Power Adapter
• 1 x English Manual
