Low Voltage Weak Current Isolator for Access Control Auto-Door System

Low Voltage Weak Current Isolator for Access Control Auto-Door System

Features:

• It is used when the access control device is connected to a non-electrical lock device (for example: automatic door,barrier,roller gates etc.) to isolate the interference of the external device and the power supply to the access control device
• The outside equipment of big current like barrier, roller gates, automation doors and bell etc. will generate huge interference when access controllers connect to these product of non-electric strikes.That will affect controller equipment.The weak current isolator adopts advances multi-grade and twice isolation technique, can isolate all the interference and keep the system running stably in long time.
• The device uses advanced multi-grade isolation technology to isolate interference. With NO/NC output
• The weak current isolator shell is metal housing, which is highly protective, long lasting and has good sealing.
• Power Adapter: DC9V/500ma

Specifications:

• It is used when the access control device is connected to a non-electrical lock device (for example: automatic door,barrier,roller gates etc.) to isolate the interference of the external device and the power supply to the access control device.
• The device uses advanced multi-grade isolation technology to isolate interference. With NO/NC output
• The weak current isolator shell is metal housing, which is highly protective, long lasting and has good sealing.

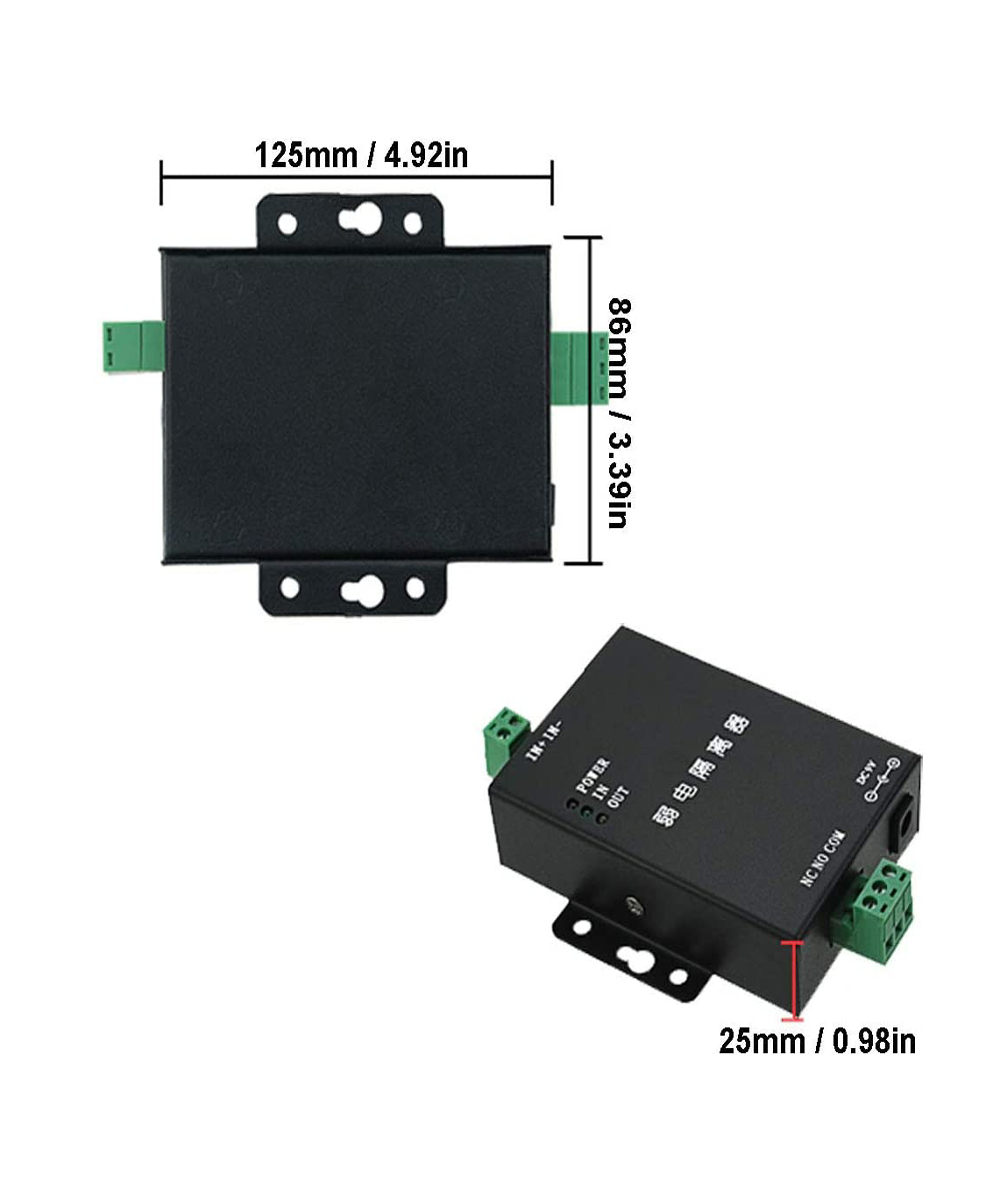

• Body size: 125*86*25mm / 4.92×3.39×0.98in
• Working temperature: -20℃~50℃ / -4℉~122℉

Power Adapter:

• Input: AC110V
• Output: DC9V / 500ma

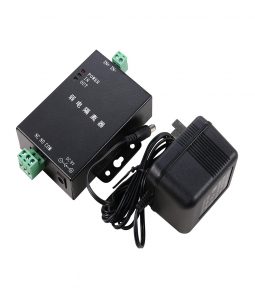

Package:

• 1 x Weak current isolator
• 1 x Power supply
