NC Type Wired Shutters Roller Metal Magnetic Door Contact (Pack of 5)

NC Type Wired Shutters Roller Metal Magnetic Door Contact (Pack of 5)

Features:

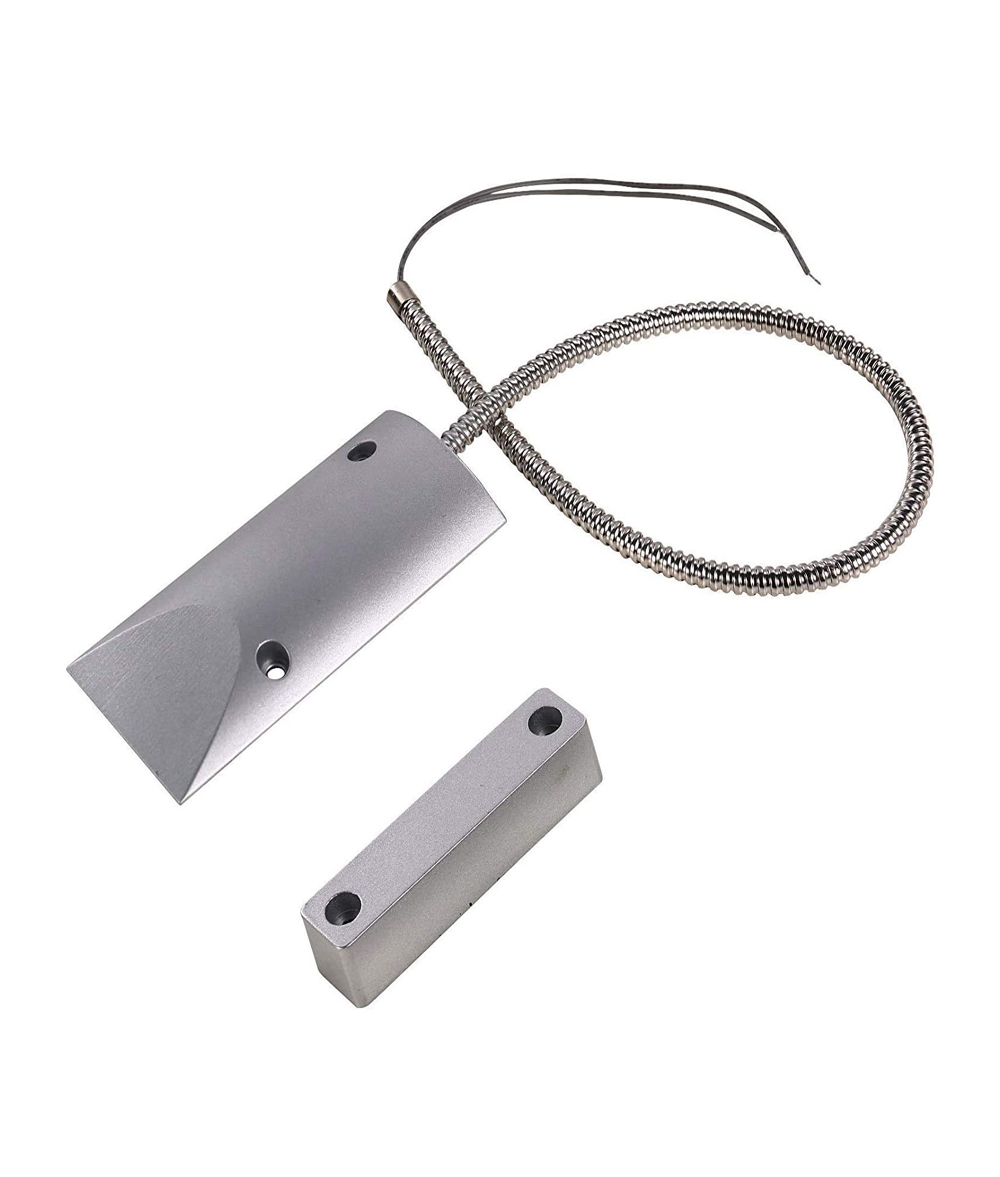

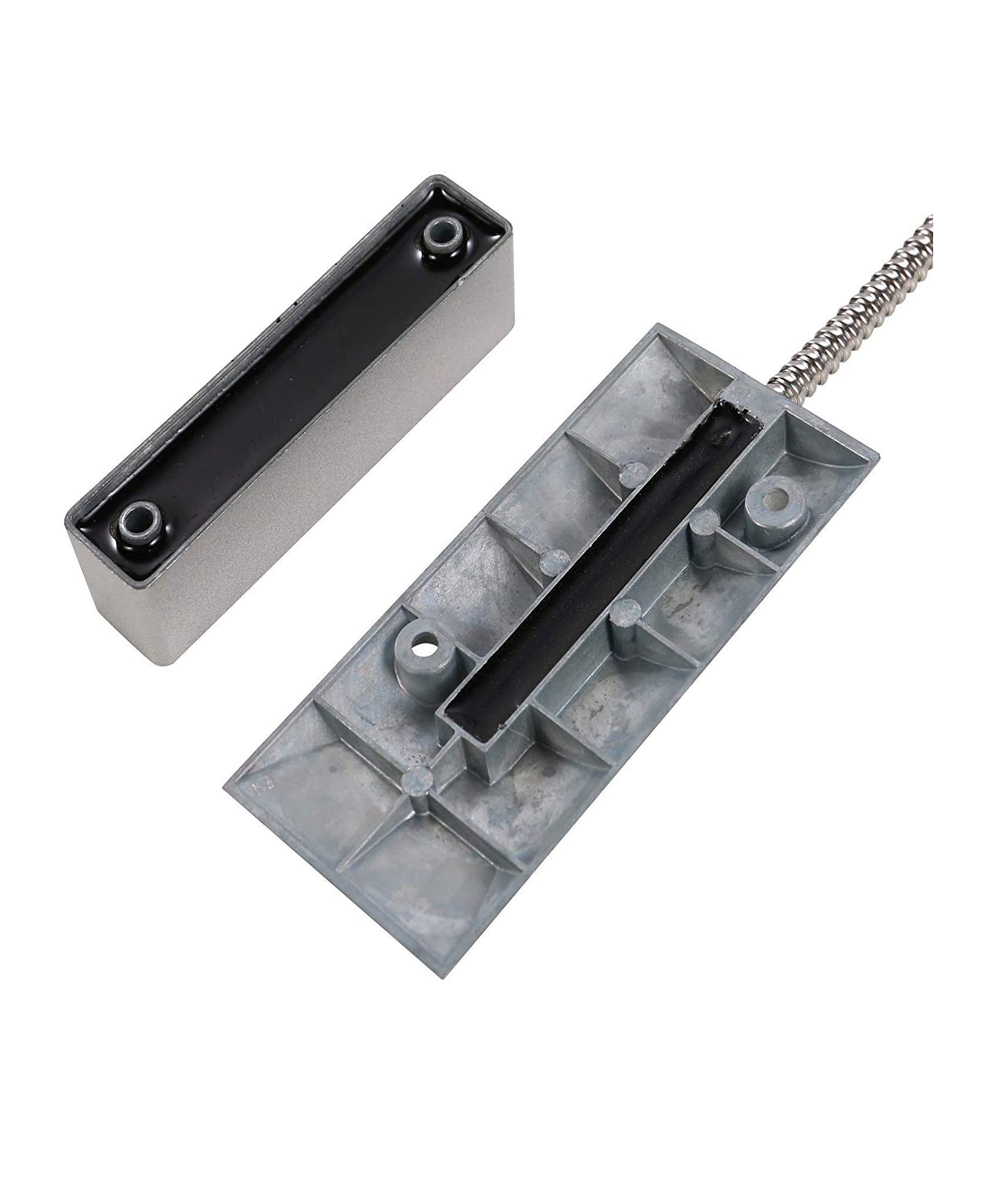

• Screw surface mount contact, metal housing. Comes with four installation screws.
• Switch Type: NC (normal closed type)
• Great for use in family and factory window, door. etc.
• This Contact Works with Any Access Control or Burglar Alarm System Available

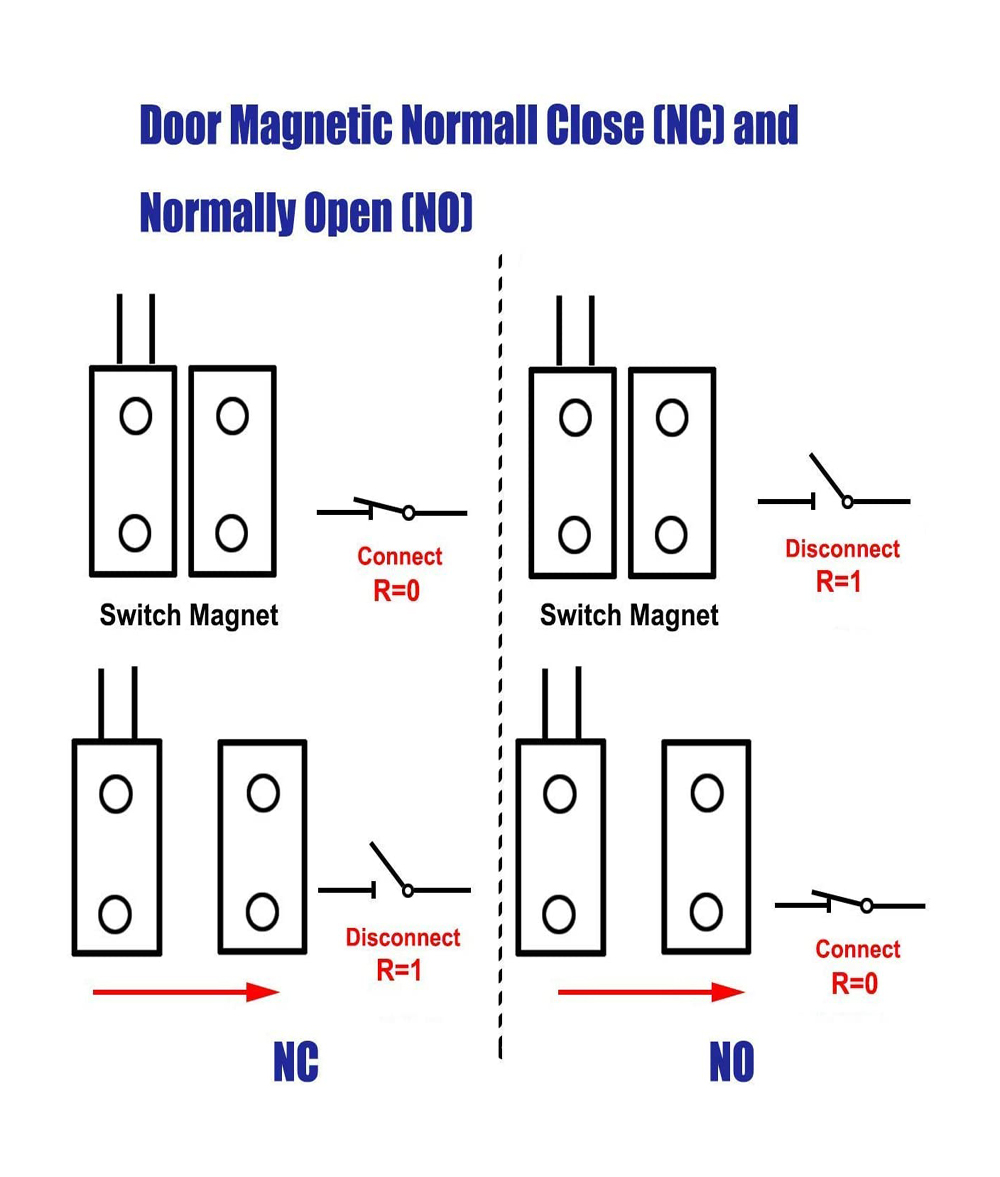

• NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).

Specifications:

• Detector Dimensions: 105×47.5×9.5mm / 4.13″x1.87″x0.37″
• Magnet Dimensions: 88x20x20mm / 3.46″x0.79″x0.79″
• Working distance: 50-70mm / 1.97″-2.76″
• Dry Contact Output: NC (Normal closed)
• 10W/100VDC/0.5A in MAX
• Color: Silver
• Housing Material : Zinc Alloy
• Cable material: 1007UL #22AWG
• 370mm flexible Steel goose-neck cable protector conduit + Additional 100mm extra-long cable
• Product: 190g / 6.7oz

Package:

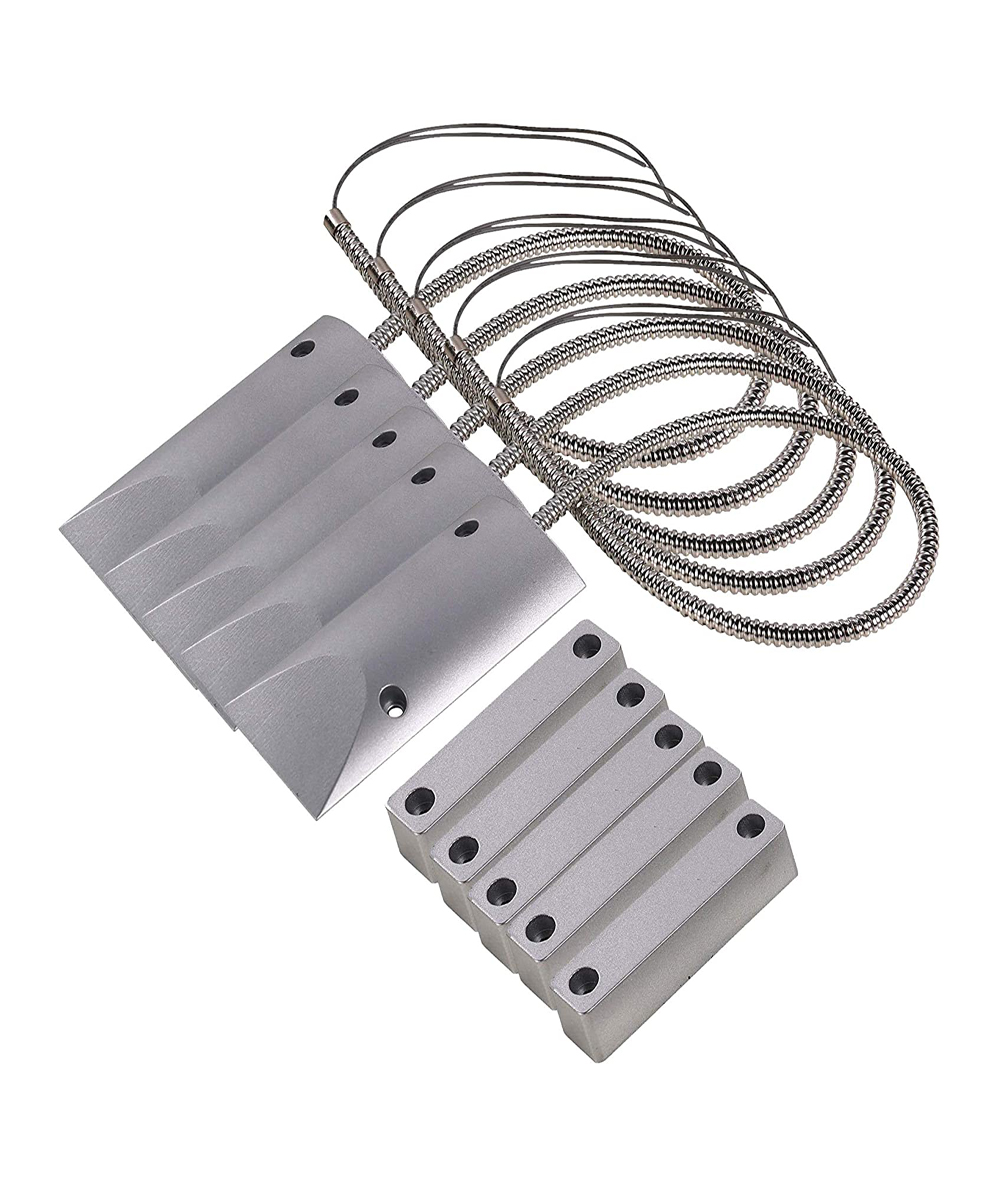

• 5 x Wired contact
• 20 x Mount screws
