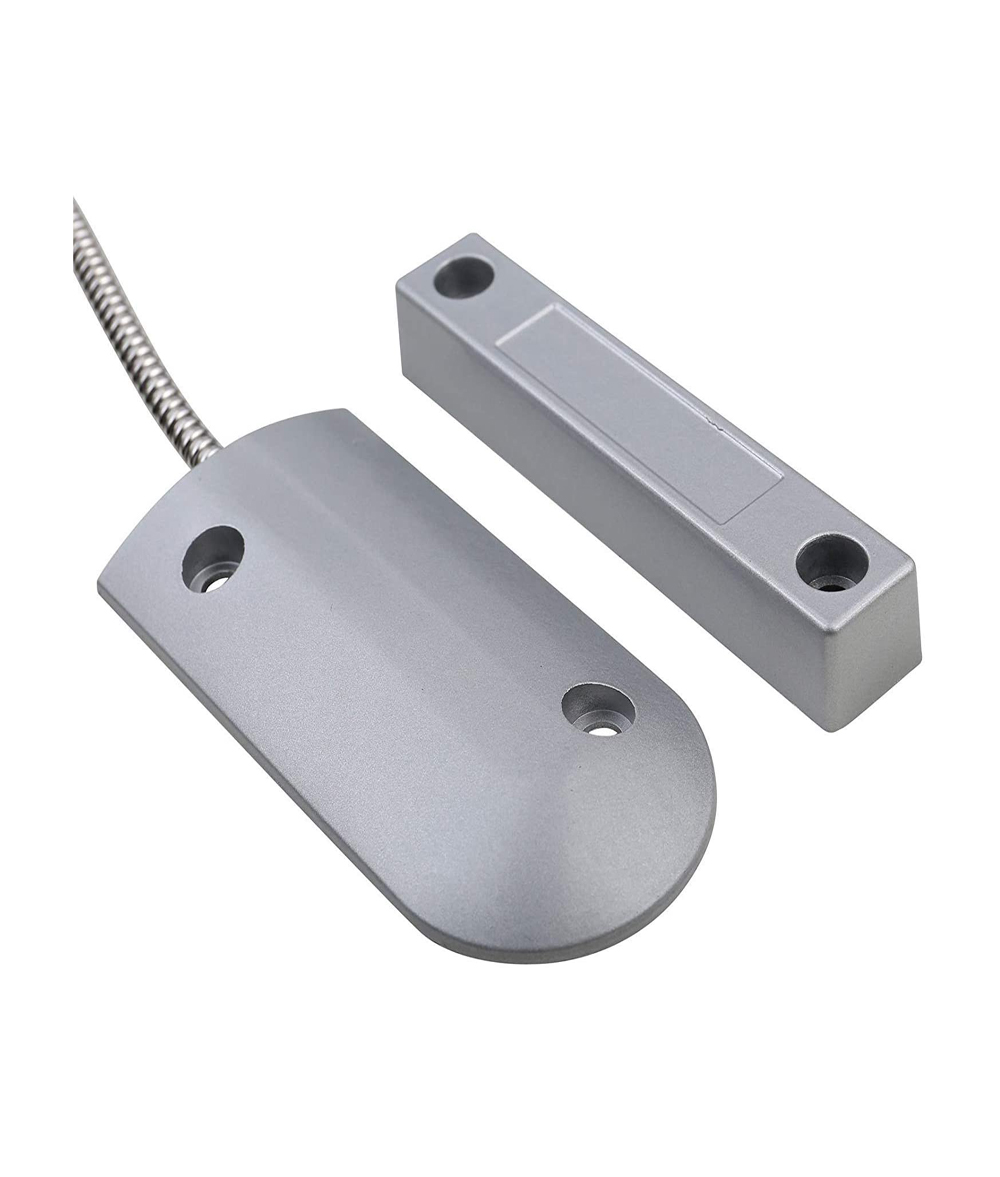

NC Type Wired Magnetic Roller Shutter Door Contact Sensor Detector (Pack of 5)

• Screw surface mount contact, metal housing.
• Cable Material: 1007UL #22AWG
• Great for use in family and factory window, door. etc.
• Idea for roller shutter doors
• NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
• Comes with four installation screws.

Specifications:

• Detector Dimensions: 104x50x9.5mm / 4.09×1.97×0.37in
• Magnet Dimensions: 107×19.8x17mm / 4.21×0.78×0.67in
• Working Distance: 50-70mm / 1.97×2.76in
• Dry Contact Output: NC,COM (NORMALLY CLOSED: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
• Color: Sliver Grey
• Housing Material: Zinc Alloy
• Cable Material: 1007UL #22AWG
• 370mm flexible Steel goose-neck cable protector conduit + Additional 100mm extra-long cable

Note:

• Please allow slight size differences due to manual measurement

Package:

• 5 x Wired contact
