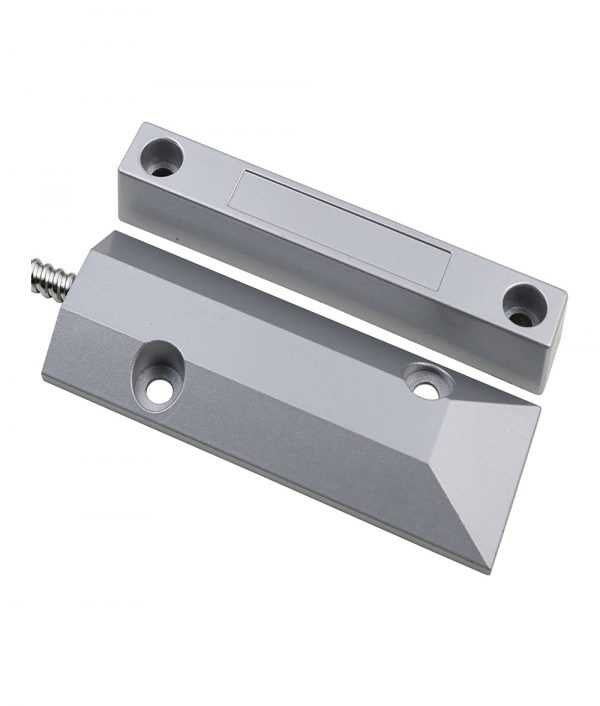

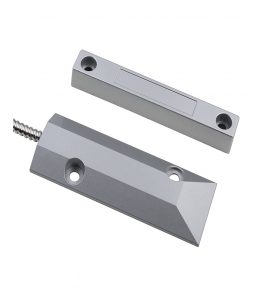

Zinc Alloy Wired Magnetic Roller Shutter NC Type Door Contact Sensor Switch Detector

Zinc Alloy Wired Magnetic Roller Shutter NC Type Door Contact Sensor Switch Detector

Features:

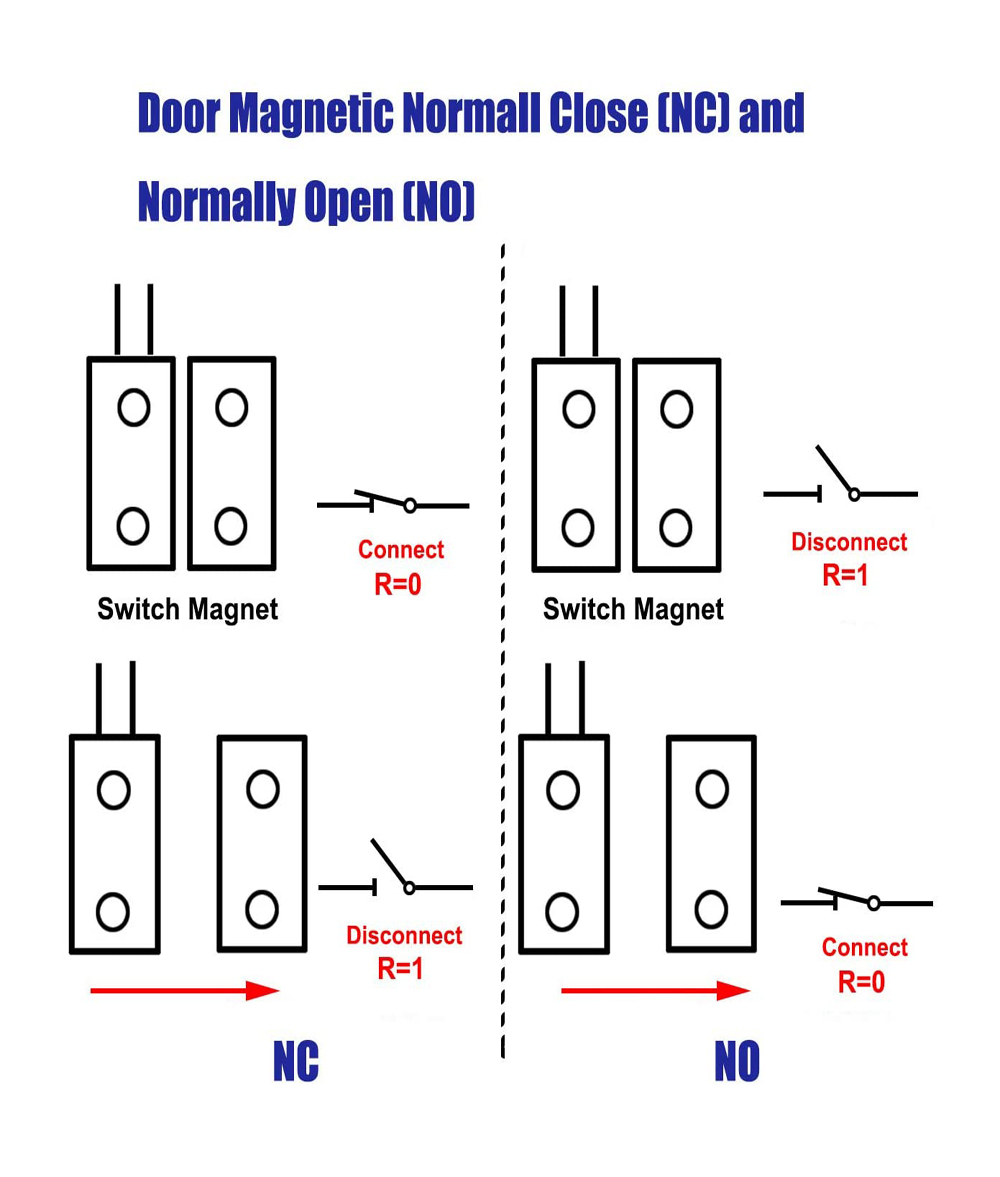

• NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
• Screw surface mount contact,comes with four installation screws.
• Ideal for roller shutter door
• Be used to detect door if it is opened or moved.
• It is widely used for monitoring and security system, with high reliability, small size, easy installation and strong flexibility

Specifications:

• Detector Dimensions:106x38x10mm / 4.17″x1.5″x0.39″
• Magnet Dimensions: 106x16x16mm / 4.17″x0.63″x0.63″
• Dry Contact Output: NC, COM (NORMALLY CLOSED: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).

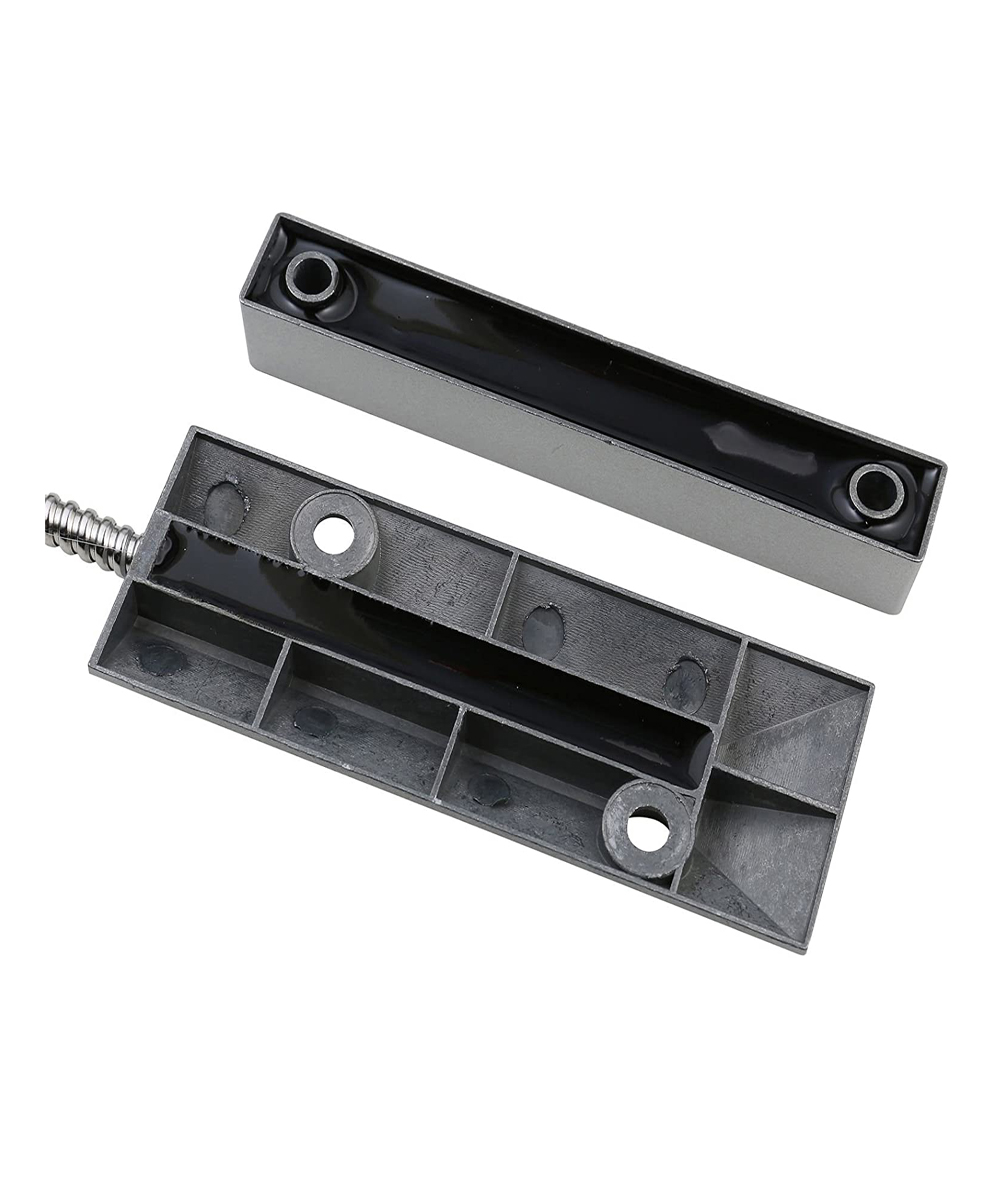

• Zinc alloy housing, sliver grey
• Cable Material: 1007UL #22AWG

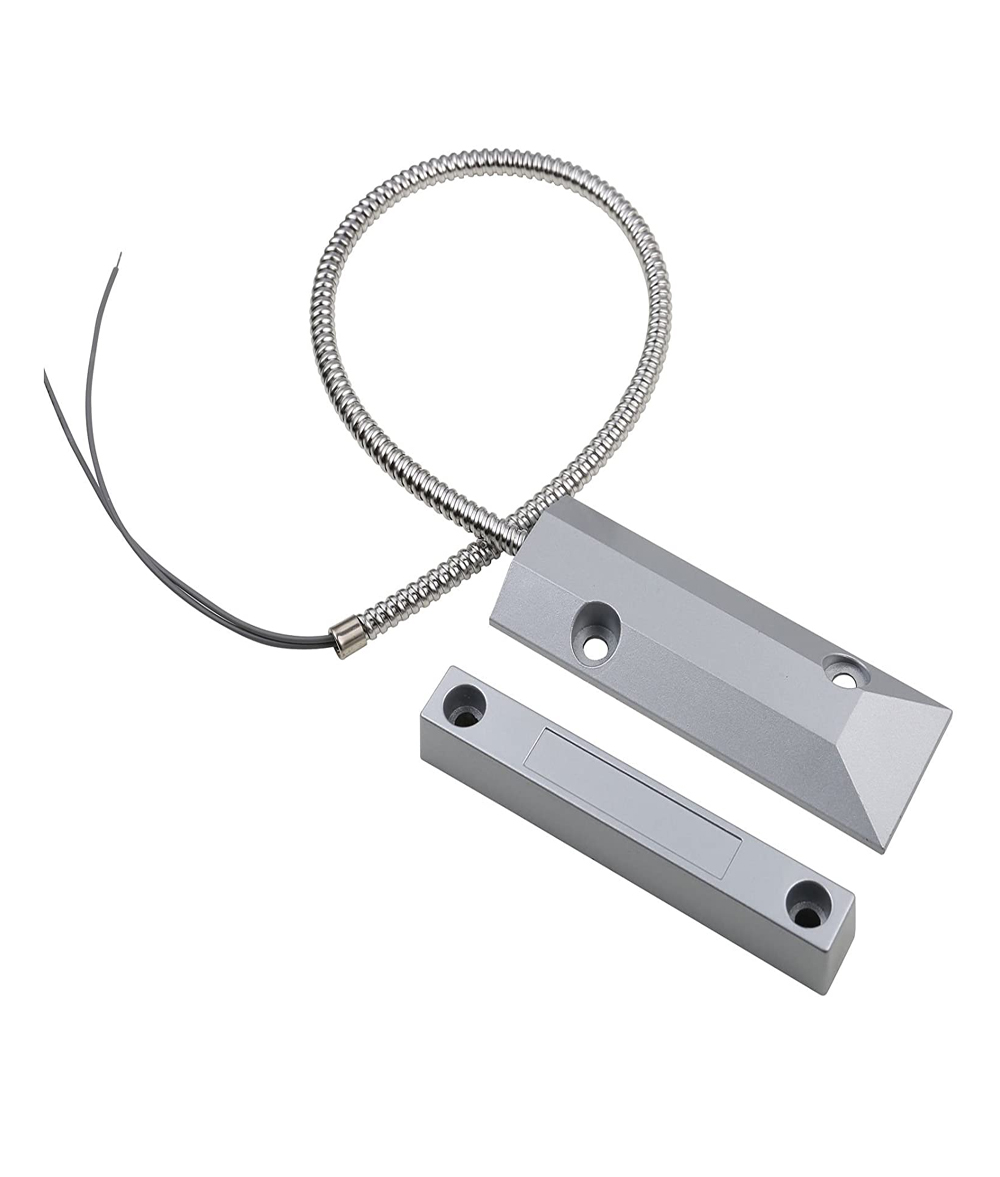

• 370mm flexible Steel goose-neck cable protector conduit + Additional 100mm extra-long cable
• 10W/100VDC/0.5A in MAX

Note:

• Please allow slight size differences due to manual measurement

Package:

• 1x Wired Door Sensor
• 4 x Mount screws
