NC Type Wired Screw-Terminal Surface-Mount Magnetic Door Contact for Window Door Security (Pack of 10)

NC Type Wired Screw-Terminal Surface-Mount Magnetic Door Contact for Window Door Security (Pack of 10)

Features:

• Switch Type: NC (Normal closed type)

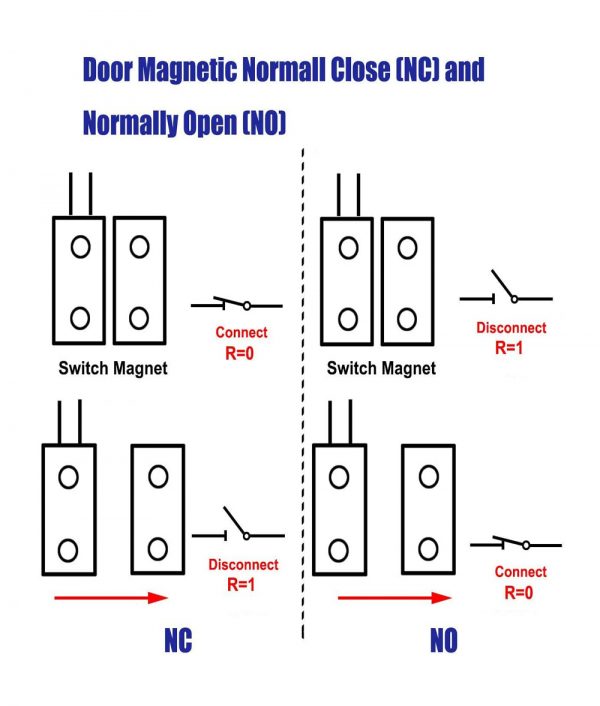

• NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
• This Contact Works with Any Access Control or Burglar Alarm System Available
• This contact can’t connect directly to power, it works with your alarm system provide a switch signal. Working current under 12V
• Great for use in family and factory window, door. etc.
• Miniature surface-mount magnetic contacts
• Gold-plated screw terminals for longer life and reliability
• Tape to cover screw terminals included
• Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, for higher handling power and longer life
• Mounting screws and double-sided tape included

Specifications:

• Mounting Tabs: Yes / removable
• Material – Case: High-impact ABS plastic
• Contacts: Iridium-plating

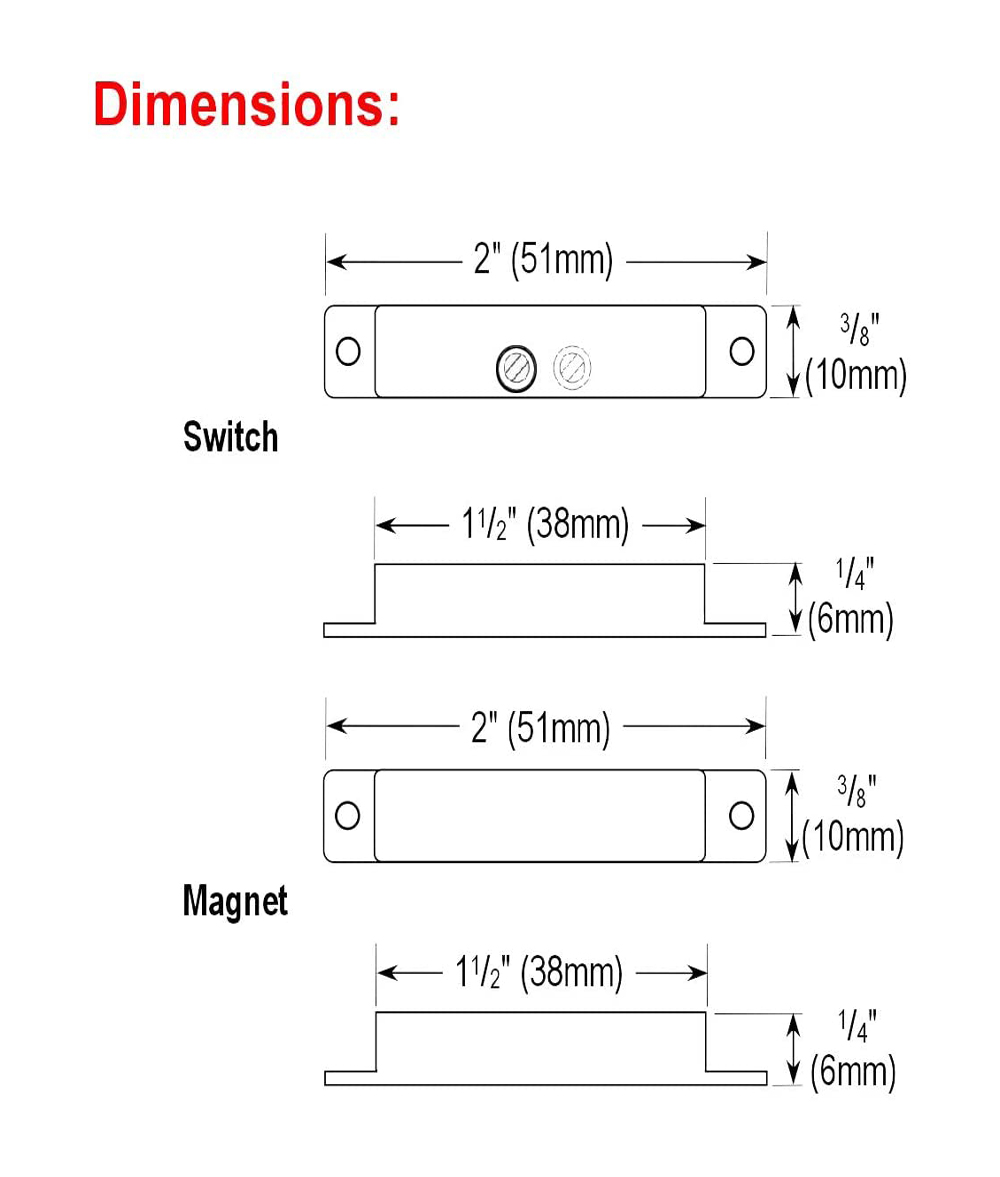

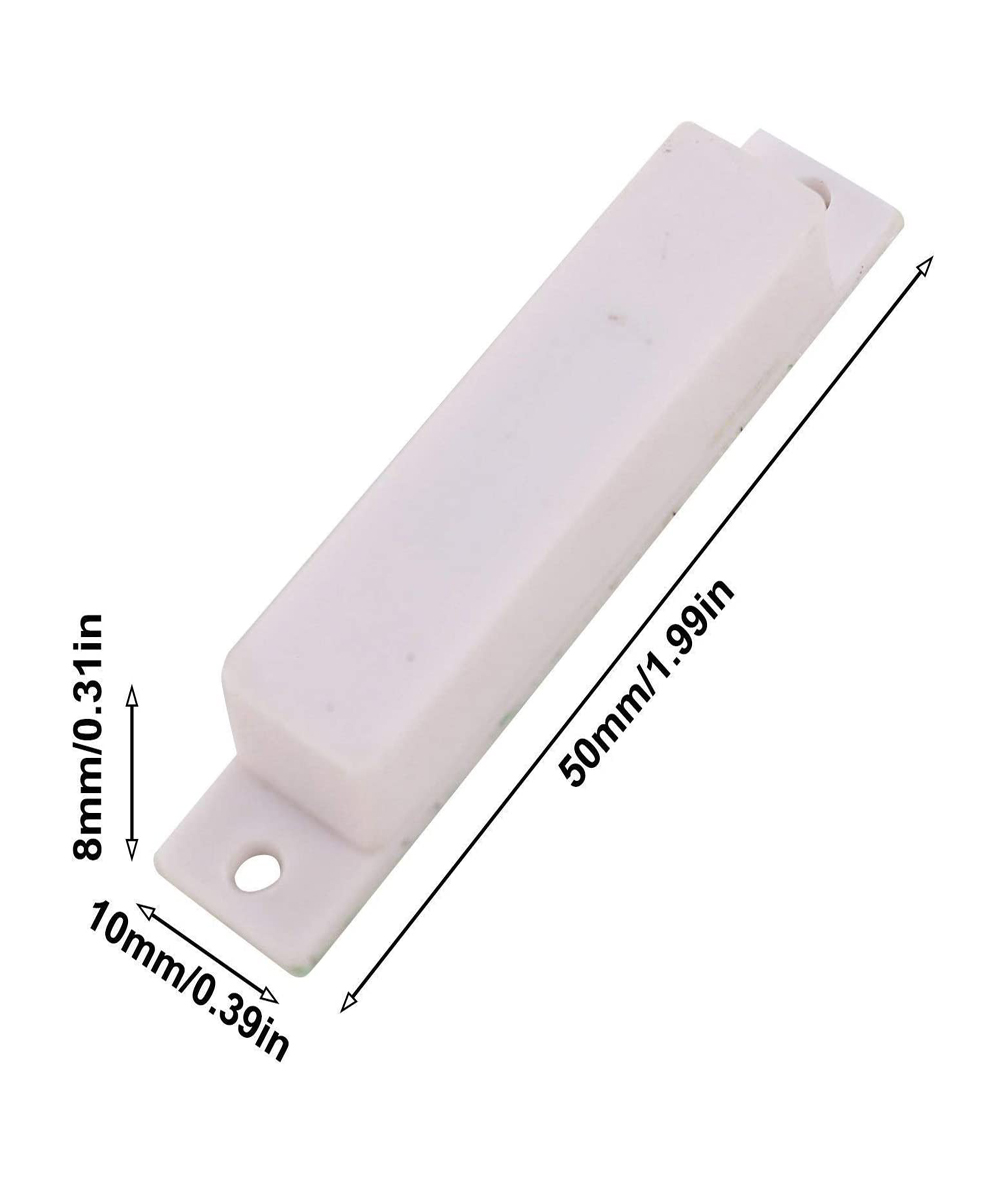

• Switch Dimensions: 2″x3/8″x1/4″ (51x10x7 mm)
• Magnet Dimensions: 2″x3/8″x1/4″ (51x10x7 mm)
• Dry Contact Output: NC (Normal closed)
• Contact Rating: 10W/100VDC/0.5A in MAX
• Operating Temperature: -15°~160°F (-25°~70°C)
• Switch Cycles: 50 Million (0.1mA@5VDC)
• Magnet Type: Rare-earth neodymium
• Color: White
• Housing Material: Plastic
• Cable material: 1007UL #24AWG
• Product: 9g / 0.32oz

Package:

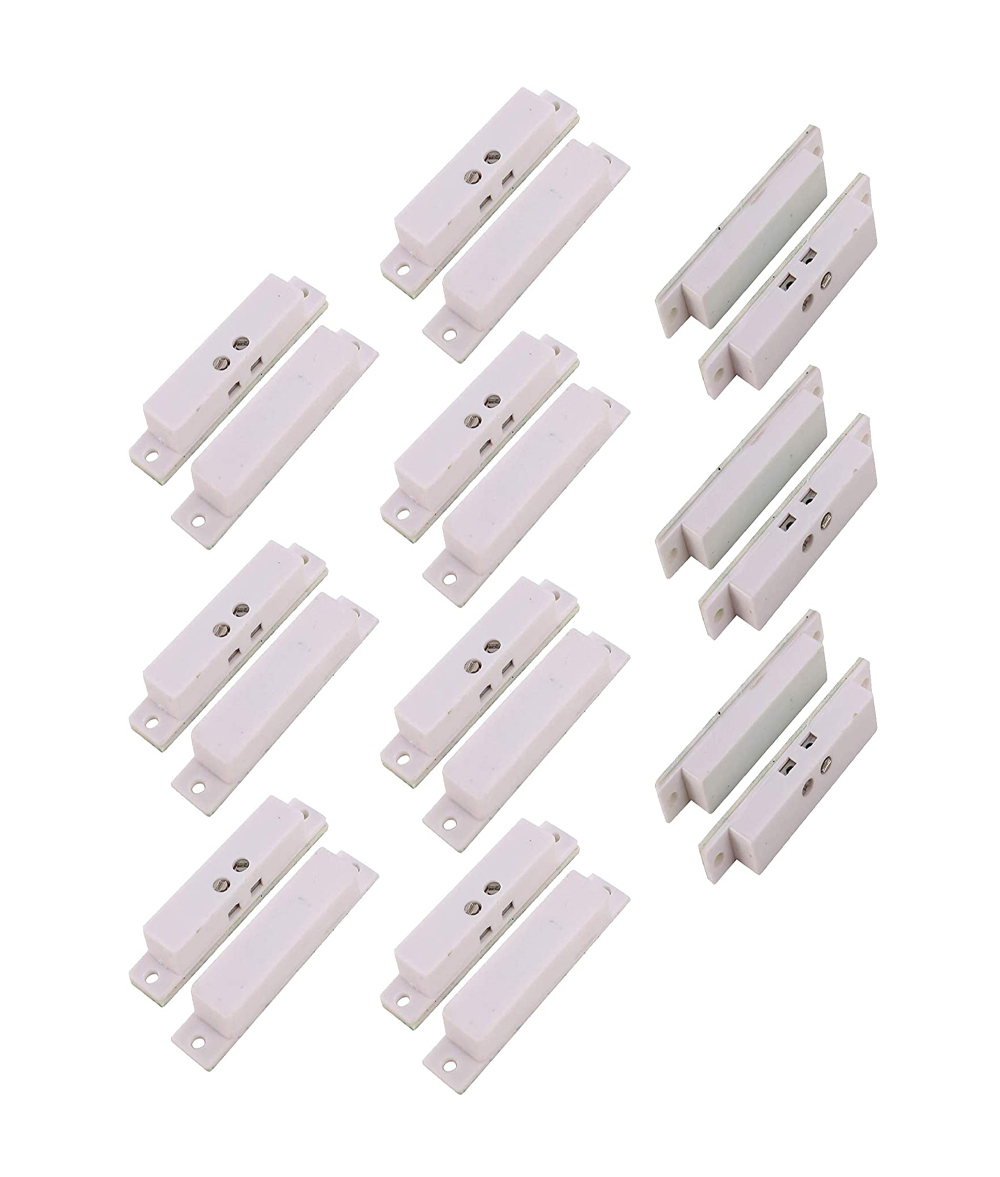

• 10 x Wired contacts
