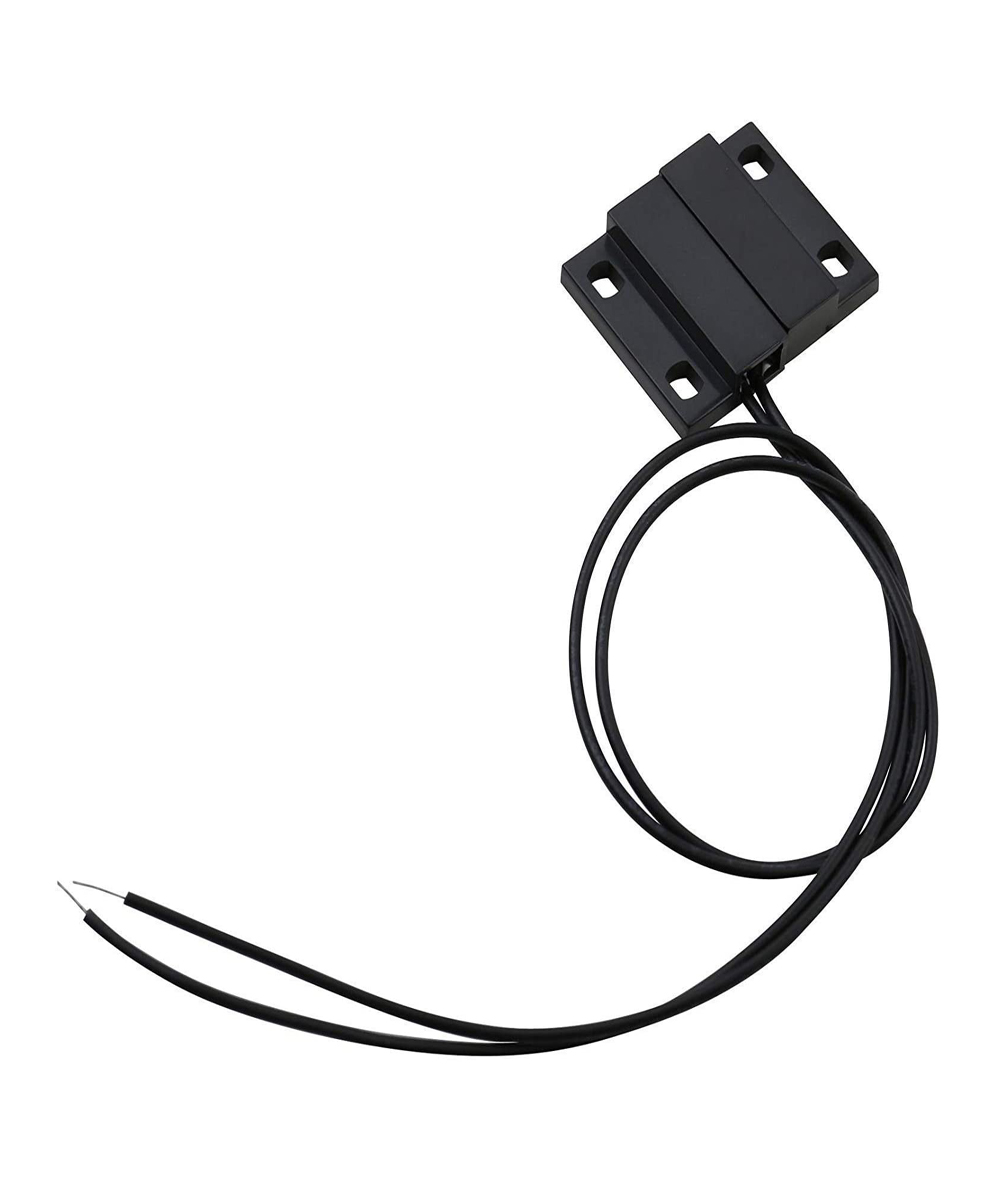

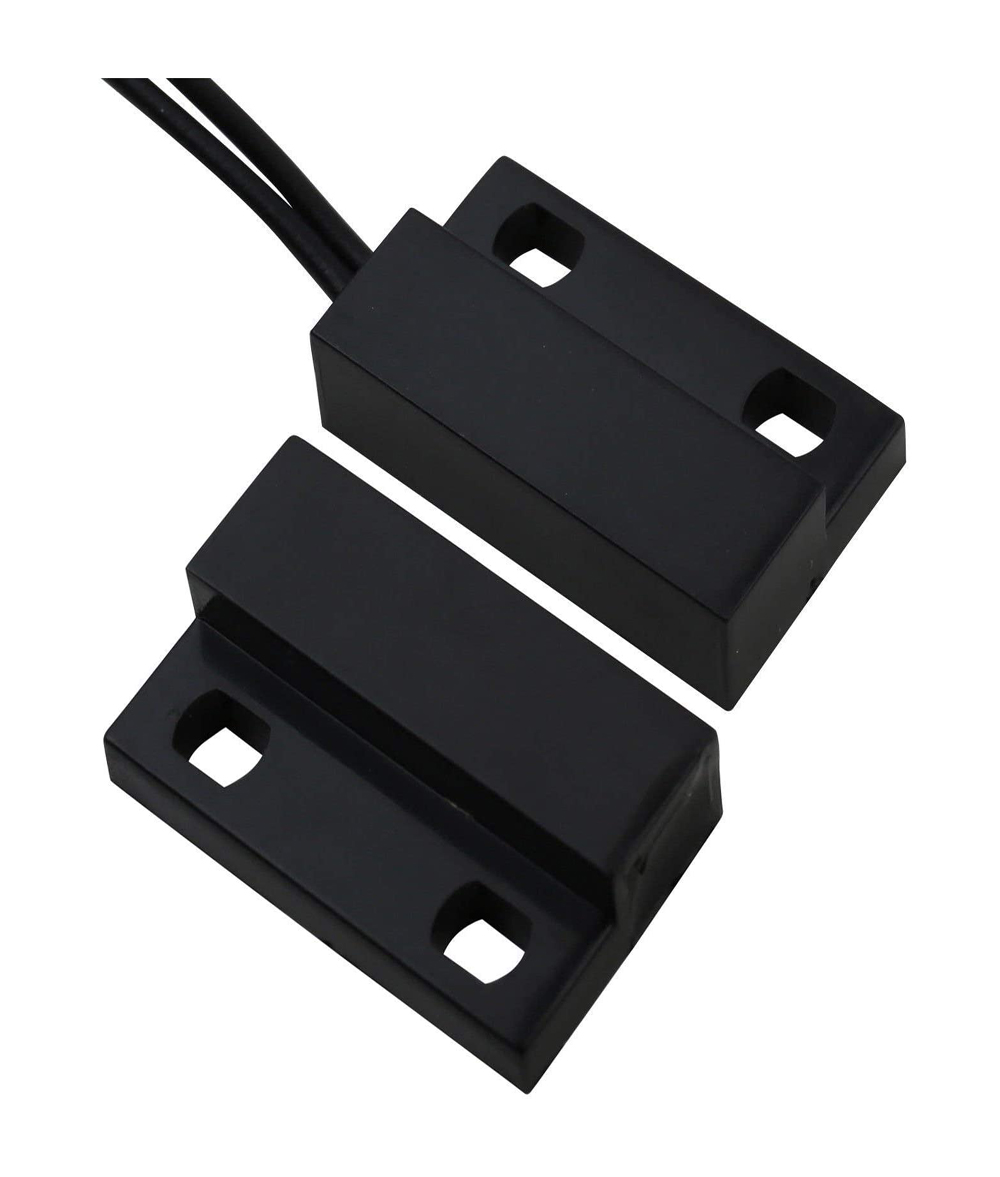

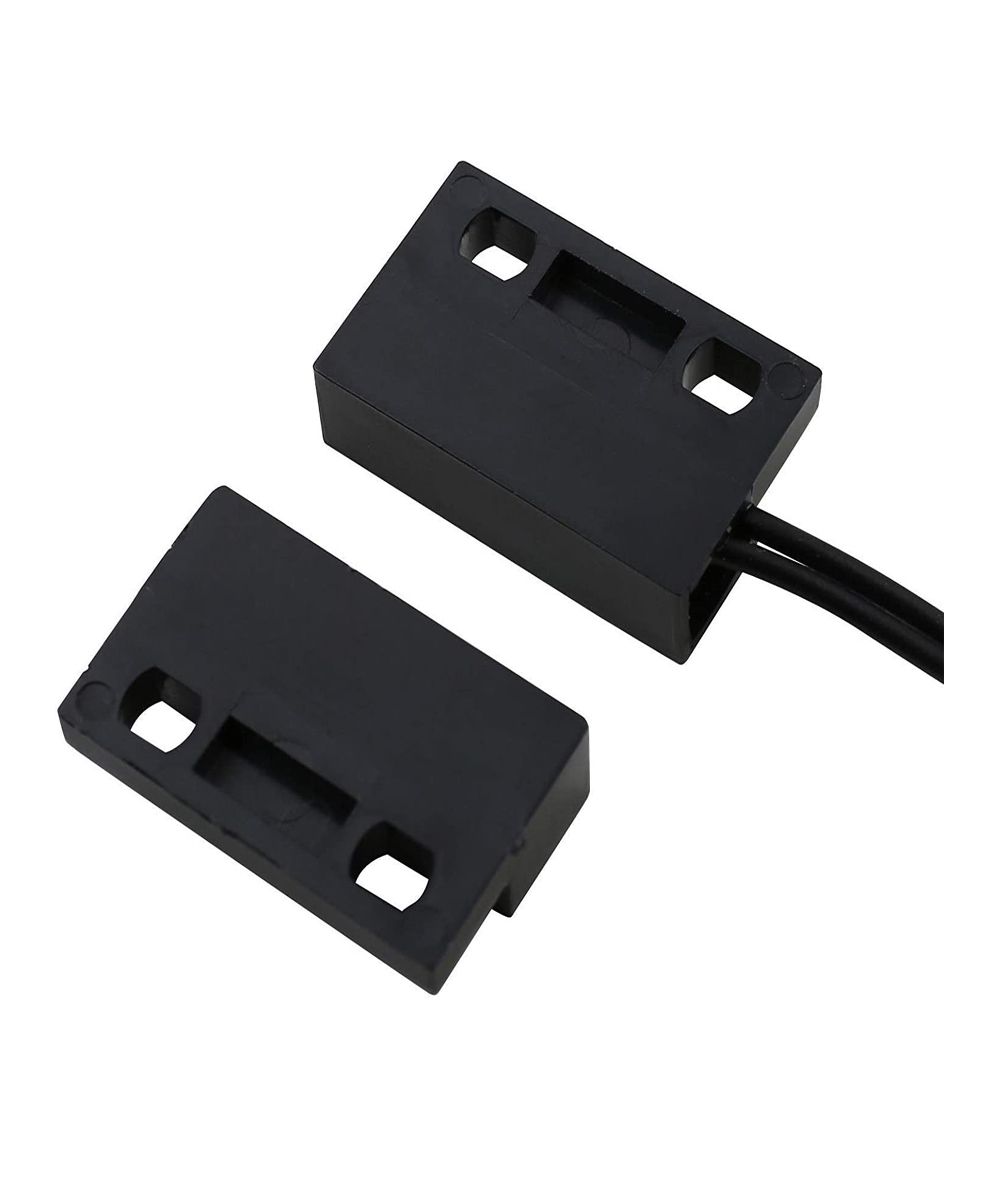

Wired Wooden Door Contact Window Sensor Detector Switch for Home Alarm Security System (Pack of 20)

Wired Wooden Door Contact Window Sensor Detector Switch for Home Alarm Security System (Pack of 20)

Features:

• Dry Contact Output: NC
• Lead with 1007UL #24AWG 260mm
• Detecting door gap by opening, Be used to detect door if it is opened or moved
• It is widely used for monitoring and security system, with high reliability, small size, easy installation and strong flexibility
• Idea for wooden door or window

Specifications:

• Size: 23x14x6mm / 0.91×0.55×0.24in
• Working distance: 15-25mm / 0.59-0.98in
• Dry Contact Output: NC
• Max. Curent: 0.5A
• Max. Voltage: 100V
• Max. Power: 10W
• Material: ABS
• Color: Black
• Lead with 1007UL #24AWG 260mm
• Idea for wooden door or window
• Detecting door gap by opening, Be used to detect door if it is opened or moved
• It is widely used for monitoring and security system, with high reliability, small size, easy installation and strong flexibility
• NORMALLY CLOSED When the door or window is open, the contact will give an open signal and when the door is closed the contact will give a closed (circuit) signal

Note:

• Please allow slight size differences due to manual measurement.

Package:

• 20 x Wired contact
