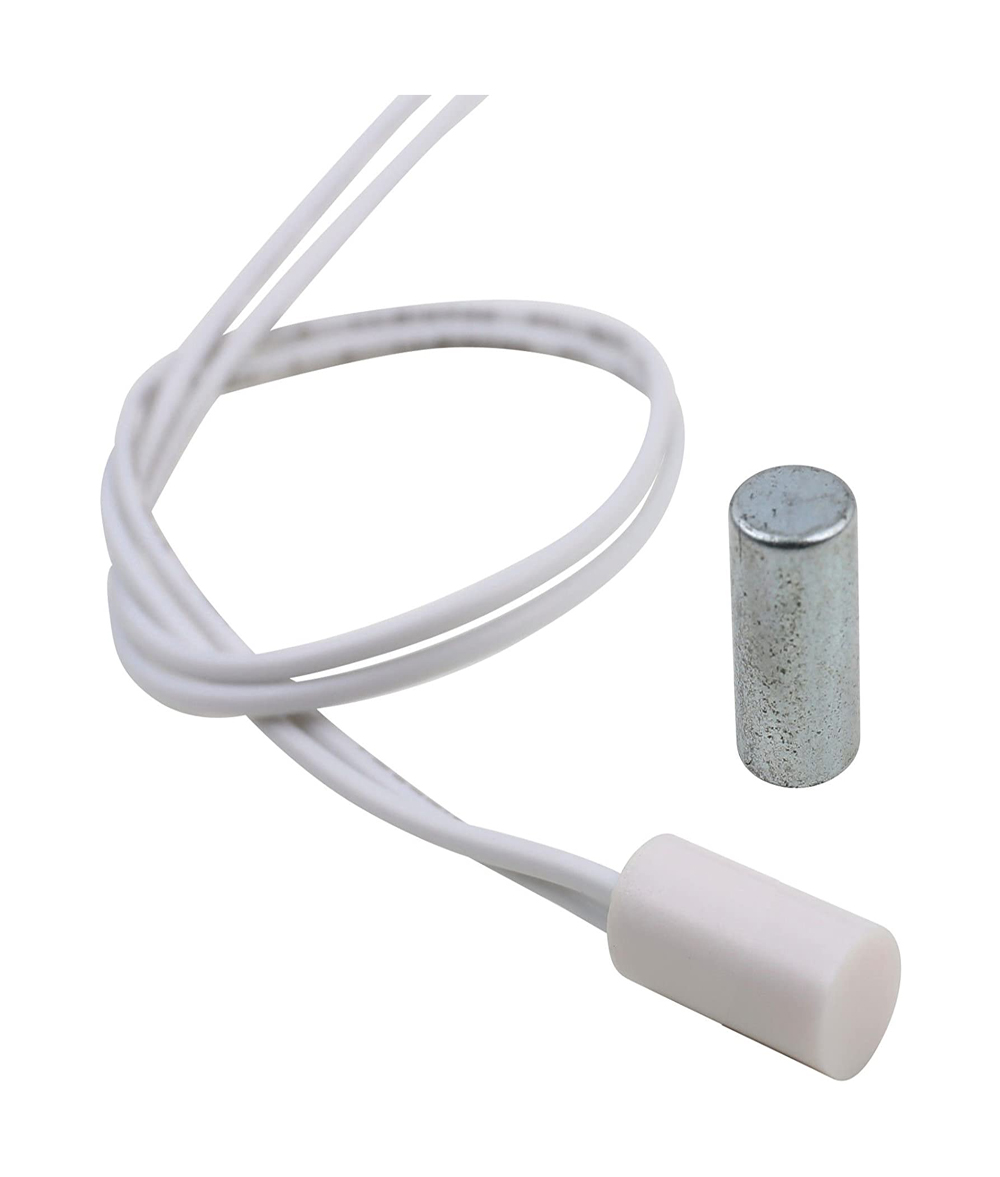

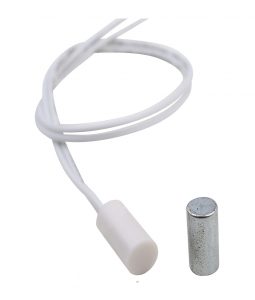

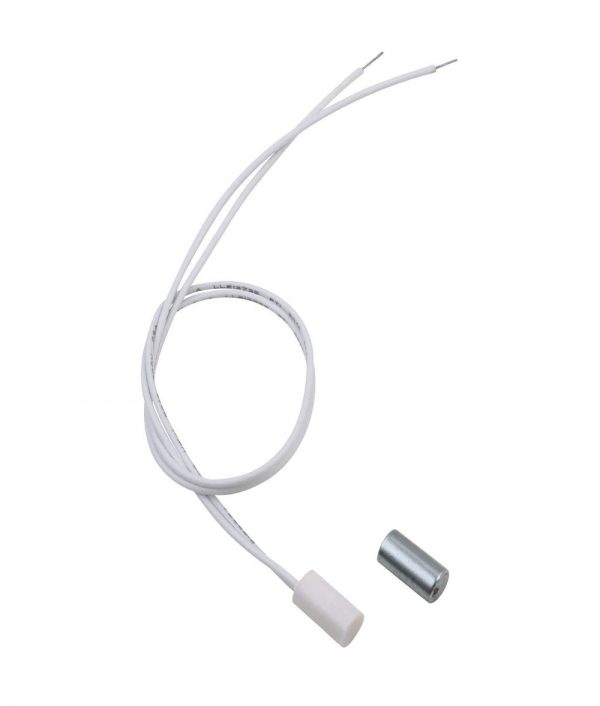

Concealed Mounted Magnetic Wired Window Door Contact Sensor Switch Detector (Pack of 5)

Concealed Mounted Magnetic Wired Window Door Contact Sensor Switch  Detector (Pack of 5)

Features:

• Wired wooden door sensor
• Leads with 1007UL #24AWG 260mm
• Idea for wooden door or window
• Detecting door gap by opening, Be used to detect door if it is opened or moved.
• It is widely used for monitoring and security system, with high reliability, small size, easy installation and strong flexibility

Specifications:

• Wired wooden door sensor
• Housing material: ABS

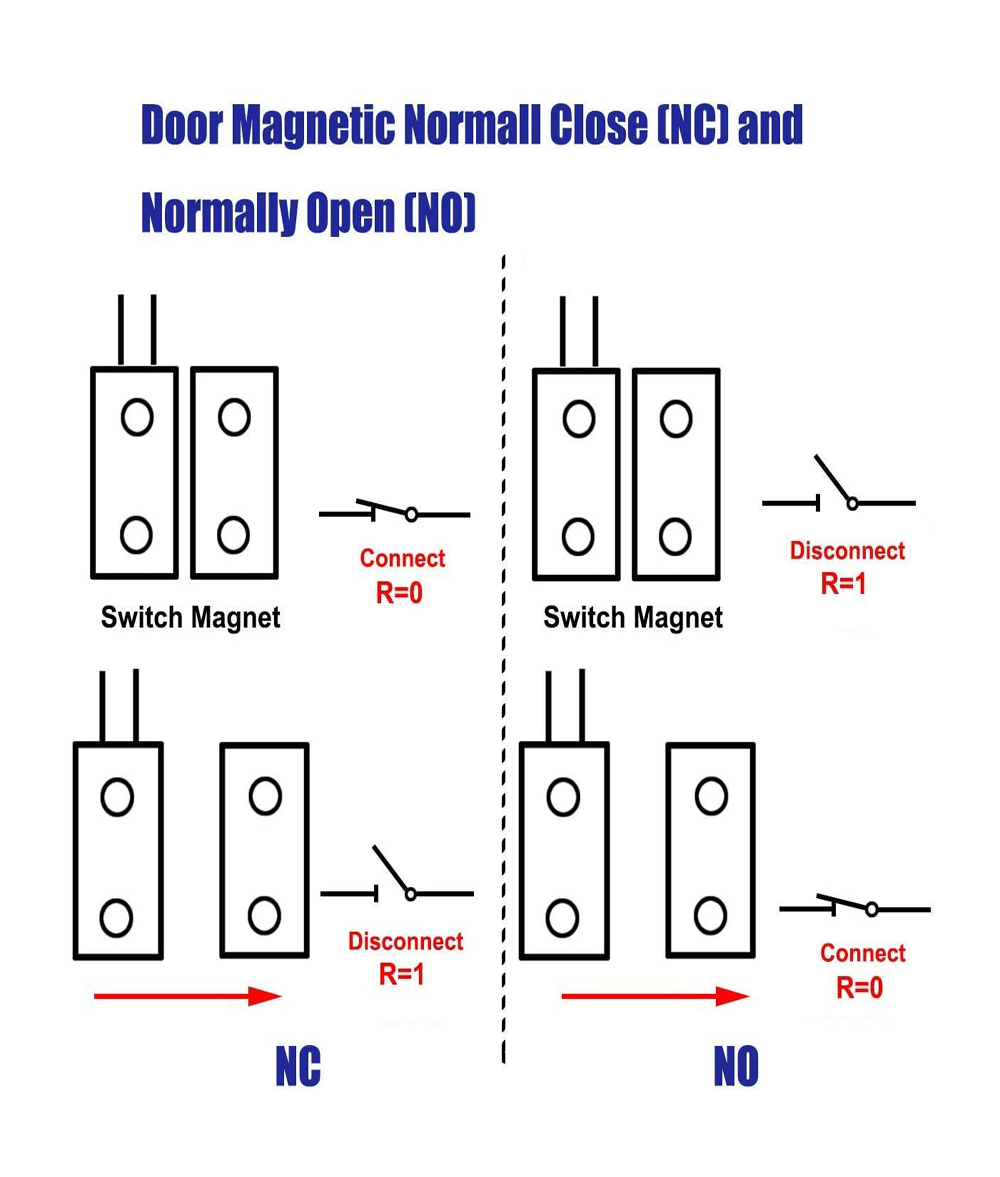

• NC/COM (NORMALLY CLOSED): When the magnet together, the circuit is conductive( light on); When the magnet separate, the circuit is not conductive (light off).
• Leads with 1007UL #24AWG 260mm
• Max. Curent: 0.5A
• Max. Voltage: 100VDC
• Max. Power: 10W
• Operating Distance: 15-25mm / 0.59-0.98in
• Switch size (Ø x H): 6.5-14mm / 0.26-0.55in

Note:

• Please allow slight size differences due to manual measurement

Package:

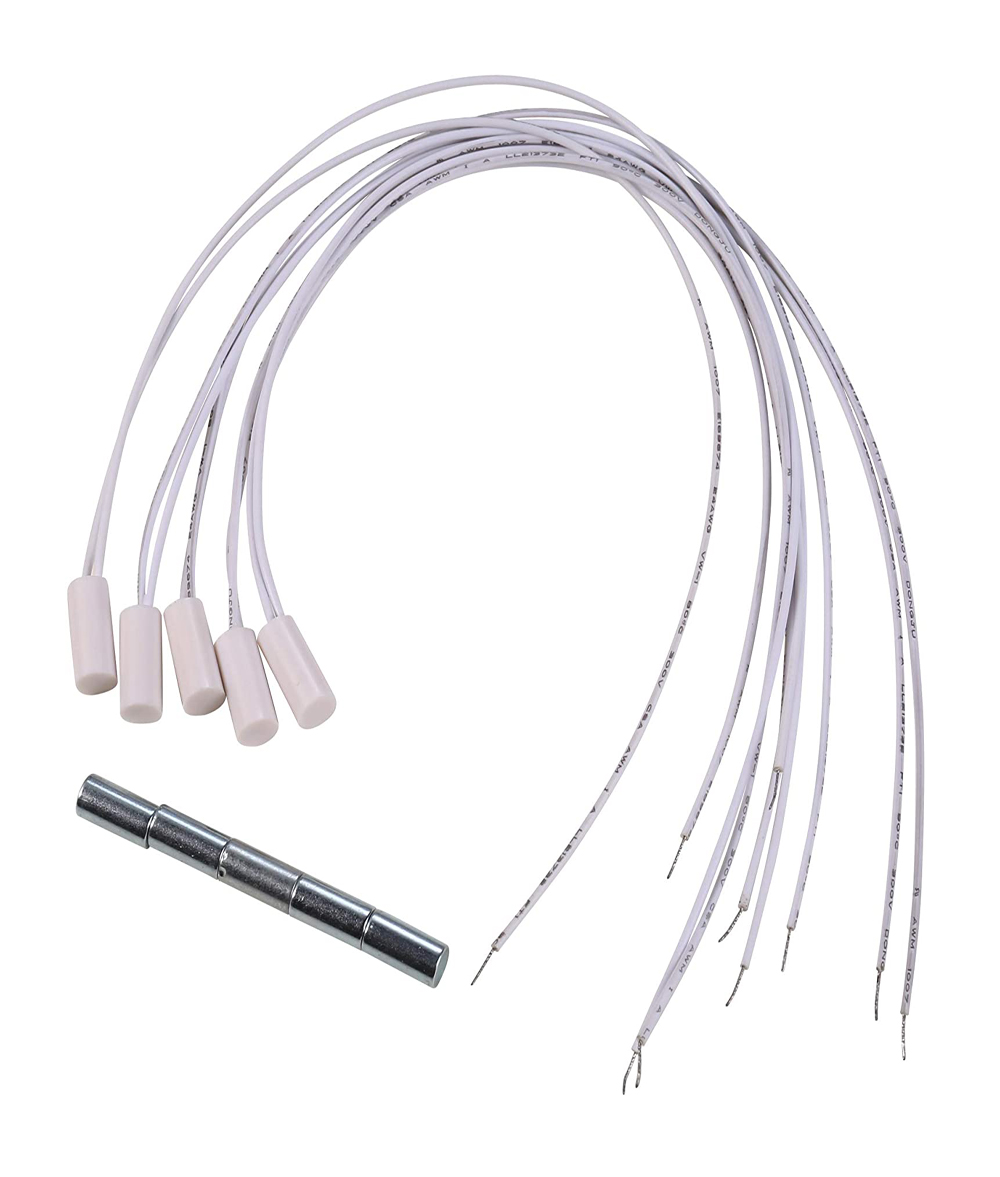

• 5 x Wired Door Contact
