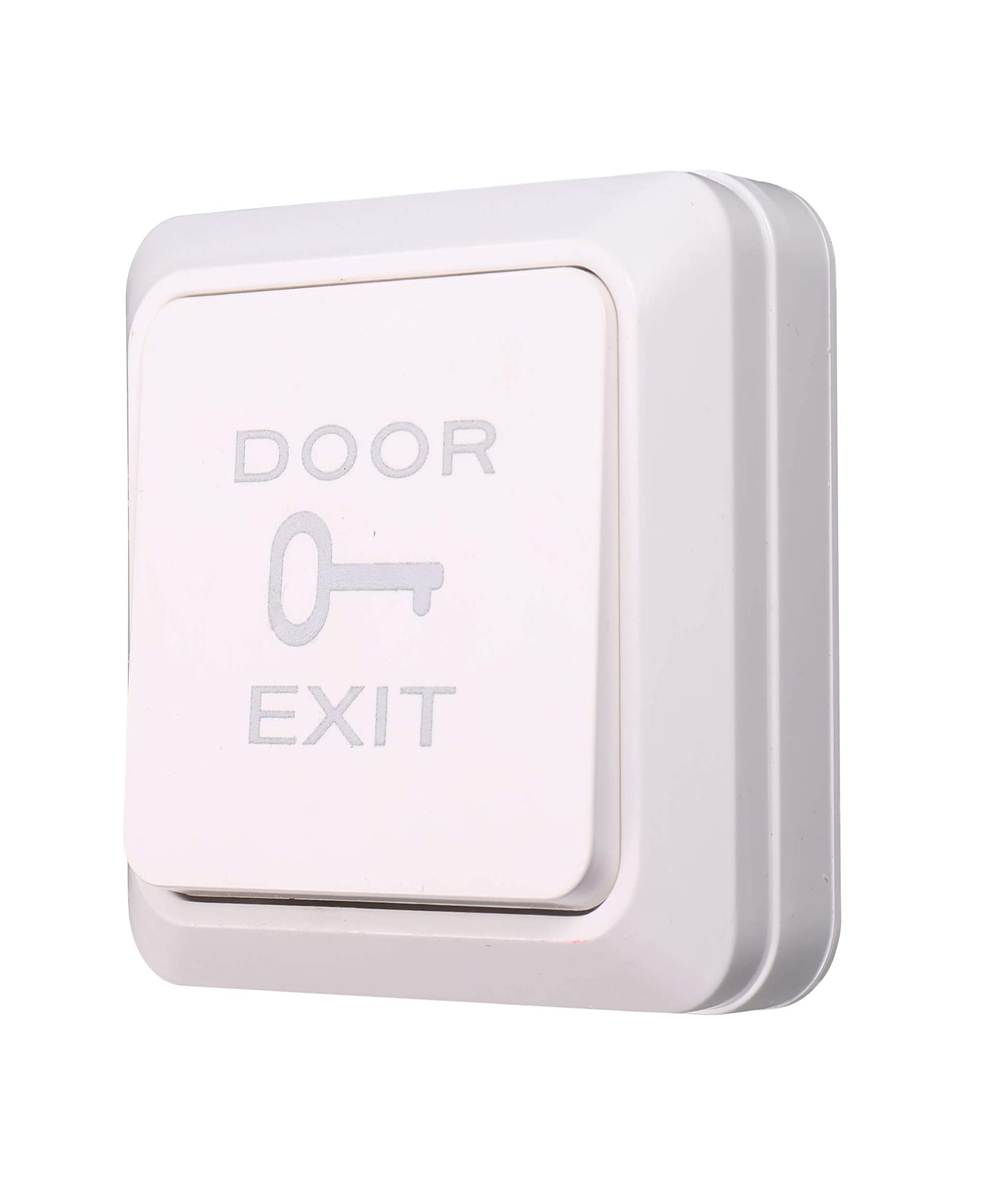

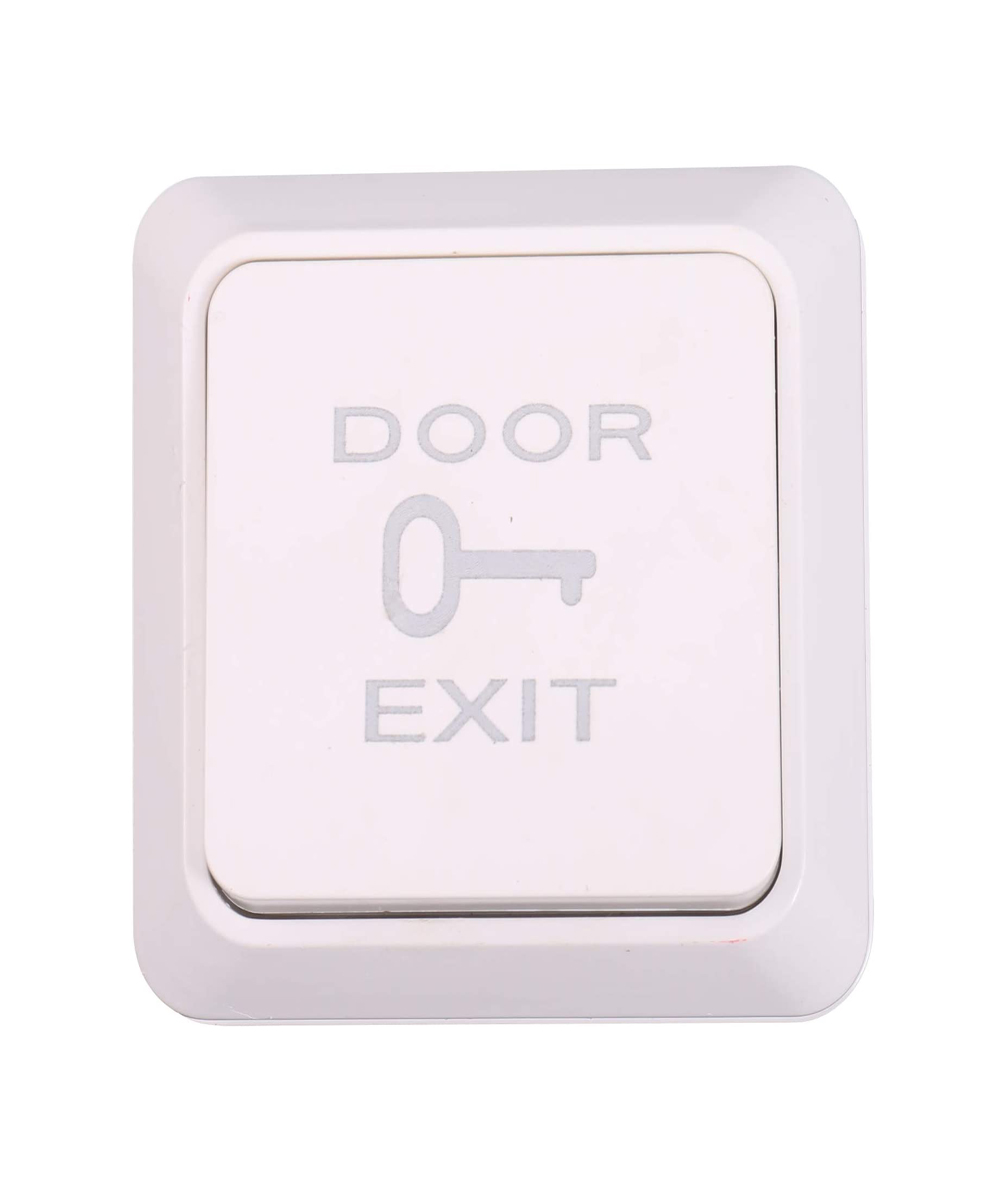

Square Rocker Switch Door Press to Exit Button Surface Mount with Backbox for Access Control System

Square Rocker Switch Door Press to Exit Button Surface Mount with Backbox for Access Control System

Features:

• Plastic panel with elegant style.
• The best choice for access control.
• NO/NC/COM contact output, suitable for all kinds of the locks.
• Widely used in access control system, it is often used in public, banks, small, medium and large sized enterprises, department stores and residences etc.

Specifications:

• Working Voltage: DC12V
• Output Contact: NO/NC/COM
• Current Rating: 3A/125~250VAC
• Mechanical Life: 100000 tested
• Installation Method: Surface Mount
• Operating Temp: -20℃~+55℃(-4℉~131℉)
• Operating Humidity: 0-95%
• Material: Fire retardant material

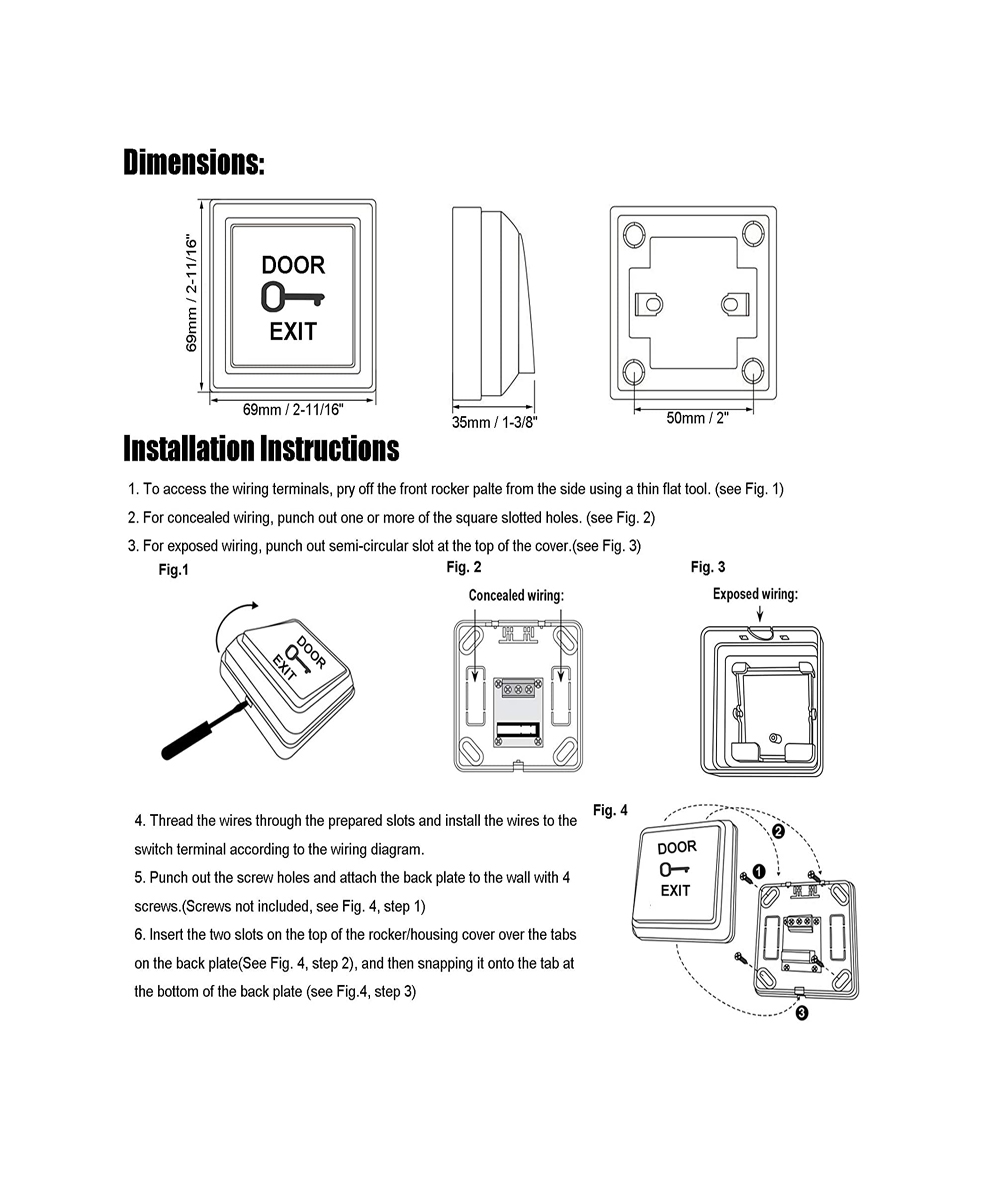

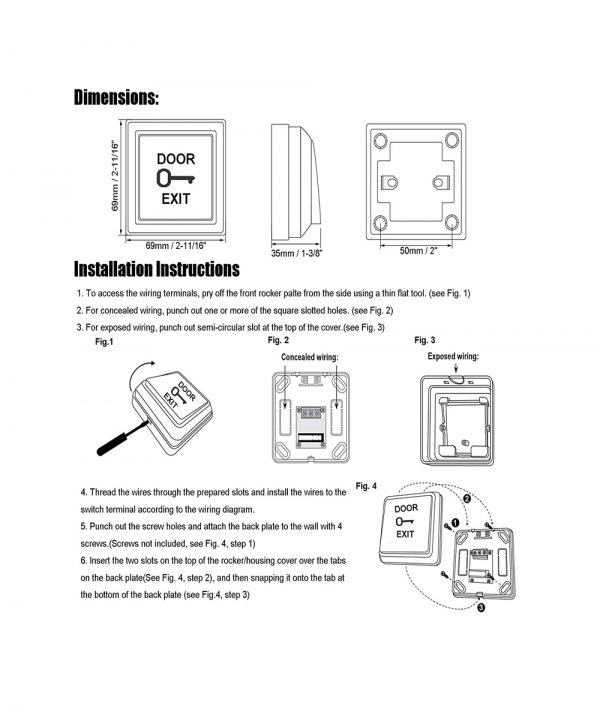

• Size: 69Lx69Wx35H(mm) / 2-11/16″x2-11/16″x1-3/8″
• Weight: 0.09kg / 3.17oz

Package:

• 1 x Rocker Switch
