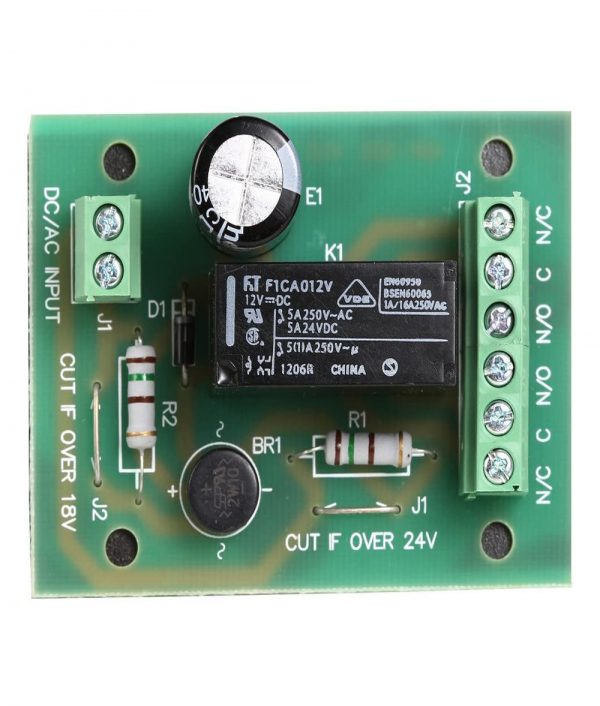

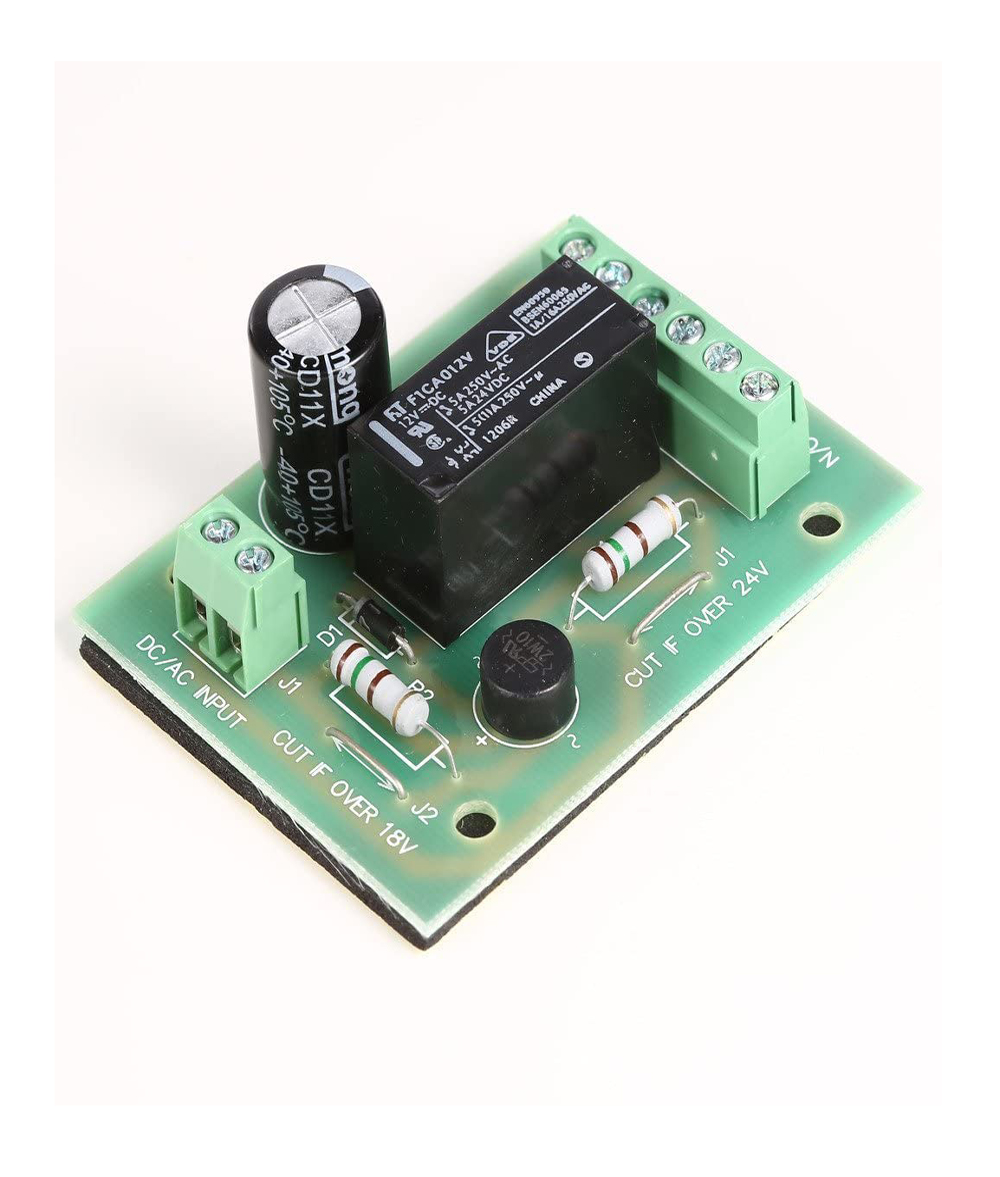

Relay Module of Remote Power Supplier Surveillance for Access Control System

Relay Module of Remote Power Supplier Surveillance for Access Control System

Specifications:

• An exceptionally versatile version of the relay module,the relay module will operate on AC voltage ranging from 8 volts to 30 volts and will also work satifactorily on DC voltages from 11 volts to 30 volts. The relay module is worked when power input then contacts will change over from NC to NO.
• Dimensions: 67Lx50Wx30H(mm) / 2.64Lx1.97Wx1.18h(in)
• Material: High quality elements with superb design
• Suitable for Door: Power supplier for access control system in surveillance
• Output Capability: Dry contact output
• Max. overload: AC/8~30V DC/11-30VDC
• Current: 45mA@12VDC
• Contacts Rated at: 5A@24VDC 5A@30VDC
• Operating temp: -20℃~+70℃ / -4℉~158℉
• Weight: 0.04kg / 0.09lb

Package:

• 1 x Relay module of power surveillance
