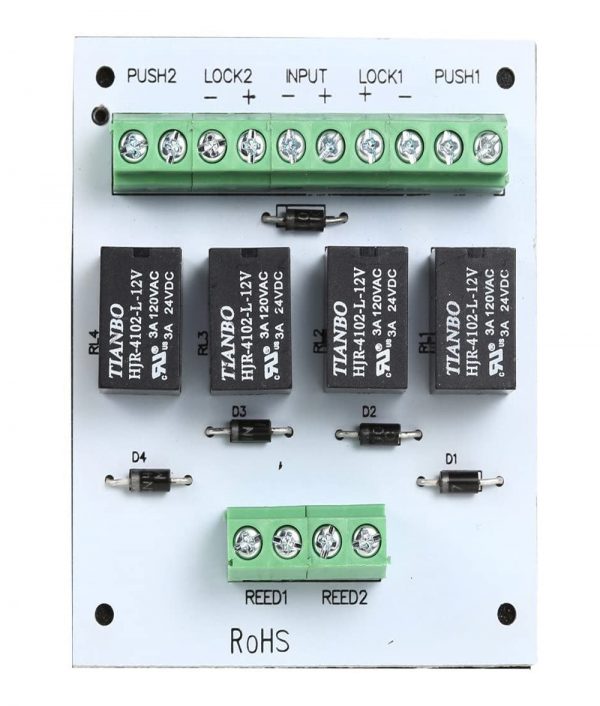

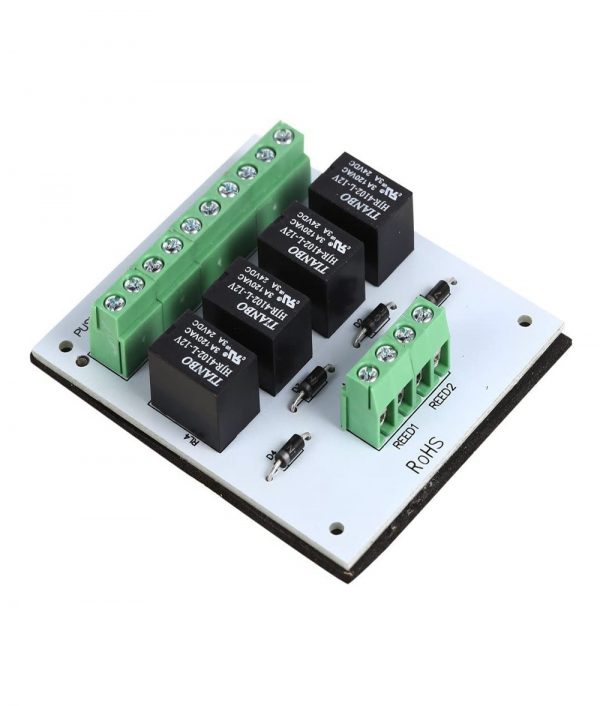

Interlock Airlock Access Control Relay Module of 2 Two Door for Bank Prison

Interlock Airlock Access Control Relay Module of 2 Two Door for Bank Prison

Features:

• Material: High quality elements with superb design
• Suitable for Door: Fail-safe electric locks with signal output
• Output Capability: Applied to double-door interlocking
• Interlocking relay module is an implement for two doors egress controllilng ,such as bank, prison ect. When the first door opens and close properly, the second door will open
• Interlocking relay module is the ideal choice for the purpose of interlocking door control project, which is easy to install,professional and durable

Specifications:

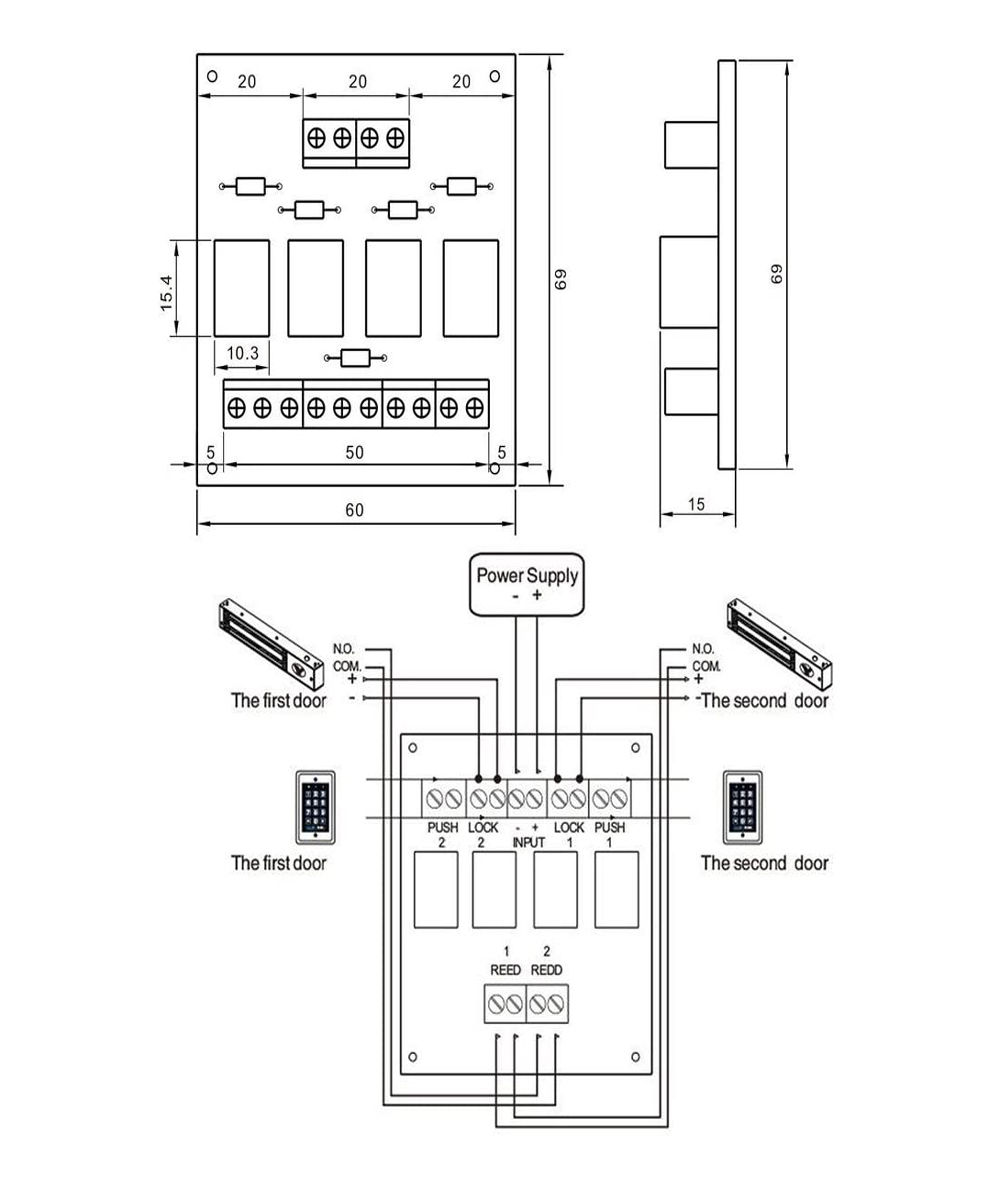

• Dimensions: 69Lx60Wx15H(mm) / 2.72Lx2.36Wx0.59H(in)
• Material: High quality elements with superb design
• Suitable for Door: Fail-safe electric locks with signal output
• Output Capability: Applied to double-door interlocking
• Operating temp: -20℃~+70℃ / -4℉~158℉
• Max.overload: 5A/24V
• Weight: 0.07kg / 0.15lb

Package:

• 1 x Interlock Module of two doors
