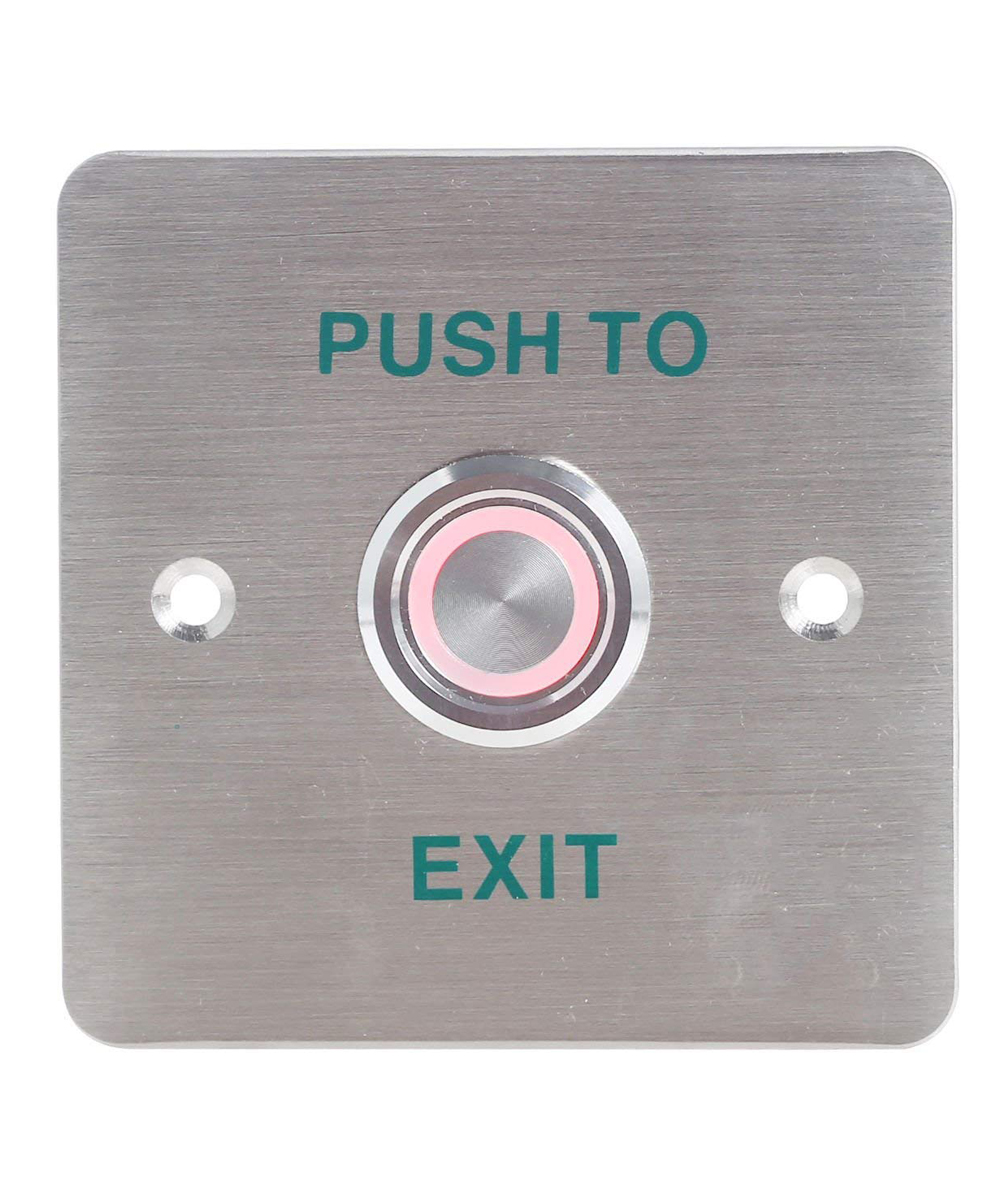

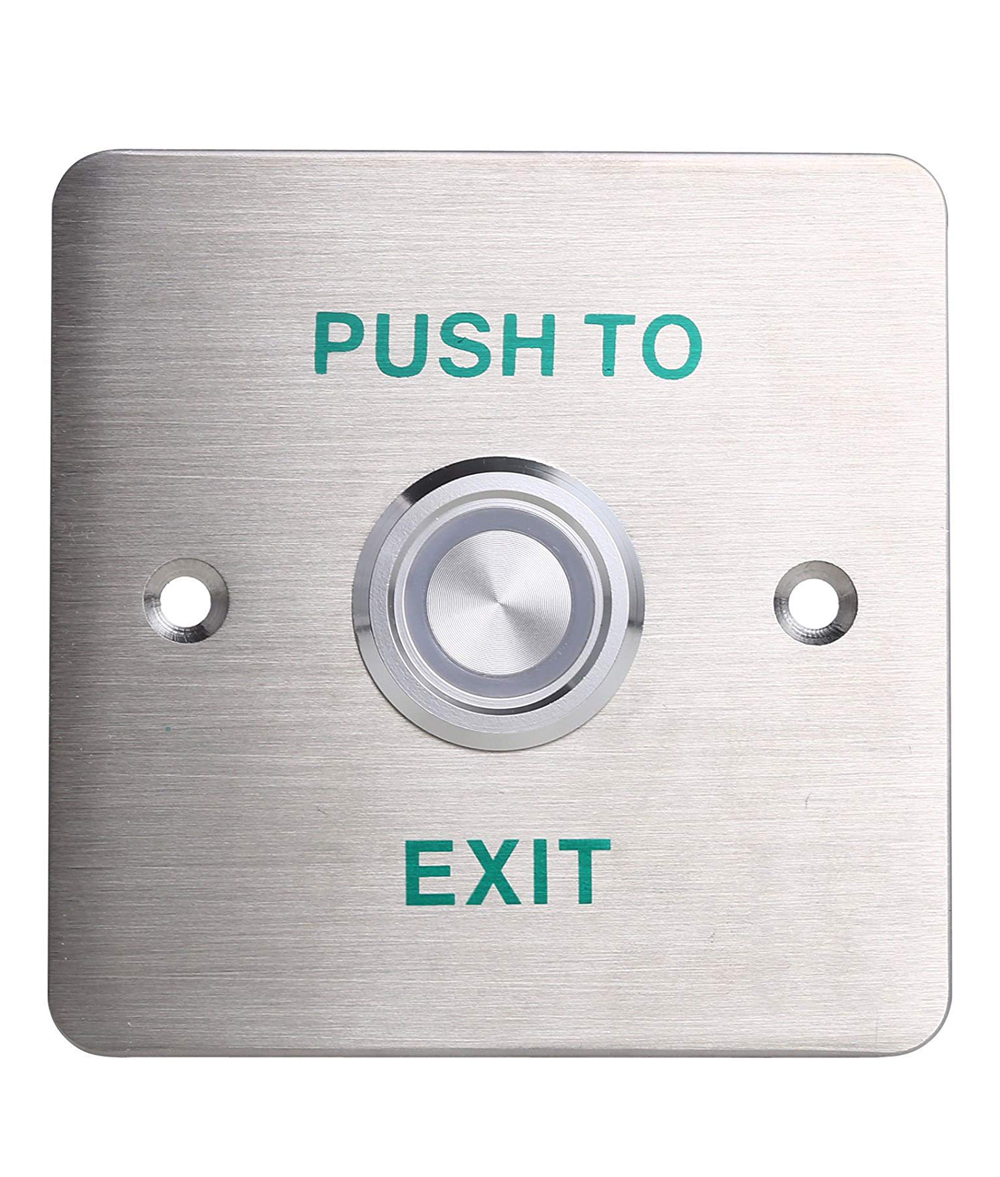

Waterproof IP68 Stainless Steel Piezoelectric Release Exit Push to Exit Button

Waterproof IP68 Stainless Steel Piezoelectric Release Exit Push to Exit Button

Features：

• Stainless steel Panel with Elegant Style
• 500000 Cycles tests
• Three Contact Output,Suitable for all kinds of Locks
• The Best Choice for Access Control
• Door release buttons are the most common and the most frequently used in the access control systems. They are often used in public authorities, banks, large, small and medium-sized enterprises,department stores and residences.

Specifications：

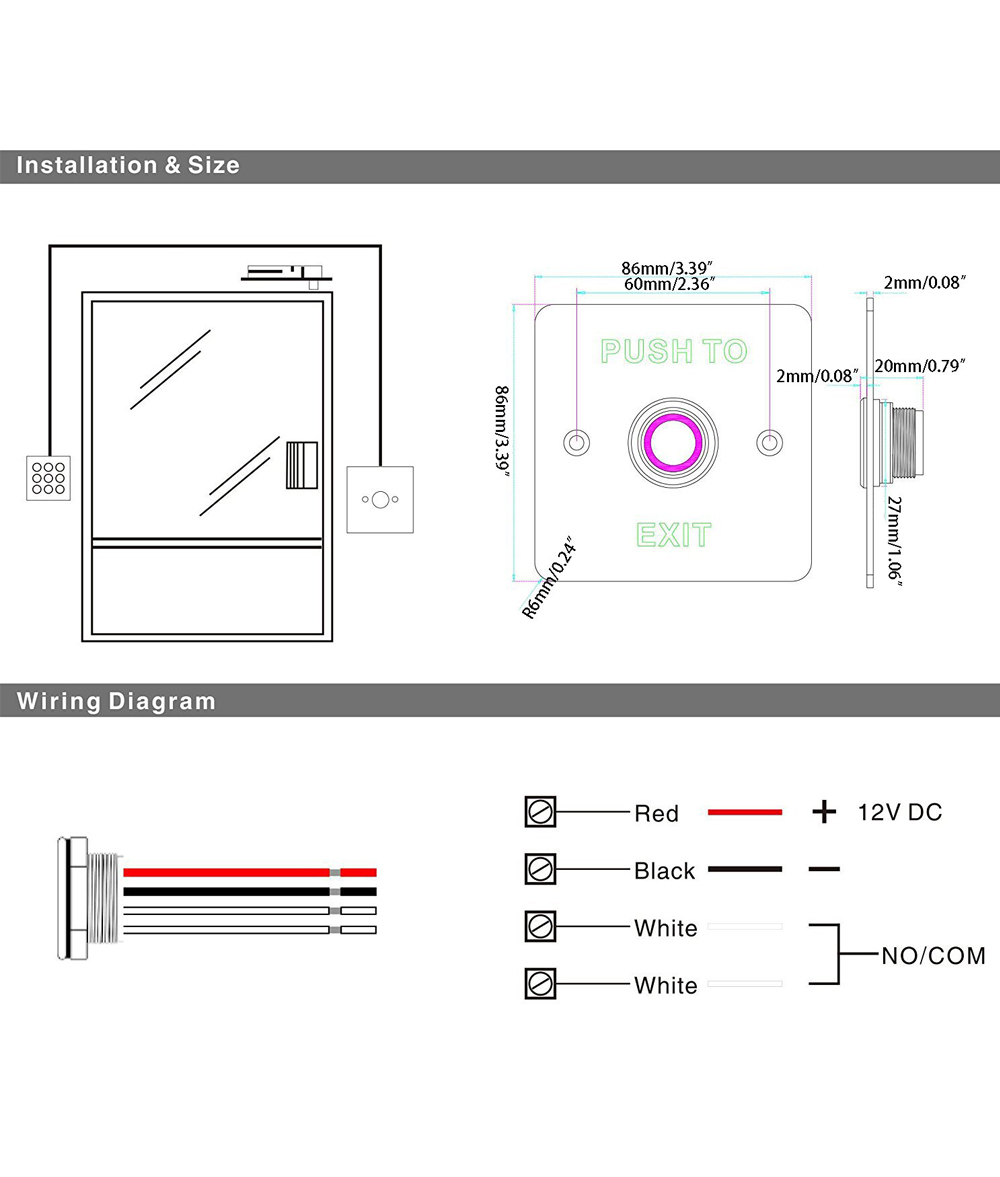

• Dimensions: 86Lx86Wx19.5H(mm) / 3.39″x3.39″x0.77″
• Voltage: 12-24VDC
• Current: Standby 20mA,Operation: 60mA
• Output Contact: NO/COM
• Current Rating: 1A@30VDC 0.5A@125VDC
• Level: IP-68
• LED Status: RED: Standby, GREEN: Operation
• Operating Temperature: -20℃~50℃ / -4℉~122℉
• Operating Humidity: 0%~99%

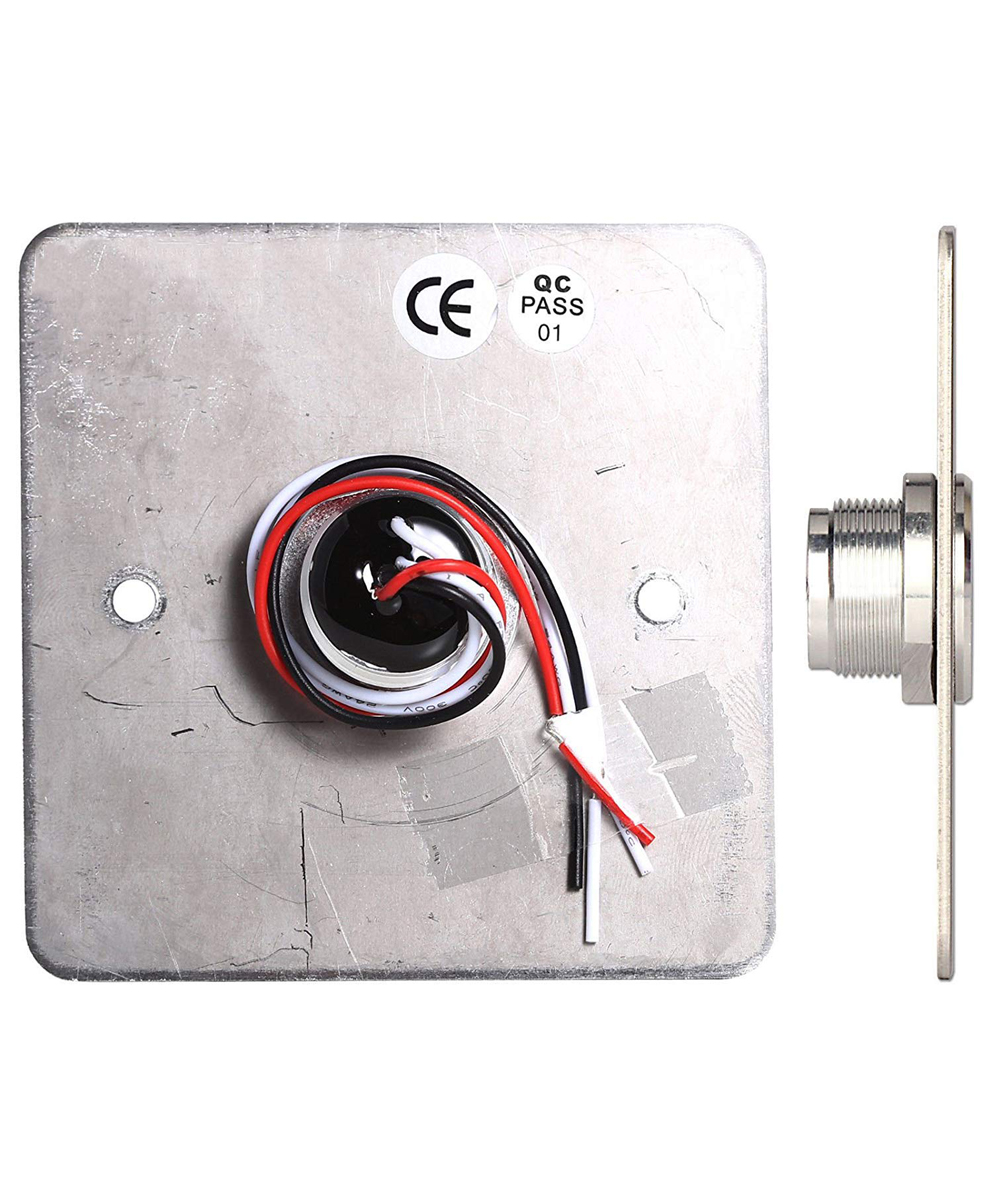

• Wire Color: Red(Positive) / Black(Negative)
• White: NO/COM
• Weight: 0.2kg / 0.44lb

Package:

• 1 x Exit Button
