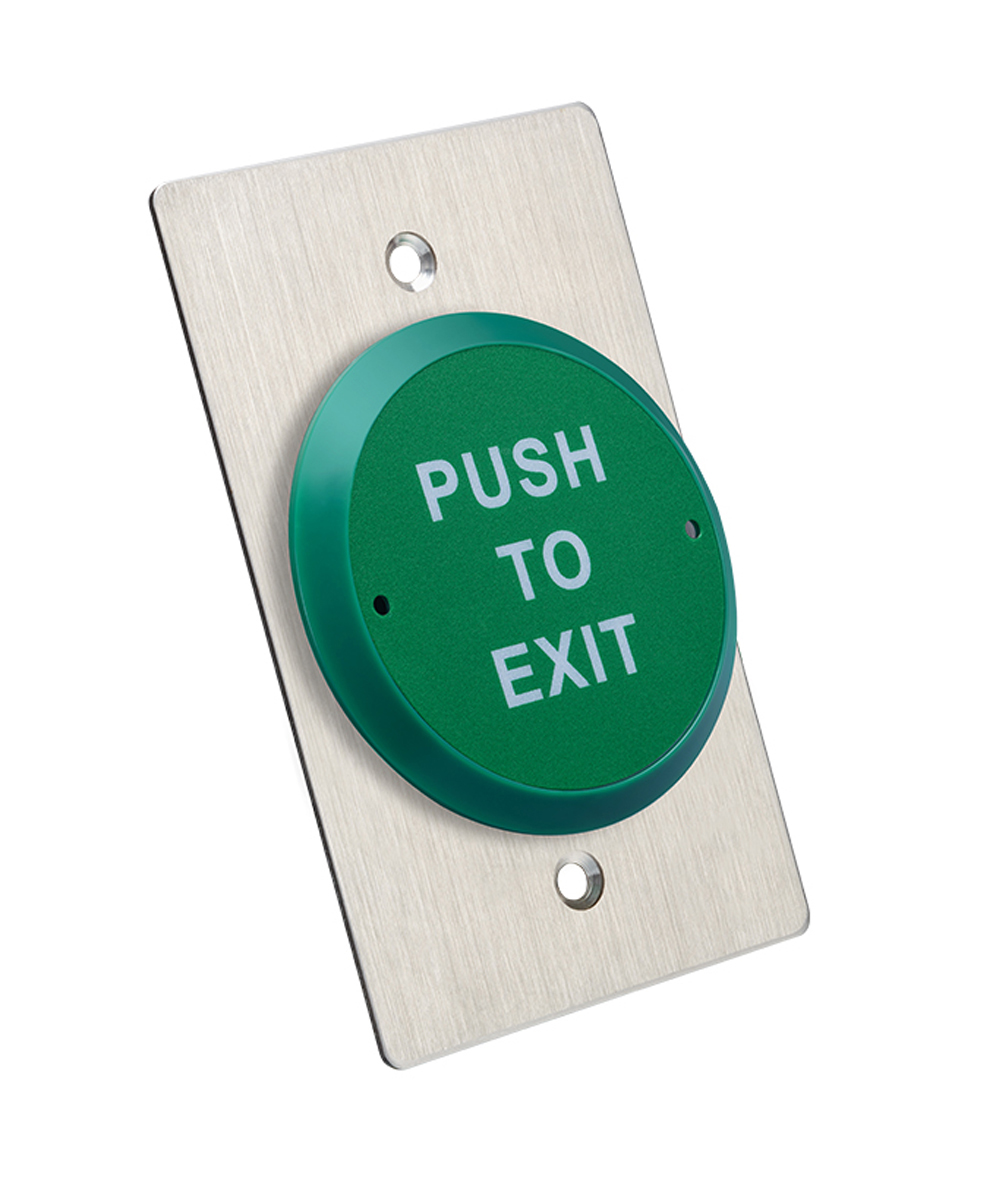

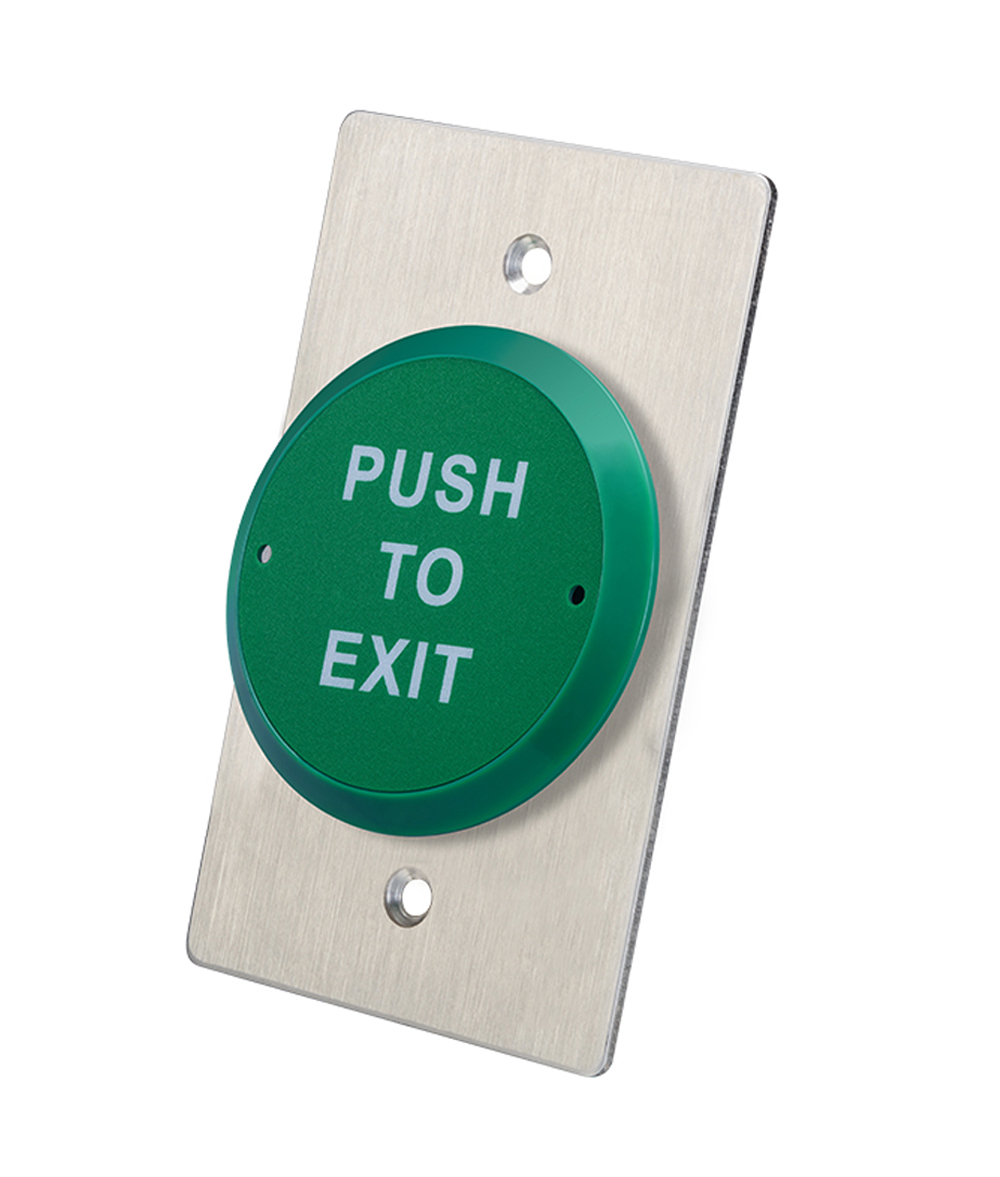

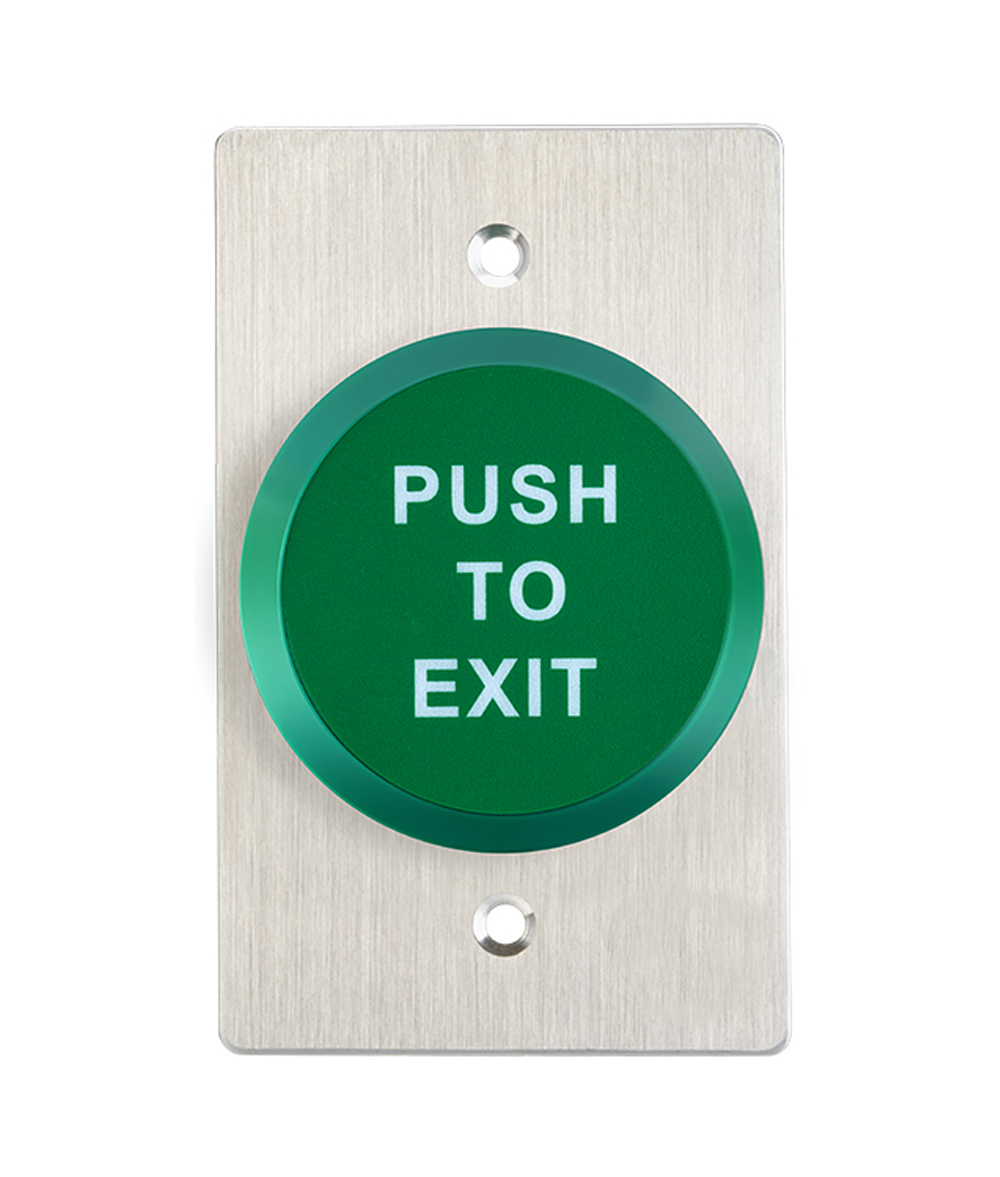

Stainless Steel Panel Press to Exit Button for Door Access Control System

Stainless Steel Panel Press to Exit Button for Door Access Control System

Features:

• Design with no mechanical bolt.
• Stainless-steel face-plate.
• Fits into standard single-gang box, Large round green color push button.
• Two contact output, suitable for all kinds of locks.
• Aluminum panel with elegant style .
• 500000 cycles tests

Specification:

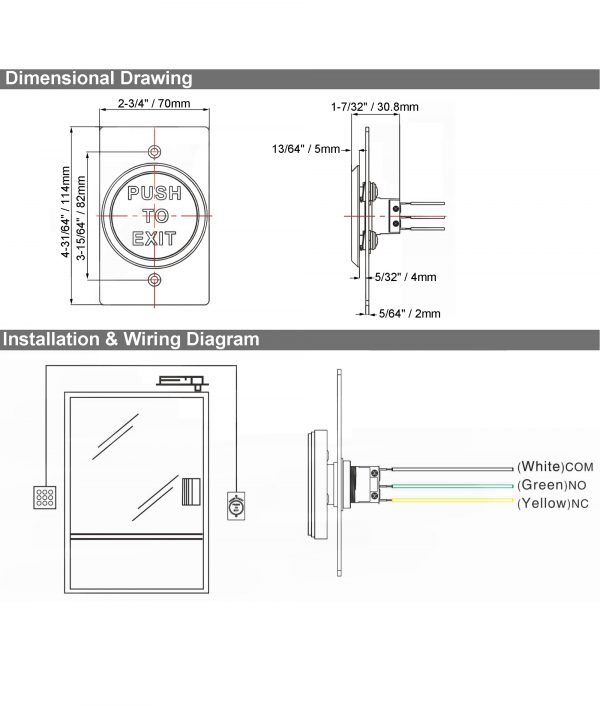

• Dimensions : 114Lx70Wx30.8H(mm) /4-31/64L”x2-3/4″Wx1-7/32H”
• Standard structure: stainless steel
• Current rating: 3A@36VDC
• Output contact: NO/NC/COM
• Mechanical life: 500000 tested
• Operating temp: -20℃-~+50℃(-4°F~+122°F)
• Operating humidity: 0-95% RH
• Panel Material : 304 stainless steel panel with wiredrawing finish
• Switch Material: Plastic
• 7-inch, AWG 22 wire leads
• Weight: 240g/8.47oz

Package:

• 1 x Exit Button
• 1 x English manual
