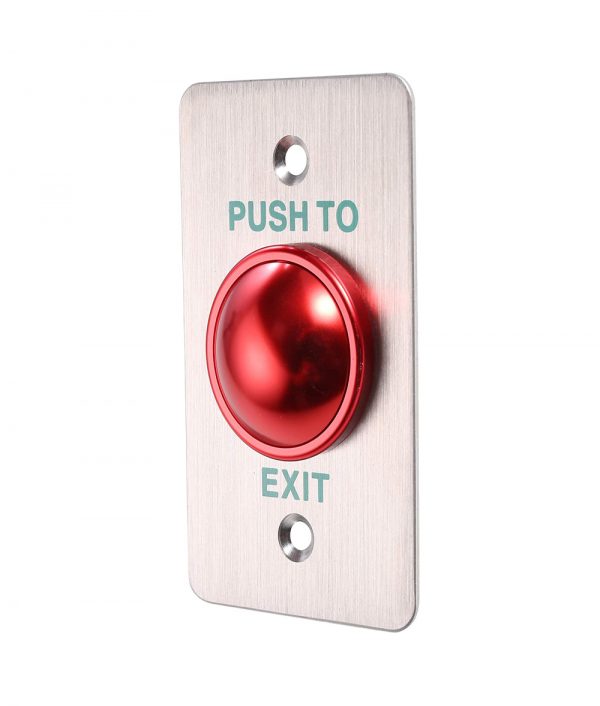

Stainless Steel Panel Door Release Switch Push to Exit Button for Access Control (Rectangle)

Stainless Steel Panel Door Release Switch Push to Exit Button for Access Control (Rectangle)

Features:

• Stainless steel Panel with Elegant Style.
• 500000 Cycles tests.
• NO/NC/COM Contact Output,Suitable for all kinds of Locks.
• The Best Choice for Access Control.

Specifications:

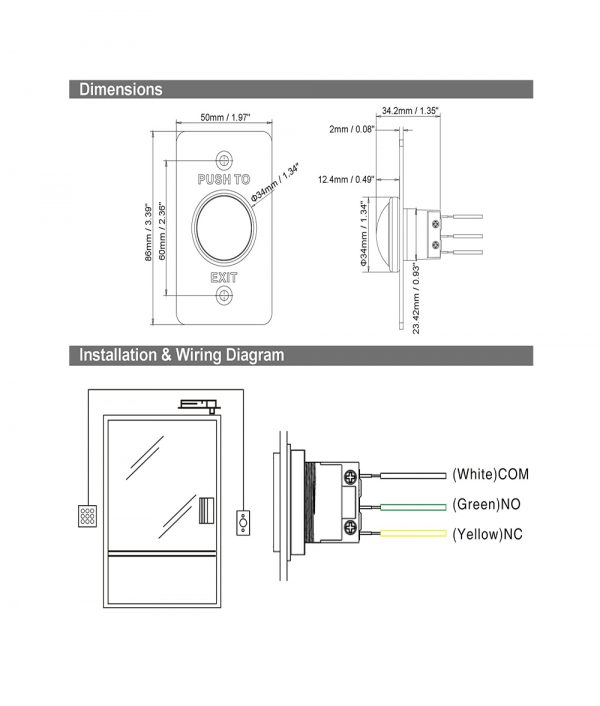

• Size: 86Lx50Wx34.2H(mm) / 3.39Lx1.97Wx1.35H(inches)
• Standard Structure: Stainless Steel
• Current Rating: 30VDC 1A

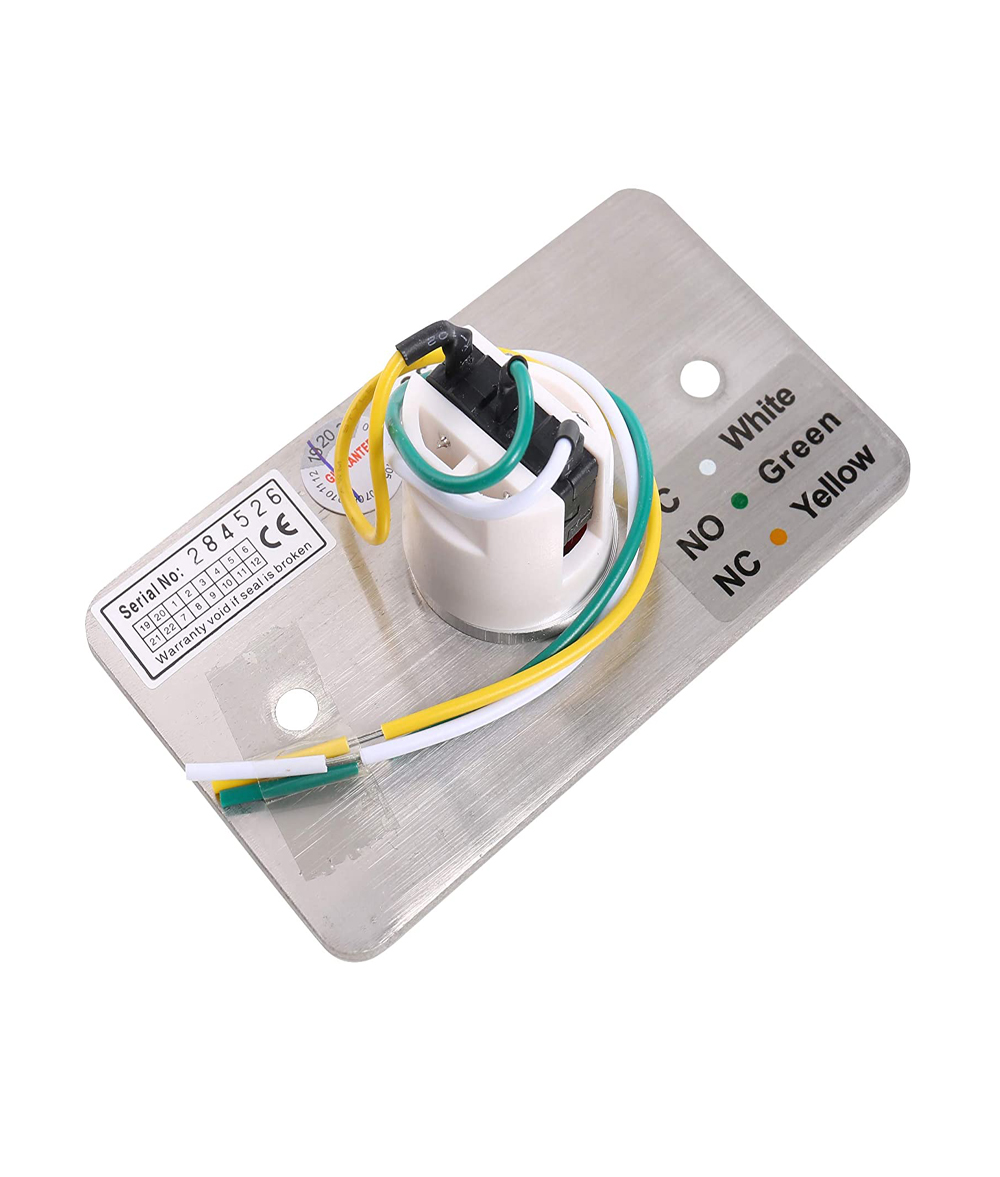

• Output Contact: NO(Green)/NC(Yellow)/COM(White)
• Mechanical Life: 500000 tested
• Suitable for Door: Hollow Door
• Operating Temp.: -20℃ ~ +60℃ (-4℉~140℉)
• Operating Humidity: 0~95%(RH)
• Panel Material: 304 stainless Steel panel with wire drawing finish
• Weight: 0.2kg / 7.05oz

Package:

1 x Door Release Button
