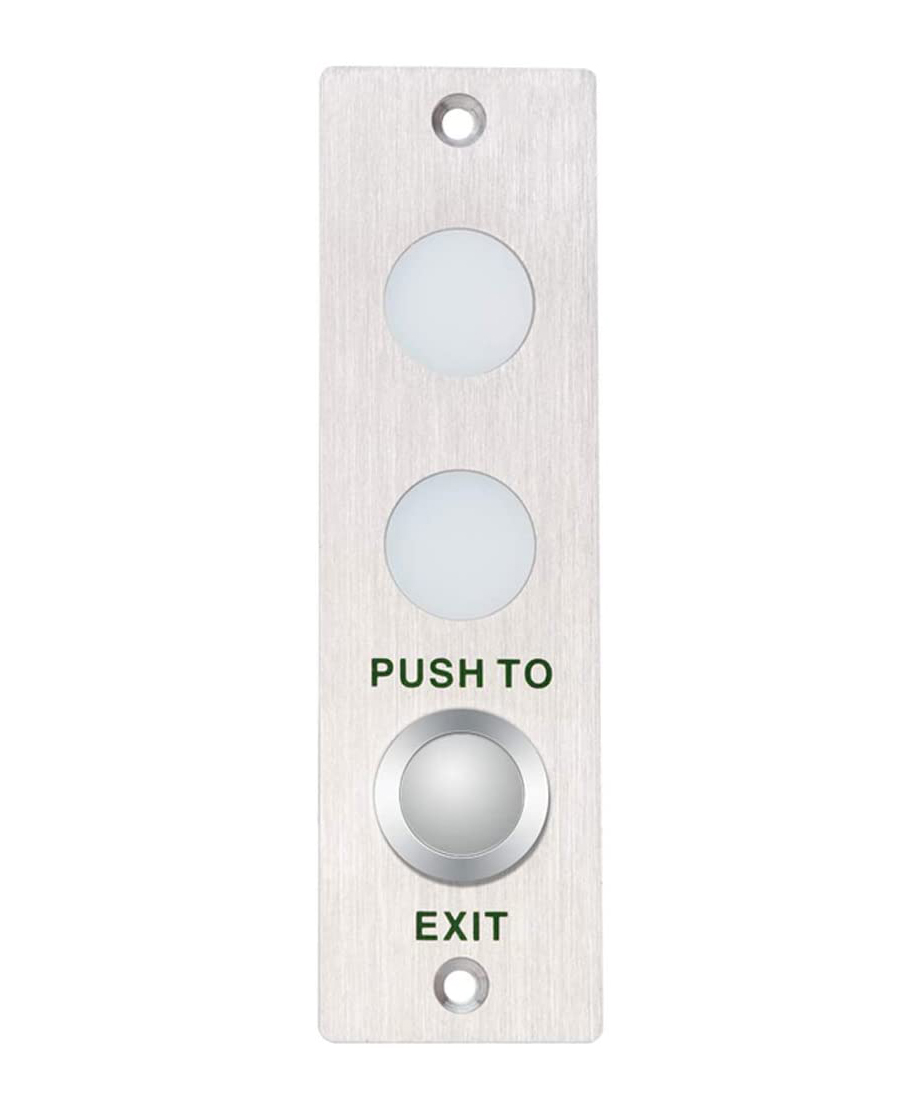

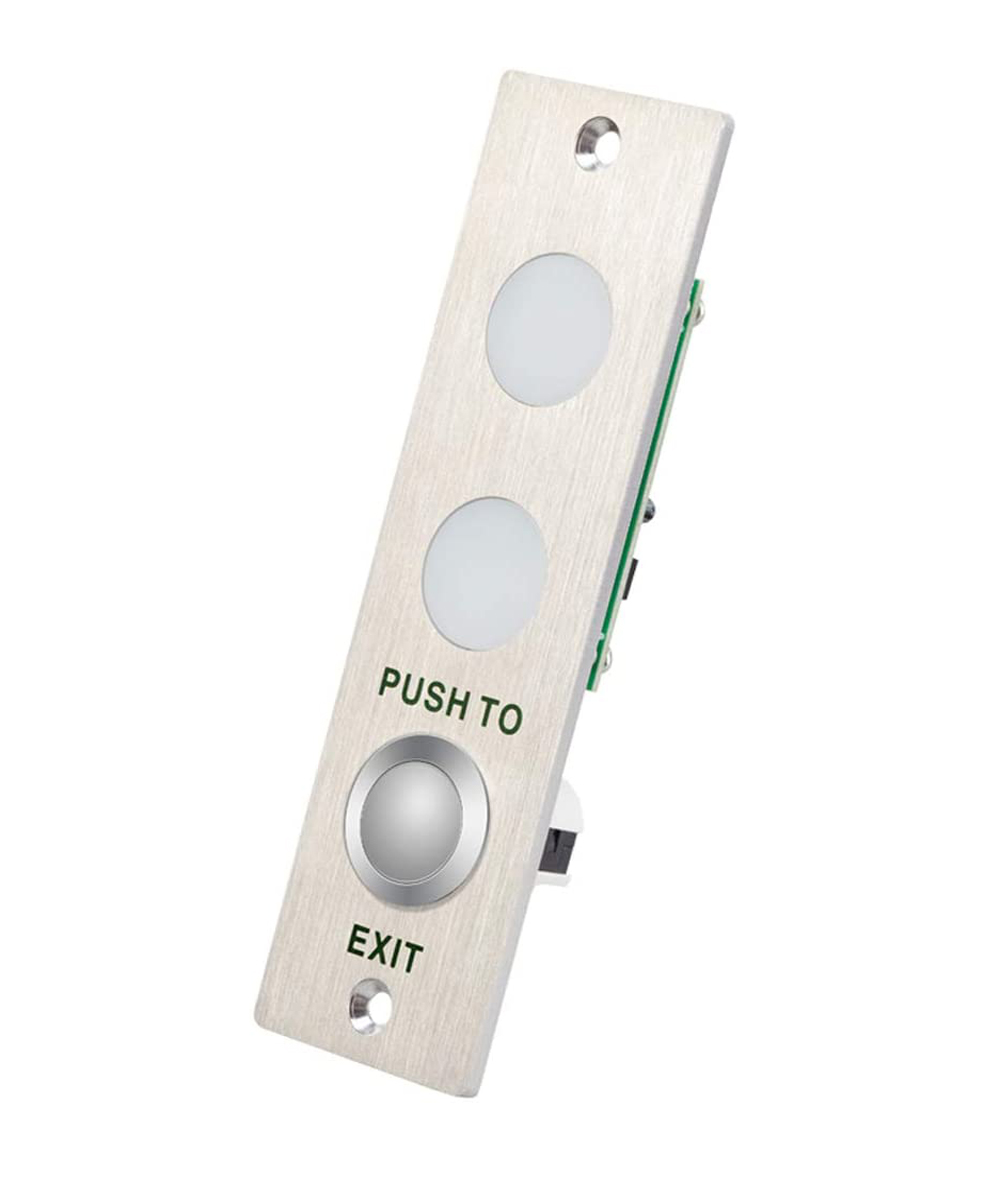

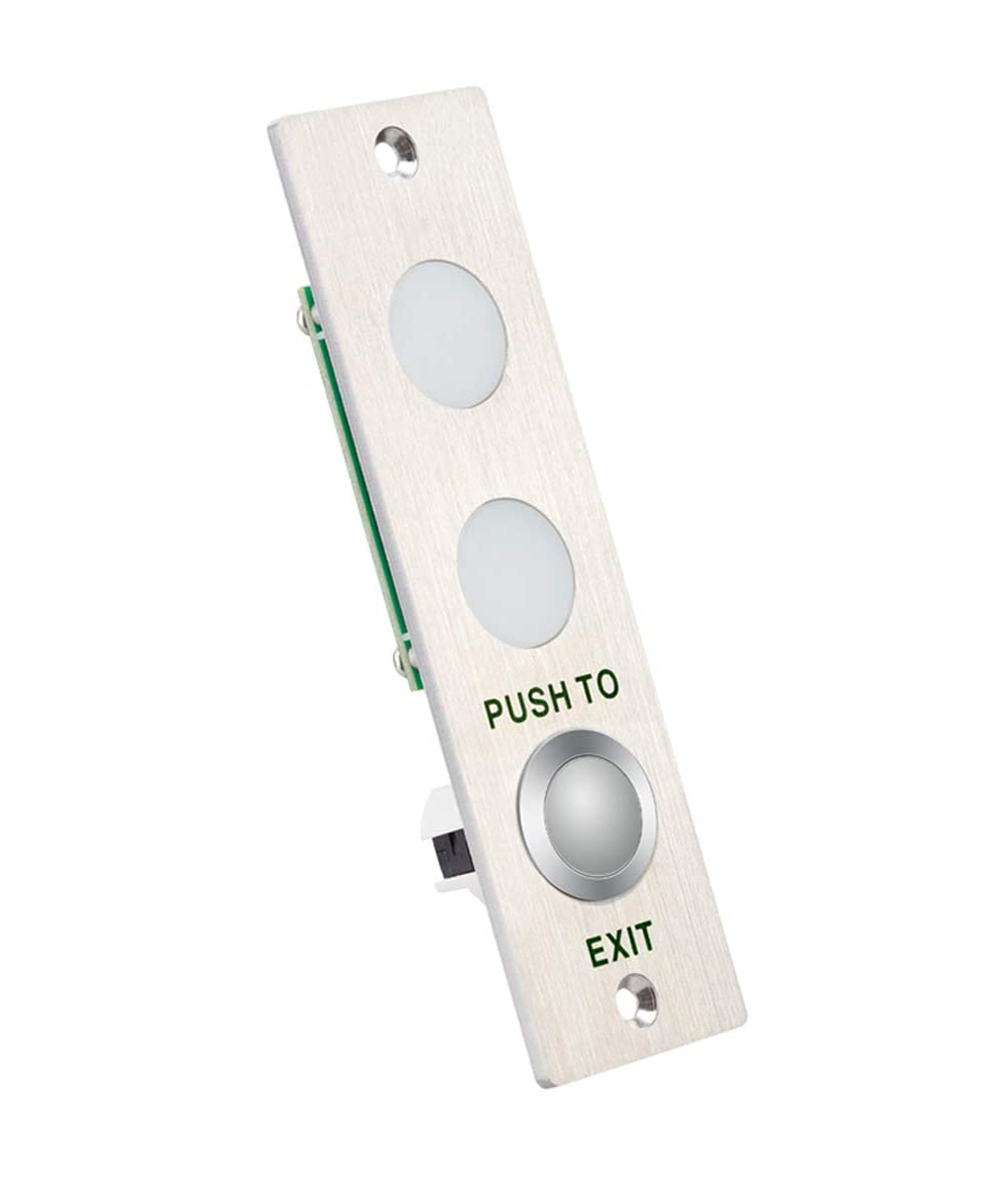

Stainless Steel Panel Door Release Exit Button with LED Light for Access Control

Stainless Steel Panel Door Release Exit Button with LED Light for Access Control

Features:

• 304 stainless steel panel with elegant style.
• 100000 cycles tests.
• NO/NC/COM contact output, suitable for all kinds of Locks.

Specifications:

• Material: Stainless Steel
• Input Voltage: 12~24VDC
• Current: ≤50mA
• Contact: NO（Green），NC（Yellow），COM（White）
• Electric Performance: 1A@30VDC
• Lock Signal: NC/COM/NO
• LED Status: When NC and COM connect,LED shows green; When NO and COM connect,LED shows red
• Operating temp: -20℃～+50℃
• Operating Humidity: 0-95% (relative humidity)

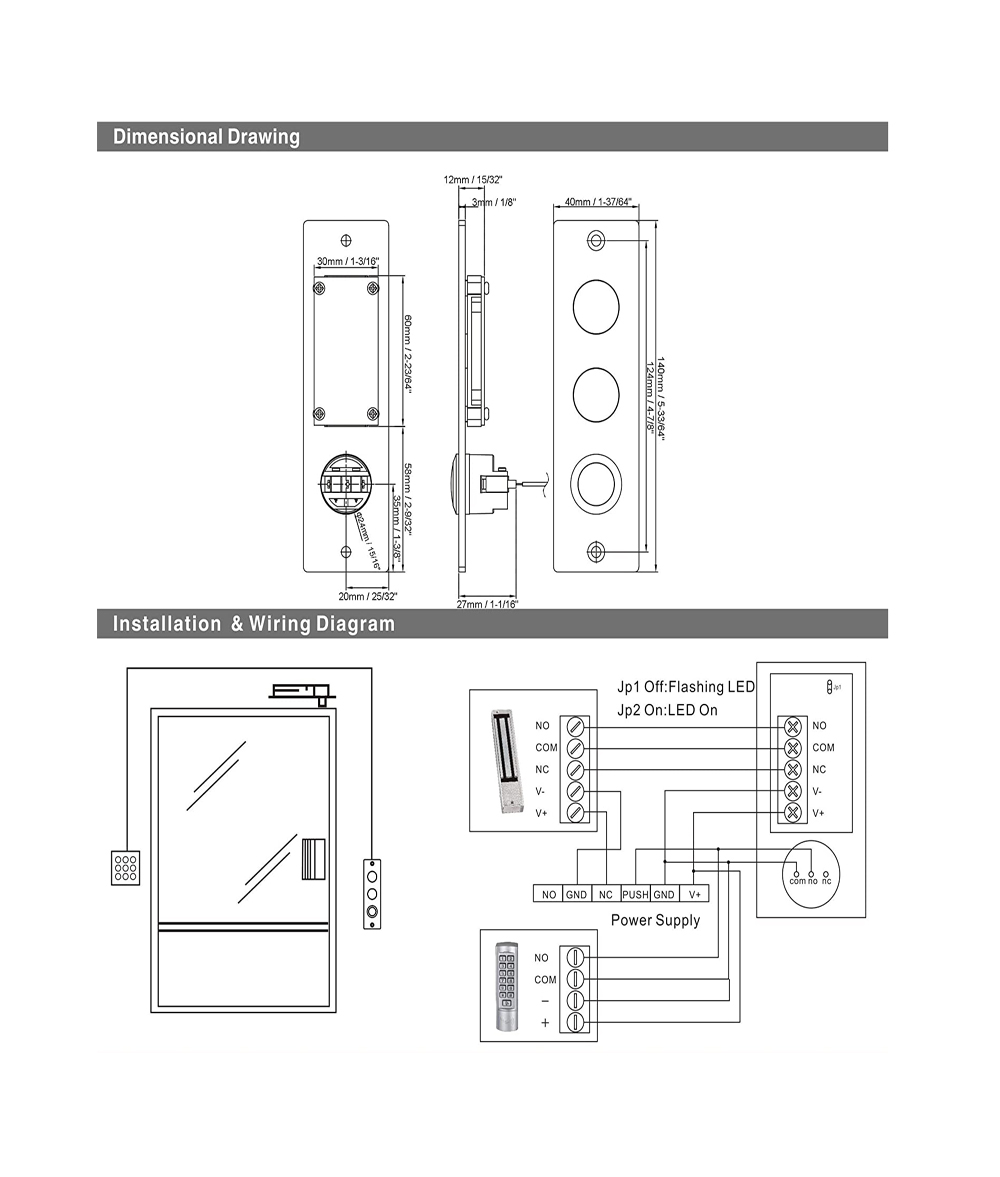

• Dimensions: 140Lx40Wx27H(mm) / 5-33/64″Lx1-37/64″Wx1-1/16″H

Package:

• 1 x Exit Button
