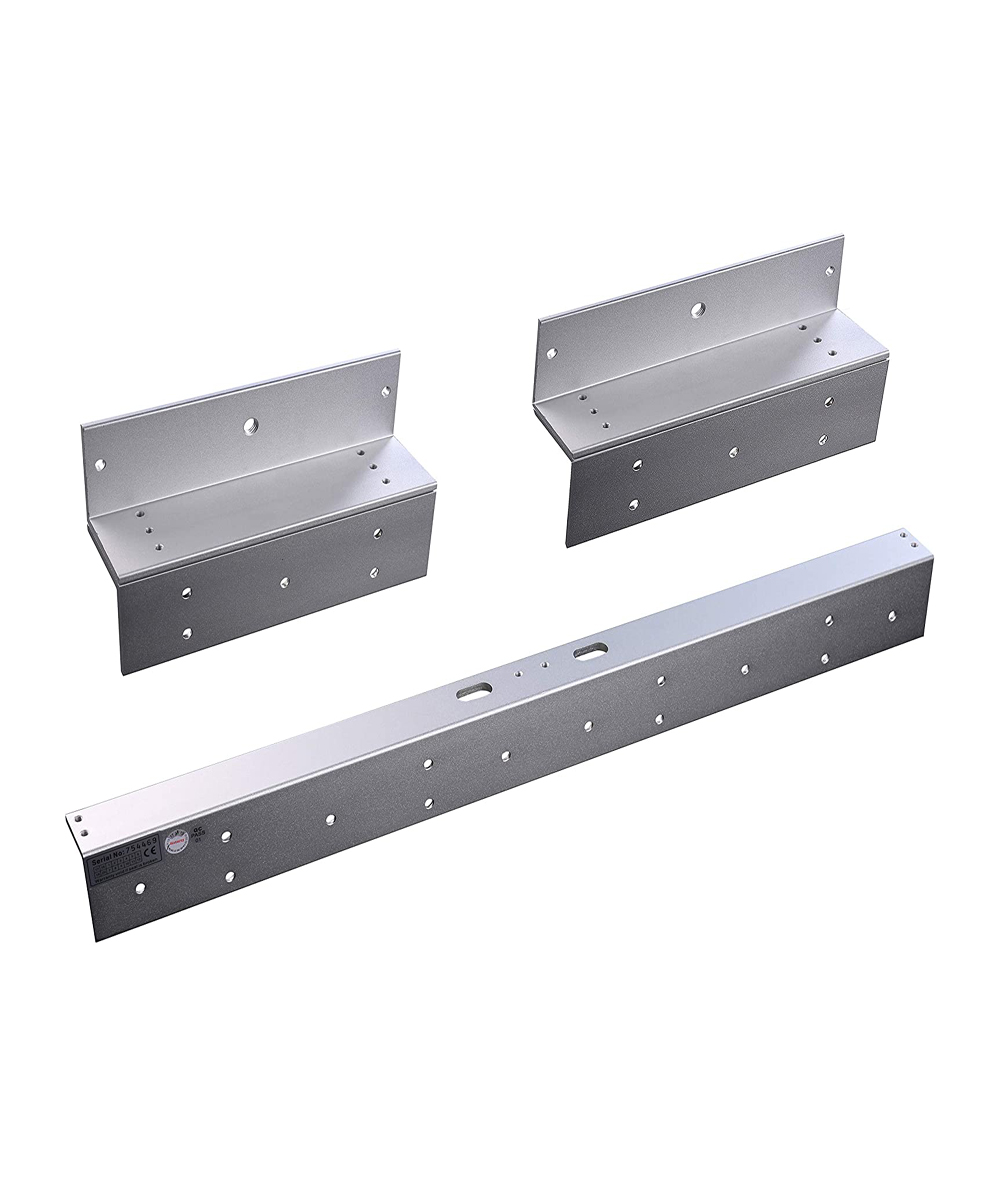

Z & L Bracket for Inward Double Door 600lb Force Electric Magnetic Lock

Z & L Bracket for Inward Double Door 600lb Force Electric Magnetic Lock

Features:

• It is made of two parts and it is used on the inward door
• High Strength Aluminum is the main constitute
• Special design, suitable with all kinds of double doors
• Suitable for narrow door
• The Best Choice of Access Control

Specifications:

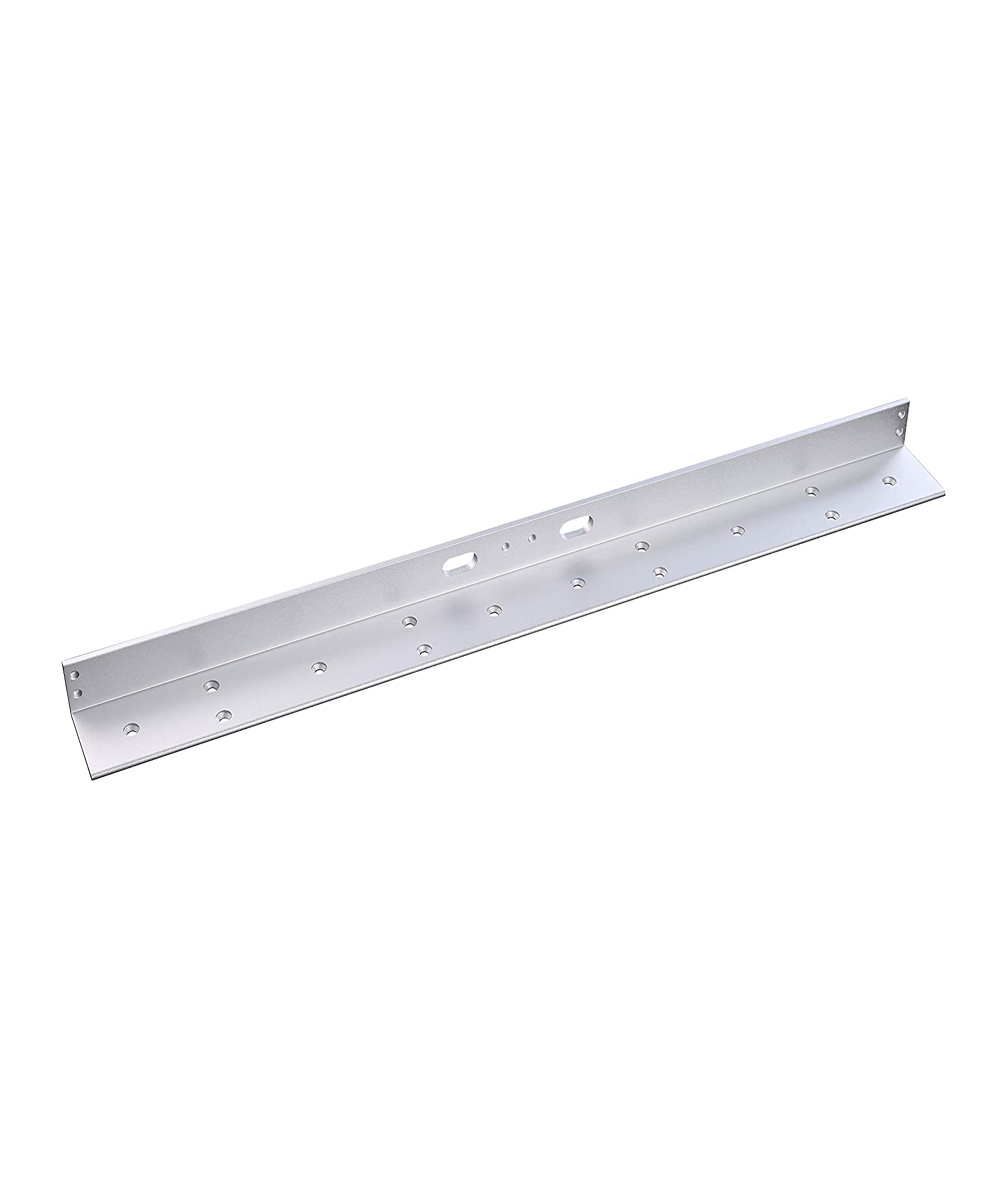

• L bracket size: 500×48.8×30.4(mm) / 19-11/16″ x 1-59/64″ x 1-13/64″

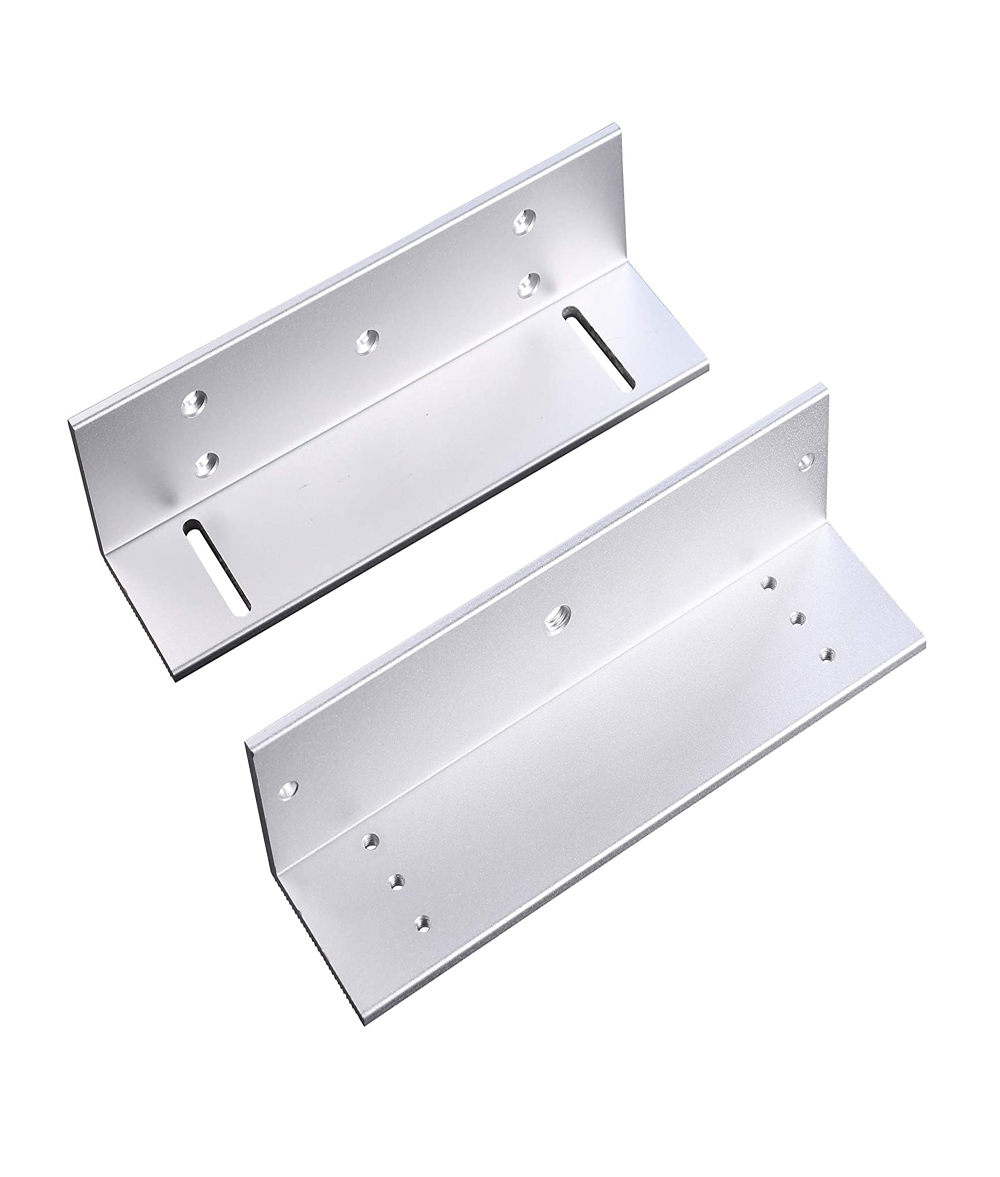

• Z bracket size: 180x50x50(mm) / 7-3/32 x 1-31/32″ x 1-31/32″
• Material: High strength aluminum, sandblast finished
• Suitable for: Narrow door
• Opening Mode: 90 Degree Door
• Finished for Shell: Anodized aluminum

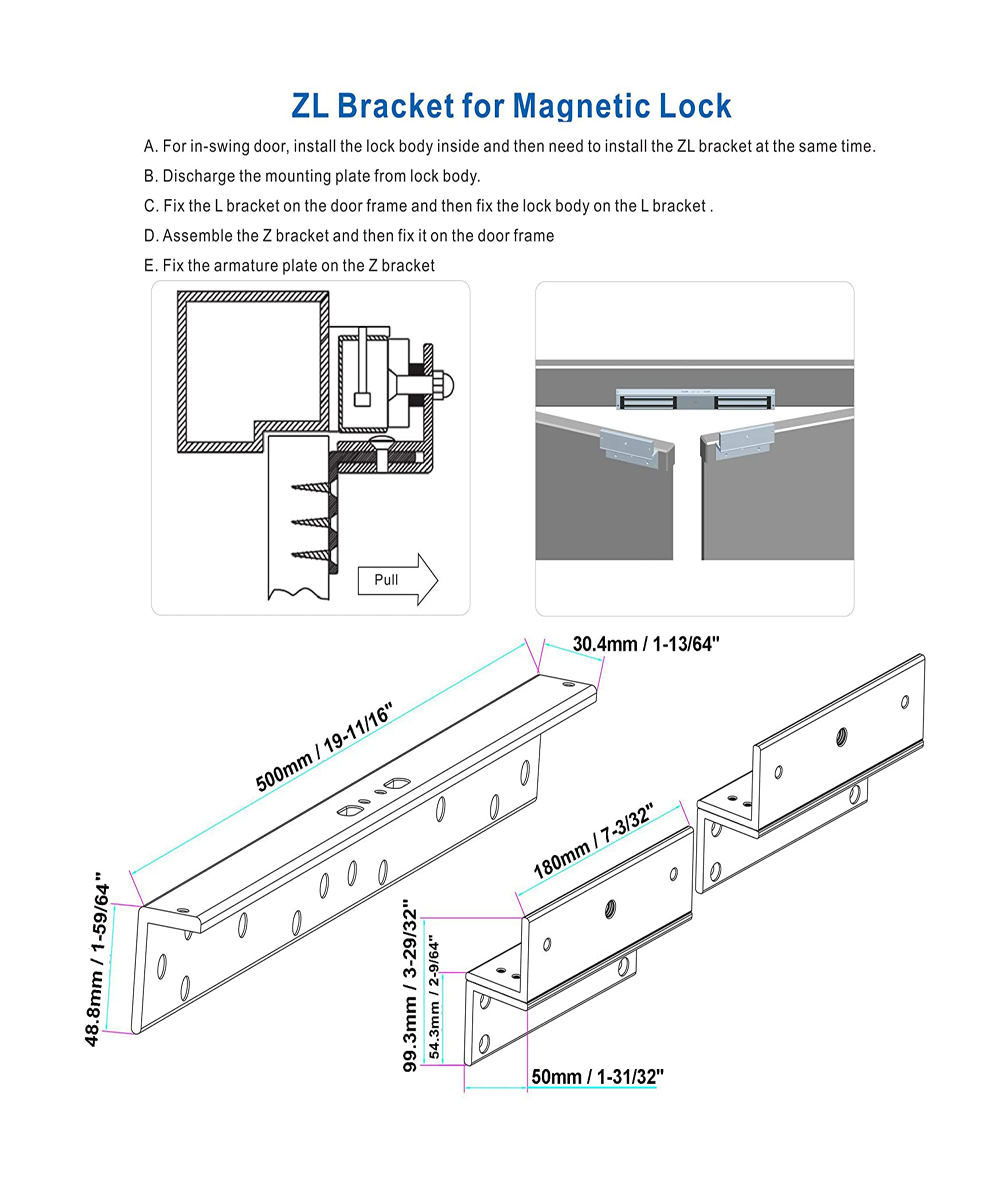

Installation:

• A. For in-swing door, install the lock body inside and then need to install the ZL bracket at the same time
• B. Discharge the mounting plate from lock body
• C. Fix the L bracket on the frame and than fix the lock body on the L bracket
• D. Assemble the Z bracket and then fix it on the door frame
• E. Fix the armature plate on the Z bracket

Package:

• 1 x Bracket
• 1 x English manual
