Outswinging Outdoor 600lb Electric Magnetic Lock with Wireless Remote Control Kit

Outswinging Outdoor 600lb Electric Magnetic Lock with Wireless Remote Control Kit



Describe:

• The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the receiver, which can program up to 40 remotes, and it has a range of 164 feet.
• The function of the receiver is that when the power is on, the mag lock of your kit is locked and when you press the remote the mag lock will unlock temporarily to open the door.
• 0/5/10 seconds autolock time delay adjustable, default is 5 seconds
• An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.

Remote Control Receiver:

• Voltage: 12VDC
• Frequency: 433MHz
• RF channels: One
• No. of Remotes that are able to connect to one Receiver: Up to 40
• DC Encoding Type: Learning code
• Working Range: 160ft in open aera, 15%-30% in reality
• Adjustable Locking Delay: 0/5/10sec
• Working Mode: Momentary/Toggle

Remote Transmitter:

• Working voltage: 6VDC (Built-in button battery)
• Operating Current: 8mA
• Powerd by: 2pcs CR2016/3V batteries (Included)
• Service Life of the Battery: 50000 cycles tested
• Transmitting Frequency: 433MHZ
• Key: 1 Key
• Case material: Plastic

Electric Magnetic Lock:

• Size (LxWxH): 235x46x25.5(mm) / 9-1/4″ x 1-13/16″ x 1″
• Holding Force: 280kg / 600Lbs
• Input Voltage: 12 or 24VDC
• Current: 12V/520mA or 24V/260mA
• Suitable: Wooden door, Glass door, Metal door, Fireproof door
• Signal Output: Lock Signal NO/COM
• Operating Temp: -10℃~+55℃(14℉-131℉)
• Waterproof Level: IP-68
• Weight: 2kg / 4.4lb

Push to Exit Button:

• Material: Zinc alloy
• Power Input: DC 12V
• Suitable Humidity: 10-80 percent
• Mechanical Life: > 500000 times
• Output Contact: NO / COM
• Operating Temperature: -10℃~50℃
• Dimension (WxHxD): – approx. 3-1/4″ x 1-1/4″x 1″ / – approx. 82.5×31.7×25.4(mm)

Power Adapter:

• Type: 12V 1A Power Supply Wall Charger
• Input: AC100V-240V 50/60Hz
• Max Output: DC12V / 1A (1000mA)
• AC Cord length: 4 feet / 1.2 meter
• Wire Type: 22AWG
• Output transformer adapter : 5.5X2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
• Net weight: 66g / 2.3oz
• Certificate: FCC

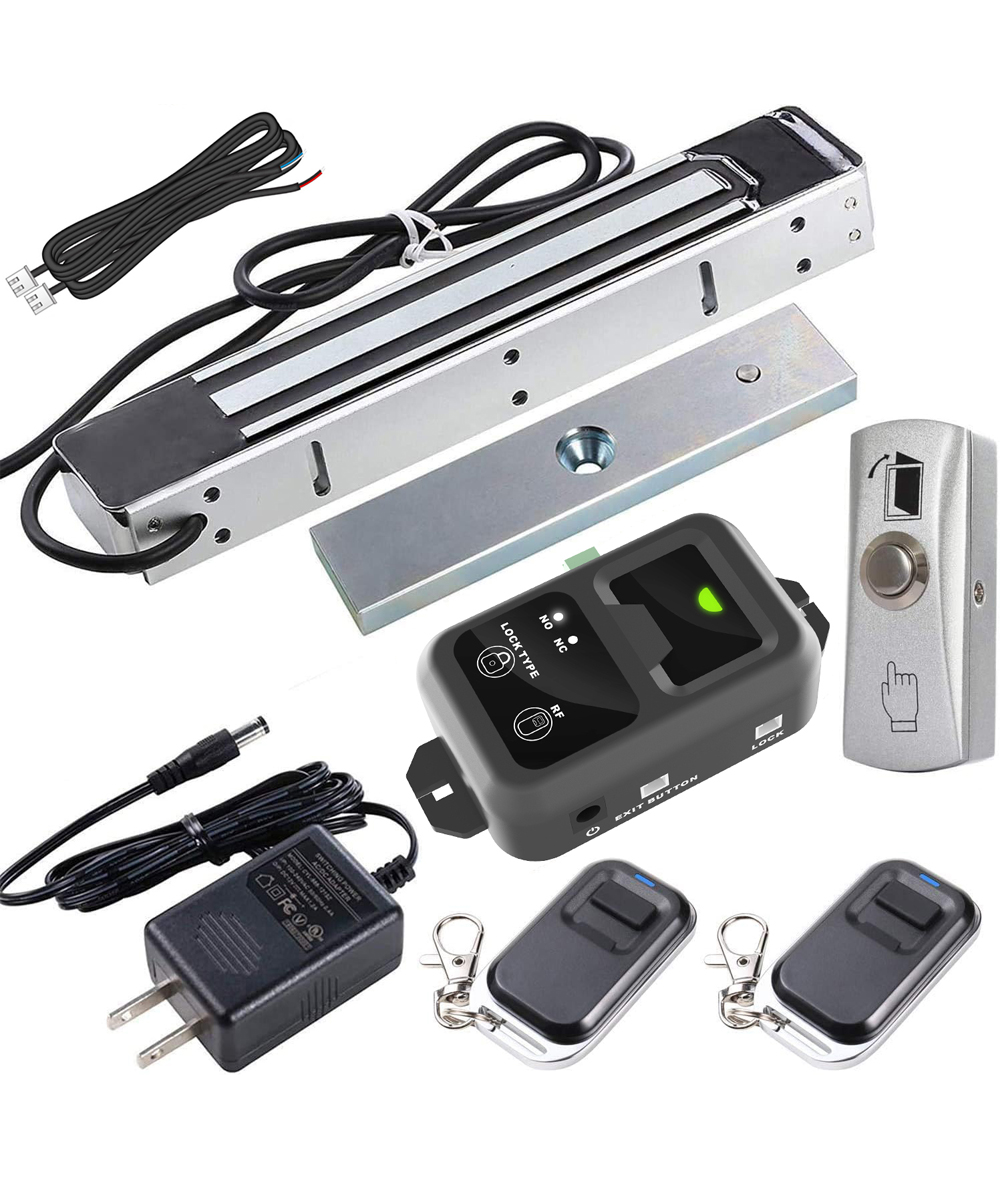

Package:

• 1 x Electric Magnetic Lock
• 1 x Remote Receiver
• 2 x Remote Transmitters
• 1 x Push to Exit Button
• 1 x Power Adapter
• 1 x English Manual
