Door Access Control Kit with Electric Drop Bolt Lock Remote Control for Narrow Door

Door Access Control Kit with Electric Drop Bolt Lock Remote Control for Narrow Door



Describe:

• The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the receiver, which can program up to 40 remotes, and it has a range of 164ft.
• The function of the receiver is that when the power is on, the lock of your kit is locked and when you press the remote once the lock will unlock temporarily to open the door.
• An exit button is included in this electric bolt lock system kit, and you could exit from indoors easily by pushing it once.
• 0/5/10 seconds locking delay time adjustable, default is 5 seconds.

Remote Control Receiver:

• Voltage: 12VDC
• Frequency: 433MHz
• RF channels: One
• No. of Remotes that are able to connect to one Receiver: Up to 40
• DC Encoding Type: Learning code
• Working Range: 160ft in open aera, 15%-30% in reality
• Adjustable Locking Delay: 0/5/10sec
• Working Mode: Momentary/Toggle

Remote Transmitter:

• Working voltage: 6VDC (Built-in button battery)
• Operating Current: 8mA
• Powerd by: 2pcs CR2016/3V batteries (Included)
• Service Life of the Battery: 50000 cycles tested
• Transmitting Frequency: 433MHZ
• Key: 1 Key
• Case material: Plastic

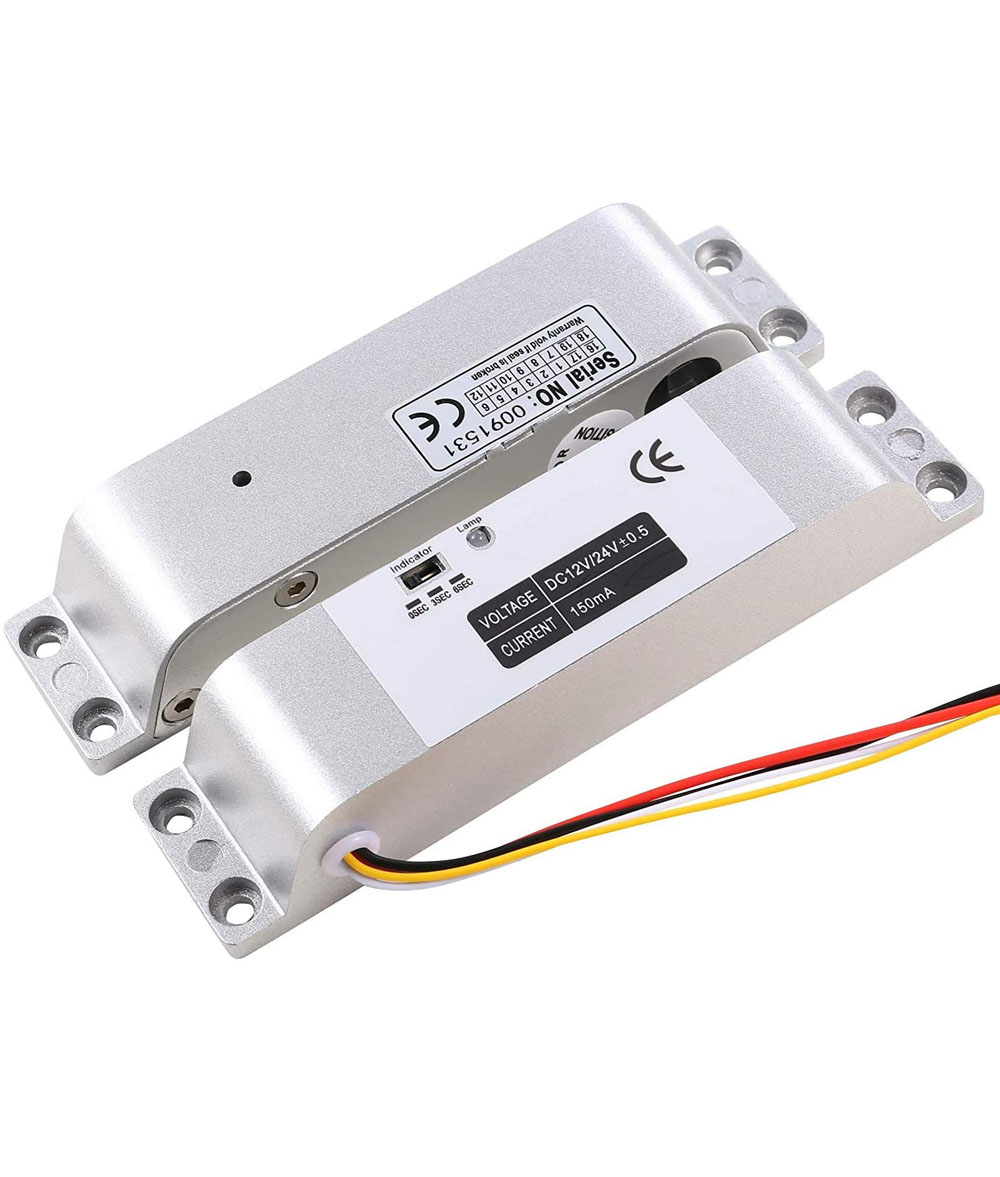

Electric Bolt Lock:

• Working Voltage: 12V/24V DC
• Working Current: Start state 1.2A; Persistent state 120mA
• Fail-Safe: Unlocked when power is removed
• Surface scrub treatment, durable and wear-resistant
• Lock body use hexagon screw, fixed panel, anti-theft and more security
• Coil type: Continuous working
• Locking mode: Magnetic induction
• Dimensions: 150x34x28mm/5.91×1.34×1.10(inch)
• Lock Core: The diameter is 12.5MM, extending the length of 15MM
• Warm Note: Yellow wire and white wire are useless, don’t need to be connected

Push to Exit Button:

• Dimensions: 90Lx35Wx26.5H(mm) / 3.54Lx1.38Wx1.04H(inch)
• Standard Structure: Stainless steel Panel, Steel Button
• Mechanical Life: 500000 tested
• Current Rating: 3A@36VDC Max
• Output Contact: NO/COM
• Operating Temp: 10～+55℃(14-131F)
• Operating Humidity: 0-95% (relative humidity)
• Panel Material: Stainless steel Panel, Wire Drawing Finished
• Suitable for hollow door

Power Adapter:

• Type: 12V 1A Power Supply Wall Charger
• Input: AC100V-240V 50/60Hz
• Max Output: DC12V / 1A (1000mA)
• AC Cord length: 4 feet / 1.2 meter
• Wire Type: 22AWG
• Output transformer adapter : 5.5X2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
• Net weight: 66g / 2.3oz
• Certificate: FCC

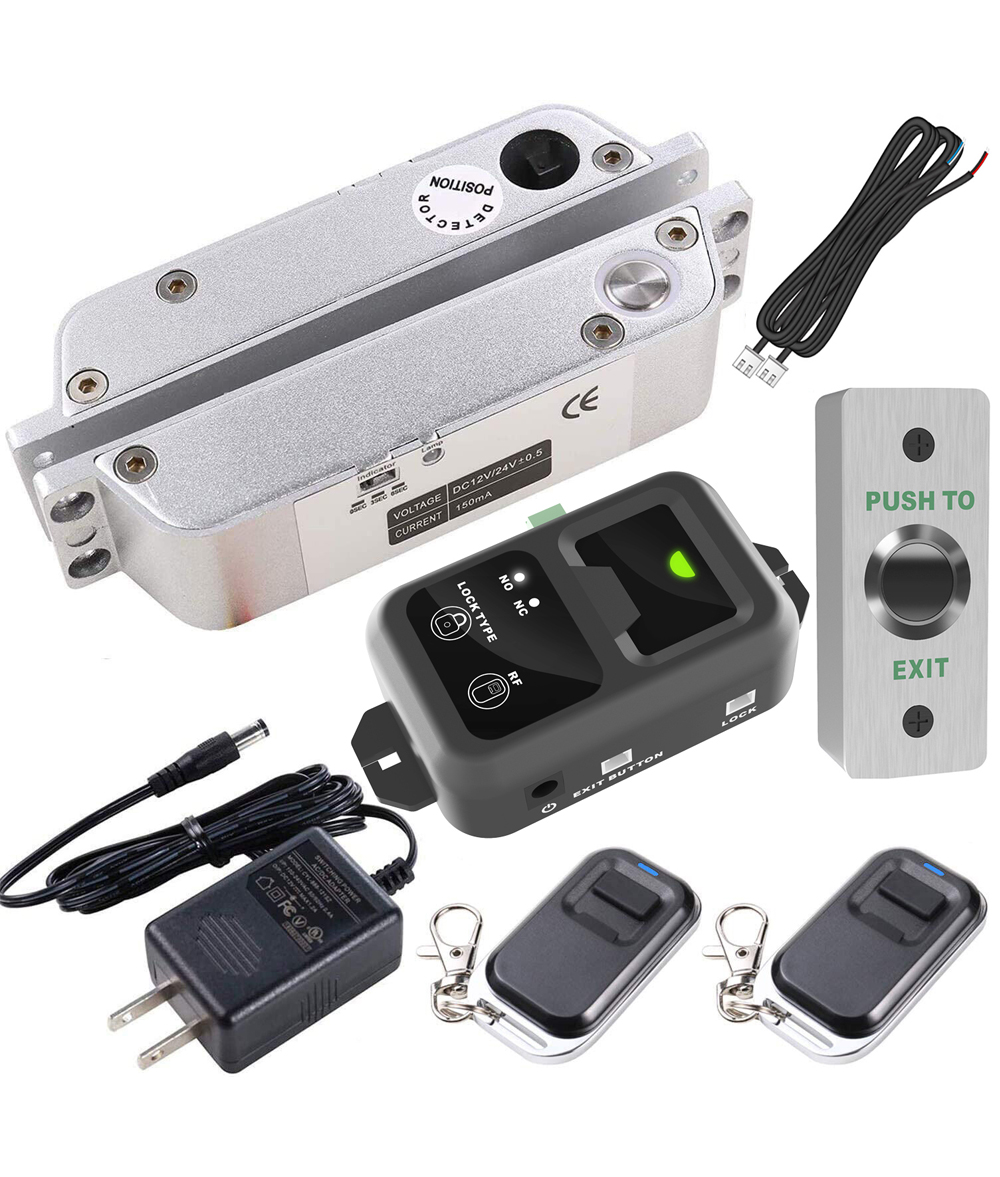

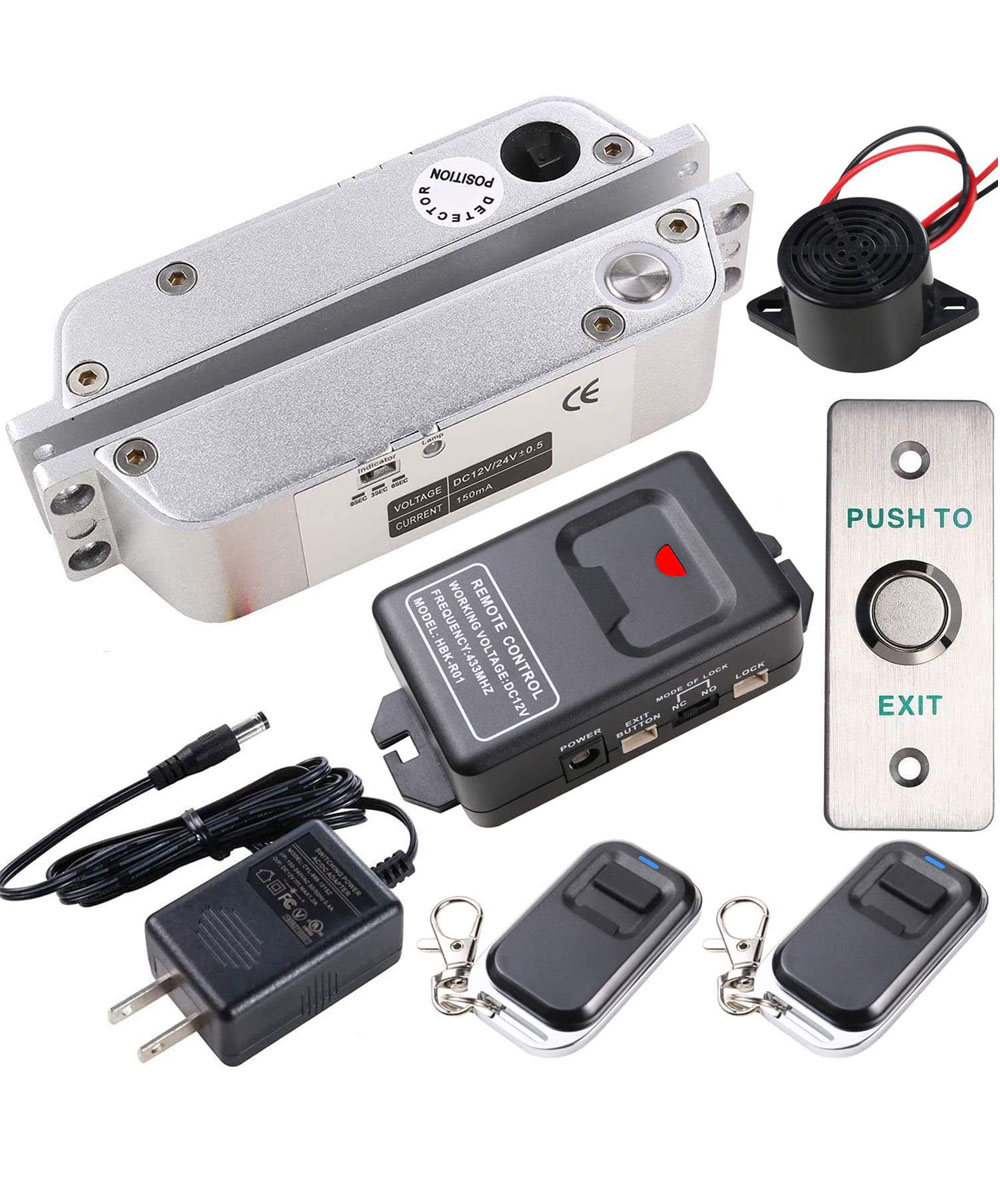

Package:

• 1 x Electric Bolt Lock
• 1 x Remote Receiver
• 2 x Remote Transmitter
• 1 x Push to Exit Button
• 1 x Power Adapter
• 1 x English Manual
